Includes:
• (1) 3-1/4" Planer Blade, 2/pk (D-46246)
• (1) Blade Gauge (123010-1)
• (1) Socket Wrench (782209-3)
• (1) Guide Rule
• (1) Depth Guide

Features:
• Makita-built brushless motor delivers 12,000 RPM for faster stock removal
• Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
• Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and optional dust extractor
• AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
• 2-blade cutter head with double edge carbide blades for added performance and smooth finish
• High power-to-weight ratio; weighs only 7.8 lbs. with battery (battery not included)
• Planes up to 3-1/4" wide and 1/8" deep in a single pass with ability to rabbet up to 1" deep
• Click depth adjustment knob with easy-to-read scale with settings from 0" to 7/64" for precise depth adjustment
• Chip ejection can be directed to either side of the tool for convenience
• Spring-loaded stand elevates the base to protect the blades and workpiece
• Precision machined aluminum base for planing accuracy; features 3 chamfering groove options for convenience
• Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job
• Easy blade setting system for fast blade installation
• Electric brake for maximum productivity
• Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
• Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
• Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
• Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
• Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
• 3-year limited warranty
• Battery and charger sold separately
• Only use genuine Makita batteries and chargers

Specifications:
• Planing Width: 3-1/4"
• Planing Depth: 1/8"
• No Load Speed: 12,000 RPM
• Overall Length: 12-19/32"
• Battery: 18V LXT® Lithium-Ion
• Max. no load speed: 12,000 RPM
• Power Type: Cordless
• Net Weight: 6.5 lbs.
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushless
• Automatic-start Wireless System (AWS™): Capable (transmitter sold separately)
• Shipping Weight: 10.03 lbs.
• UPC Code: 088381-890106

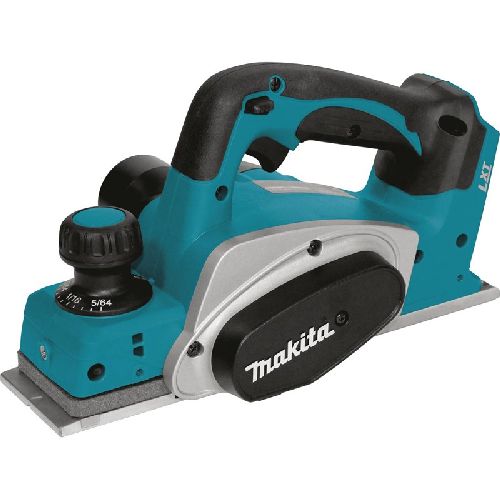

The 18V LXT® Brushless Cordless 3-1/4” Planer, AWS® Capable, Tool Only (XPK02Z) is engineered for door and window installers, finish carpenters, deck installers, remodelers, and general contractors seeking a brushless cordless planer.

The planer delivers 12,000 RPM for fast stock removal. It will plane up to 3-1/4” wide and 1/8” deep in a single pass. A Makita-built brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. A 2-blade cutter head and double-edge carbide blades for added performance and a smooth finish.

Other features include a spring-loaded stand to elevate the base and protect the blades and work piece and a click-depth adjustment knob has an easy-to-read scale with settings from 0” to 7/64” for precise depth adjustment. In addition, the precision-machined aluminum base is engineered for increased planning accuracy and offers three chamfering groove options. Chip ejection can be directed to either side of the tool for convenience. The blade setting system is engineered for fast blade installation, with an electric brake for maximum productivity.

The Makita® LXT Cordless System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries, takes a user from power tools to outdoor power equipment to get the job done. Makita 18V LXT Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. AWS is activated with an AWS Wireless Transmitter (198901-5, sold separately).

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
