Makita XPS02ZU Description

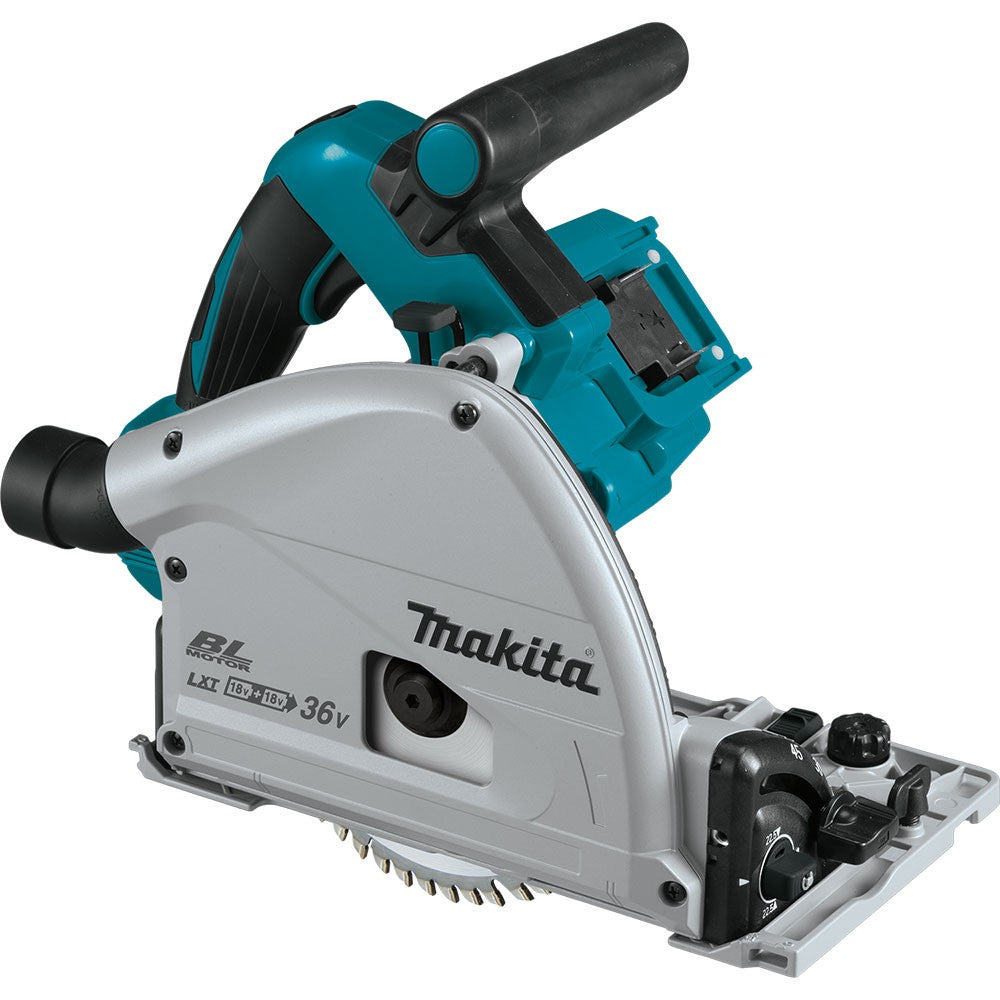

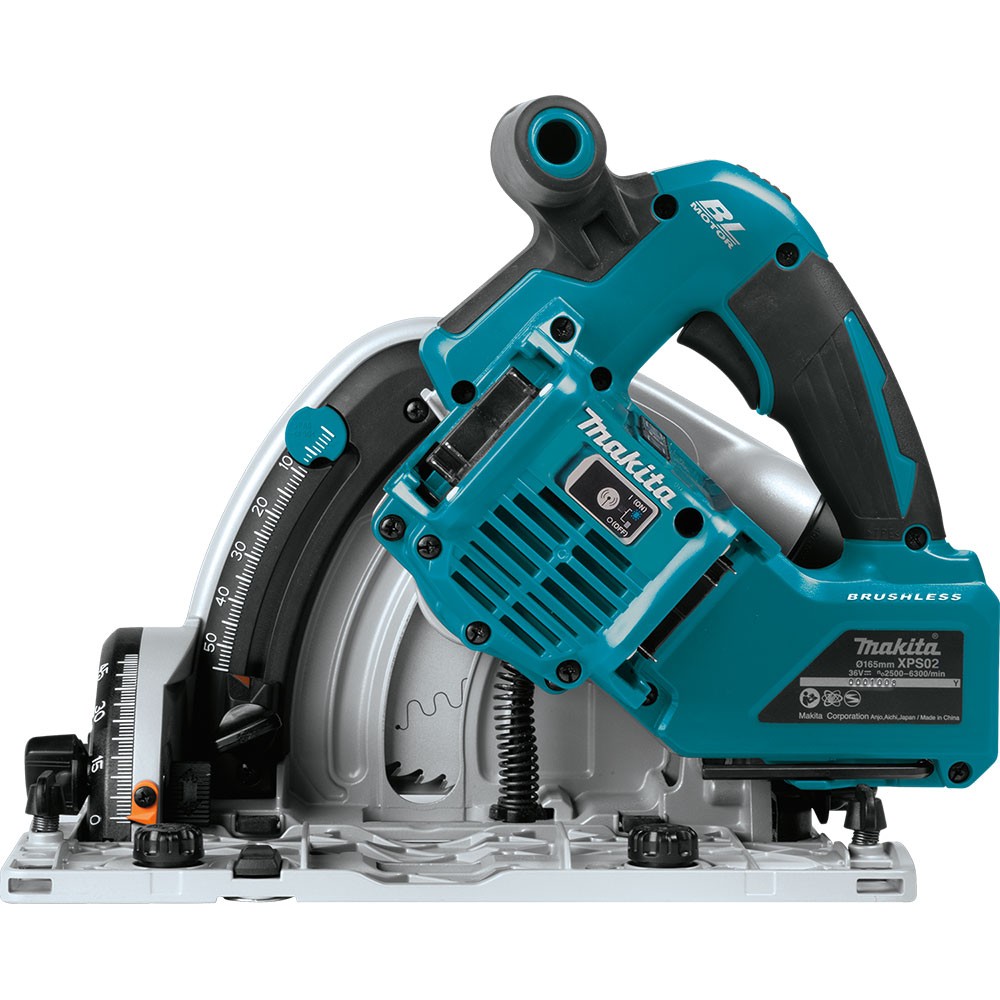

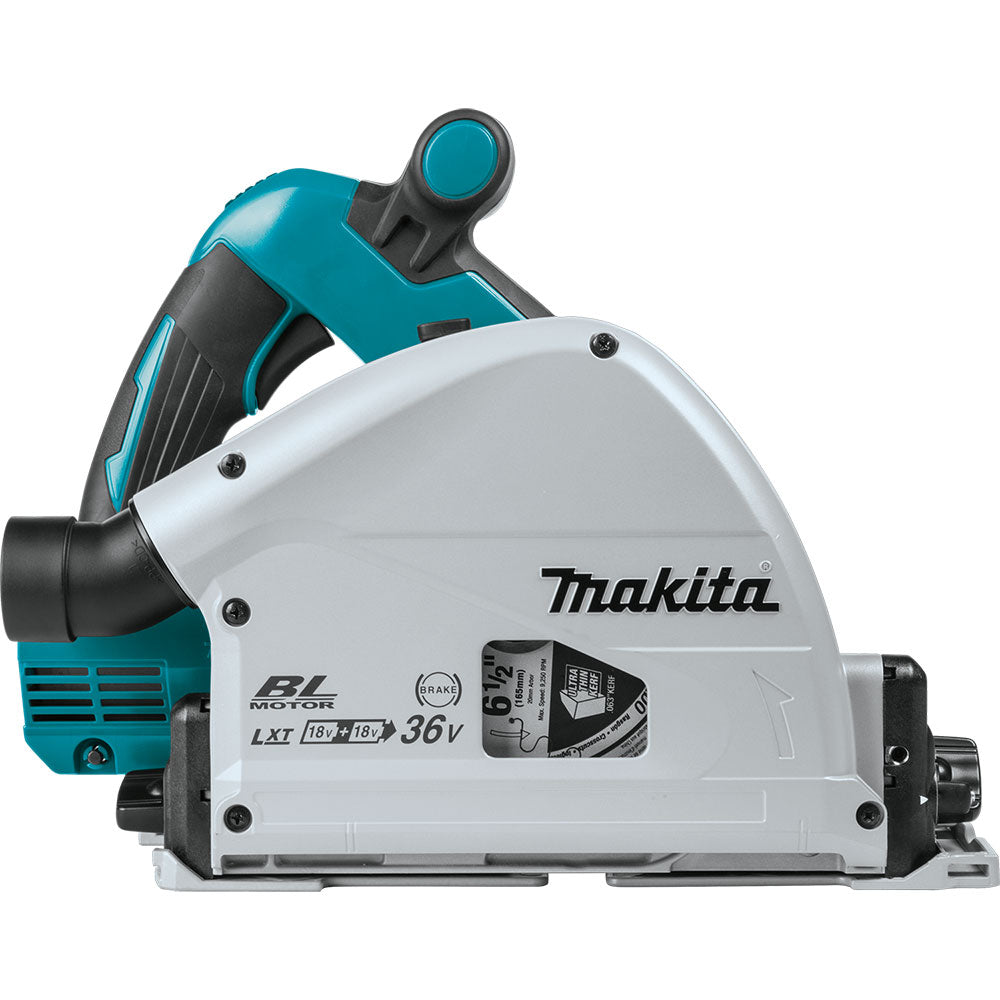

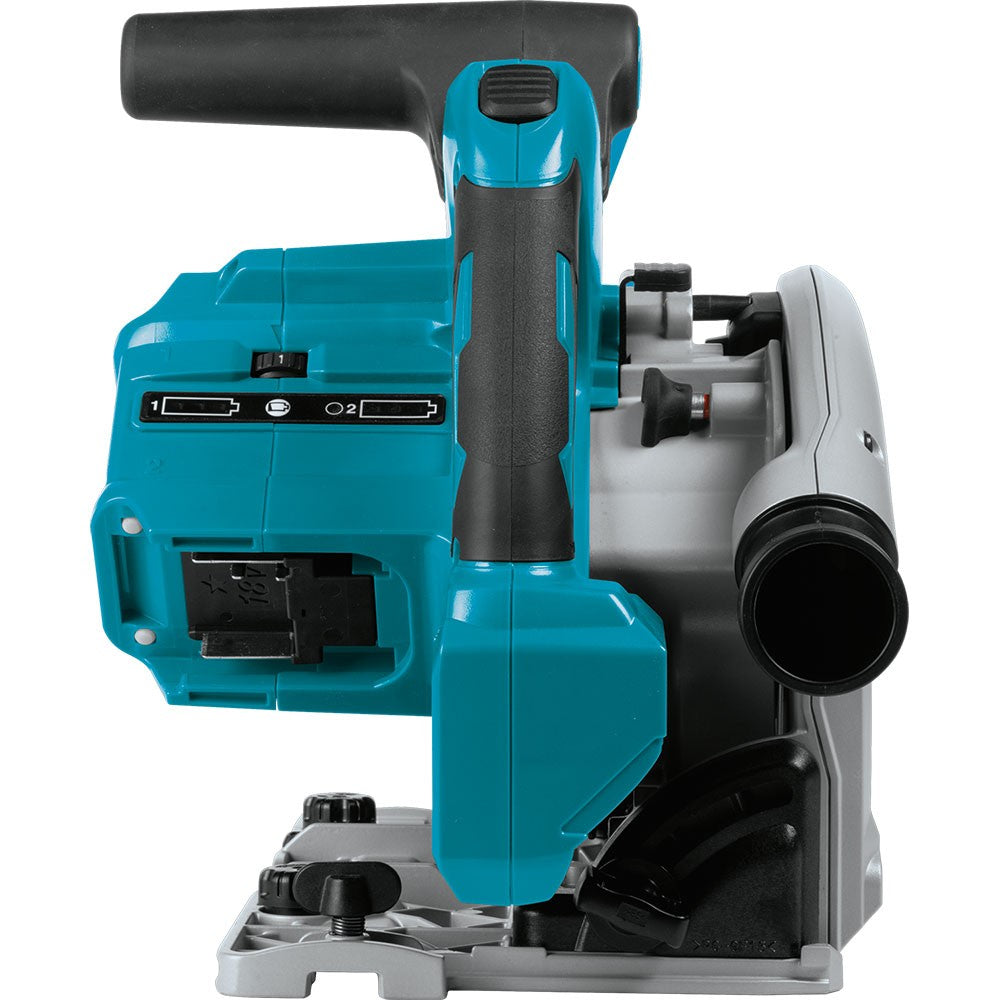

The Makita 18V X2 (36V) LXT Brushless 6-1/2” Plunge Circular Saw, with AWS™ (XPS02ZU) delivers precise and more accurate cutting when combined with an optional guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT® batteries with Automatic Speed Change™ Technology, which adjusts cutting speed and torque during the cut for optimum performance. The XPS02ZU is equipped with Auto-Start Wireless System (AWS™), which uses Bluetooth™ technology for wireless power-on/off communication with the AWS-equipped dust extractor. AWS™ is intelligent communication that eliminates cords and reduces noise. The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2-3/16” cutting capacity at 90 degrees, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) a Plunge Circular Saw is a more portable option to a table saw for select applications and is ideal for use on the job site or in a workshop. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

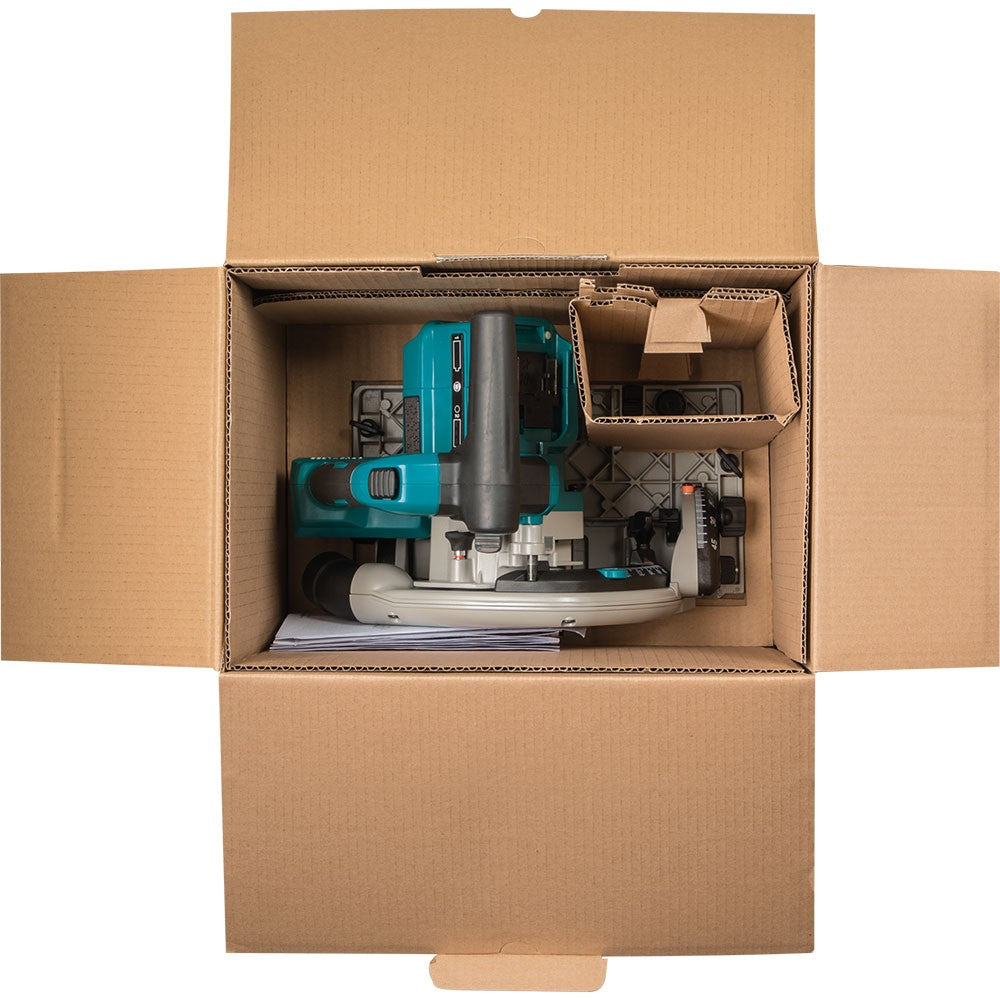

Makita XPS02ZU Includes
- (1) 18V X2 LXT® Lithium?Ion (36V) Brushless Cordless 6?1/2" Plunge Circular Saw

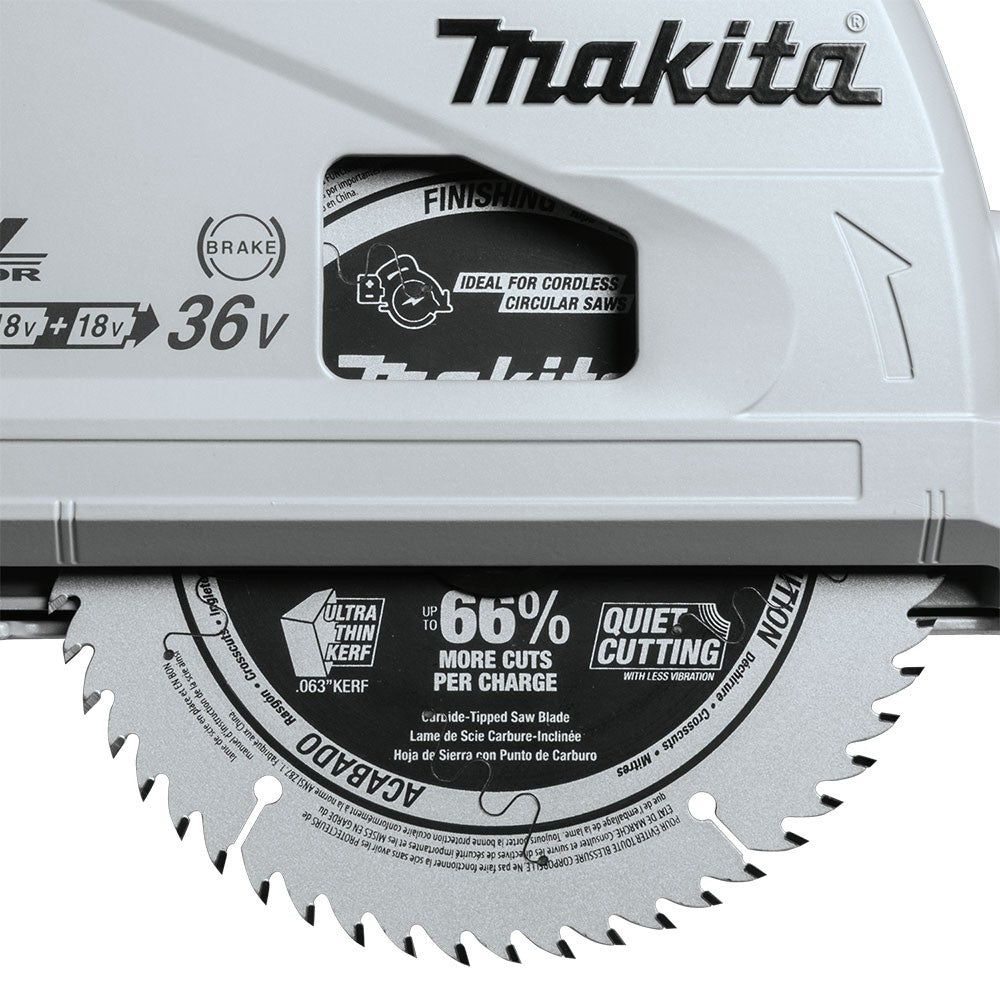

- (1) 6-1/2" 56T C.T. Cordless Plunge Saw Blade, Wood, MDF, Laminate (B-57342)

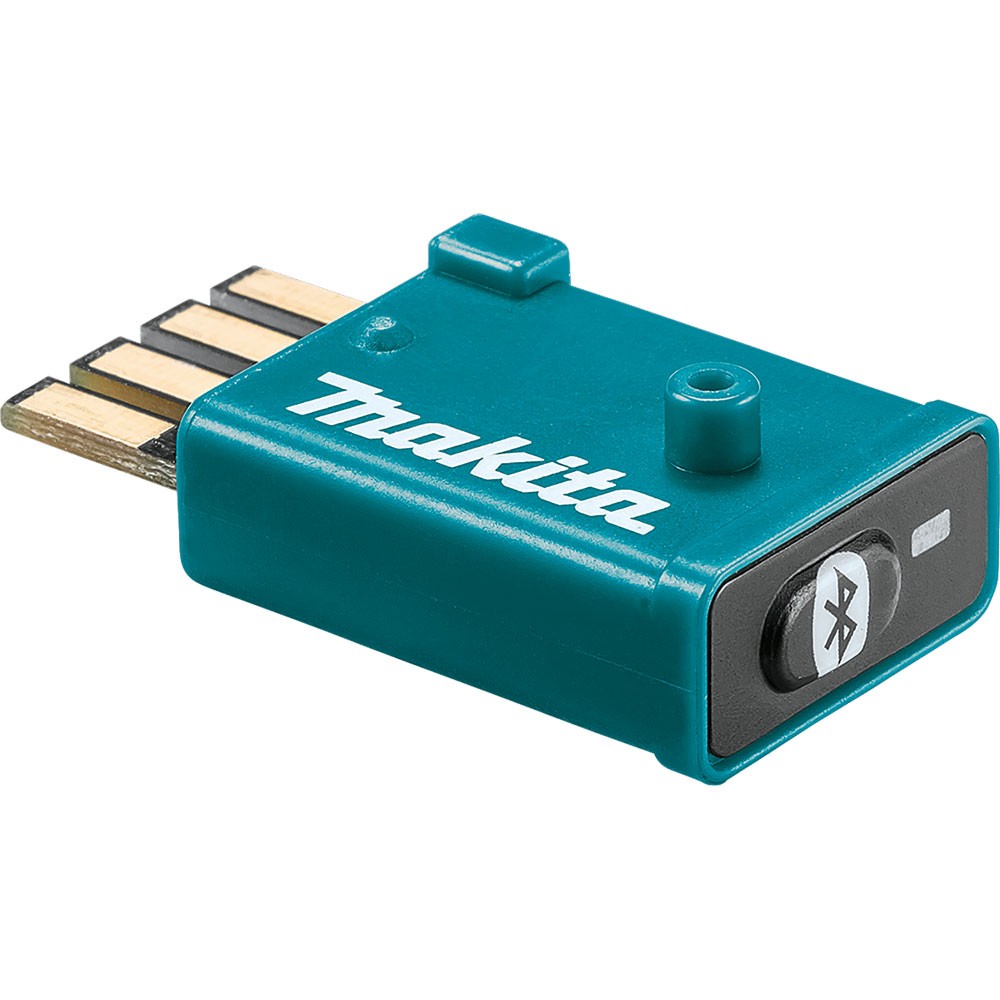

- (1) Auto-Start Wireless Transmitter (198901-5)
- (1) Hex Wrench (783203-8)
Makita XPS02ZU Features

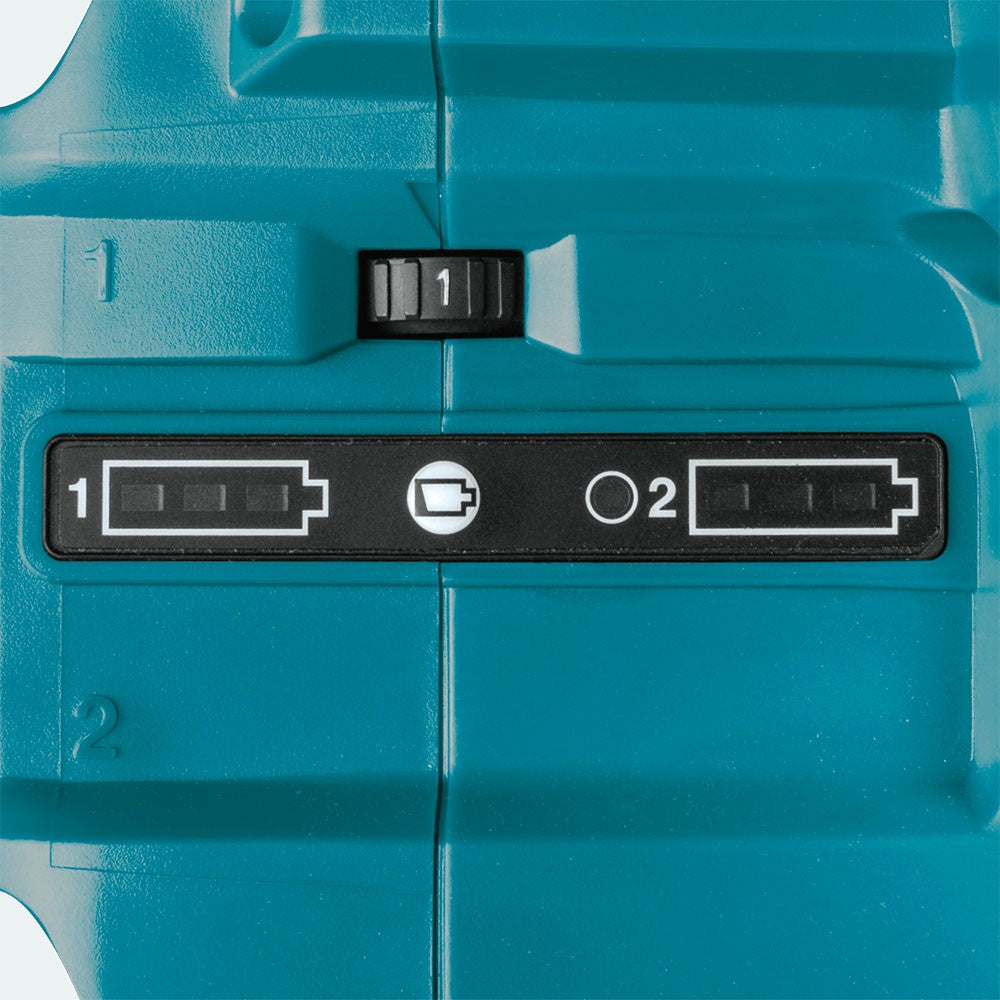

- Powered by two LXT® batteries; X2 LXT® technology delivers more power, performance and run time without the hassles of a cord (batteries not included)
- Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
- X2 LXT® technology delivers up to 125 cuts per charge in 4x8 sheets of 1/2" plywood per charge using two 5.0Ah batteries
- Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades (includes wood blade, other blades sold separately)

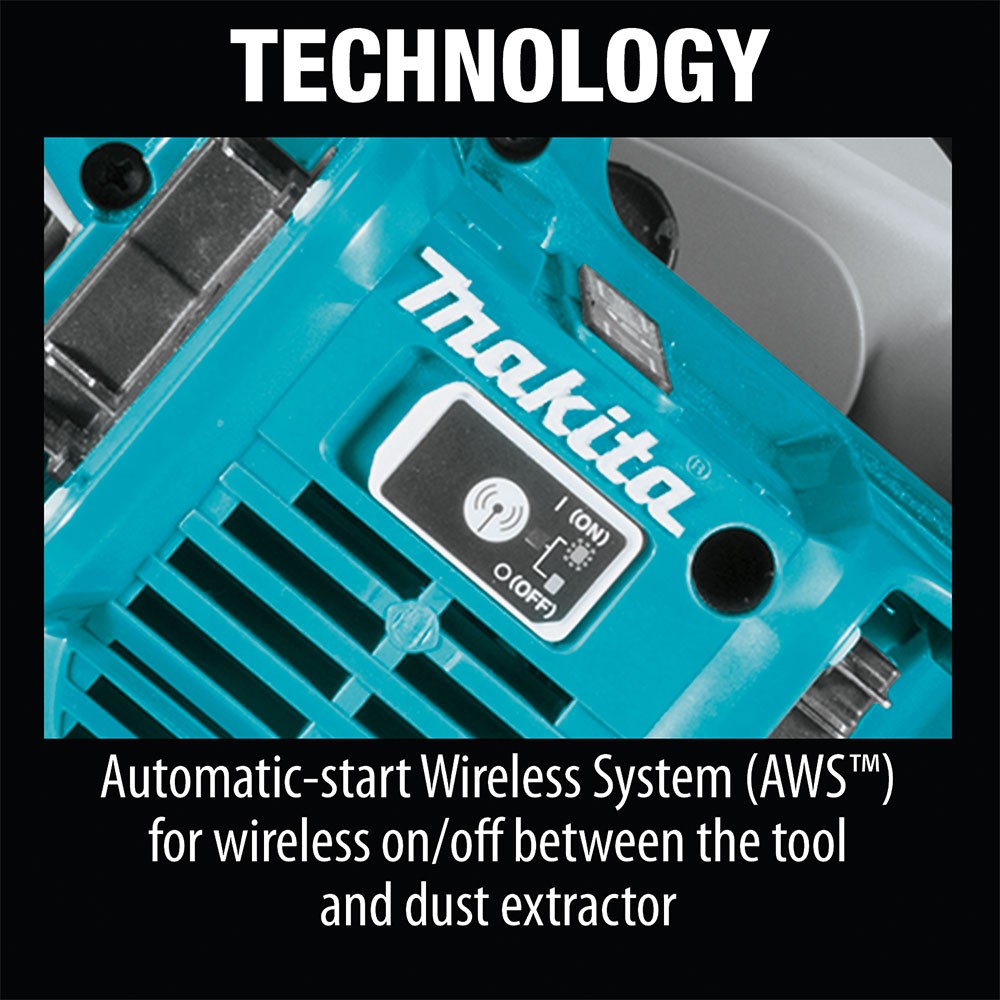

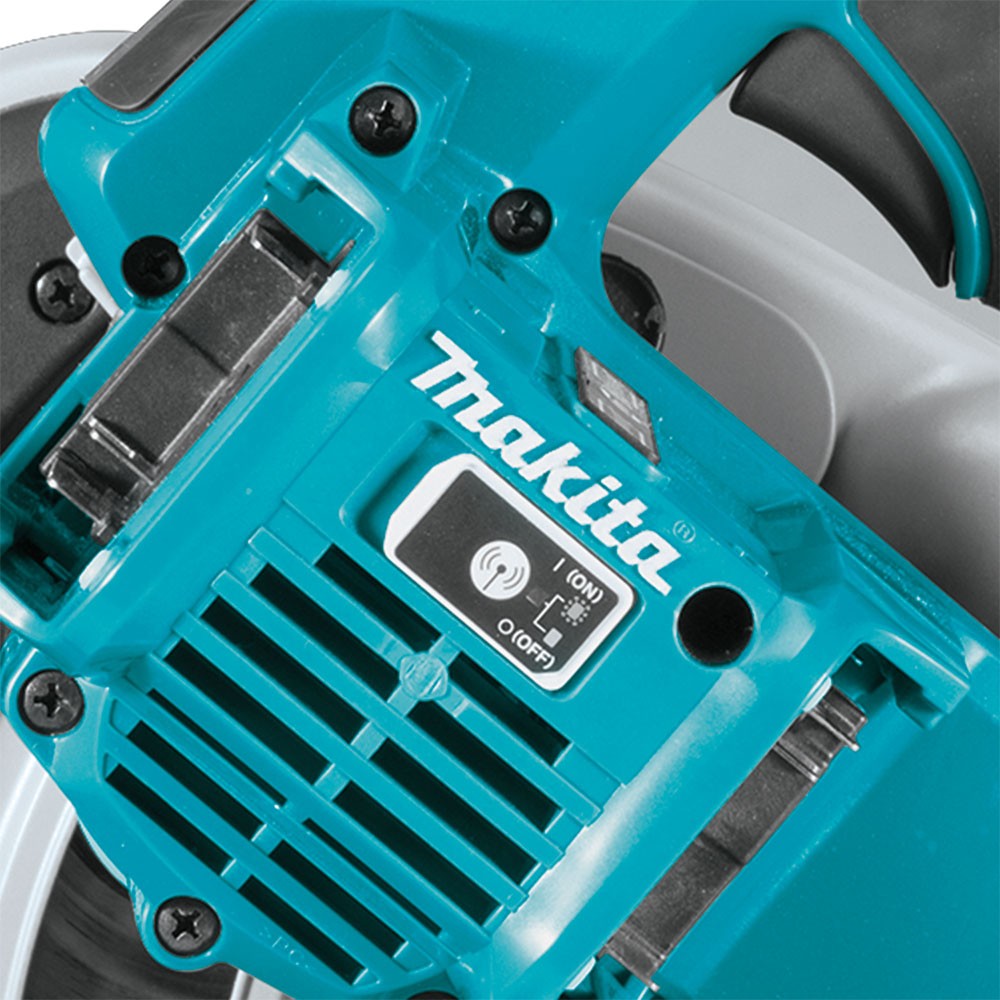

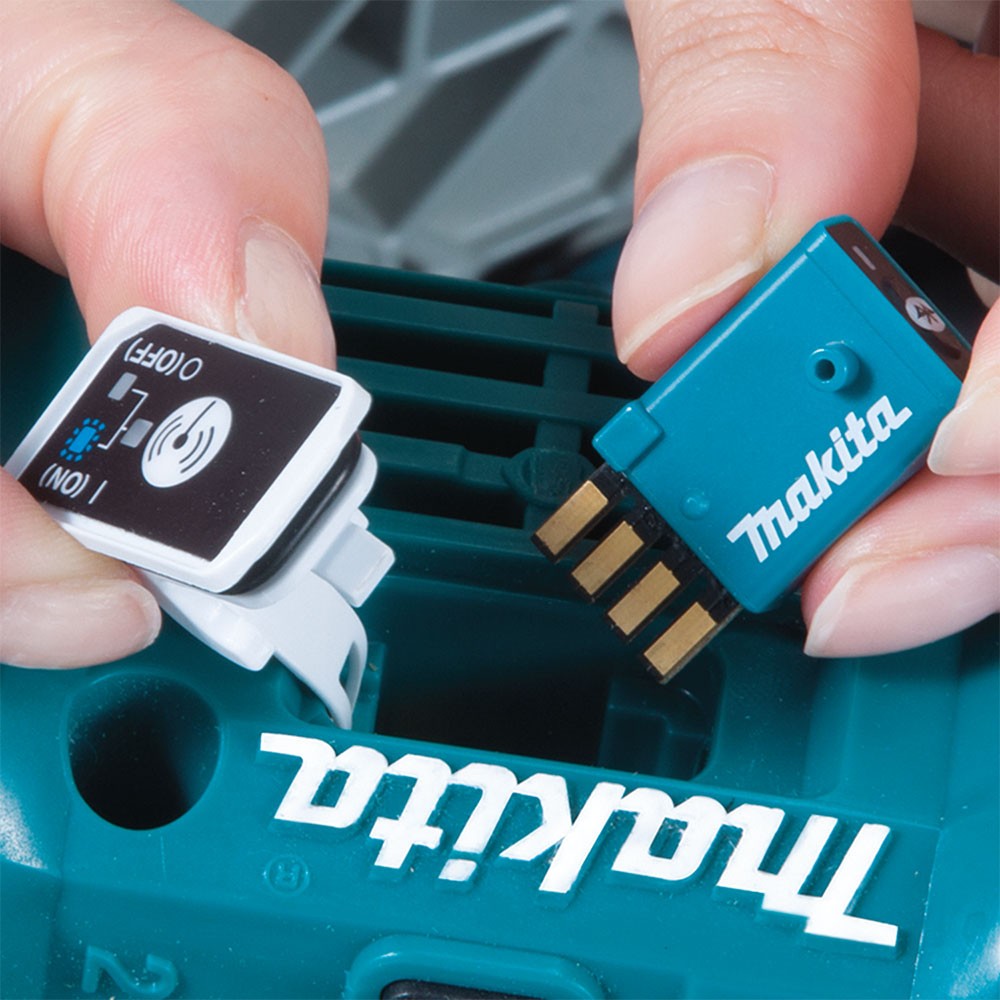

- Auto-Start Wireless System (AWS™) utilizes Bluetooth® technology for wireless power-on/off communication between tool and optional dust extractor

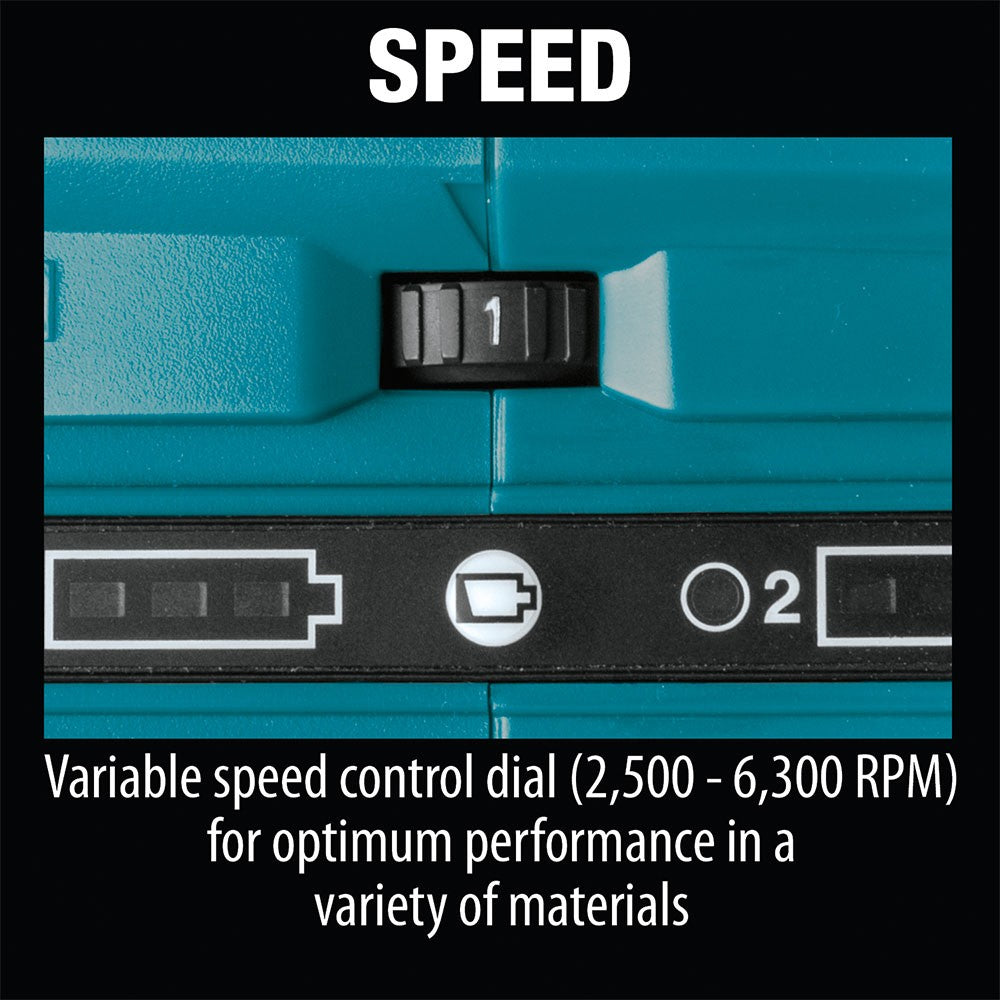

- Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials

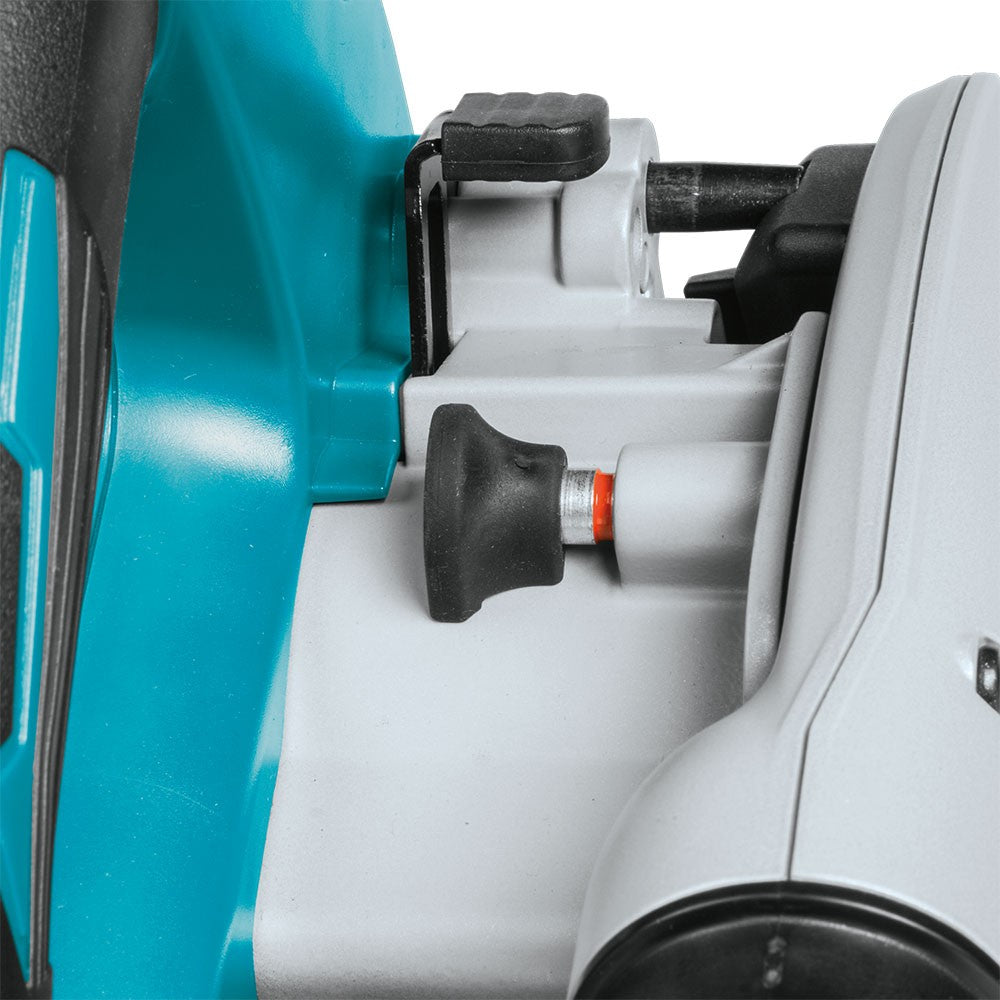

- Built-in depth stop allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting

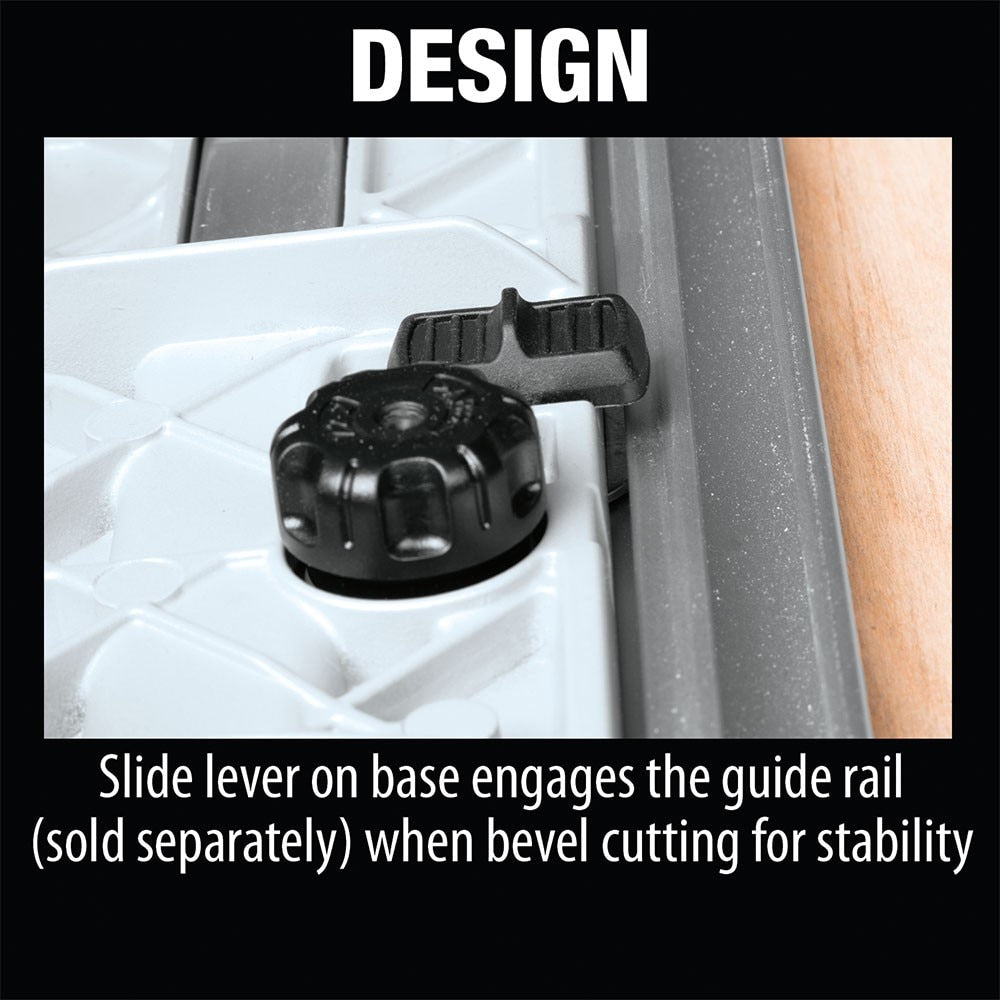

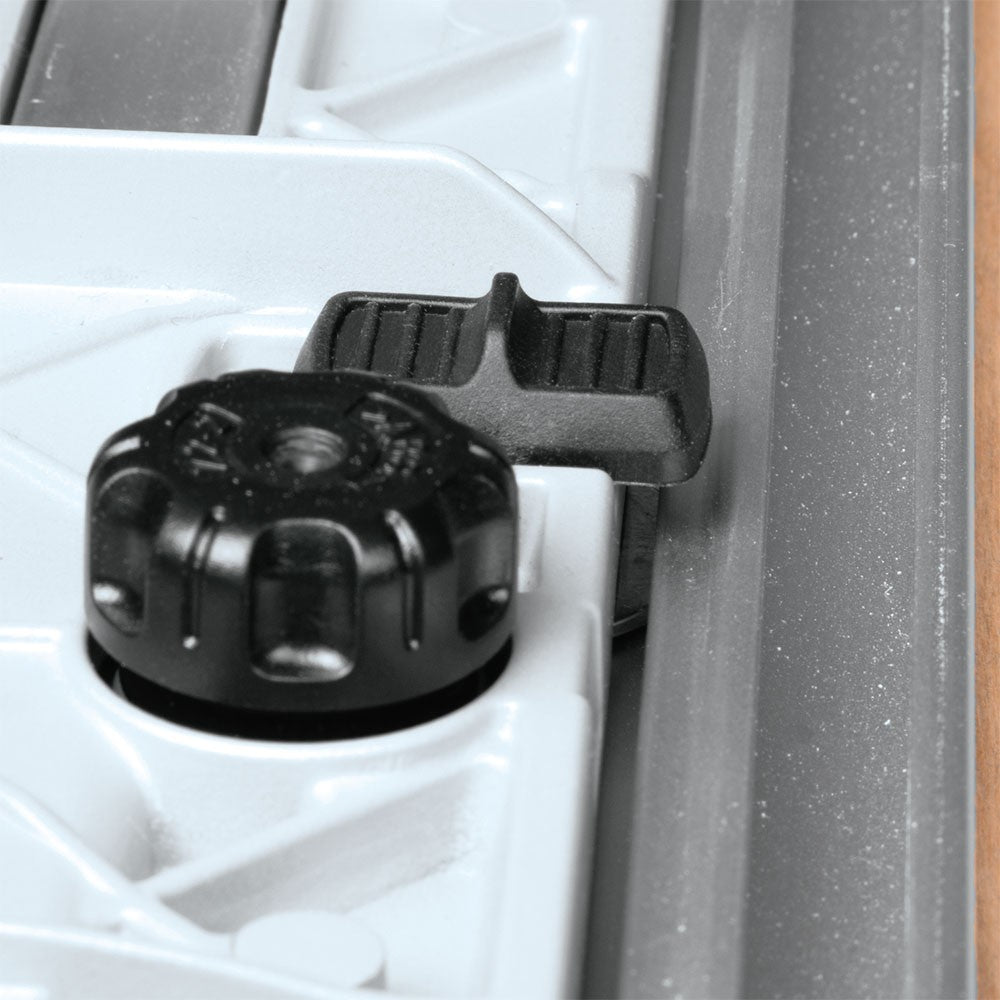

- Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
- Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
- Close to the wall cutting (11/16") for expanded cutting applications
- Large cutting capacity (2-3/16" at 90º; and 1-9/16" at 45º)

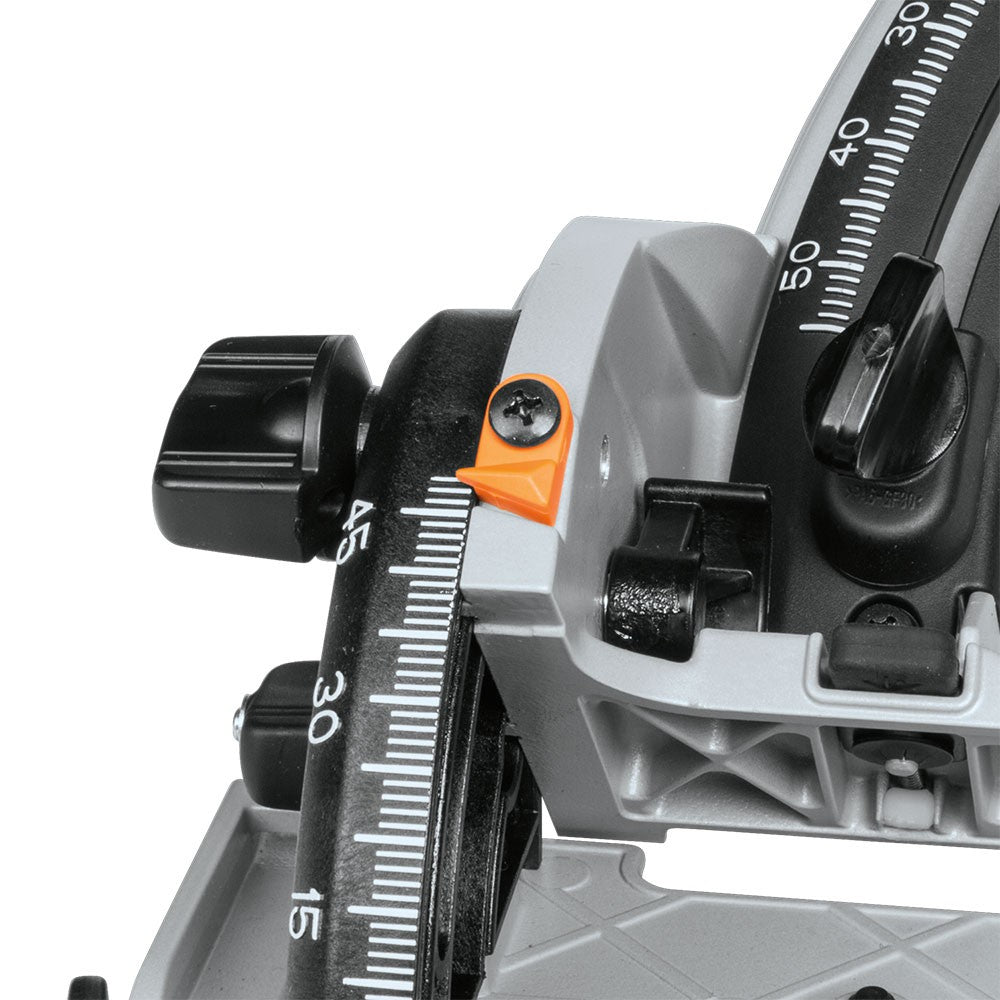

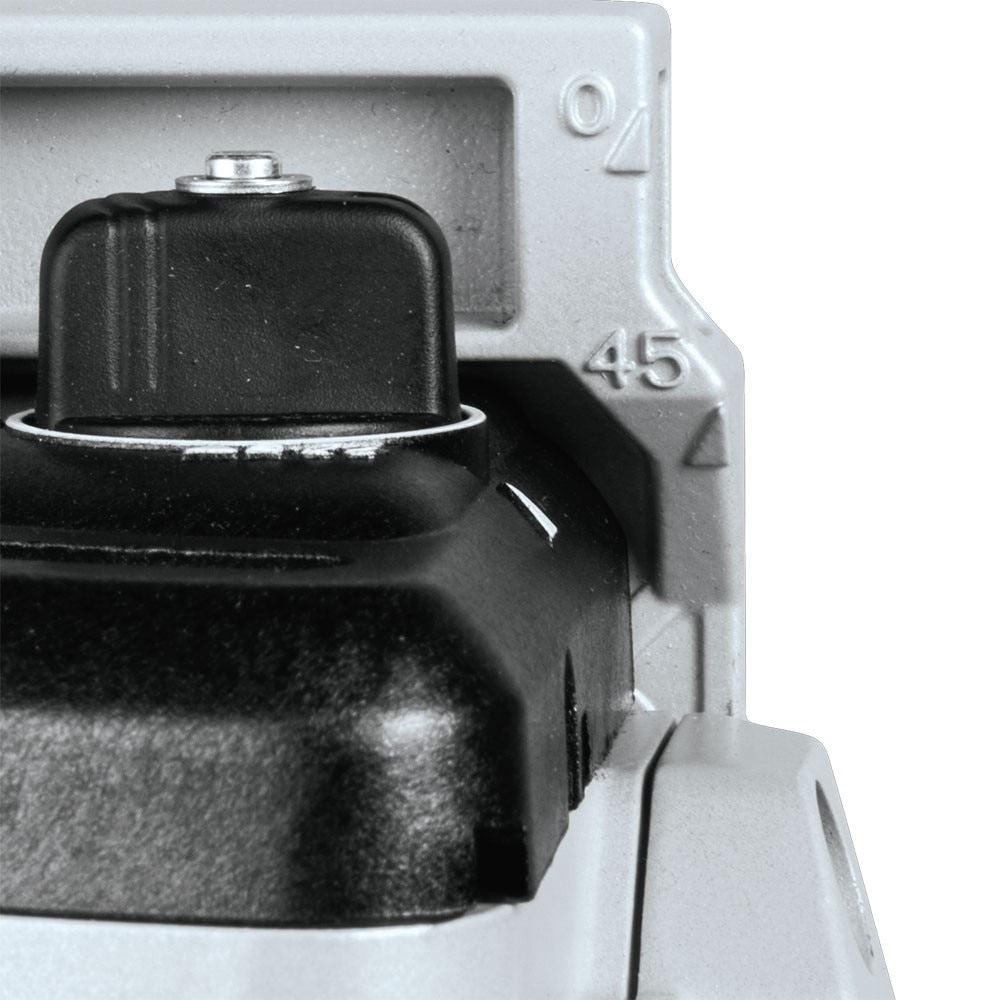

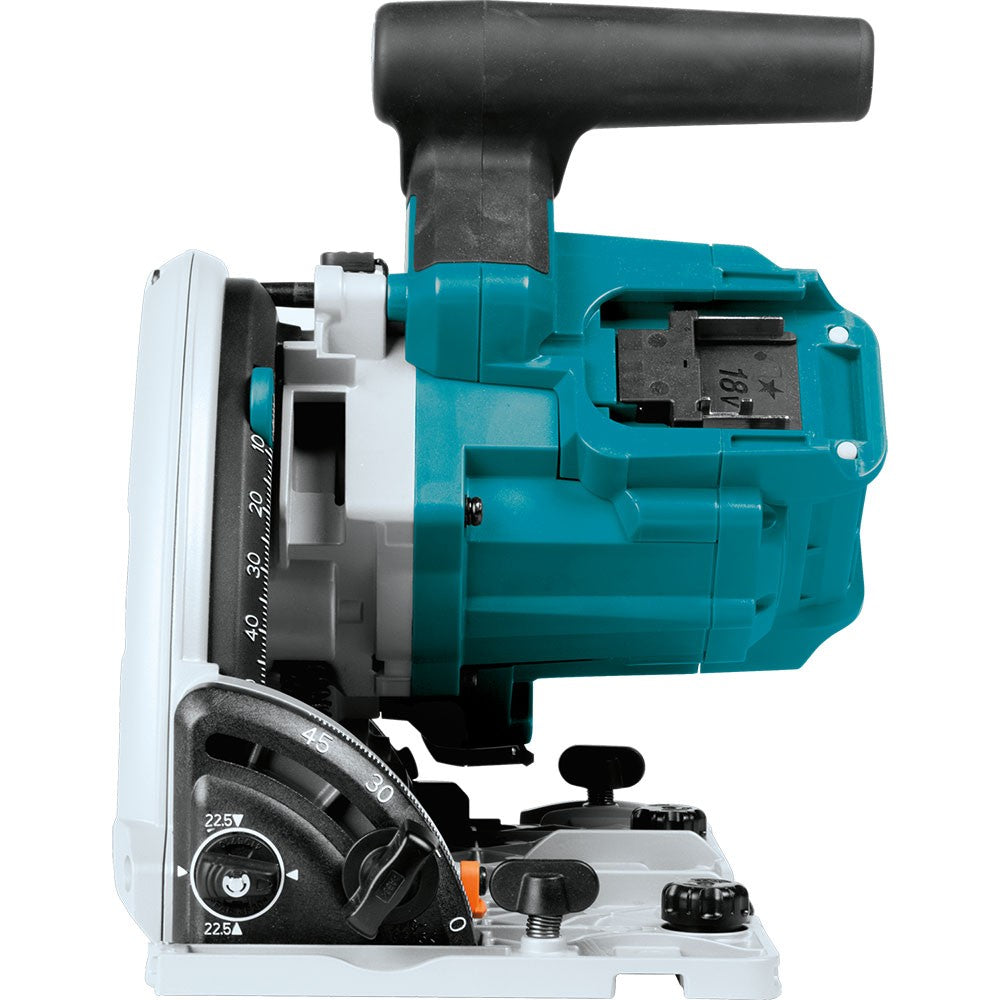

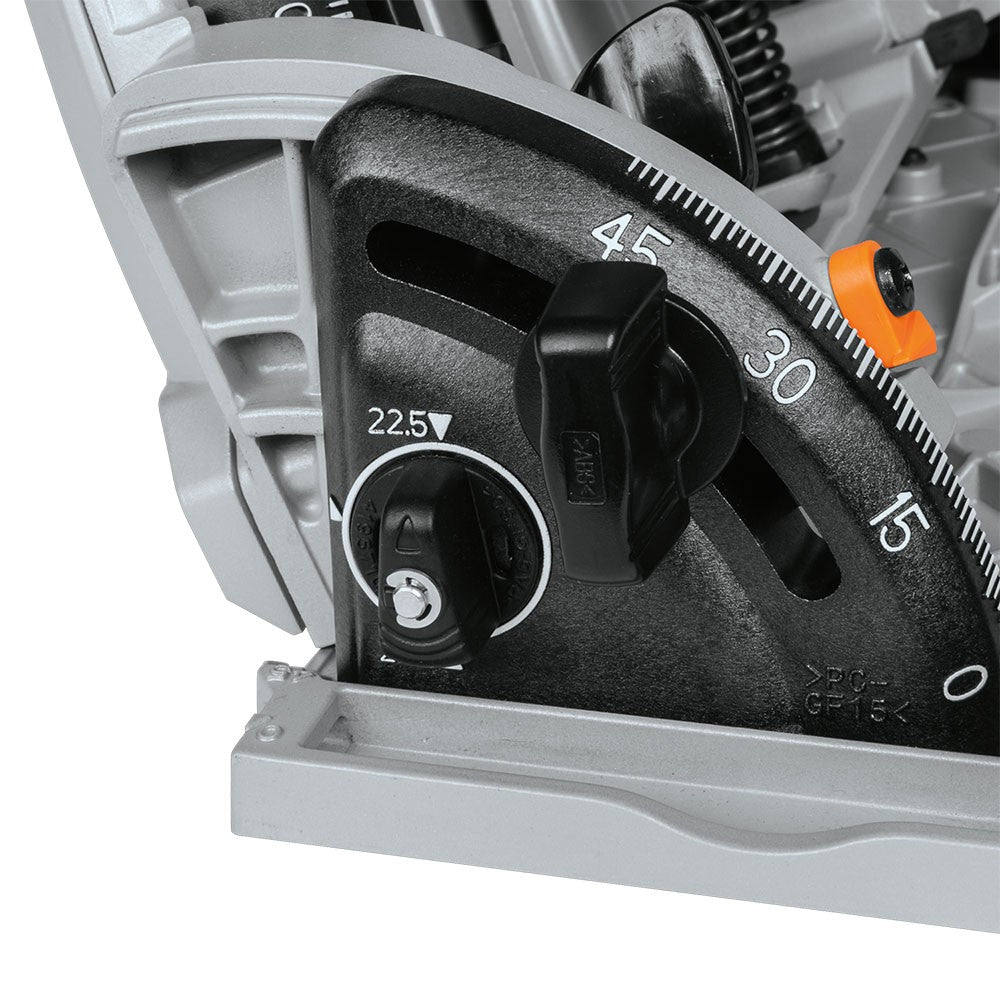

- Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
- Electronic speed control maintains constant speed under load for smooth cutting
- Soft start feature for smooth start-ups

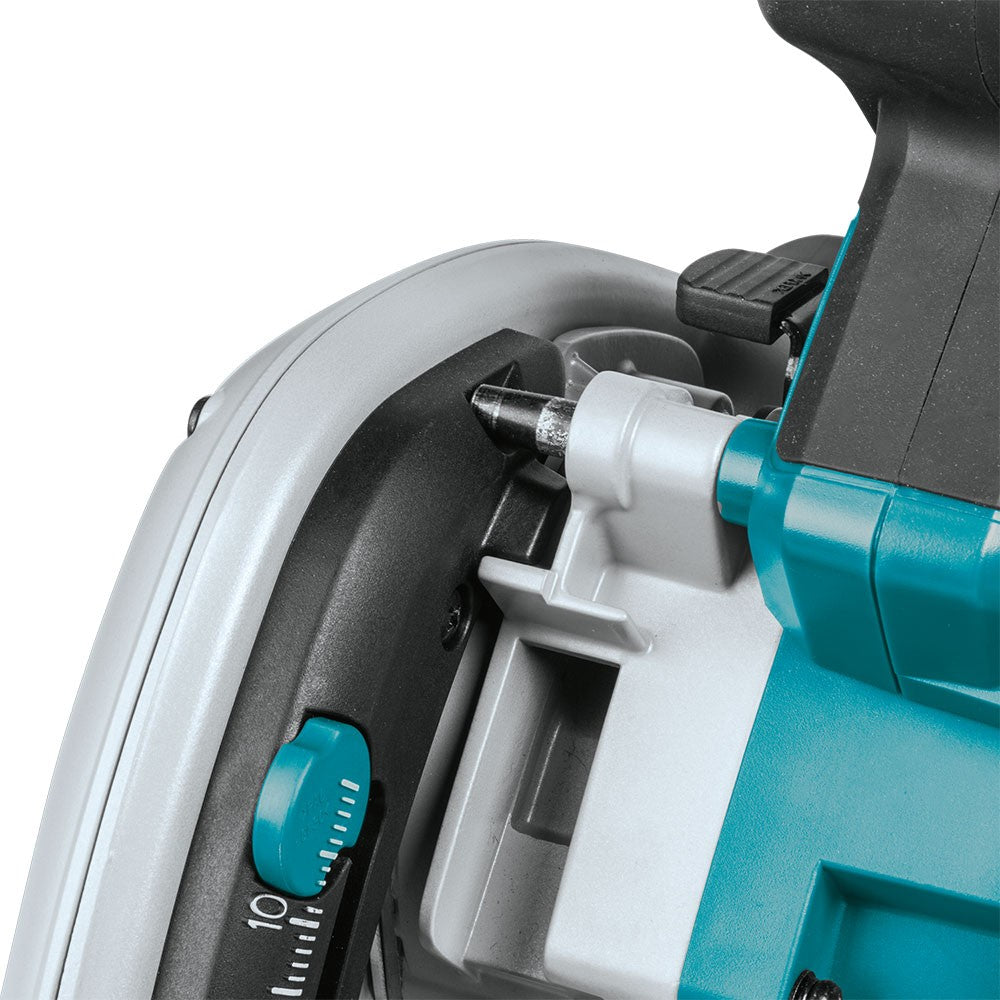

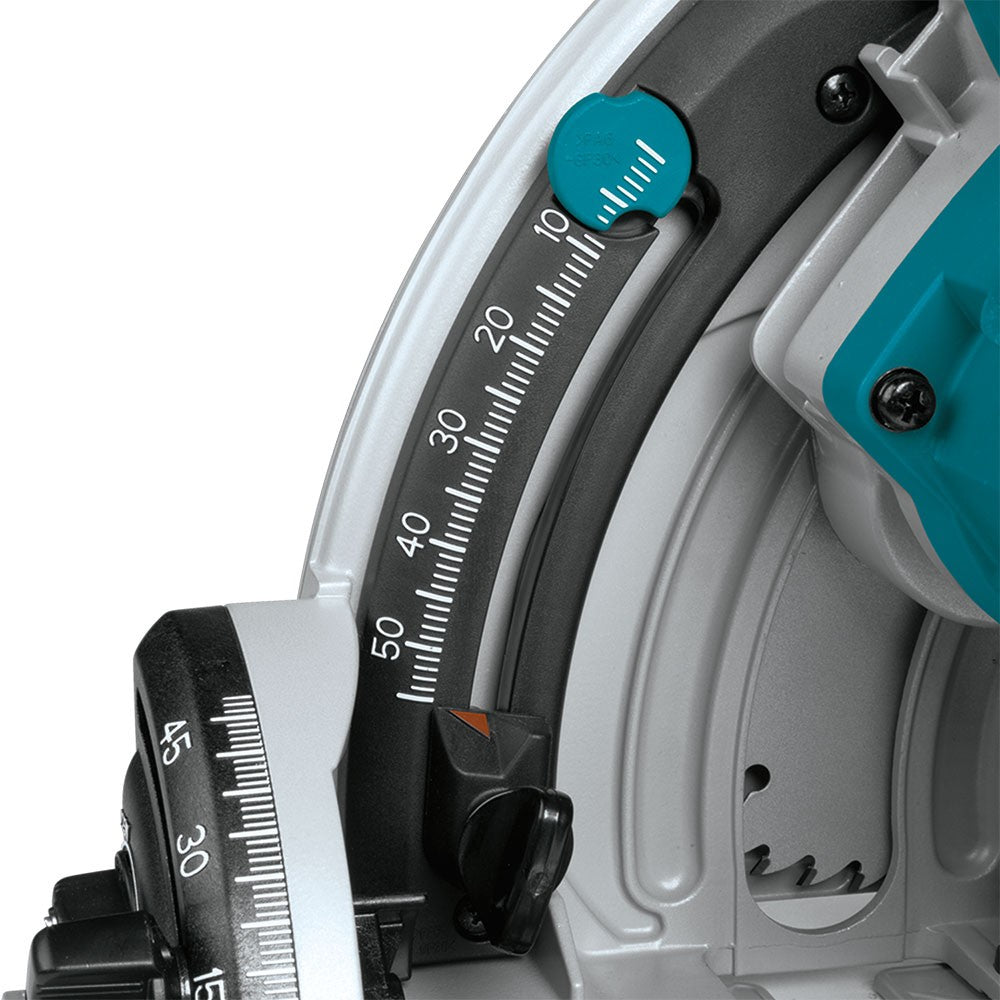

- Easy-to-set depth adjustment with large scale

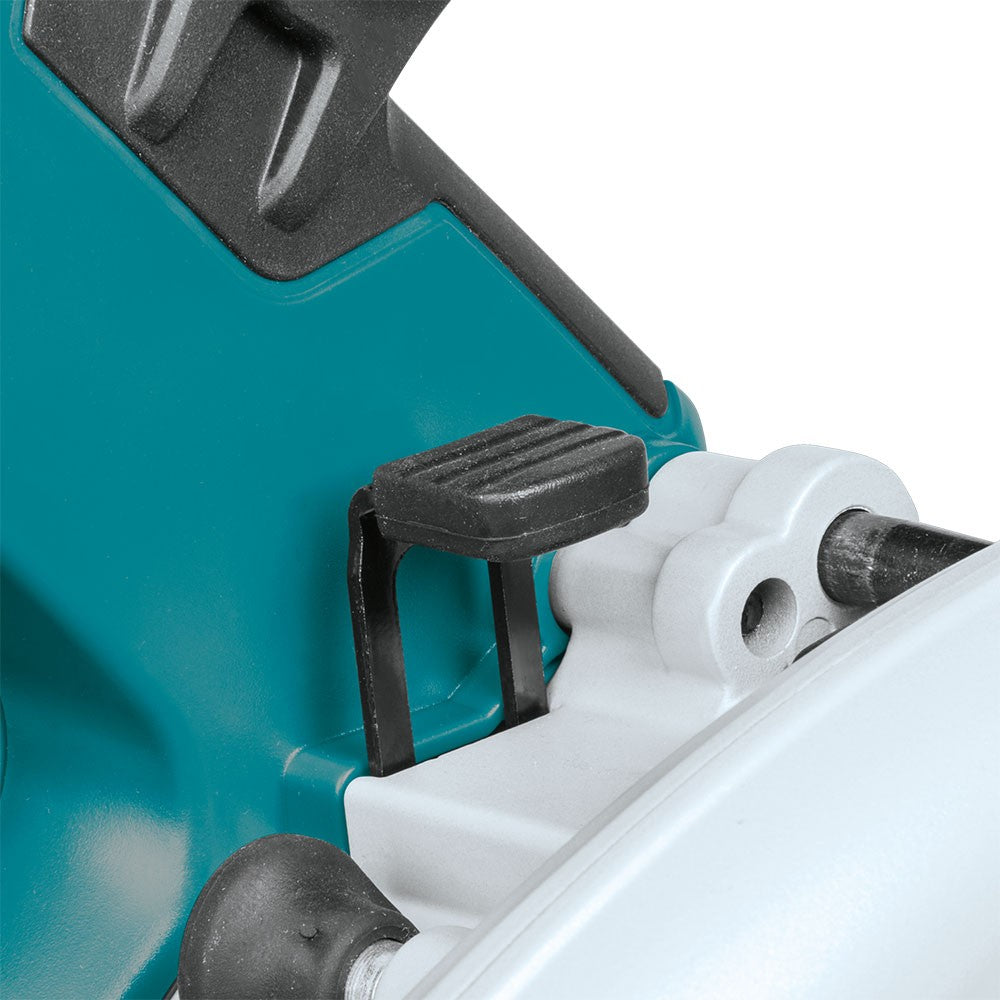

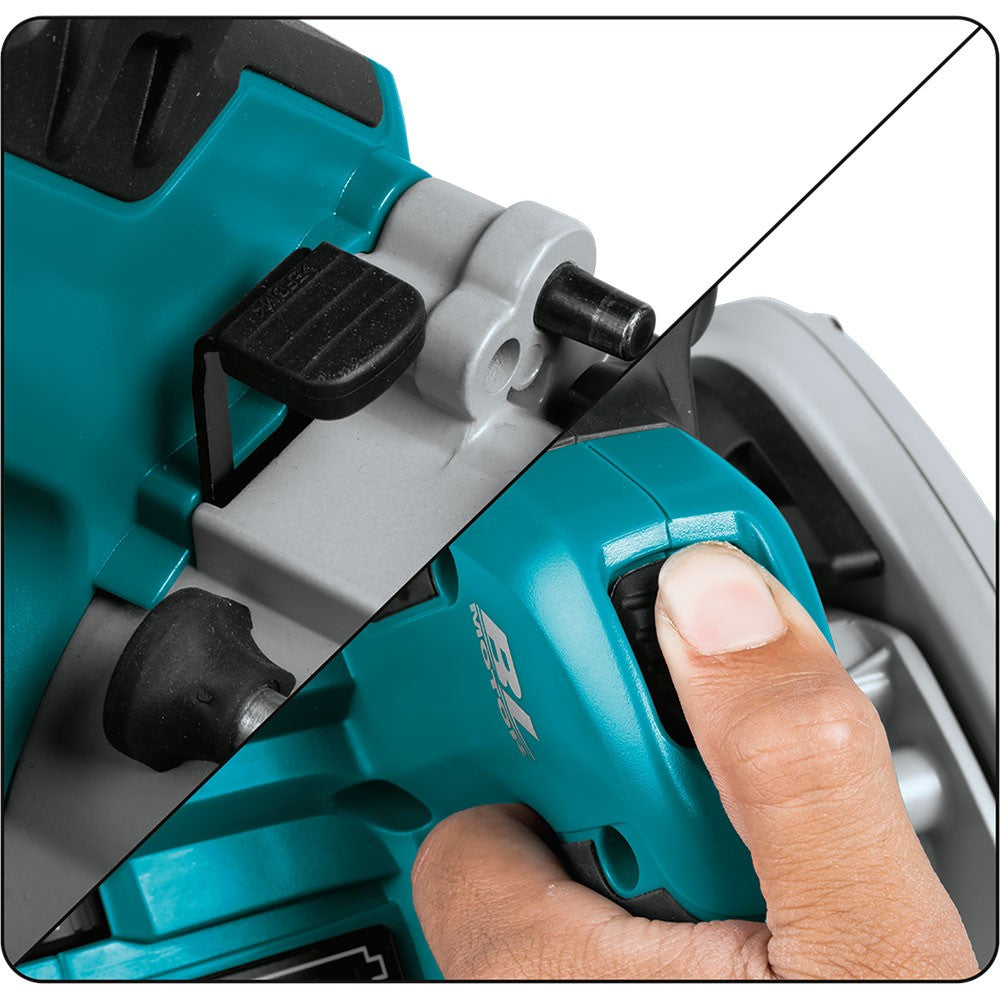

- Smooth and convenient plunge release lever for operator comfort

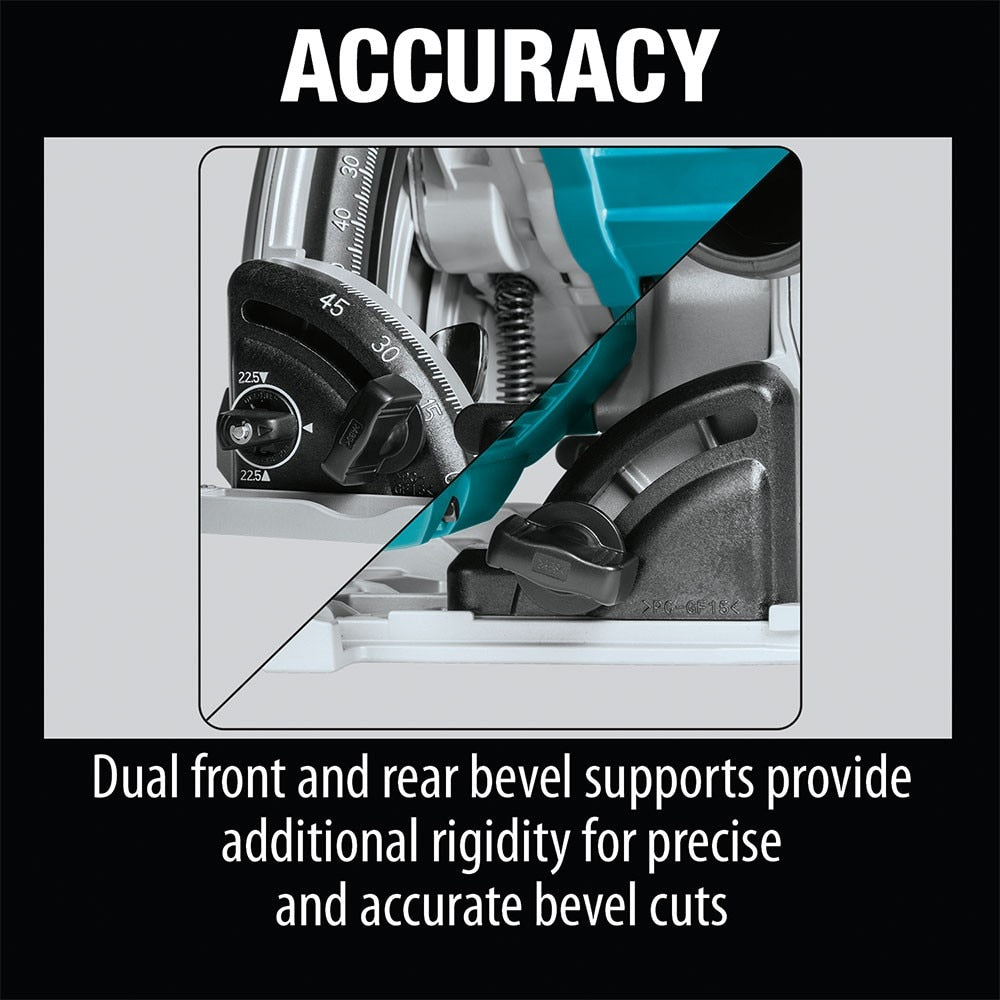

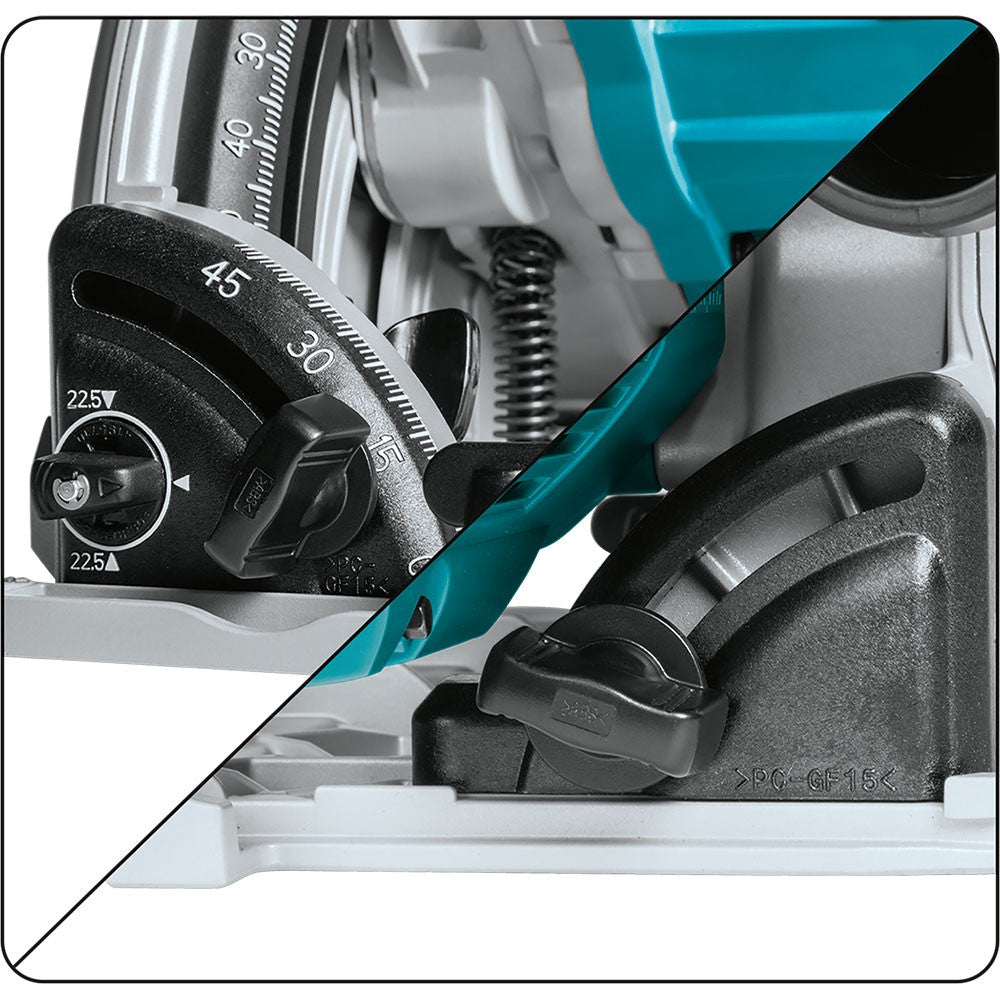

- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts

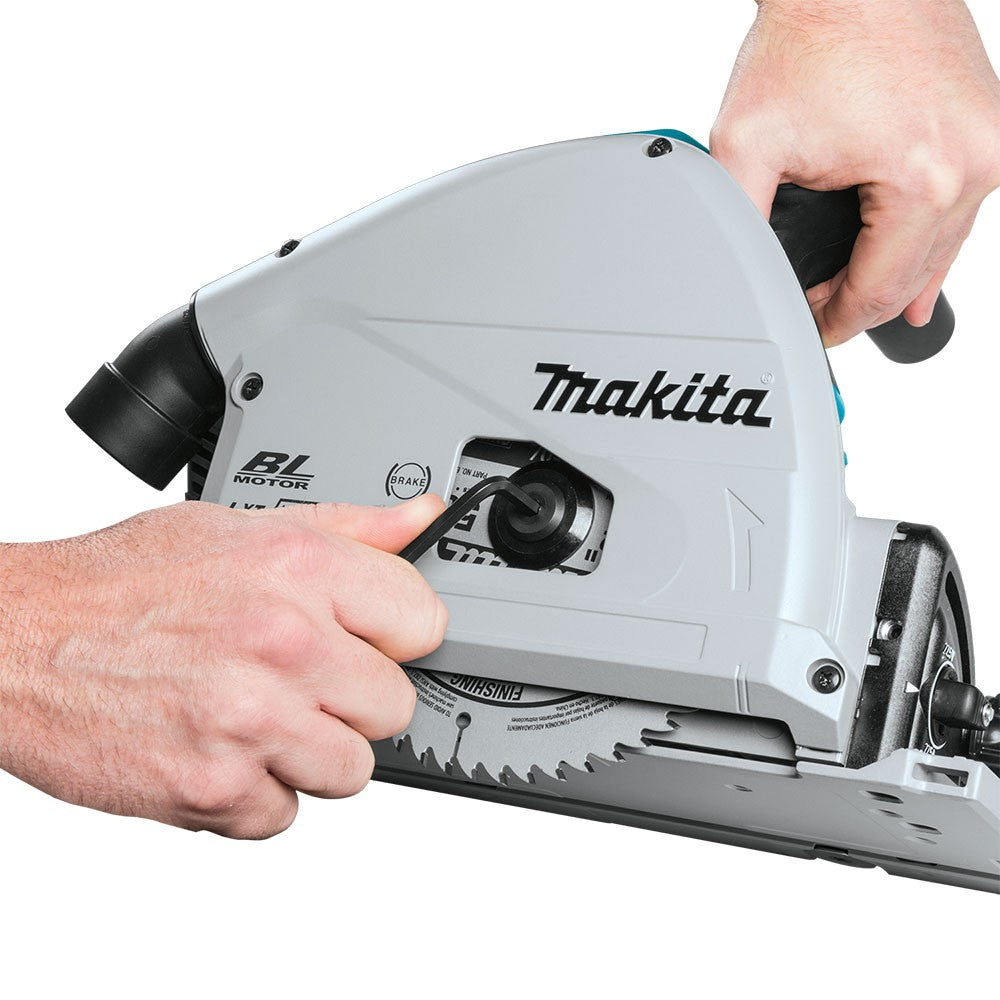

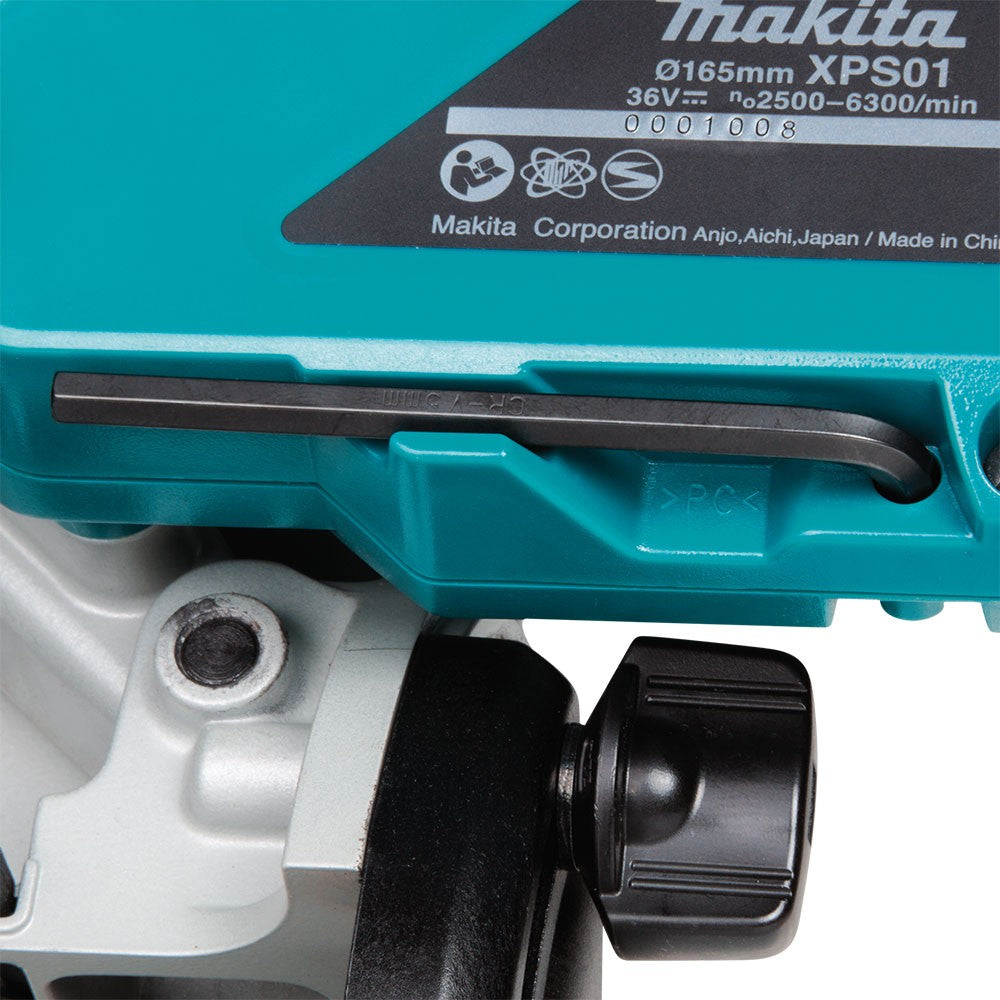

- On-board hex wrench for fast and easy blade changes
Makita XPS02ZU Specifications
| Blade Diameter | 6-1/2" |
| Arbor (mm) | 20 mm |
| Max. Cutting Capacity (at 90°) | 2-3/16" |
| Max. Cutting Capacity (at 45°) | 1-9/16" |
| No Load Speed (variable speed) | 2,500 - 6,300 RPM |
| Battery | 2X 18V LXT® Lithium-Ion |
| Overall Length | 13-5/8" |
| Net Weight (with battery) | 11.2 lbs. |
| Shipping Weight | 13.2 lbs. |
| Automatic-start Wireless System (AWS™) | Yes (Transmitter Included) |
| Power Type | Cordless |
| UPC Code | 088381-851695 |
