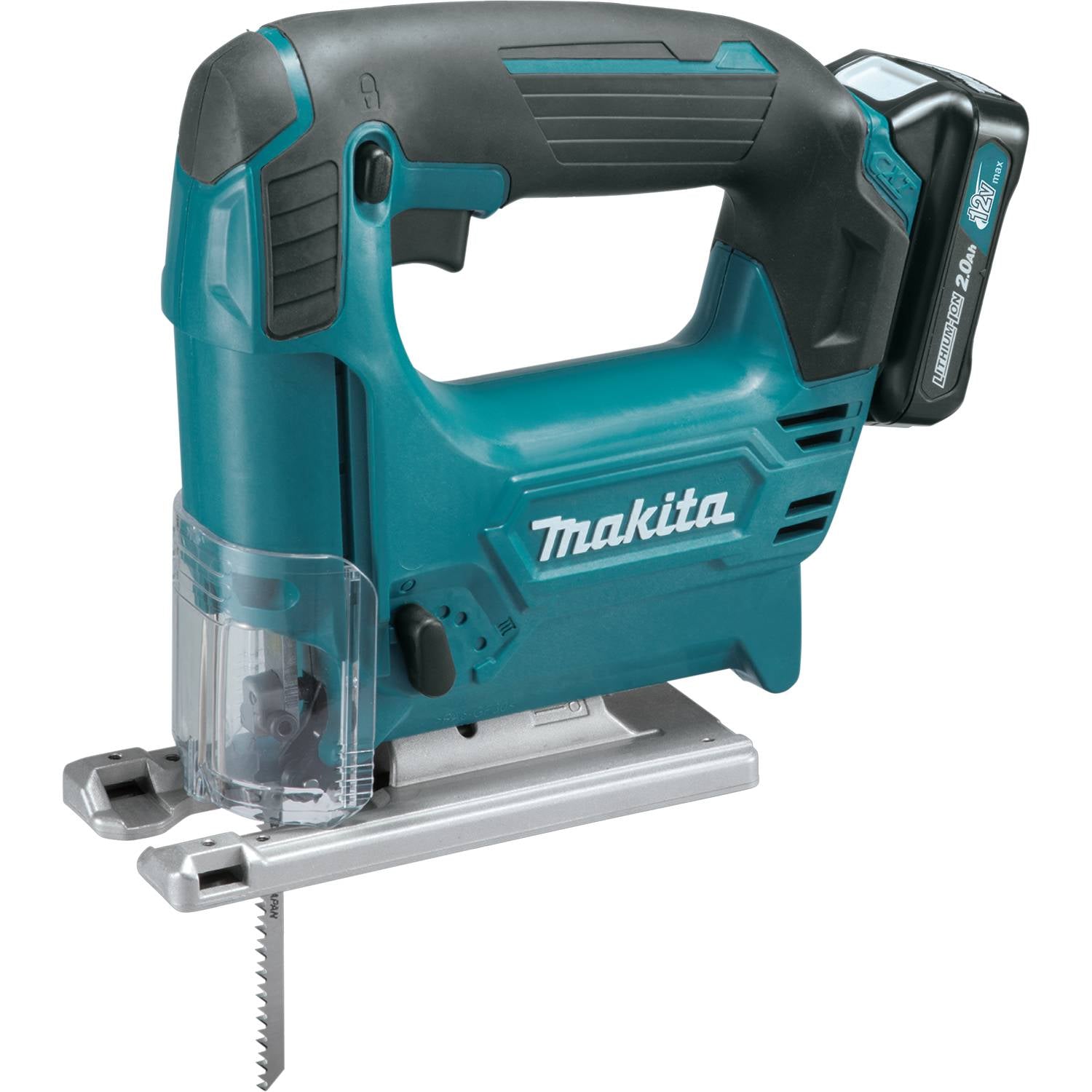

Makita VJ04R1 Description

The Makita 12V max CXT™ Lithium-Ion cordless jig saw kit (VJ04R1) delivers fast and efficient cutting, with a compact design that’s engineered for ease-of-use and maneuverability. The kit includes two 12V max CXT™ Lithium-Ion slide-style batteries for improved balance and ergonomics over pod-style batteries. For added convenience the batteries include an on-board L.E.D. charge level indicator. The VJ04R1 has a compact and ergonomic design at only 9-1/8 In. long with less weight (only 3.8 lbs. with 12V max CXT™ 2.0 Ah battery). The Makita-built variable speed motor delivers 0-2,900 strokes-per-minute, with 3 orbital settings plus straight cutting for increased versatility. It is an efficient and compact cutting solution for a wide range of materials. For longer run time, all 12V max CXT™ cordless tools are also compatible with the 12V max CXT™ Lithium-Ion 4.0 Ah battery (BL1041B, sold separately). 12V max CXT™ Lithium-Ion batteries are engineered with a battery protection circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size.

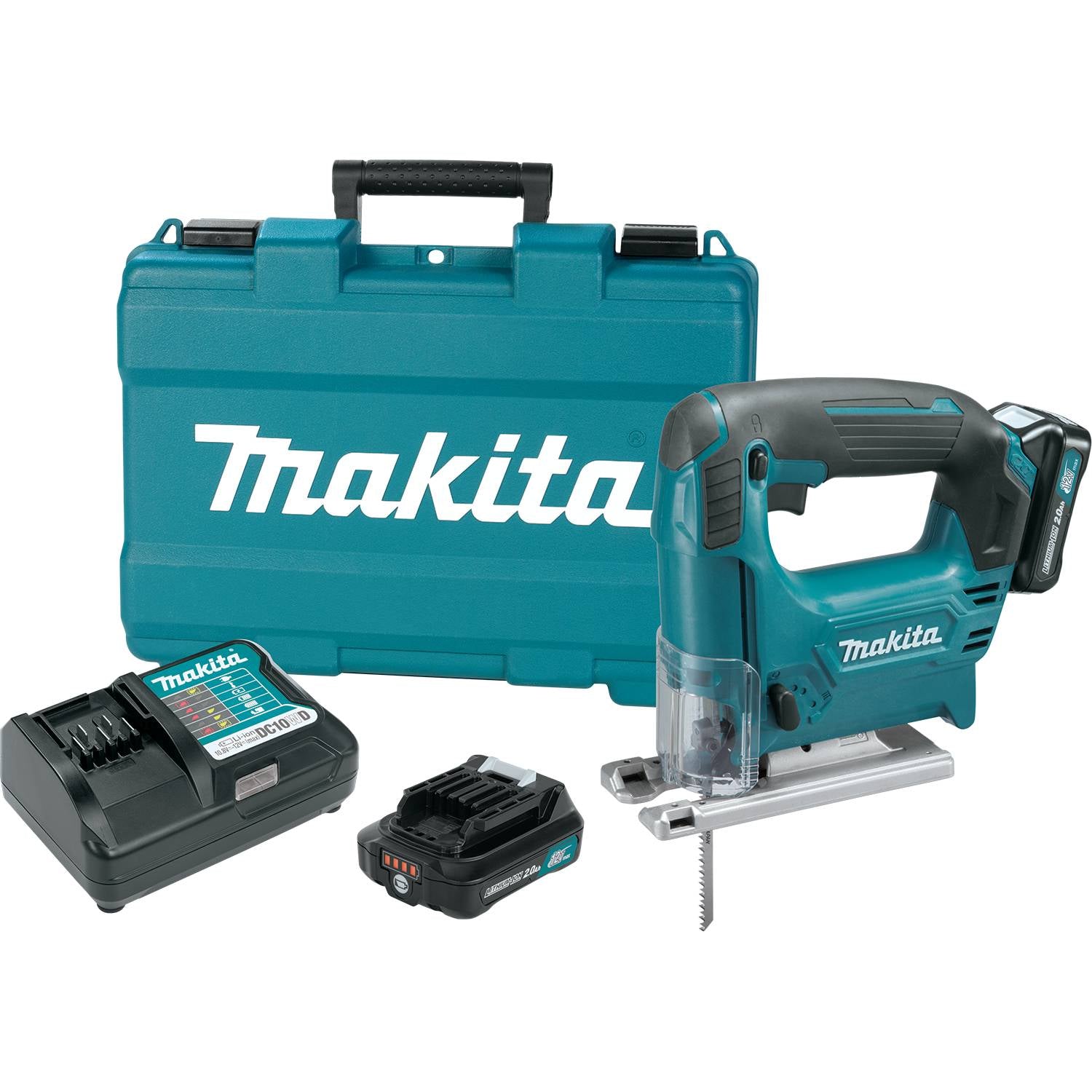

Makita VJ04R1 Includes

(2) 12V max CXT™ Lithium-Ion 2.0Ah Battery (BL1021B)
(1) 12V max CXT™ Lithium-Ion Charger (DC10WD)
(1) Jigsaw Blade (723053?9)
(1) Tool Case (821691-2)

Makita VJ04R1 Features

Makita-built variable speed motor delivers 0-2,900 strokes per minute
3 orbital settings plus straight cutting for use in a wide range of materials
Compact and ergonomic design at 9-1/8 in. long
Weighs only 3.8 lbs. with battery for reduced operator fatigue
Dust port for use with a vacuum provides efficient dust management
Low profile design engineered for improved handling in compact areas
Built-in dust blower clears the line of cut for increased accuracy
Die-cast aluminum base adjusts from 0°-45° right to left
Electric brake for maximum productivity
On-board wrench for fast blade changes
Lock-on button for continuous operation
Uses Tang shank blades
Battery protection circuit protects against overloading, over-discharging and over-heating
12V max CXT™ Lithium-Ion 2.0 Ah battery BL1021B, features an integrated L.E.D. battery charge level indicator
Part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size
Not compatible with 12V max pod-style tools, batteries and chargers
3-year limited warranty on tool, battery and charger
Only use genuine Makita batteries and chargers

Makita VJ04R1 Specifications

Length of Stroke	11/16"
Maximum Cutting Capacity @ 90° (Wood)	2-9/16"
Maximum Cutting Capacity @ 90° (Aluminum)	5/32"
Maximum Cutting Capacity @ 90° (Mild Steel)	1/16"
Strokes Per Minute	2,900 SPM
Blade Shank	"T" Tang
Overall Length	9-1/8"
