Description

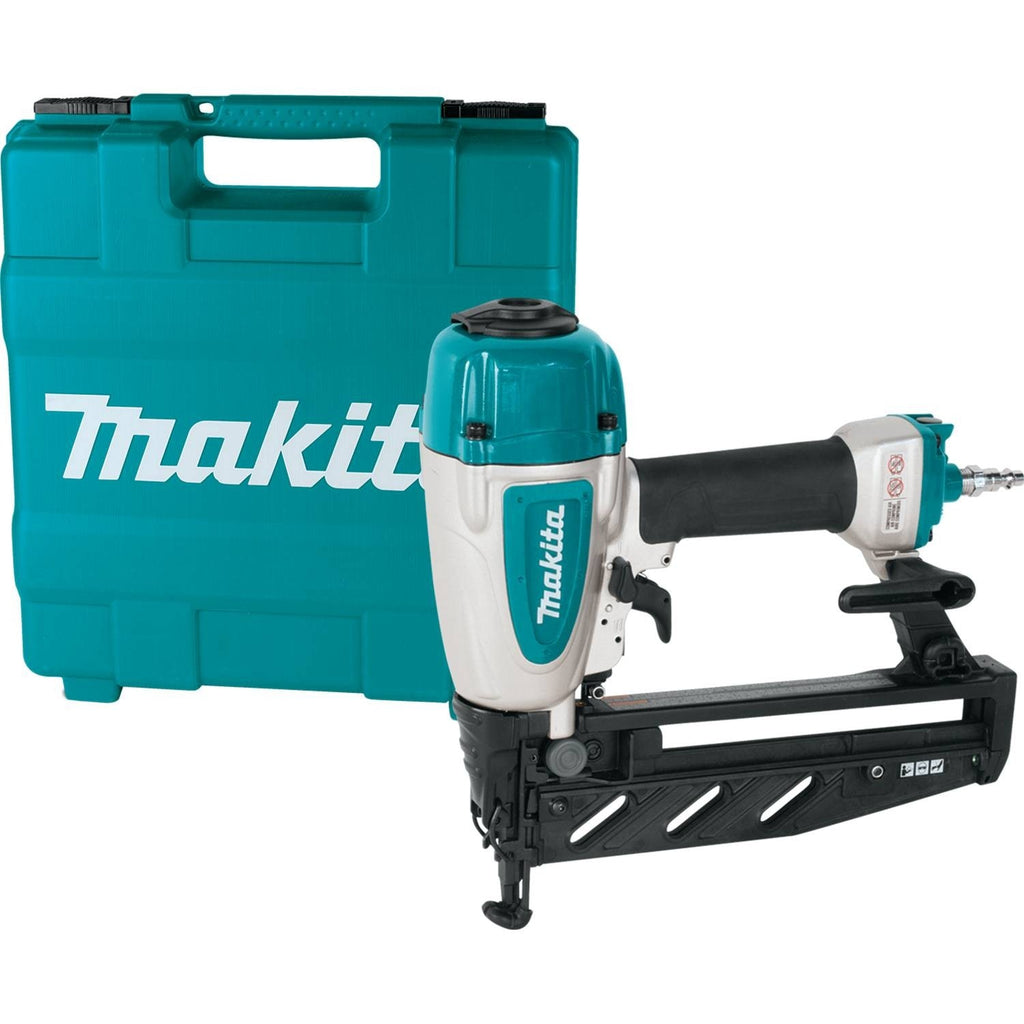

Makita AF601 Description
The Makita 16 Gauge Straight Finish Nailer (model AF601) combines a myriad of features and powerful performance in a compact size. The AF601 has a rear-loading magazine that accepts standard 16 ga. straight finish nails sized 1" to 2-1/2". The nail lock-out and large windows alert the user when to reload nails as the contact arm and trigger are used together for controlled firing. With a compact size and weighing in at only 3.8 lbs., the AF601 was engineered for all-day professional use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.
Makita AF601 Includes
- (1) Pneumatic Nailer Oil (181434-7)
- (1) Safety Glasses
- (2) No-Mar Tip
- (1) Air Fitting
- (1) Tool Case
Makita AF601 Features
- Efficient motor design offers leading power performance
- Nail lock-out mechanism protects tool and work surface from dry-fires
- Tool-less depth adjustment for more precise flush and countersink nailing
- Built-in air duster provides convenient air flow to clear work surface
- 2-mode selector switch for control over nailing operation
- Multi-directional exhaust port directs exhaust air away from operator
- Tool-less easy to clear nose for fast and easy nail extraction
- Housing bumpers protect tool and work surface
- Magnesium body offers durability and less weight
- Includes two removable no-mar tips; convenient on tool storage
- Powerful motor design drives standard 16 gauge, straight finish nails from 1" to 2-1/2" in length
- Reversible belt hook allows the tool to remain close
- Integrated rubber soft grip for operator comfort
- Rear lock-and-load magazine holds up to 100 nails for maximum efficiency
- Narrow nose design allows easy nailing access in confined areas
- Ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications
- Minimum recommended air delivery of 2.7 SCFM @ 90PSI
- 3-year limited warranty
Makita AF601 Specifications
| Operating Air Pressure | 70 - 120 PSI |
| Nail Size (in., ga.) | 1" to 2-1/2" (16 ga.) |
| Maximum Magazine Capacity | 100 |
| Minimum Recommended Air Delivery | 2.7 SCFM @ 90 PSI |
| Certifications and listings | ANSI Certified |
| Dimensions (LxWxH) | 12" x 3-3/4" x 11-3/4" |
| Net Weight | 3.8 lbs. |
| Color Family | Teal |
| Fastening category | Finish |
| Manufacturer Warranty | 3-year limited warranty |
| Max. nail/fastener length | 2-1/2" |
| Power Type | Pneumatic |
| Case Included | Yes |
| Shipping Weight | 9 lbs. |
| UPC Code | 088381-822404 |
