Description

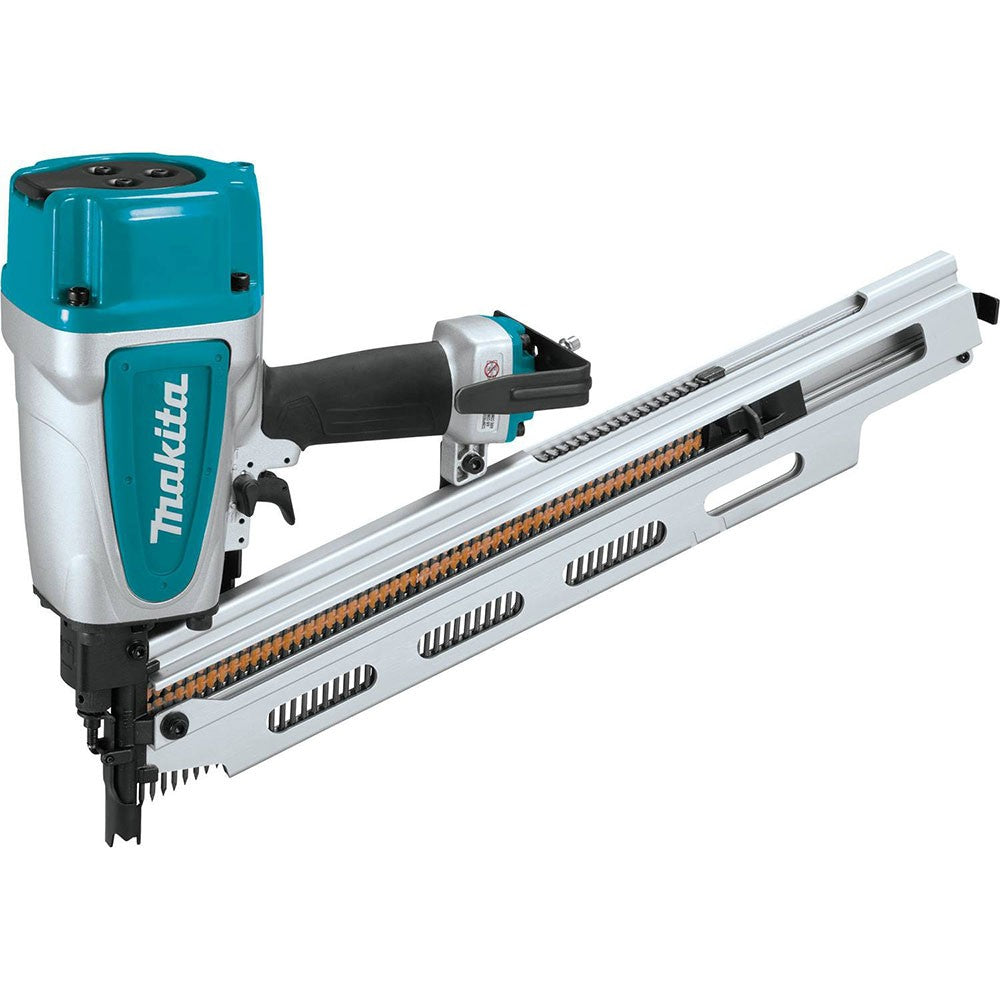

Makita AN924 Description

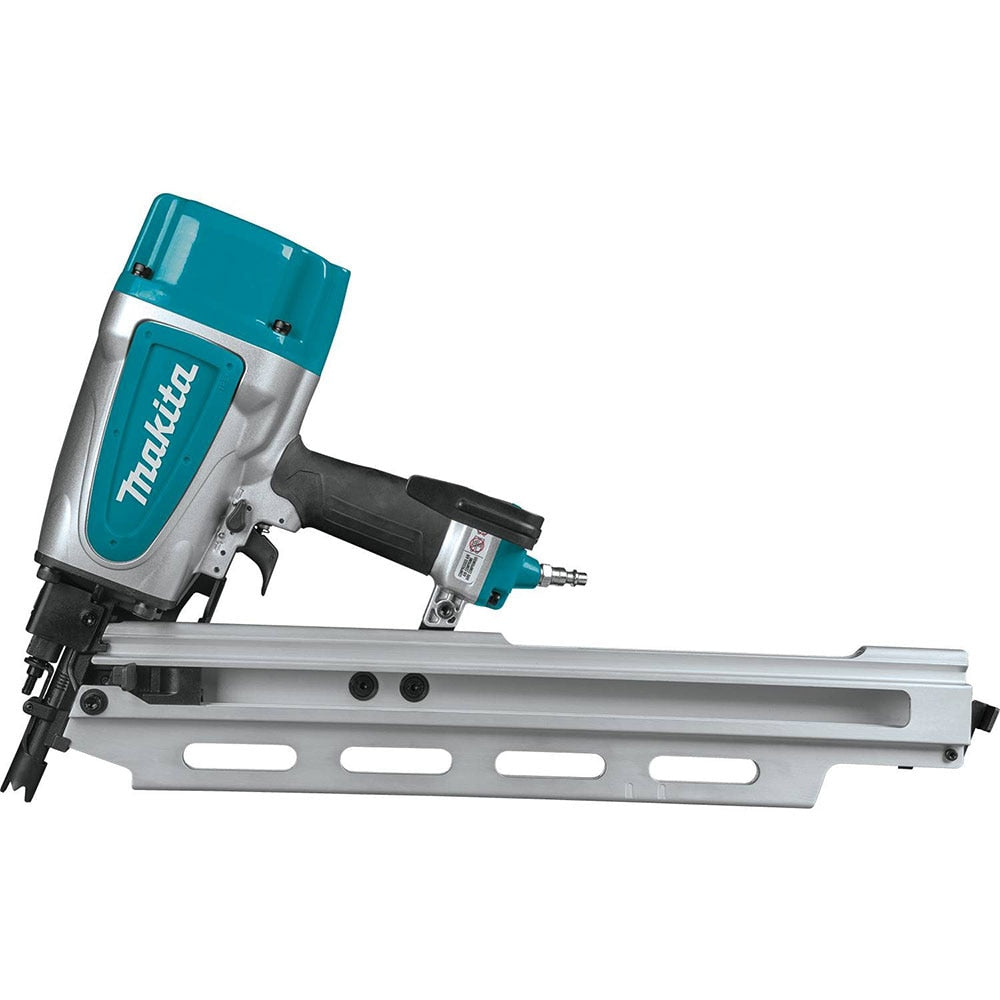

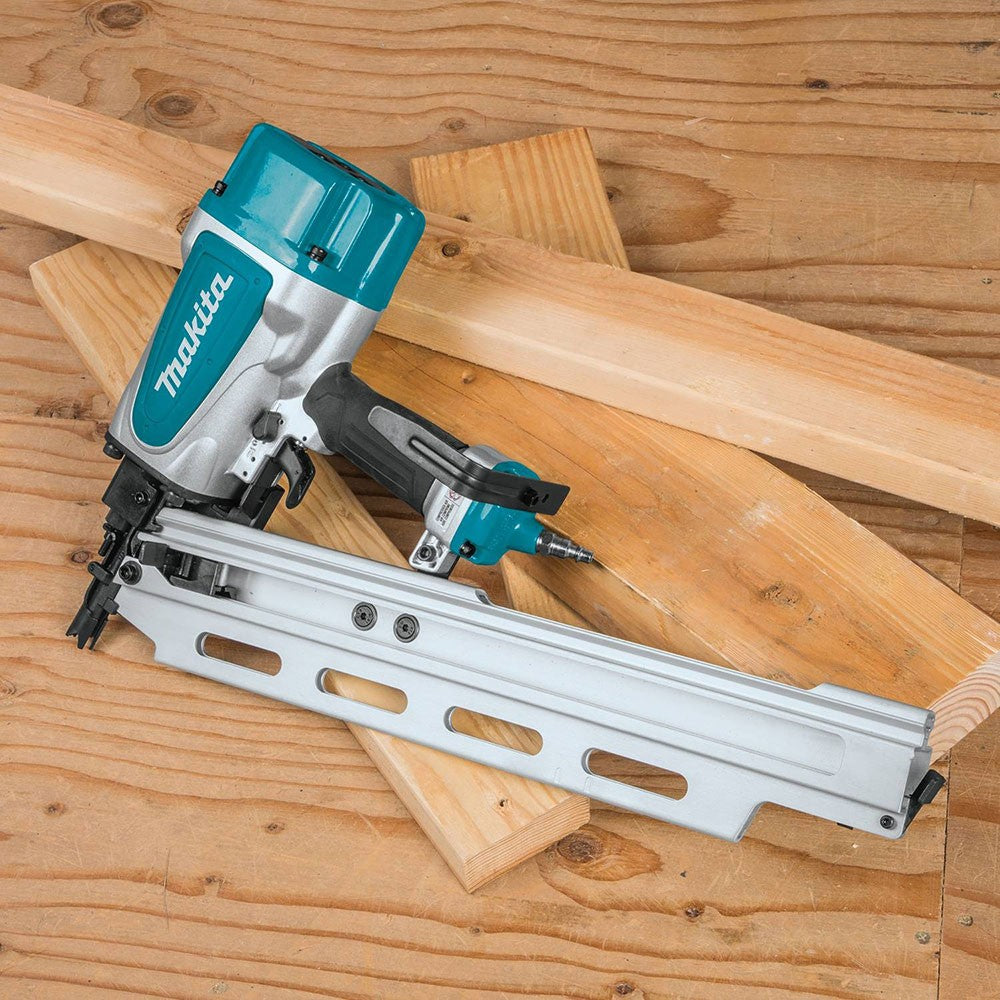

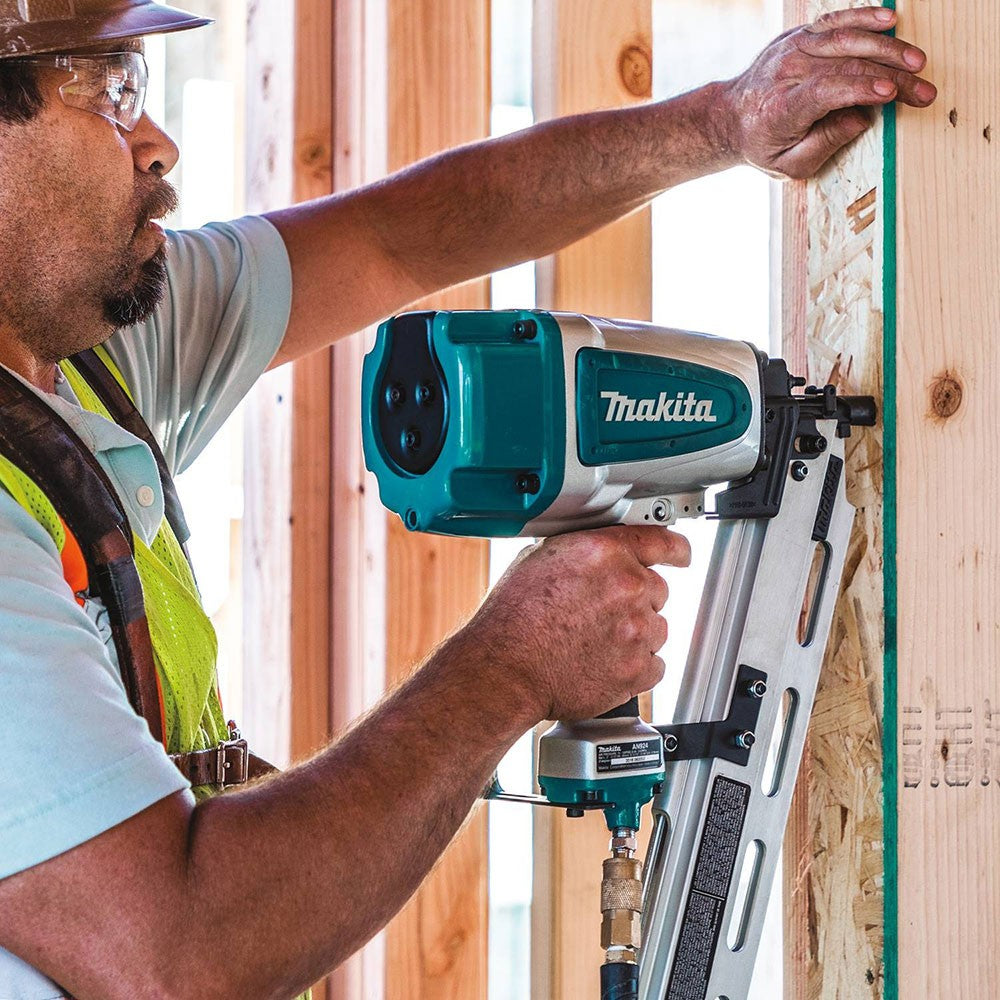

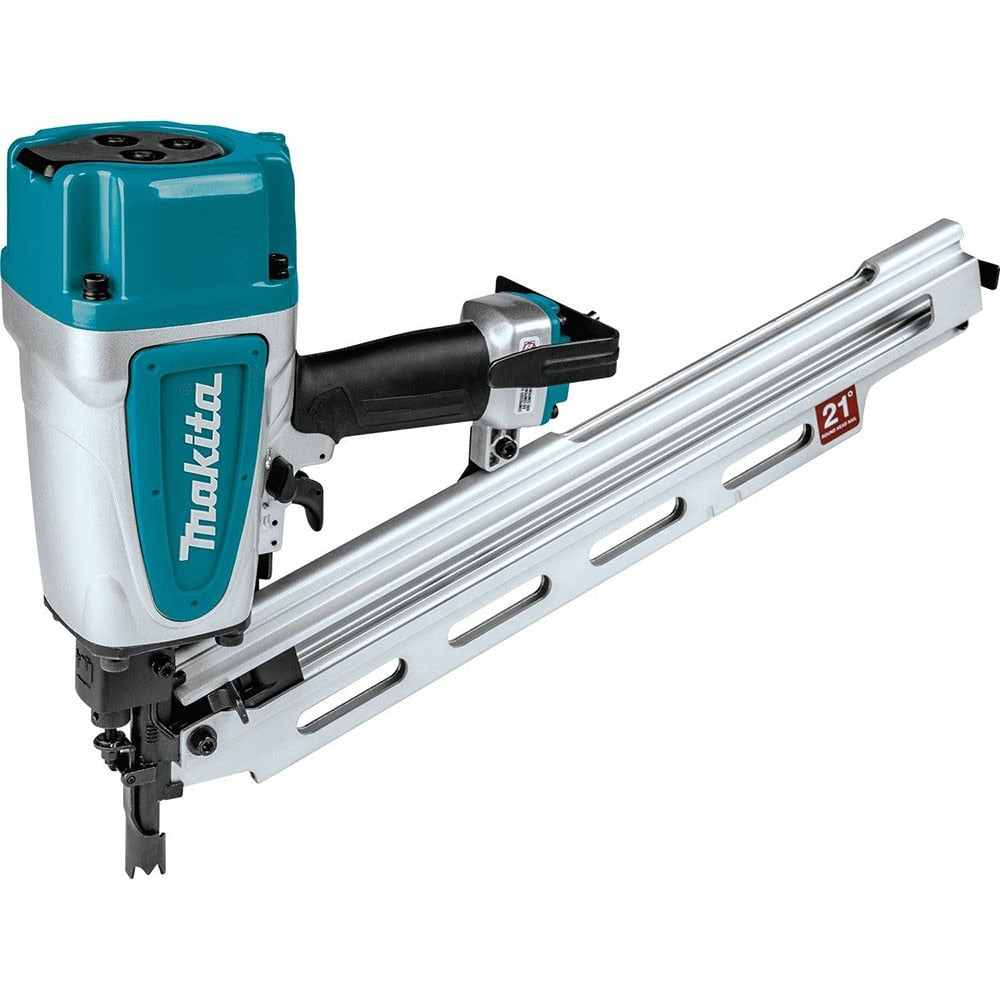

The Makita 3-1/2 In. framing nailer (model AN924) combines durable construction and robust performance with ease-of-use features for commercial framing applications. The AN924 is engineered for a range of applications including framing walls, floors, and roofs, construction of sub-flooring, roof and floor decking, floor and wall sheathing/siding. It is ideal for framers, roofers and carpenters. The AN924 accepts full round-head nails, 2 In. to 3-1/2 In., with up to .148 In. (16d) shank diameter, and the 2-mode selector switch (bump, sequential) provides increased convenience. The AN924 is engineered for longer tool life and ease-of-use, with a built-in air filter to minimize dust and debris from entering. Additional features include an anti-dry mechanism that stops the tool when three nails remain in the magazine, a solid rear-loading aluminum magazine for longer service life, and rubber hand-grips to provide more comfortable handling.

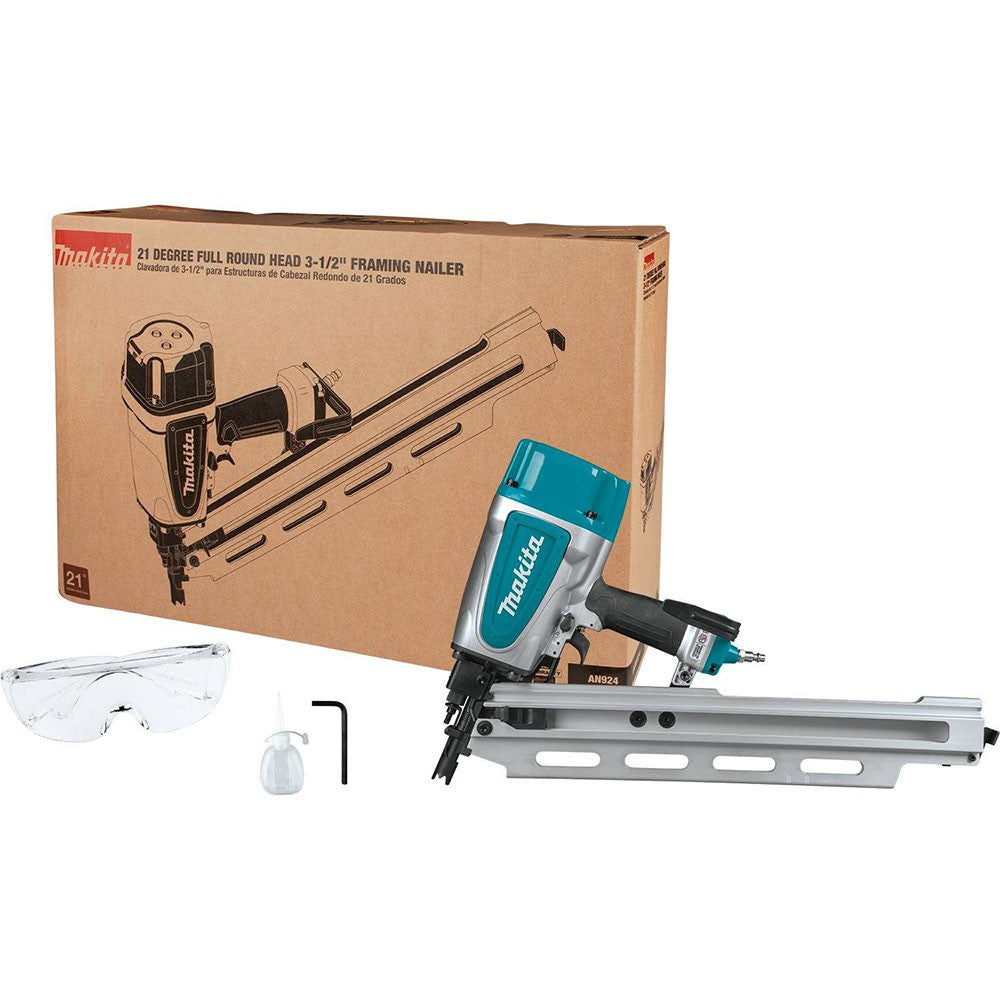

Makita AN924 Includes
- (1) Framing Nailer
- (1) Safety Glasses
- (1) Air Fitting
- (1) Pneumatic Nailer Oil
- (1) Hex Wrench
Makita AN924 Features
- Faster nail driving speed for maximum performance
- Large capacity air chamber for increased power to drive nails up to 3-1/2" x .148 in diameter
- Drives 21º plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter
- Lightweight design at only 8.3 lbs.

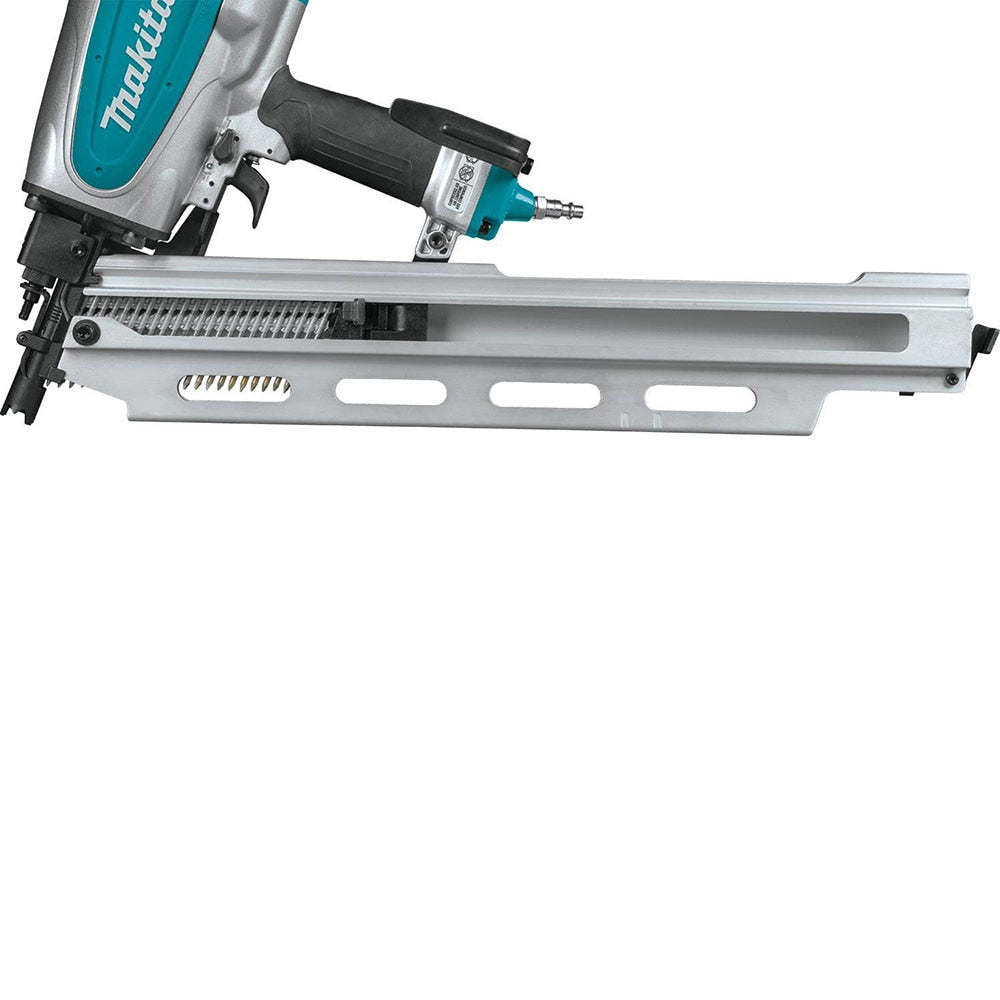

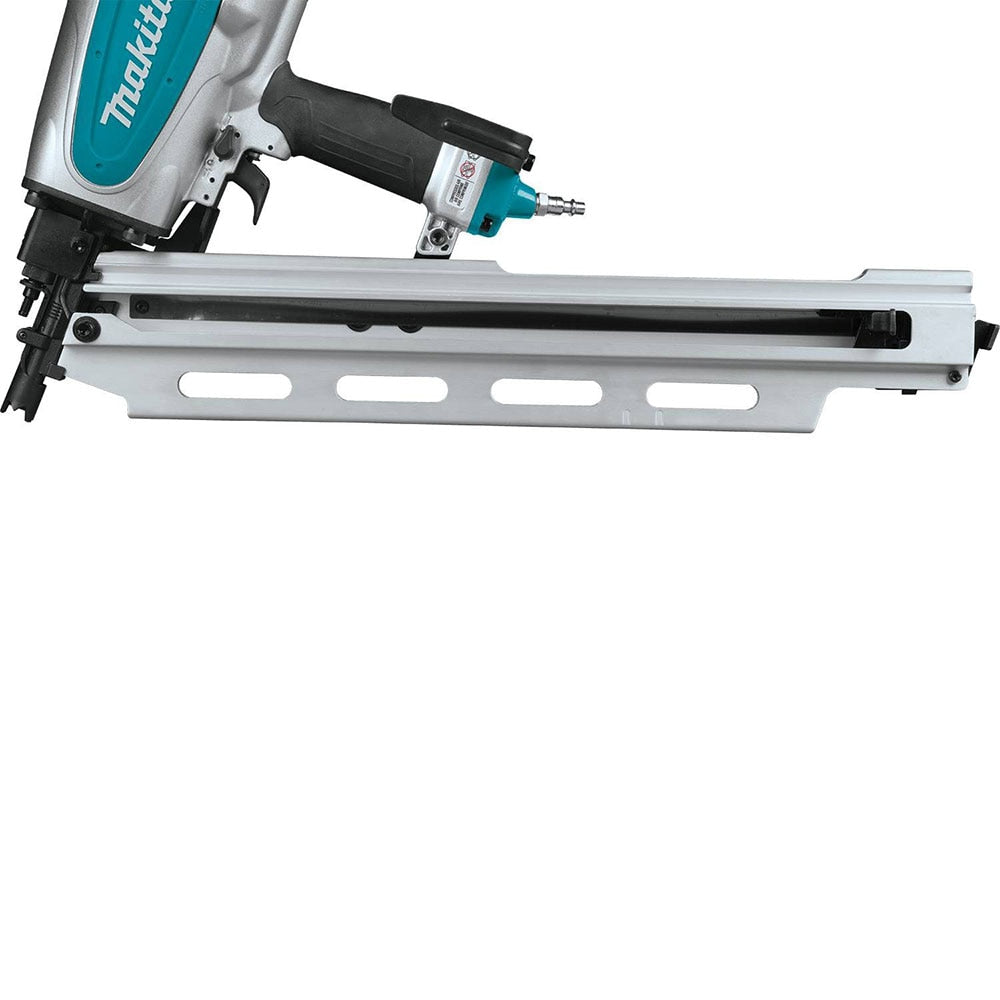

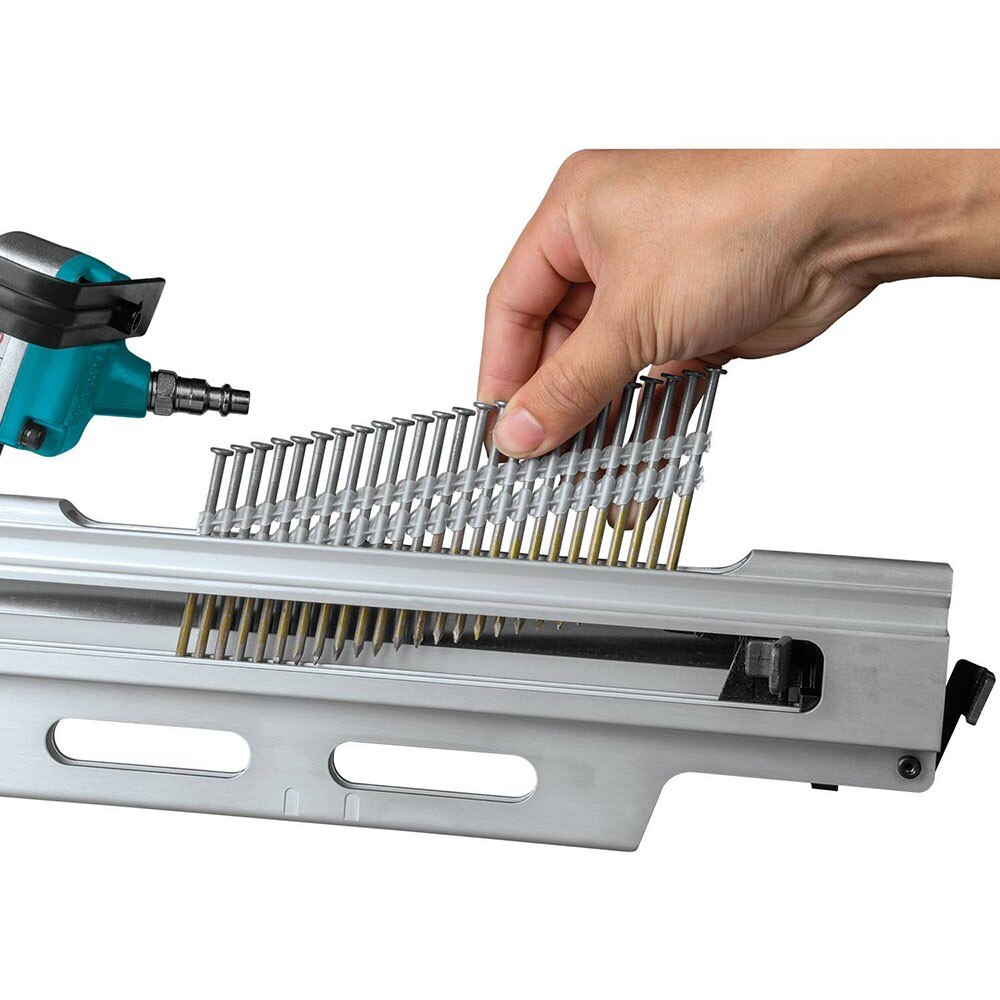

- Solid top-loading aluminum magazine for longer life

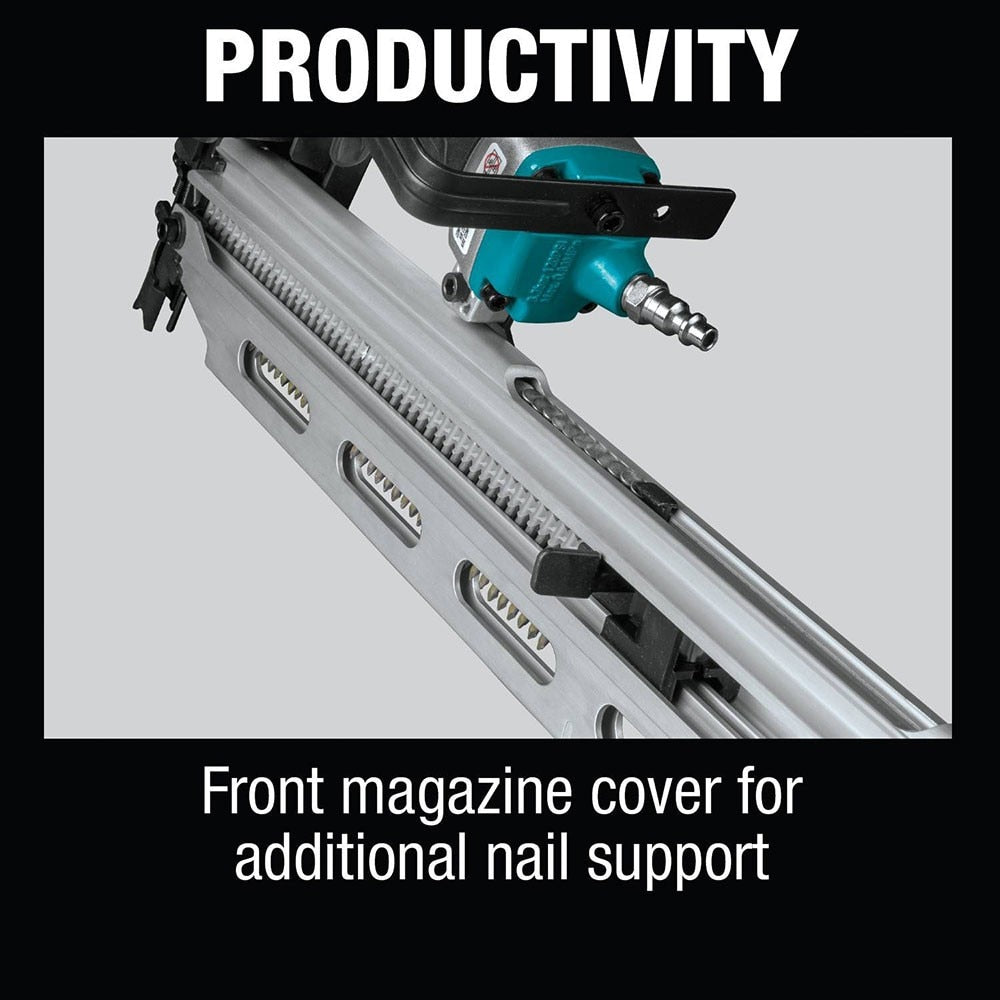

- Front magazine cover for additional nail support
- Heat treated S7 steel driver blade for durability

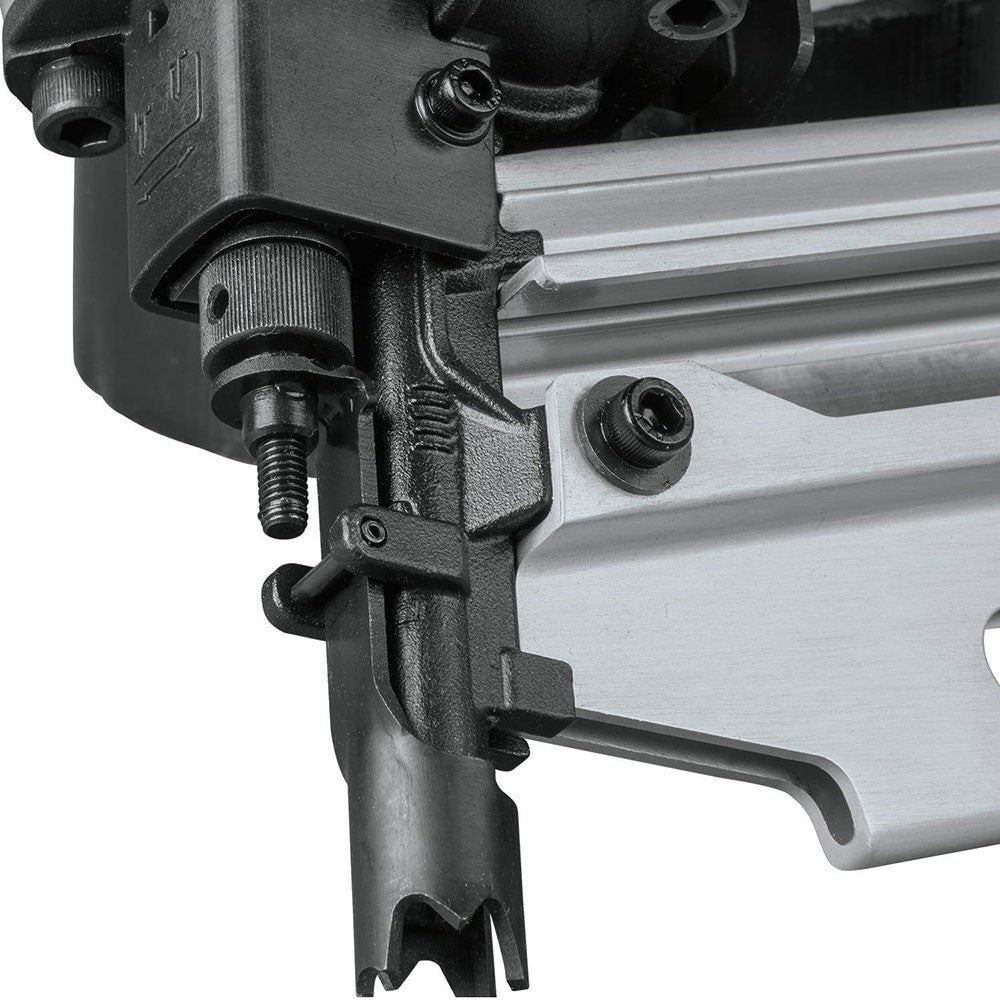

- "Tool-less" depth adjustment engineered for more precise flush and countersink nailing

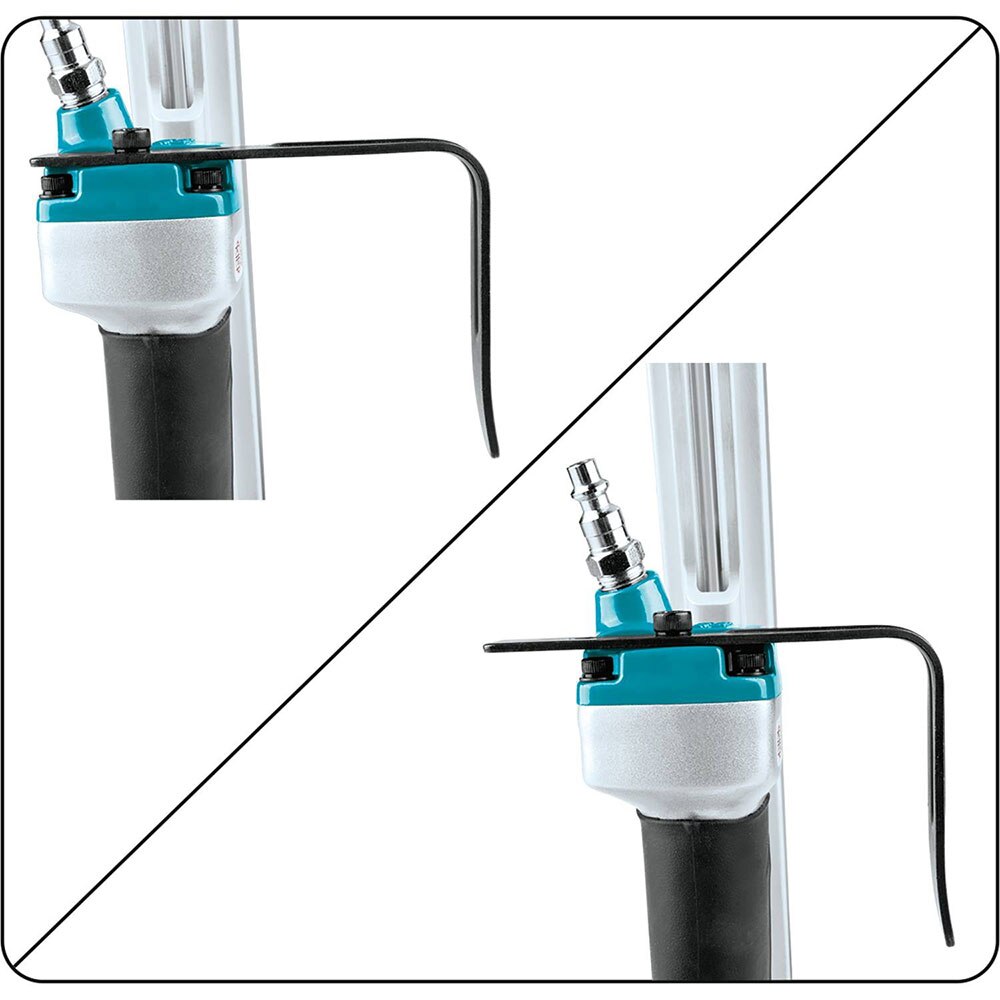

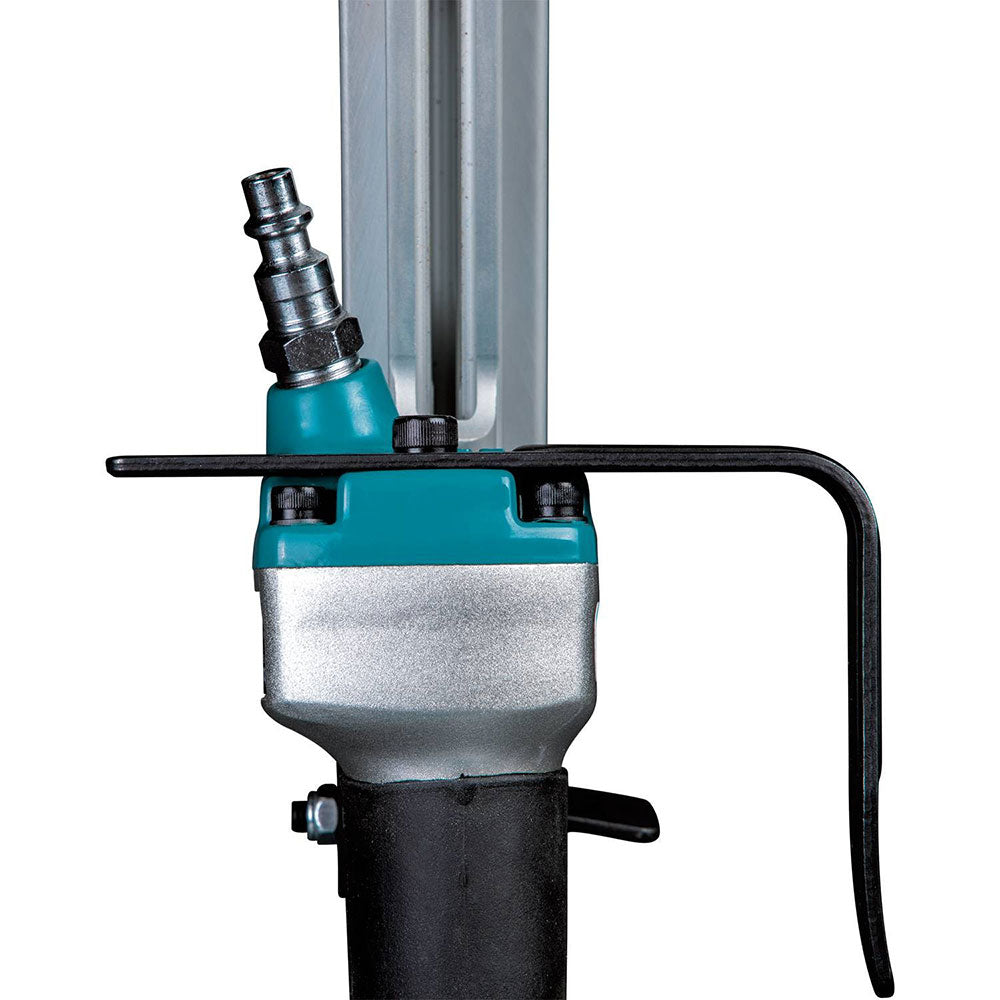

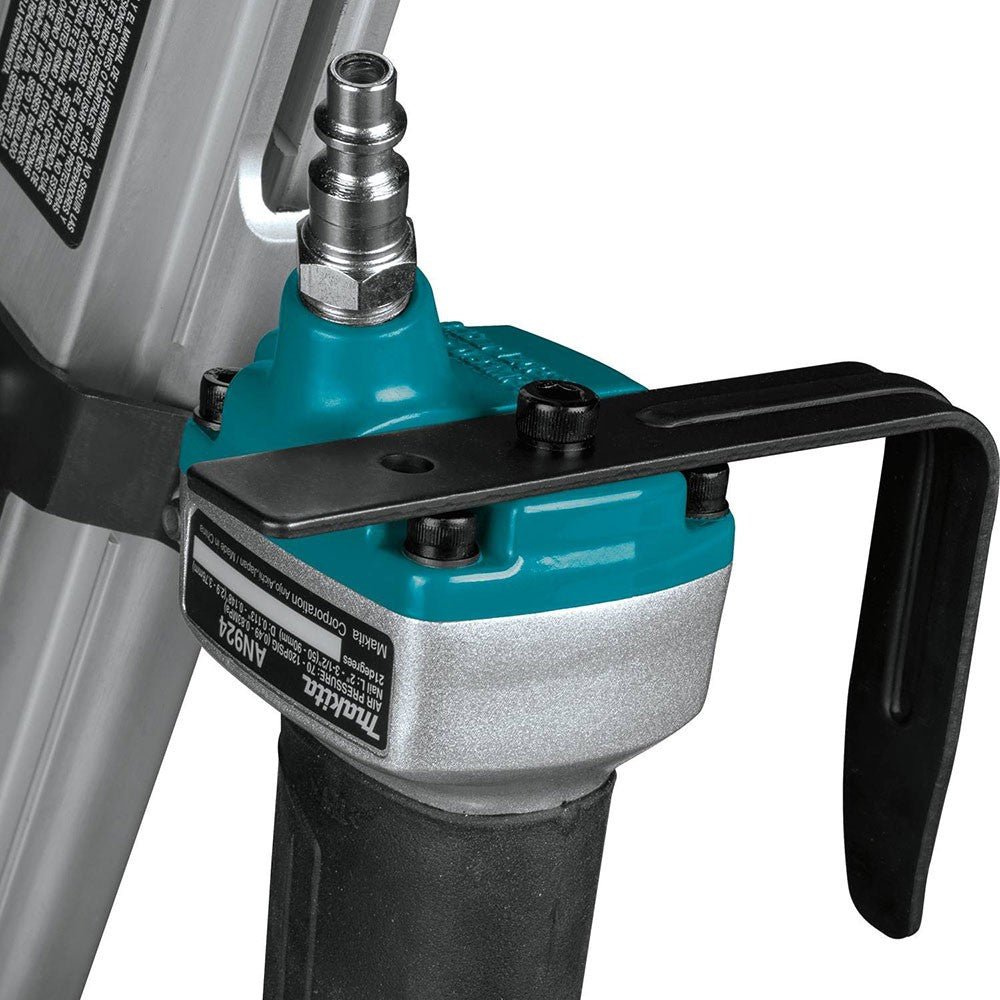

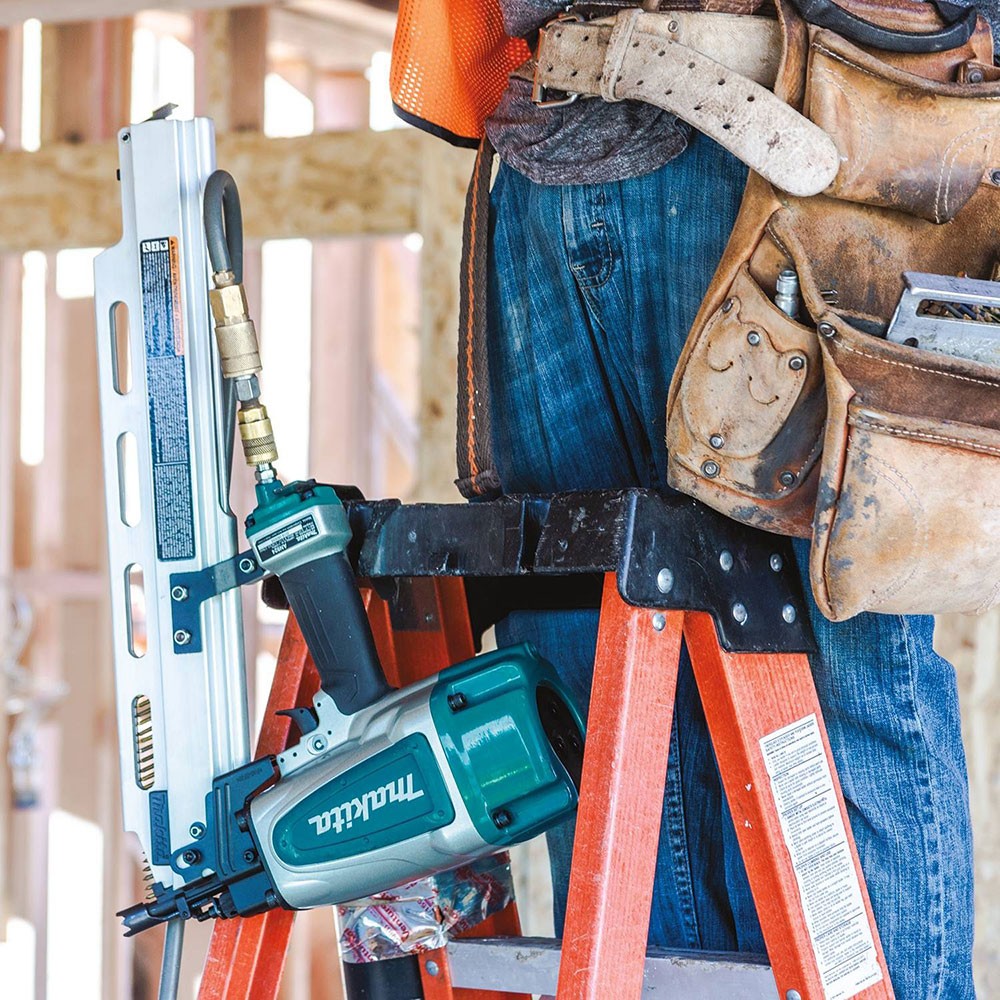

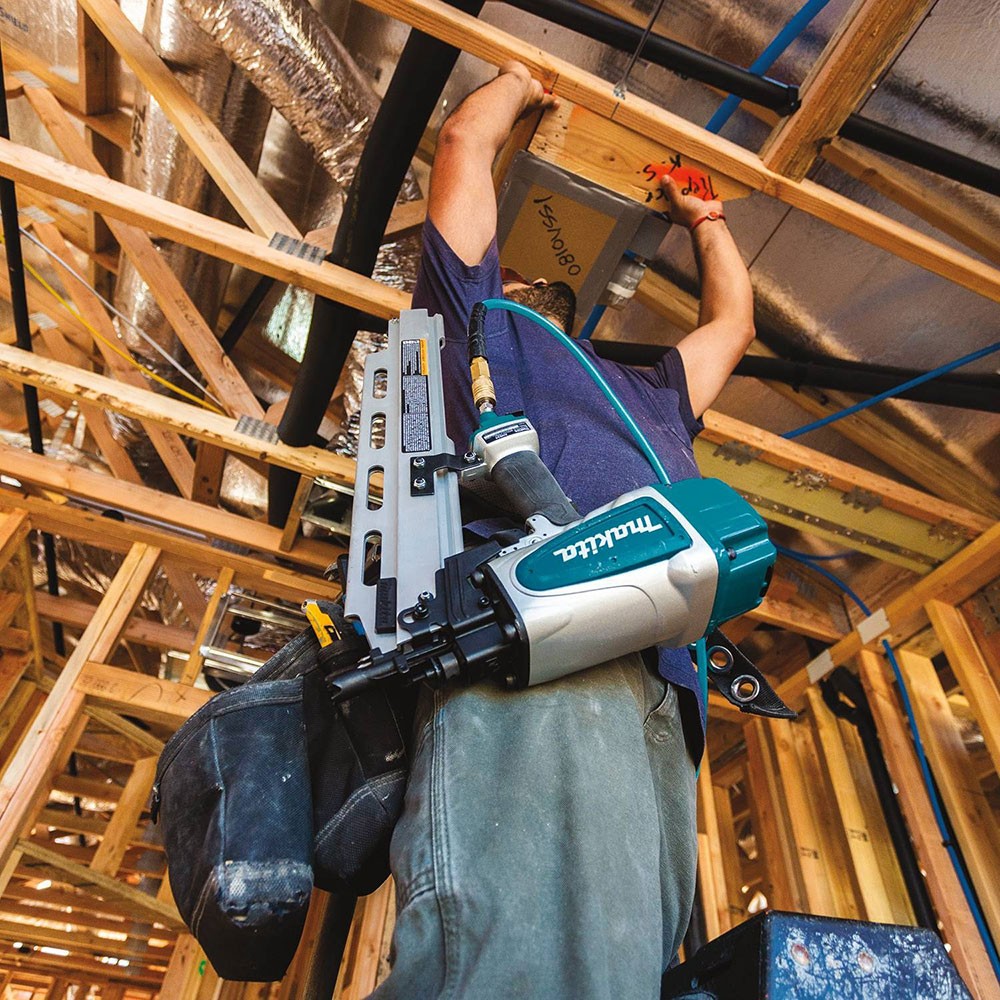

- Reversible hook allows tool to remain close by

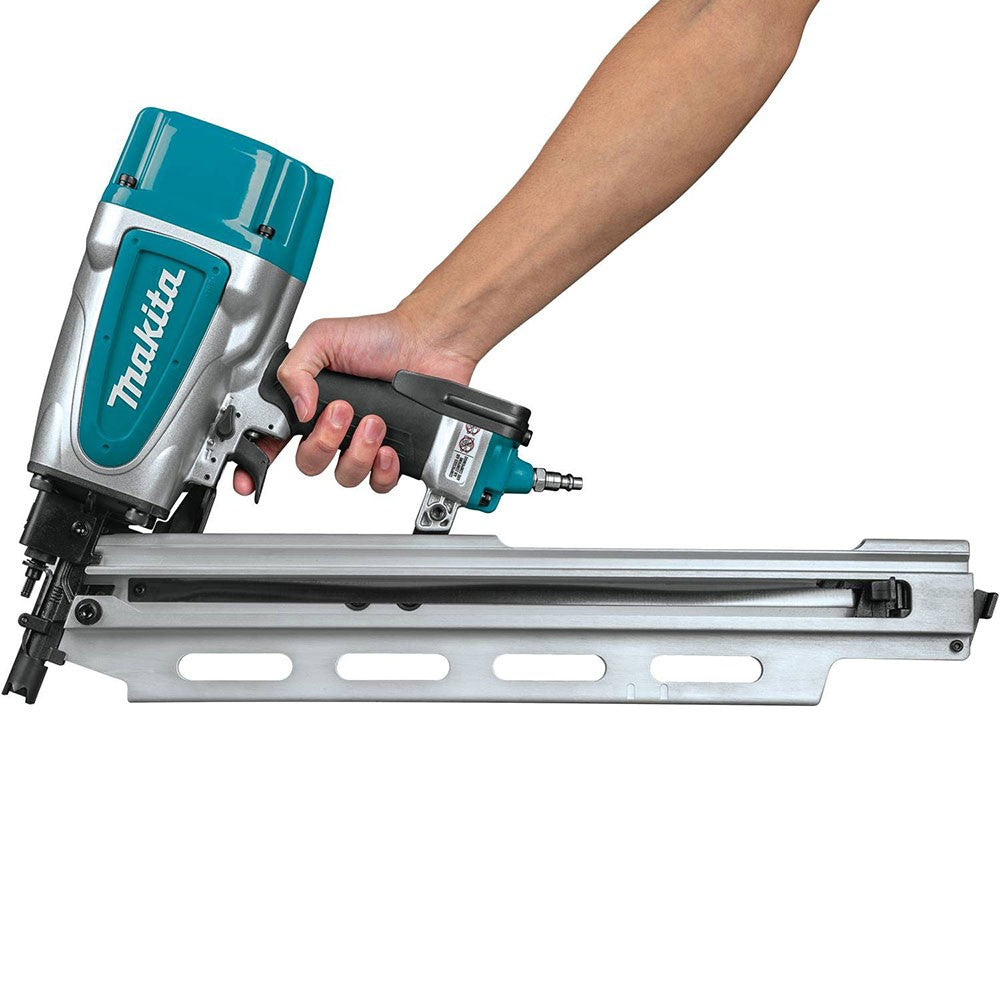

- Ergonomic rubberized grip for increased comfort on the job
- Sharp, pronounced spurs grip wood for controlled nailing at an angle
- Rubber bumpers protect the tool and surface from damage

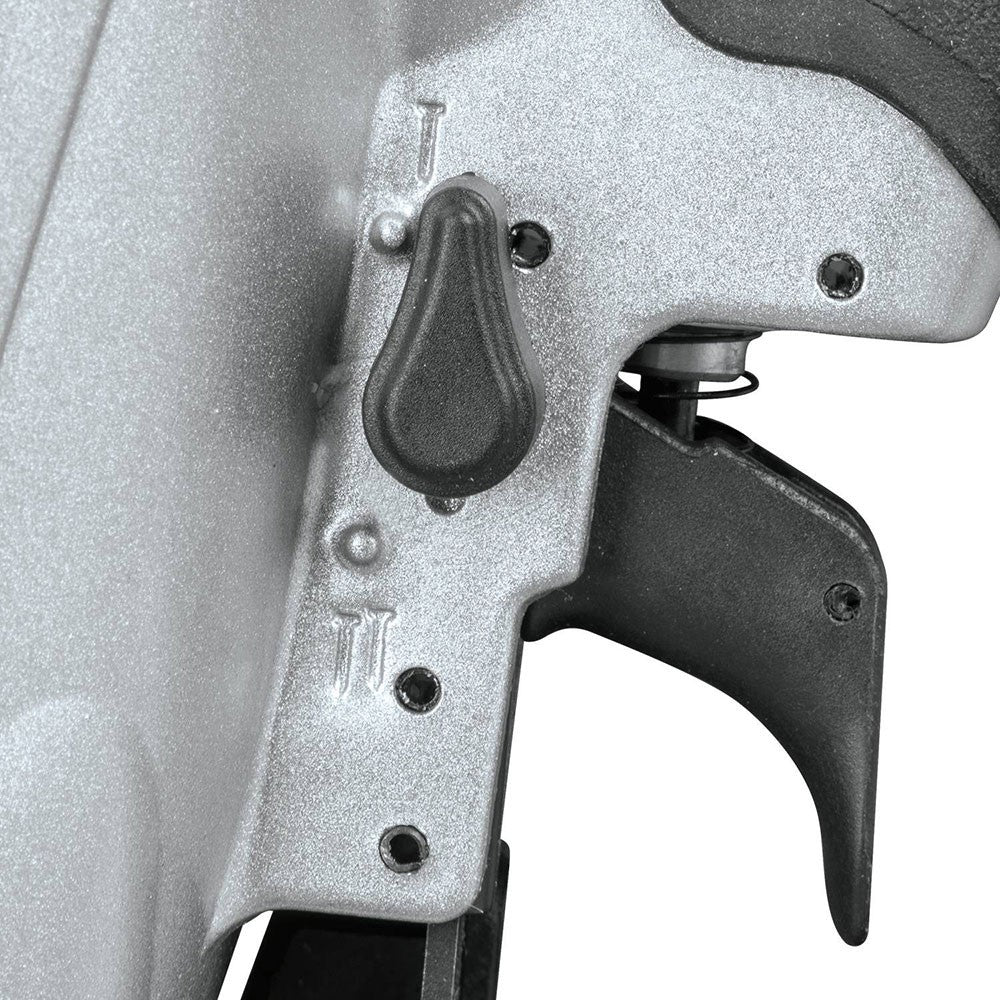

- 2-mode selector switch allows operator to select contact or sequential nailing options
- Nail lock-out mechanism protects tool and work surface from dry-fires
- Minimum recommended air delivery of 6.2 SCFM @ 90PSI
- 3-year limited warranty
Makita AN924 Specifications
| Power Type | Pneumatic |
| Operating Air Pressure | 70 - 120 PSI |
| Minimum Recommended Air Delivery | 6.2 SCFM @ 90 PSI |
| Nail Size | 2"-3-1/2" .113"-.148" shank diameter plastic collated |
| Maximum Magazine Capacity | 73 |
| Fastening category | Framing |
| Dimensions (LxWxH) | 22" x 4-5/8" x 13-3/4" |
| Net Weight | 8.3 lbs. |
| Shipping Weight | 22.79 lbs. |
| UPC Code | 088381-857093 |
