Description
Includes:
• (1) 3/8" Drive Angle Nut Runner (Tool Only)
Features:

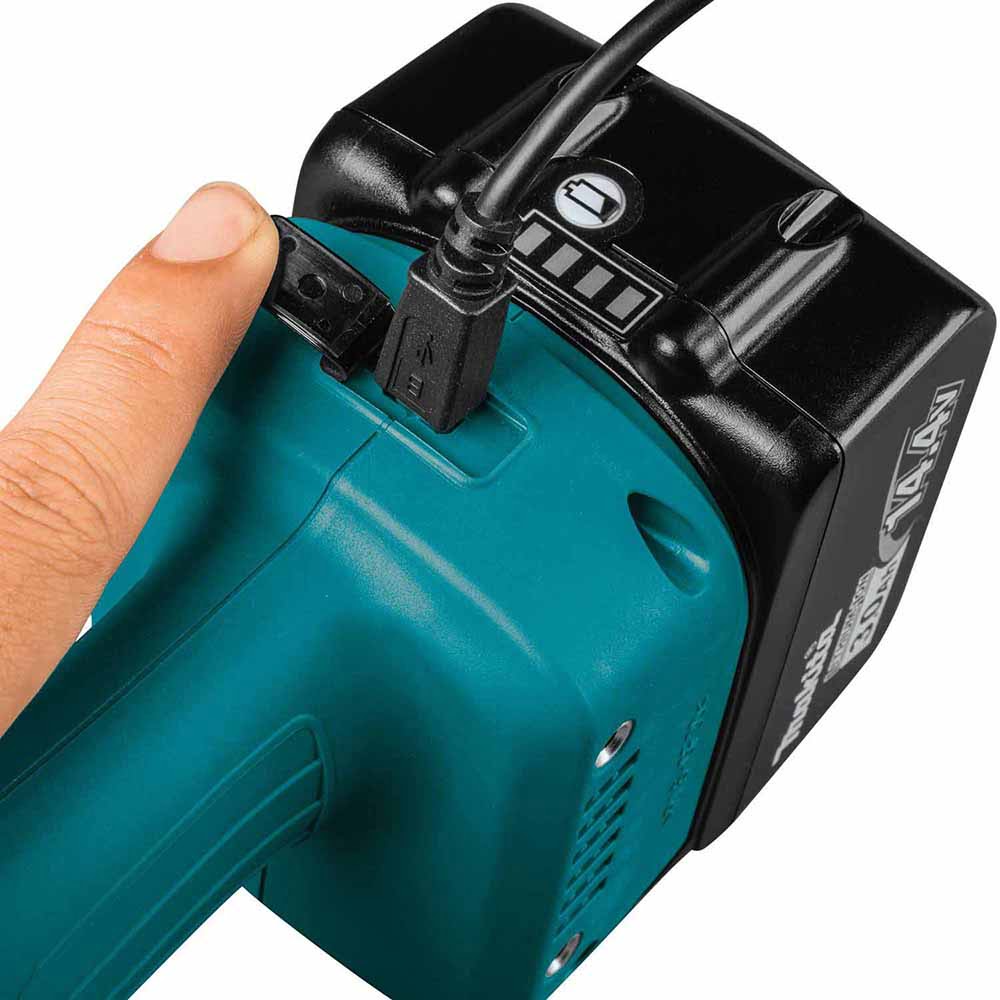

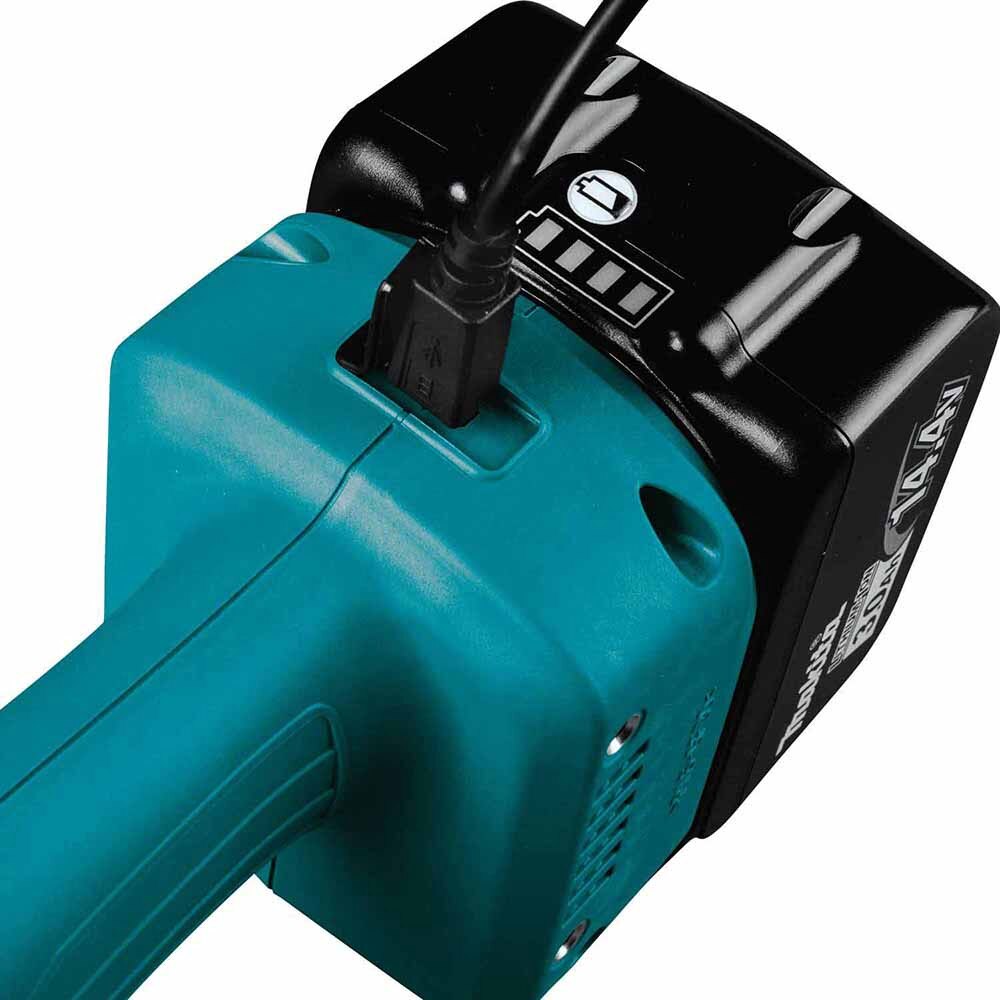

• USB Programmable
• "Real World" accuracy has earned certification within major Automotive and Aerospace Assemblers achieving repeatability within 4% of mean torque

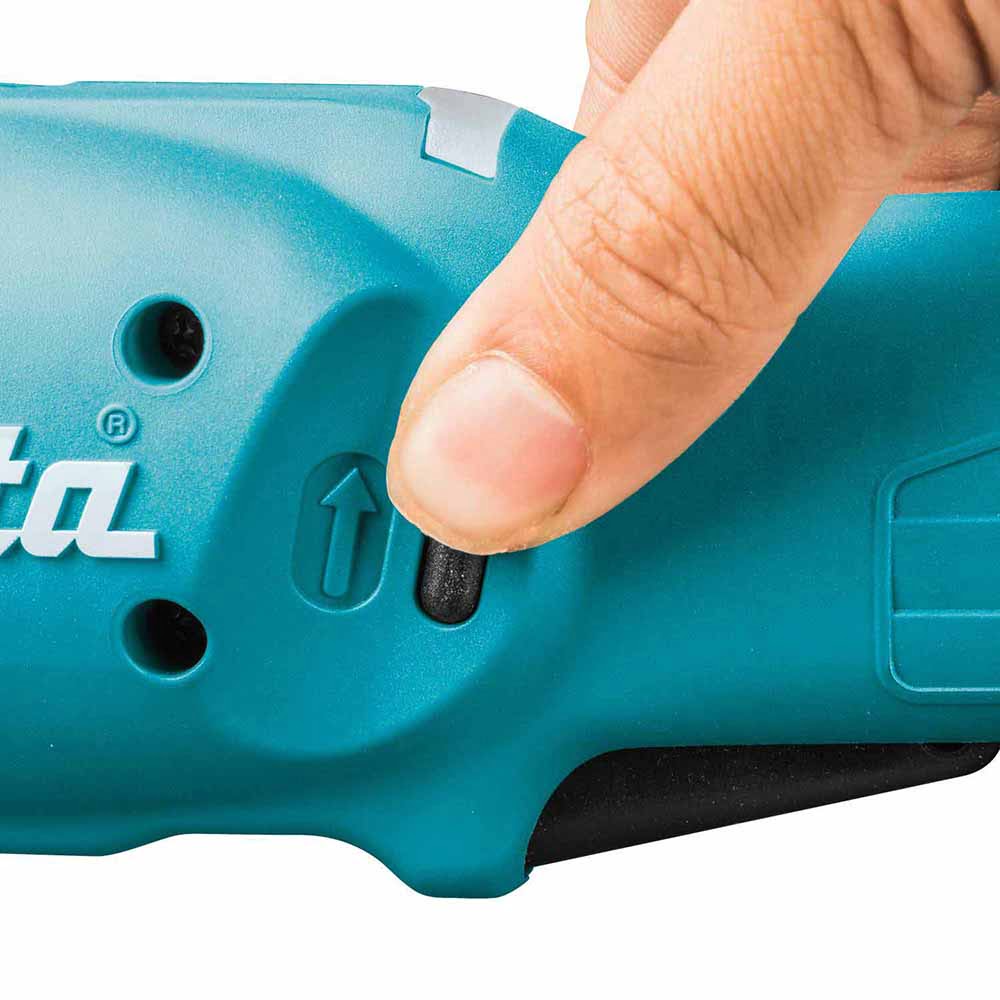

• RPM and directional programming via USB port for multi-stage rundown control
• Maintenance mode, tool notifies operator when calibration is due
• Provides Cm > 1.67 (within +/- 10% tolerance range)
• Lithium-Ion Battery for extended run time and total lifetime charge cycles (battery not included); weighs less than 12V NiCd batteries
• Automatic shut off of tool when preset fastening torque is achieved to ensure consistent repeatability
• Auto Battery Shut off (ABS) disables the tool once battery capacity drops below 5%

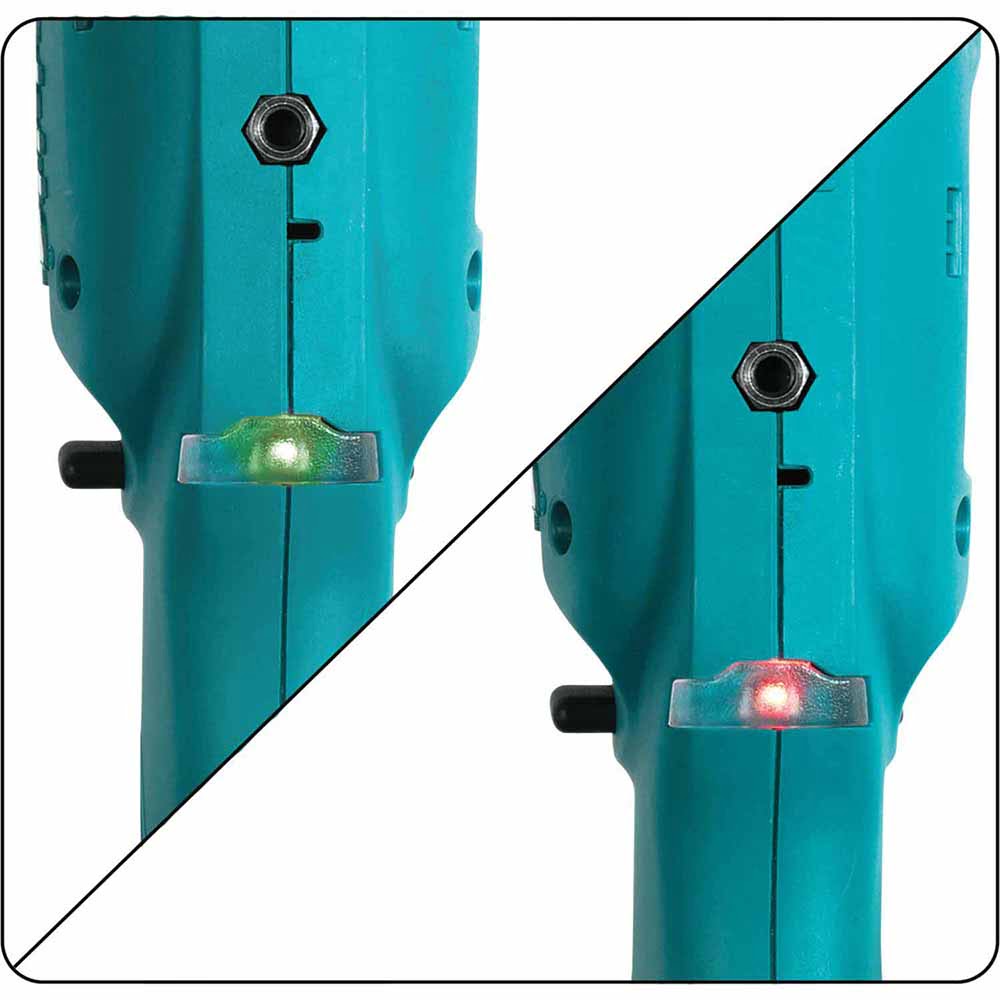

• Pass/fail lamp indicates sufficient and insufficient fastening achievement and audibly alerts operator to failed fastenings
• Precision sensor informs operator of insufficient battery charge level through visual and audible indicators

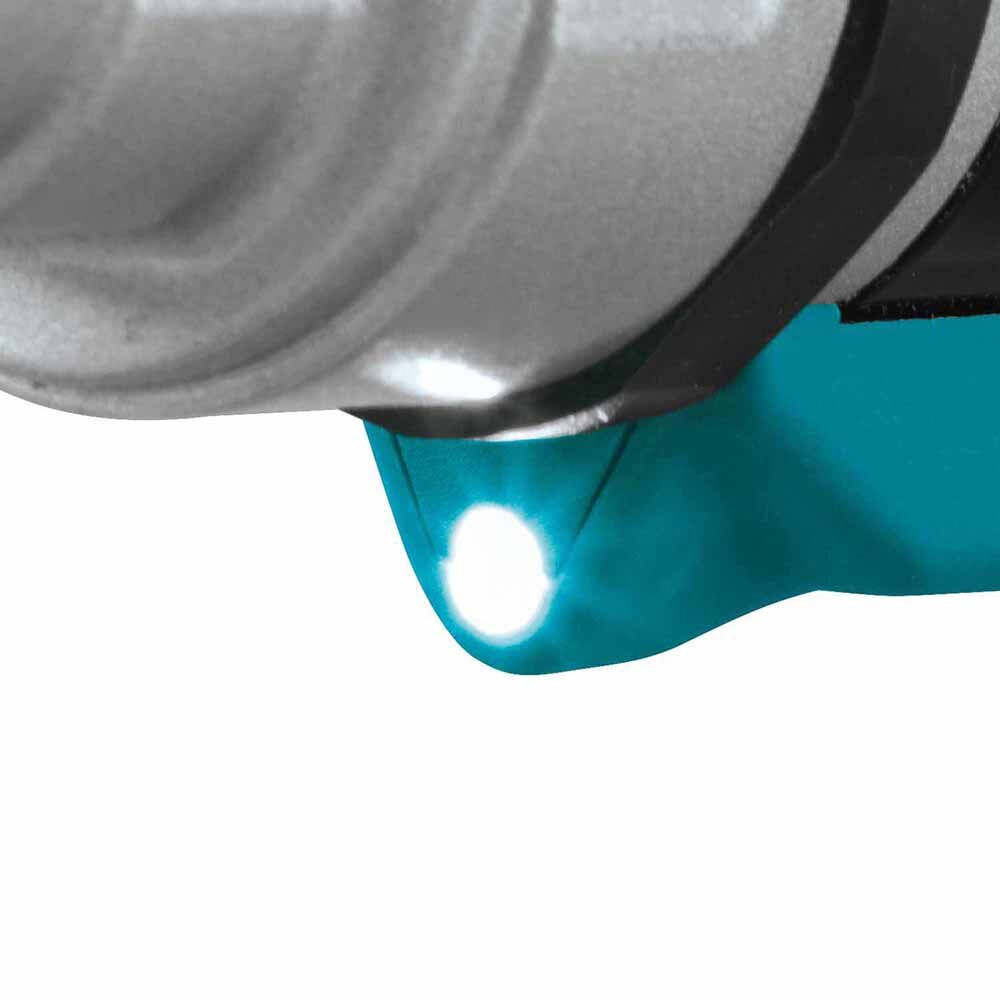

• Built-in L.E.D. light illuminates work surface for better visibility in low light environments
• Rapid Optimum Charging System charges battery in only 30 minutes (battery and charger not included)
• Only use genuine Makita batteries and chargers

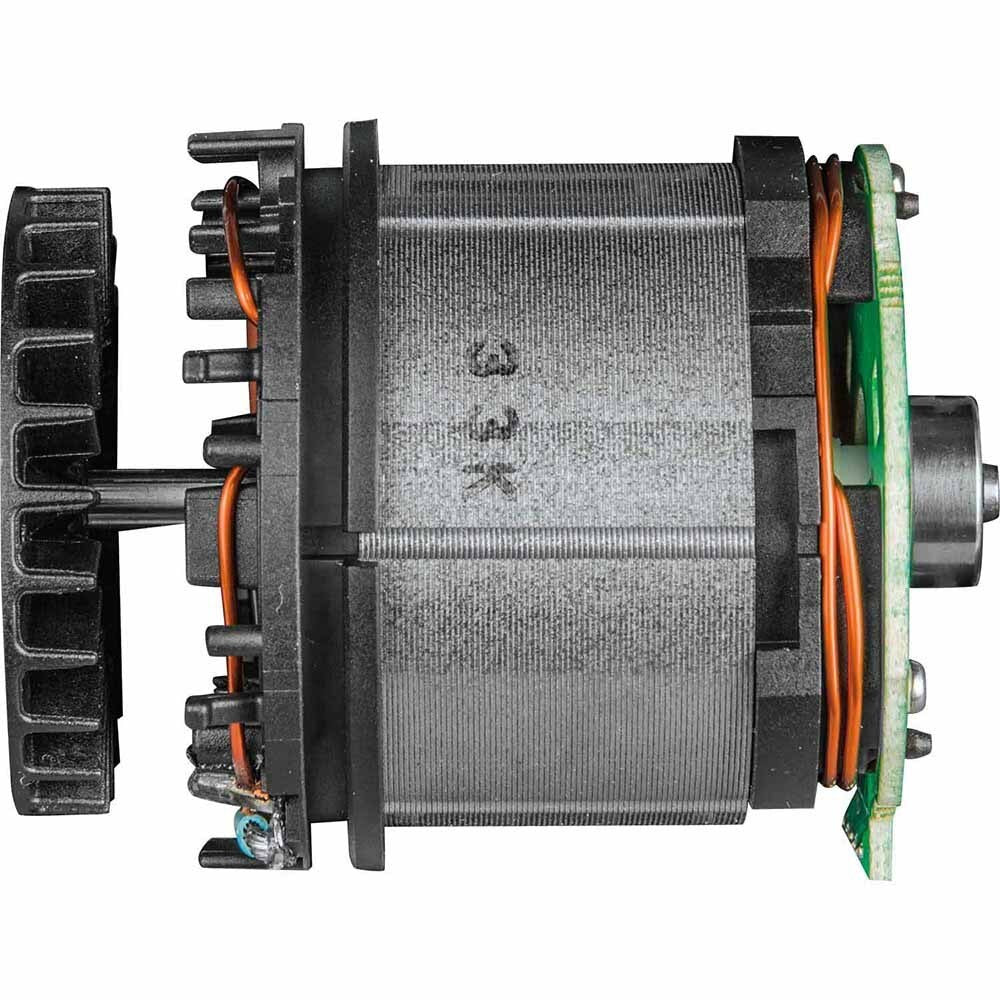

• Makita built brushless motors
Specifications:
• Voltage: 14.4V

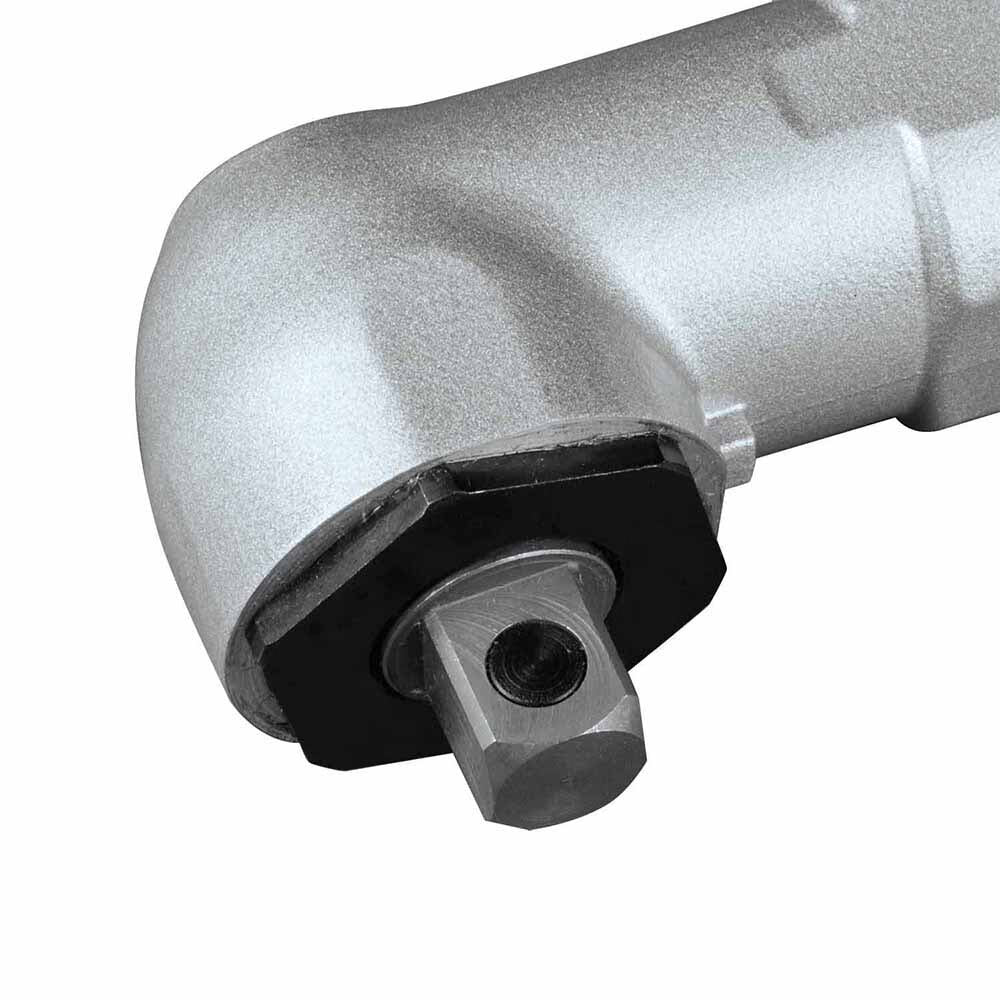

• Drive Size: 3/8" Square Drive

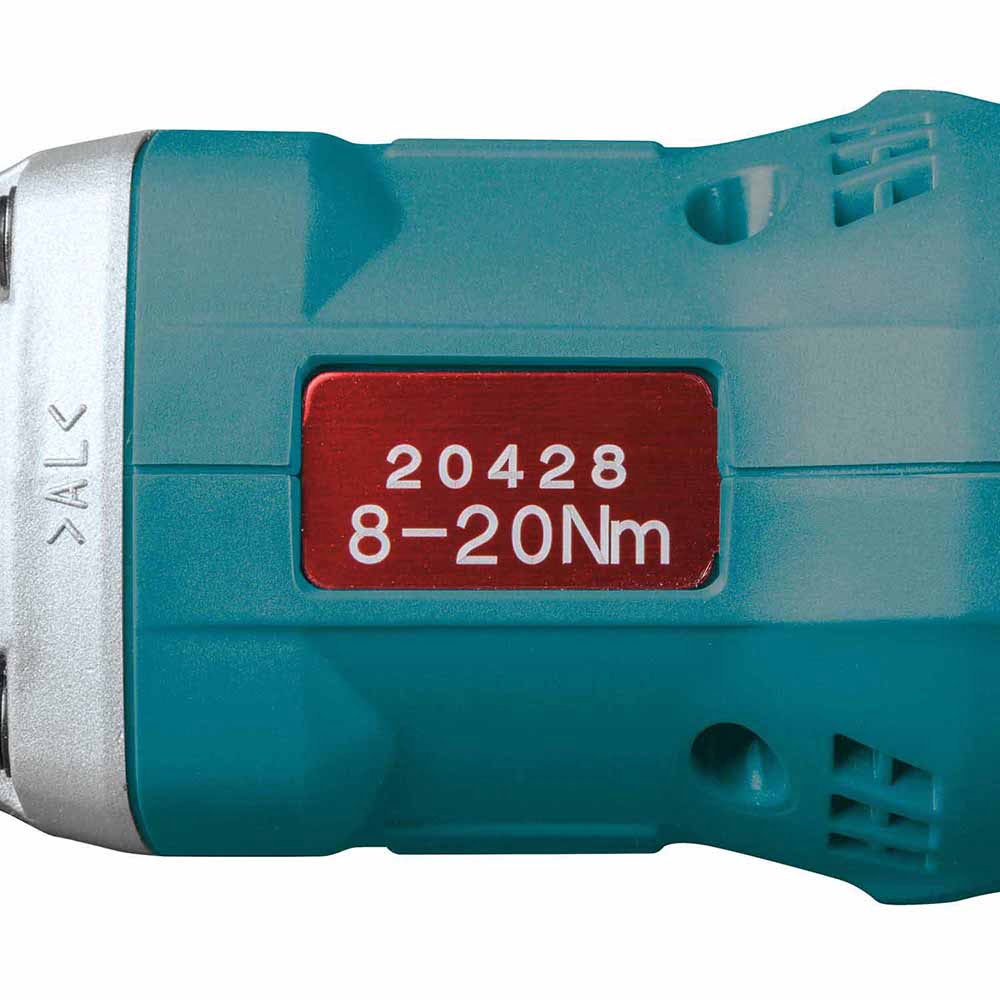

• Fastening Torque, Adjustable (N•m/in.lbs.): 8-20/71-177
• No Load Speed (variable speed): 100 - 440 RPM
• Low Reaction: No
• Wireless Communication: No
• Length (with battery): 22"
• Height (with battery): 3-5/32"
• Width (with battery): 4-11/64"
• Net Weight (with battery): 4.7 lbs.
• Battery (accessory number): BL1430B, BL1460A
• Motor Type: Brushless
• Shipping Weight: 3.86 lbs.
• UPC Code: 088381-857192

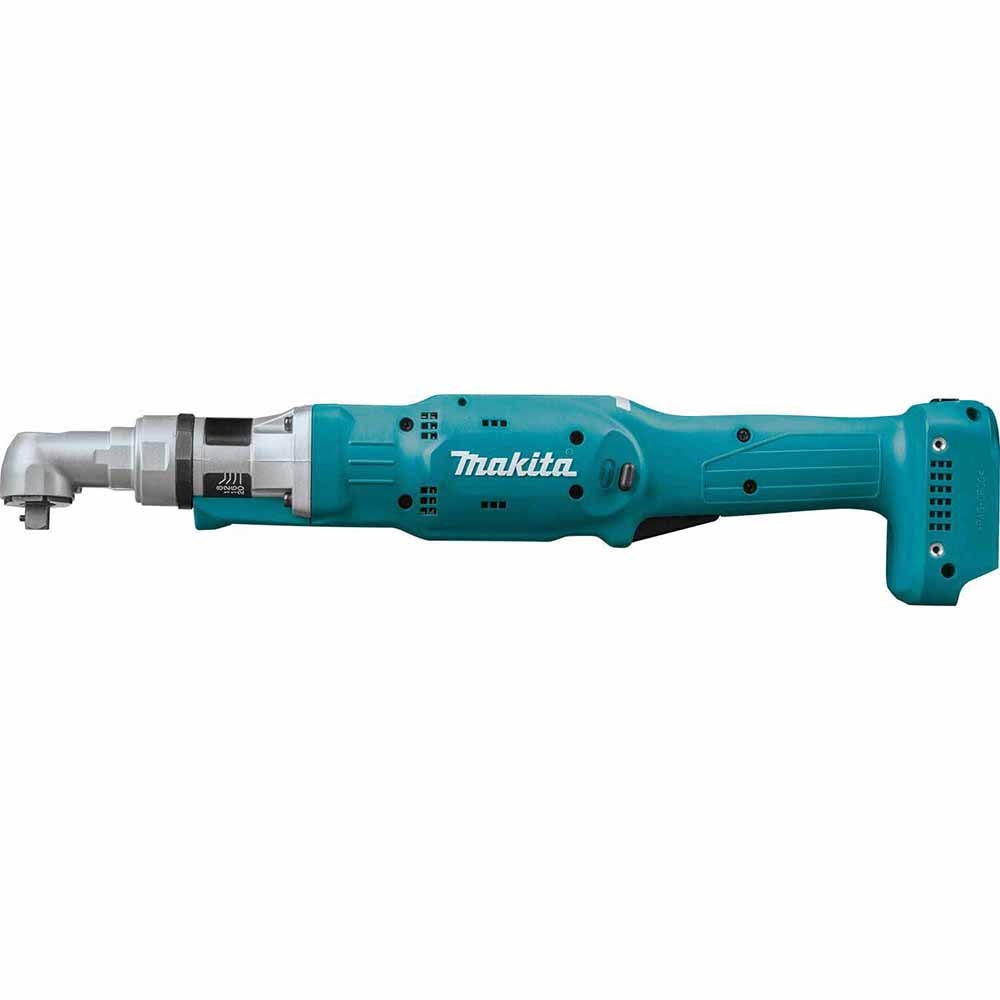

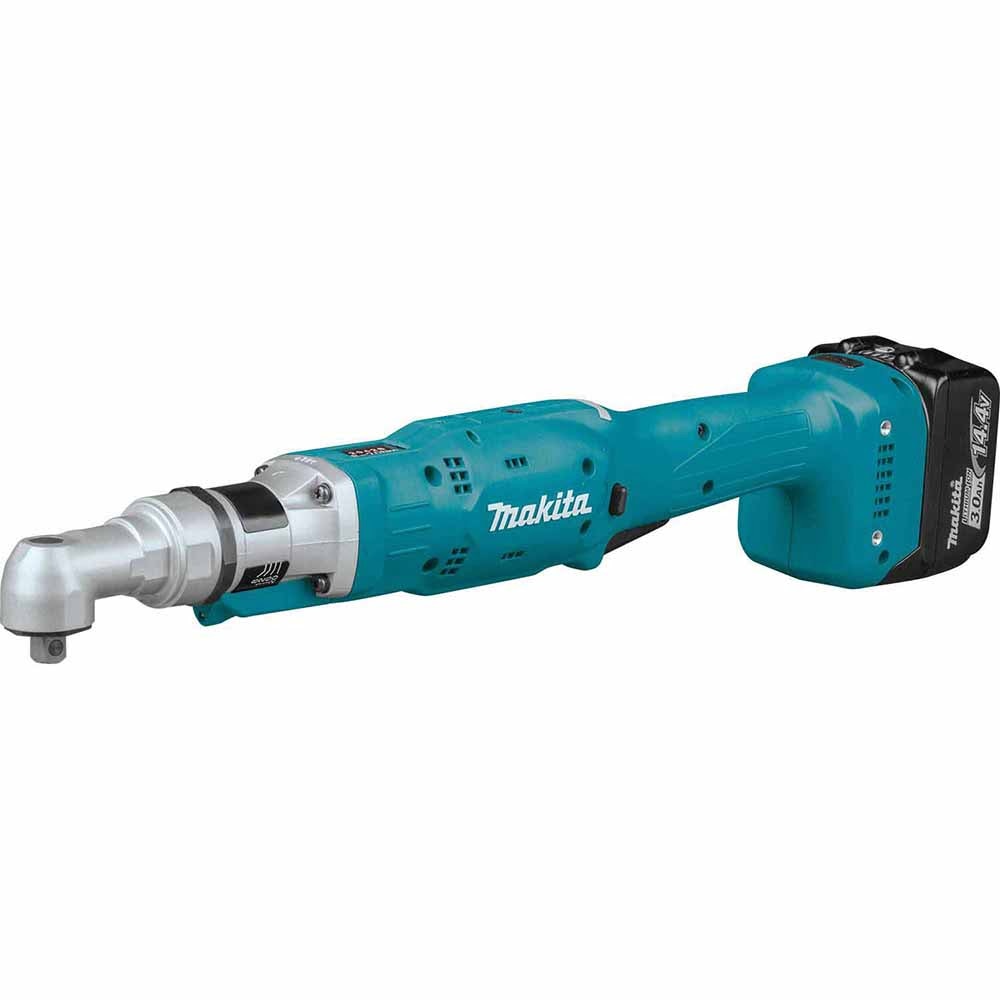

Makita nut runners deliver precise torque control for higher torque and hard to reach fastening applications in production and assembly. The Makita 14.4V Lithium-Ion Cordless 3/8" Square Drive Angle Nut Runner (DFL204FZ) is a torque-specific solution (8.0 - 20.0 Nm) that install fasteners accurately and efficiently, with extended run time.
The DFL204FZ is USB programmable, with "real world" accuracy that has earned certification within major automotive and aerospace assemblers by achieving repeatability within 4% of mean torque. It offers RPM and directional programming via USB port for multi-stage rundown control. It has a no-load speed of 100 - 440 RPM for efficient fastening. When used in maintenance mode, the tool notifies operator when calibration is due. It also includes a pass/fail indicator to clearly confirm the fastening achievement on each application.
It's part of the Makita line of Assembly Tools. Makita is the industry leader in cordless clutch tools and accessories used for precision fastening in an assembly environment. Makita-built assembly tools are user-certified for real-world repeatability of +/- 4% of mean torque. Makita assembly tools combine power, accuracy and ergonomics to deliver solutions that lower costs, enhance ergonomics, reduce trip hazards and increase productivity when compared to air tools. Whether precision fastening, or general MRO needs for you factory, with over 200 tool solutions on one charging platform, no other brand comes close to what Makita can provide to support all of the tooling needs within your manufacturing facility.
