Description
Makita DT04R1 Description
The Makita 12V max CXT™ Lithium-Ion Brushless Cordless Impact Driver delivers power and speed in an ultra-compact size for efficient driving and fastening. With Makita 12V max CXT™ Lithium-Ion slide-style batteries, users get superior balance and ergonomics over pod-style batteries. For added convenience the batteries include an on-board L.E.D. charge level indicator. The 12V max CXT™ Impact Driver weighs only 2.1 lbs. (with 2.0Ah battery), and delivers 1,200 in.lbs. of Max Torque. It features Assist Mode (A-mode), a setting that helps eliminate �cam-out� and �cross threading� by driving at low speed until tightening begins. The DT04R1 is an ideal solution for users seeking a more compact impact driver with less weight and for applications in tight spaces. For longer run time, 12V max CXT™ cordless tools are also compatible with the 12V max CXT™ Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT™ Lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It�s part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size.

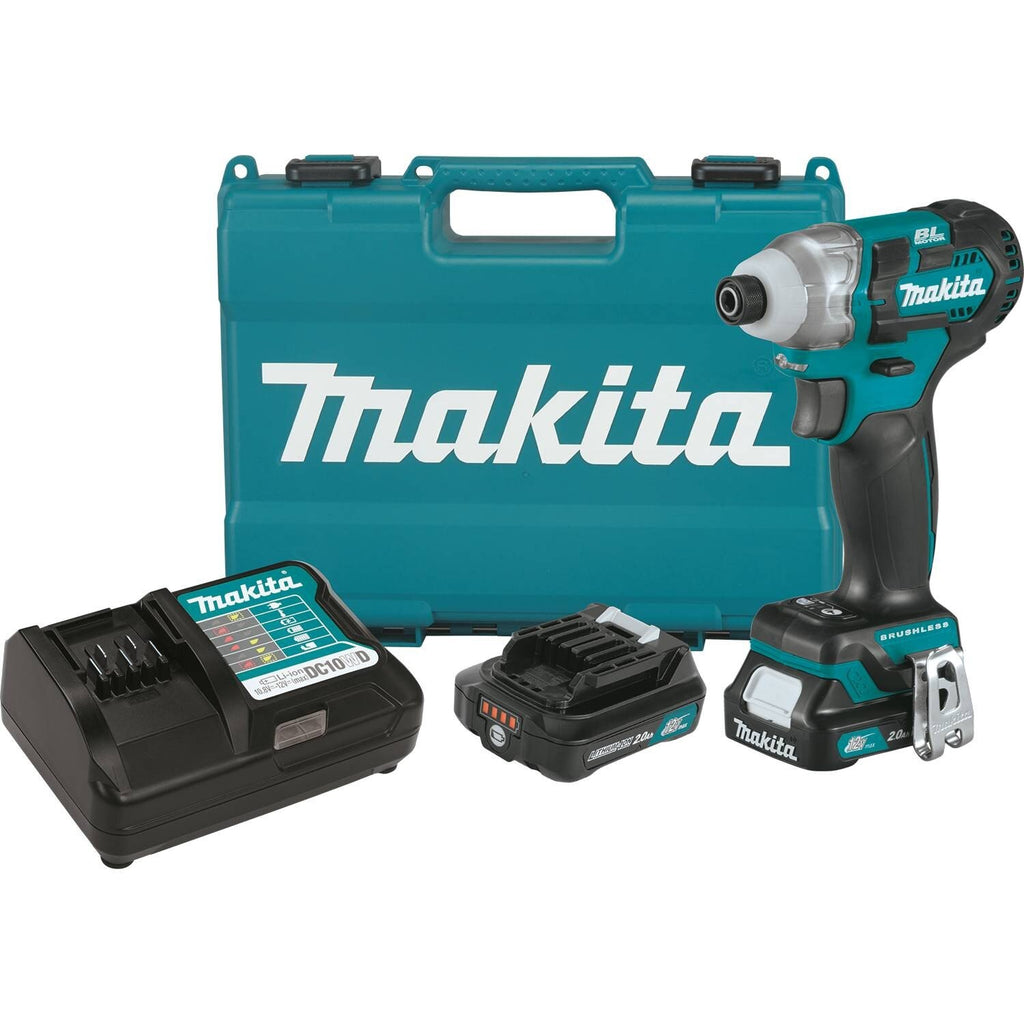

Makita DT04R1 Includes
- (1) 12V max CXT™ Brushless Impact Driver (DT04Z)
- (2) 12V max CXT™ Lithium-Ion 2.0Ah Battery (BL1021B)
- (1) 12V max CXT™ Lithium-Ion Charger (DC10WD)
- (1) Tool Case
Makita DT04R1 Features
- BL™ Brushless Motor delivers 1,200 in.lbs. of Max Torque in an ultra compact design
- Assist Mode (A-mode) feature helps eliminate "screw cam-out" and "cross threading" by driving at low speed until tightening begins
- Variable 2-speed (0-1,300/0-3,000 RPM & 0-1,600/0-3,900 IPM) for a wide range of fastening applications
- Compact and ergonomic design at only 5-5/16" long
- Weighs only 2.1 lbs. with battery for reduced operator fatigue
- Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
- The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Built-in L.E.D. light illuminates the work area
- Ideal for work in tight spaces
- Part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style tools, batteries and chargers
- 3-year limited warranty on tool, battery and charger
- Only use genuine Makita batteries and chargers
Makita DT04R1 Specifications
| Hex Shank: | 1/4" |
| No Load Speed (var. 2 spd): | 0 - 1,300 / 0 - 3,000 RPM |
| Impacts Per Minute (var. 2 spd.): | 0 - 1,600 / 0 - 3,900 IPM |
| Maximum Torque (in.lbs./N�m): | 1,200 in.lbs./135N�m |
| Battery: | 12V max CXT™ Lithium-Ion |
| Overall Length: | 5-5/16" |
| Net Weight (with battery): | 2.1 lbs. |
| Shipping Weight: | 6.9 lbs. |
| UPC Code: | 088381-829090 |
