Description
Makita GAG06Z Description

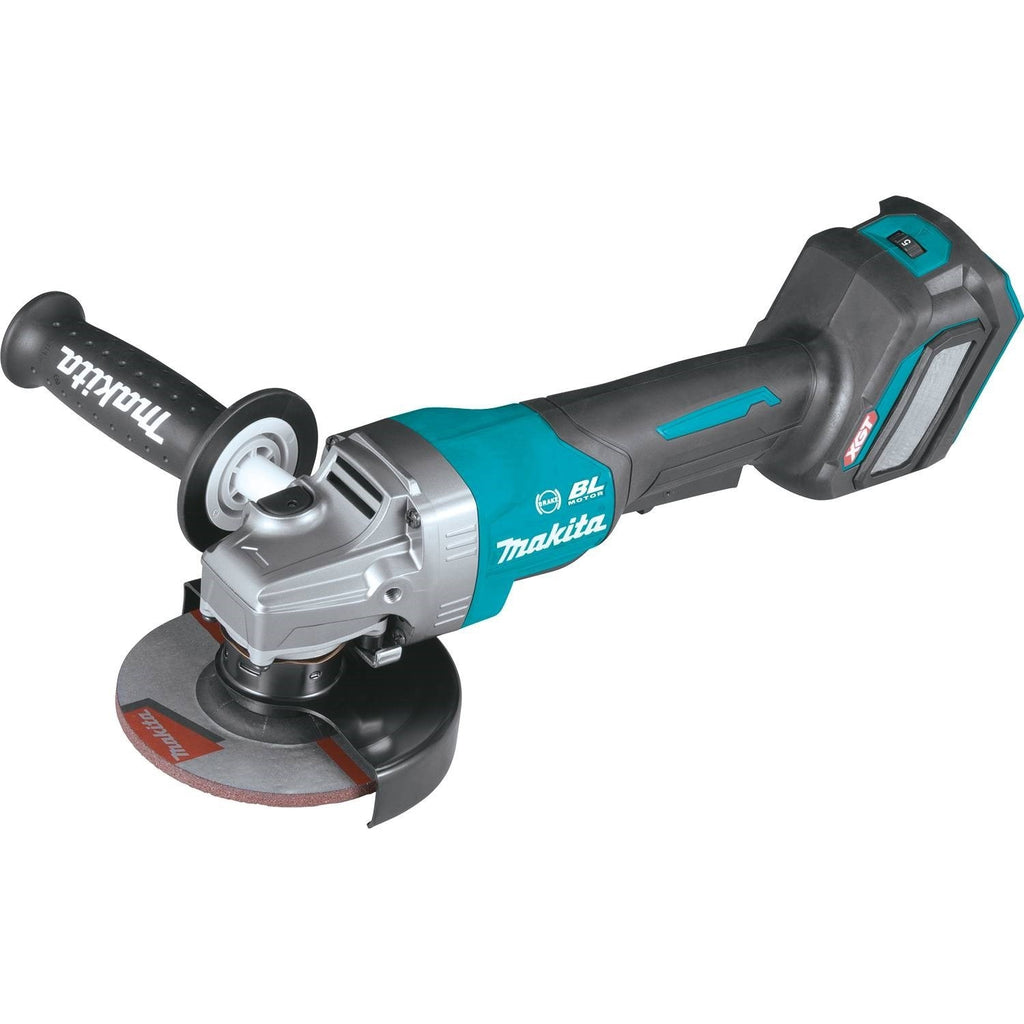

The 40V max XGT® Brushless Cordless 4-1/2" / 5” Paddle Switch Angle Grinder with Electric Brake and AWS® (GAG06Z, tool only) delivers corded grinding performance without the cord for the most demanding applications. It's powered by a Makita-built brushless motor which delivers variable 3,000-8,500 RPM for heavy-load applications and increased power and speed. The GAG06Z offers up to 60% faster cutting speed when cutting #5 (5/8”) rebar. It is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more. An electric current limiter helps protect the motor from overload in high-torque applications. Makita’s exclusive Automatic Speed Change™ technology automatically adjusts speed and torque during operation for optimal performance. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less and Active Feedback-sensing Technology (AFT®) that turns the motor off if rotation of the wheel is forced to a stop. A paddle switch with no lock-on is convenient, while quick guard rotation provides tool-less adjustments for increased productivity. Anti-restart protection is engineered to prevent motor start-up when the battery is inserted while the switch is locked on. A soft start suppresses start-up reaction and provides smooth start-ups. Wire mesh intake covers are engineered to prevent debris from entering the motor. The GAG06Z is also equipped with Makita's Extreme Protection Technology (XPT™), a series of protective seals inside the tool. XPT is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. Reinforced metal gear housing provides additional durability on the job site. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition. Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site.
Makita GAG06Z Includes
- 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- 5" Tool-Less Wheel Guard (140N43-5)
- Lock Nut Wrench (782424-9)
- Side Handle
Makita GAG06Z Features
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver powerful grinding and up to 60% faster cutting speed than predecessor models*
- OUTSMART: Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- OUTLAST: Electronic current limiter helps protect the motor from overload in high torque application

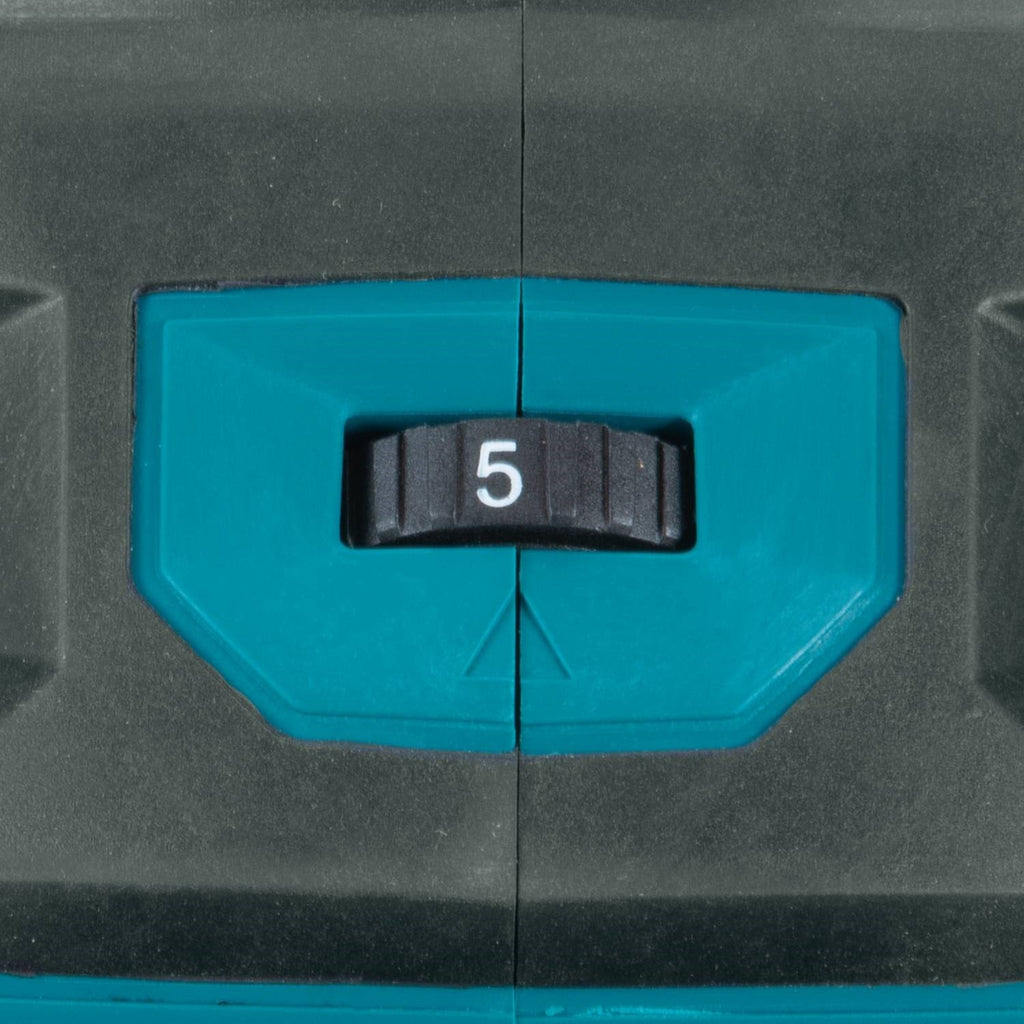

- Variable speed control dial allows for RPM adjustment (3,000-8,500) to match the speed to the application
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on
- Quick guard rotation allows easy tool-less adjustment for increased productivity
- Paddle switch with no lock-on for operator convenience
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Reinforced metal gear housing engineered for maximum job site durability
- Wire mesh intake covers are engineered to prevent debris from entering motor
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Rubberized soft grip provides increased comfort on the job
- Compact at only 16-1/8" long; ideal for tight spaces
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
Makita GAG06Z Specifications
System | XGT |
Wheel Diameter | 5" |
No Load Speed | 8,500 RPM |
Spindle Type | 5/8" - 11 UNC |
Lock-On Switch | Yes |
Lock-Off Switch | No |
Switch Type | Body grip/paddle |
Bind-Up Control | Yes |
Electric Brake | Yes |
Variable speed dial | Yes |
Automatic-start Wireless System (AWS™) | Capable (transmitter sold separately) |
Overall Length | 16-3/4" |
Net Weight (with battery) | 9.9 lbs. |
Power Type | Cordless |
Shipping Weight | 7.74 lbs. |
UPC Code | 088381-722438 |
