Description
Makita GEC01PL Description

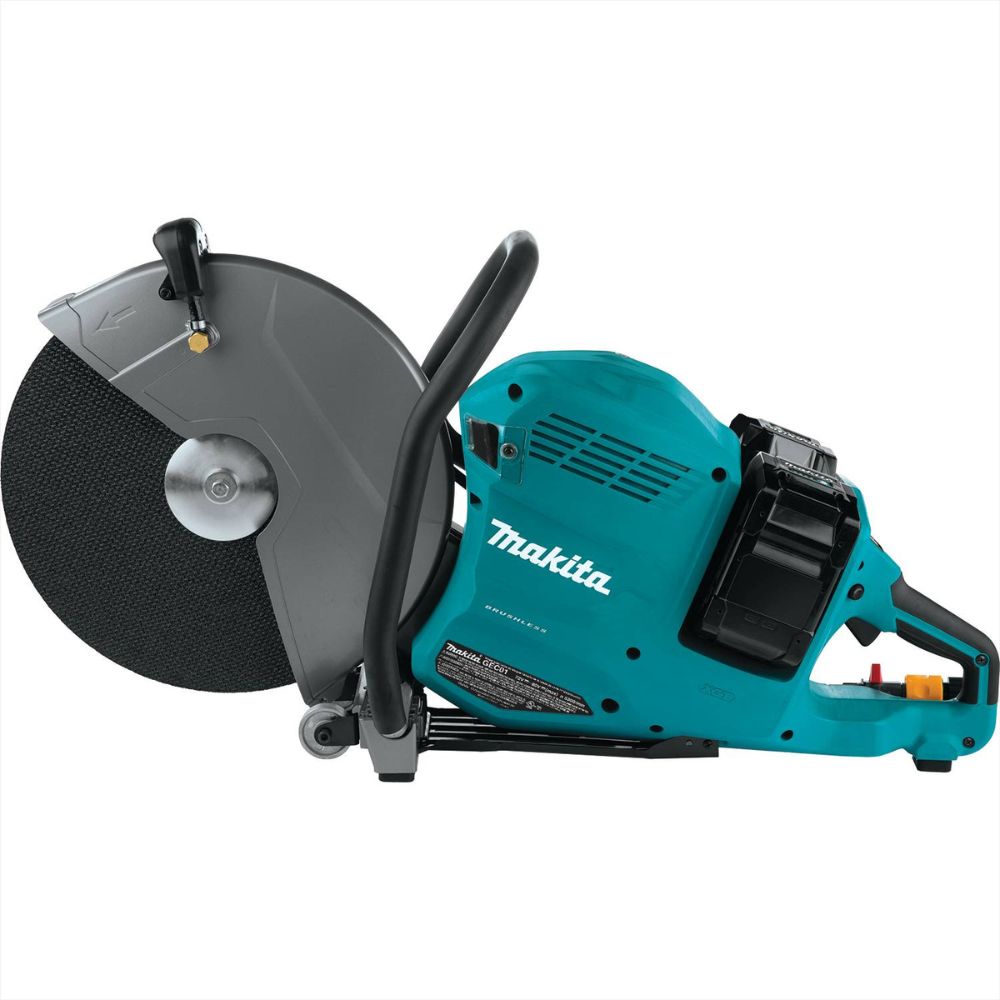

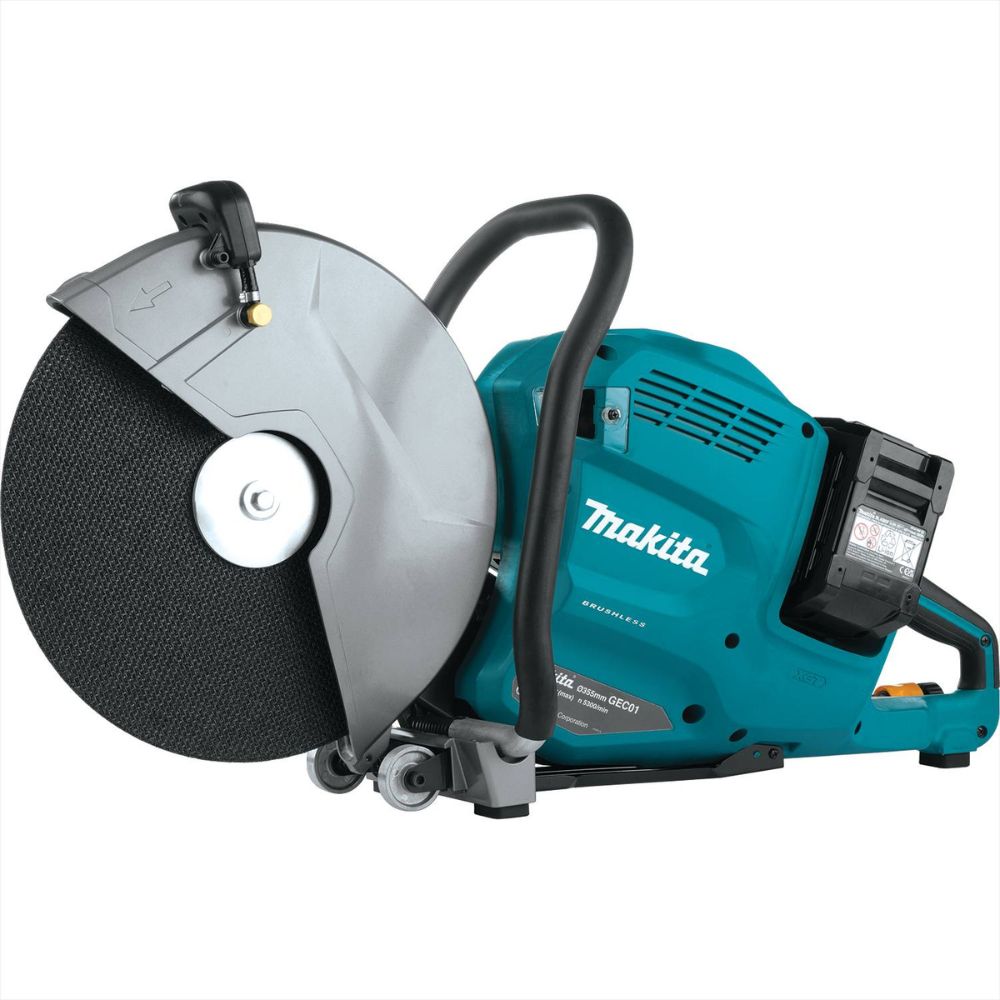

The 80V max (40V max X2) XGT Brushless 14" Power Cutter with AFT and Electric Brake (GEC01PL) has the power to cut through various masonry and metal materials with all the benefits and convenience of cordless operation. The 14” wheel diameter allows for single pass cuts up to 5” deep in various masonry and metal materials. Model GEC01PL is a kit and includes two 40V max XGT 8.0Ah Batteries (BL4080F) and an efficient 40V max XGT Dual Port Rapid Optimum Charger (DC40RB). The benefits of a cordless power cutter over gas include no oil or mixing, lower noise, less maintenance, zero emissions, and no pull starts. This means instant starts, cost savings, and the ability to use the power cutter indoors. It has an integrated water delivery system with a water flow adjustment knob that continuously feeds water for OSHA Table 1 Compliance in concrete cutting applications. The belt-drive design provides smoother operation with lower vibration. The GEC01 has a Makita-built brushless motor combined with two 40V max XGT batteries to deliver the performance equivalent to a 75.6cc gas-powered model. The brushless motor runs cooler and more efficiently for longer life and can deliver up to 5,300 RPM. The GEC01 is engineered with Active Feedback-Sensing Technology (AFT), which electronically turns off the motor if the rotation of the cutting wheel is suddenly forced to stop. It also features Extreme Protection Technology (XPT), which is engineered for improved dust and water resistance for operation in harsh conditions. Convenience features include a built-in L.E.D. light, large spindle lock button for easier wheel changes when wearing gloves, and a lock-off power switch which requires two actions to start the Power Cutter. It also features soft start, which suppresses start-up reaction for smoother start-ups and longer gear life, and overload protection designed to protect the motor from burnout in abnormally high torque situations. Other features include integrated all aluminum wheels that help reduce fatigue and maintain accuracy in floor cutting applications, an adjustable blade guard which facilitates cutting in low or upper wall zones, and a rubberized front handle that can be held in multiple positions for increased comfort at various cutting orientations. XGT is a system of equipment, tools, batteries, and chargers utilizing 40 max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Makita GEC01PL Includes
- (1) 40V max XGT Dual Port Rapid Optimum Charger (DC40RB)

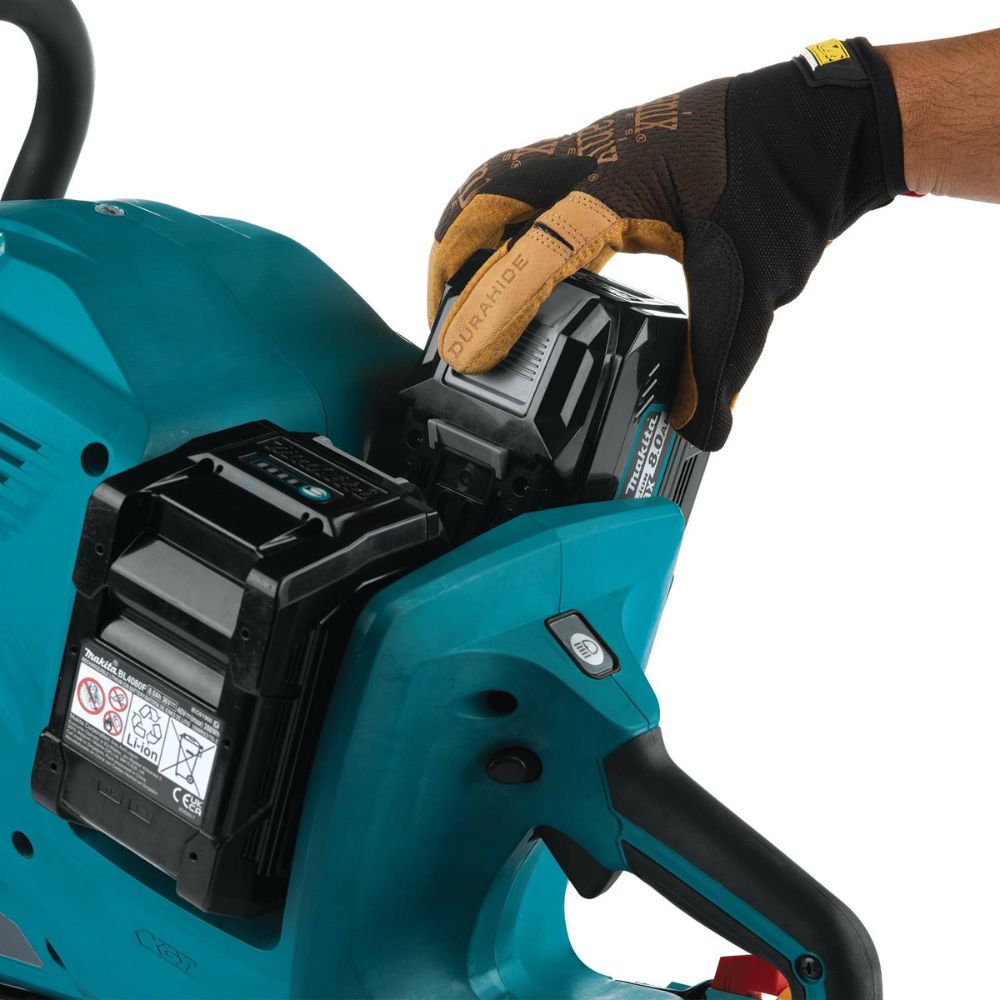

- (2) 40V max XGT 8.0Ah Battery (BL4080F)
- (1) Water Hose Coupling (123120-4)
- (1) 14" Cut-Off Wheel (E-12809)
- (1) Adapter Ring (20mm to 1") (191W53-9)
- (1) Universal Wrench 13-19 (782037-6)
Makita GEC01PL Features
- OUTPOWER: Makita-built brushless motor along with two 40V max XGT batteries combine to deliver the cutting efficiency expected from equivalent gas models*
- OUTSMART: Eliminates the hassles of gas equipment with instant starts, reduced maintenance, and zero emissions allowing for use in interior applications
- OUTLAST: Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- XGT battery power allows for immediate start-up and eliminates the hassles of engine pull starts and managing proper fuel/oil mixing
- 14" wheel allows for single pass cuts up to 5" deep in various masonry and metal materials

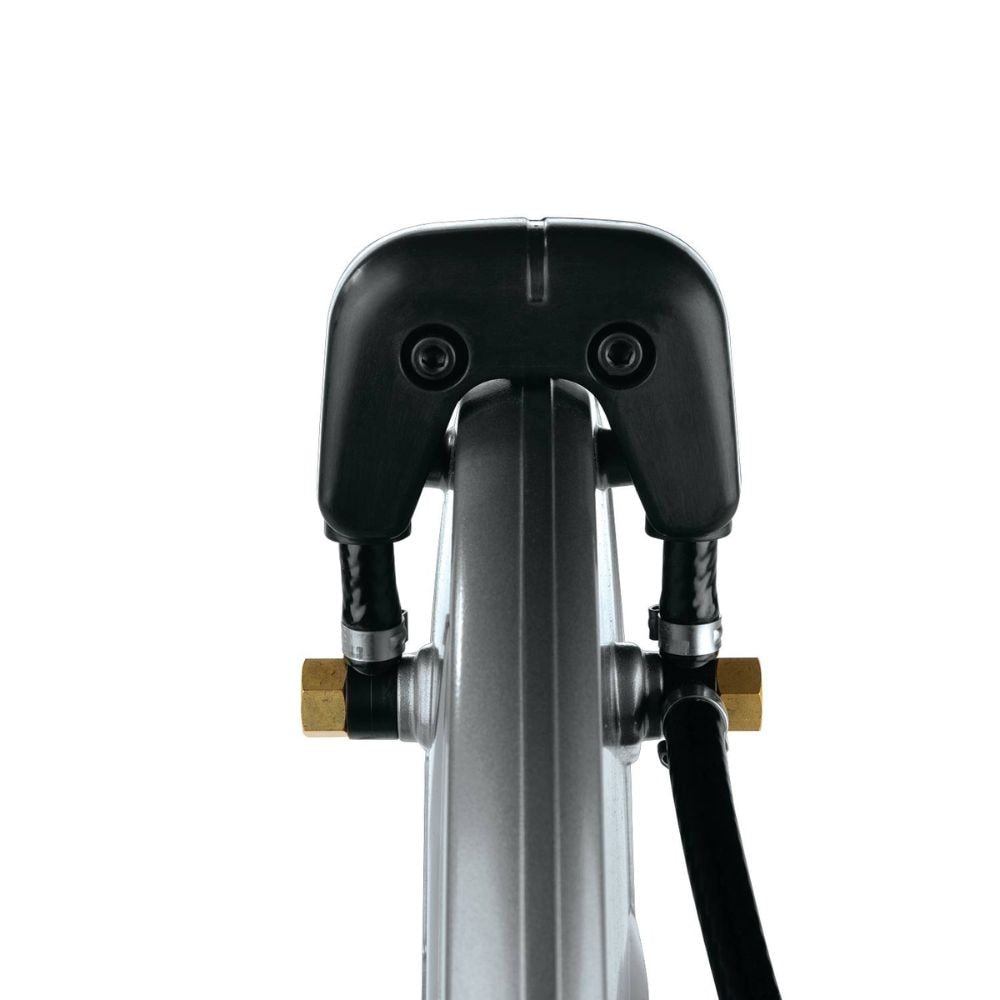

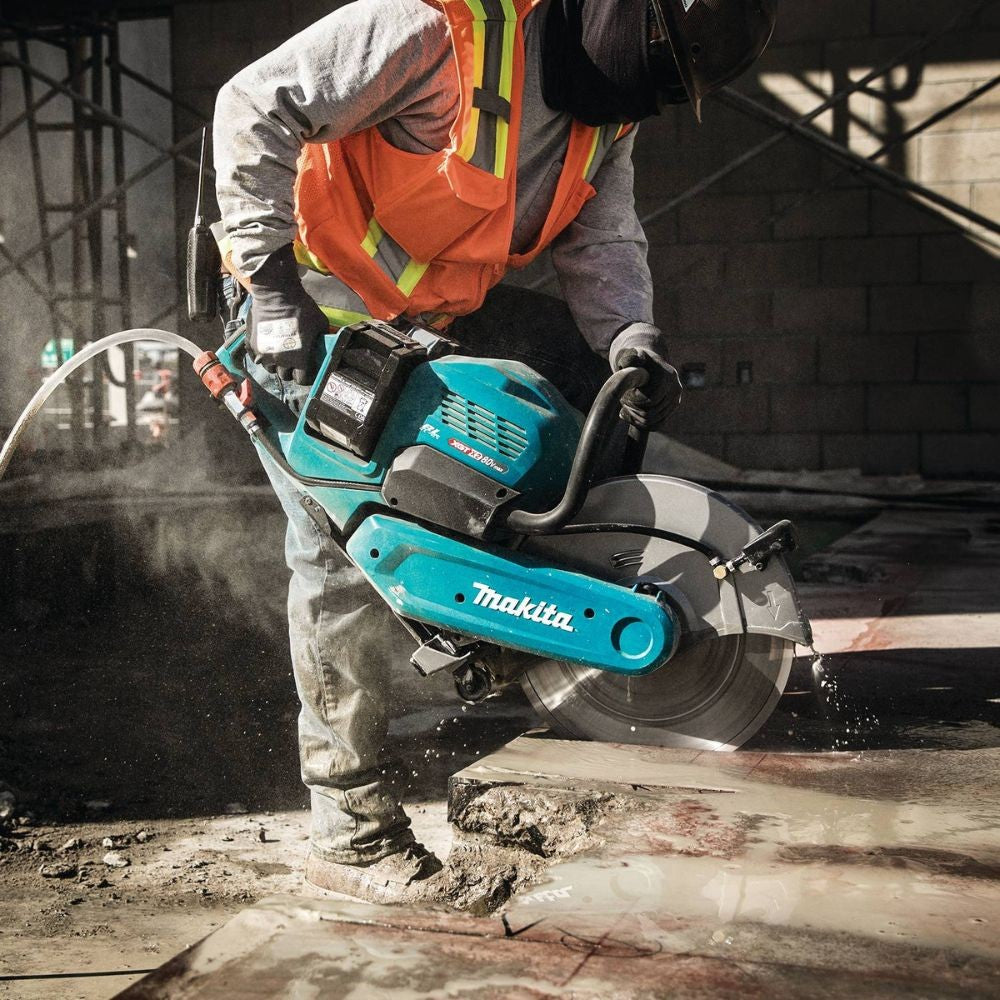

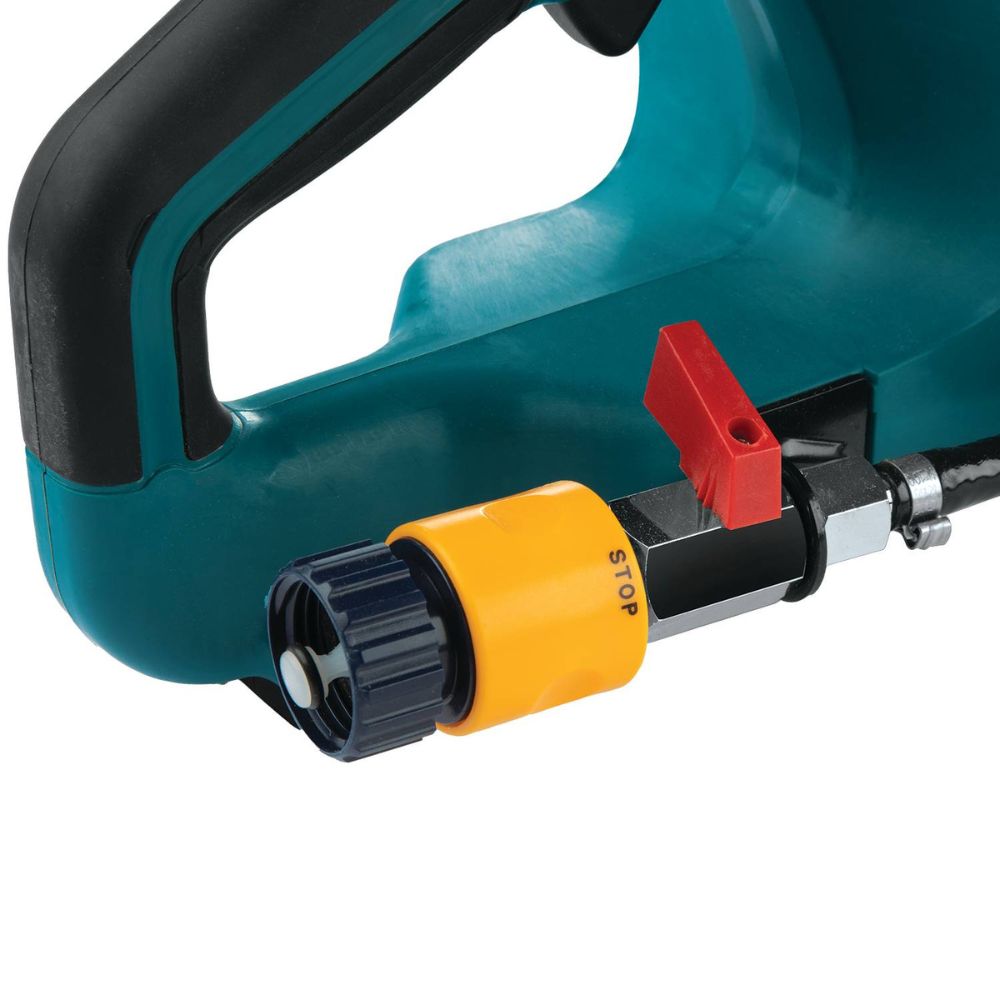

- Integrated water delivery system with water flow adjustment knob continuously feeds water for OSHA Table 1 Compliance in concrete cutting applications

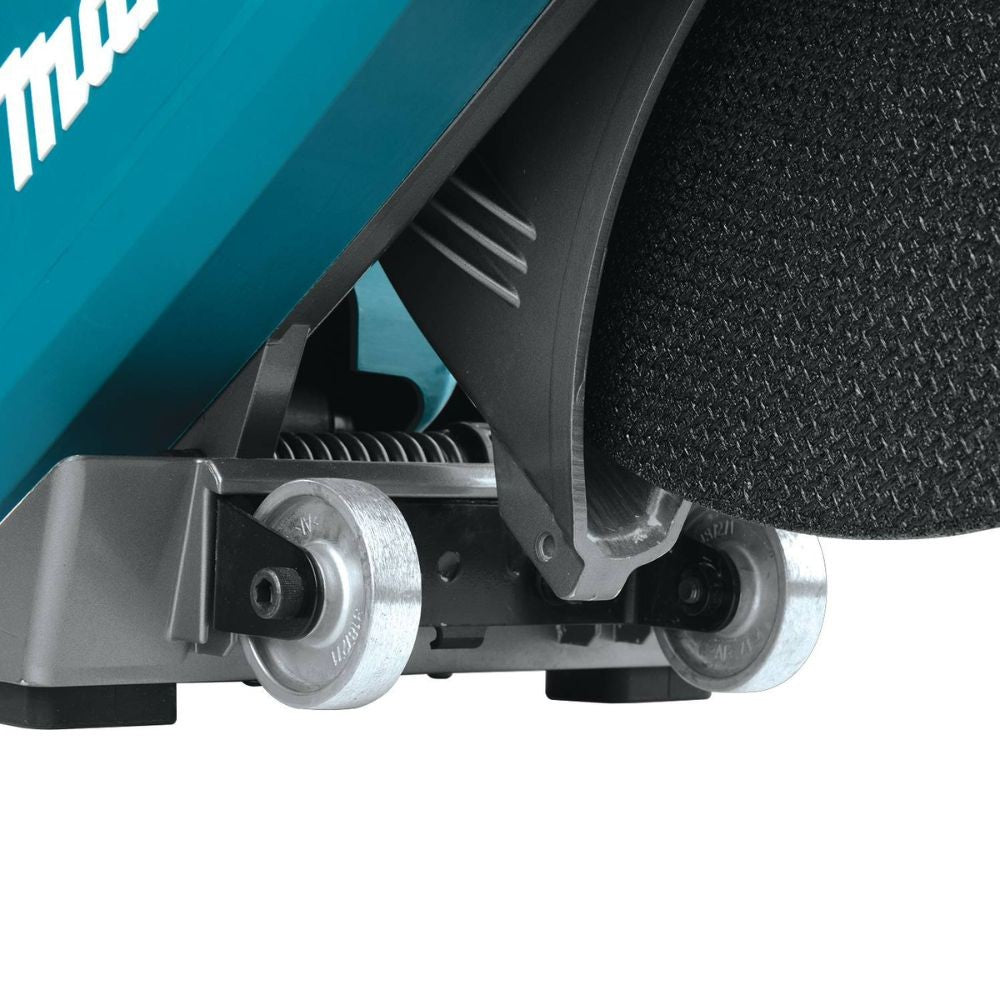

- Integrated all aluminum wheels help reduce fatigue and maintain accuracy in floor cutting applications
- Active Feedback-sensing Technology (AFT) electronically turns off the motor if rotation of wheel is suddenly forced to stop
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Soft start suppresses start-up reaction for smoother start-ups and longer gear life

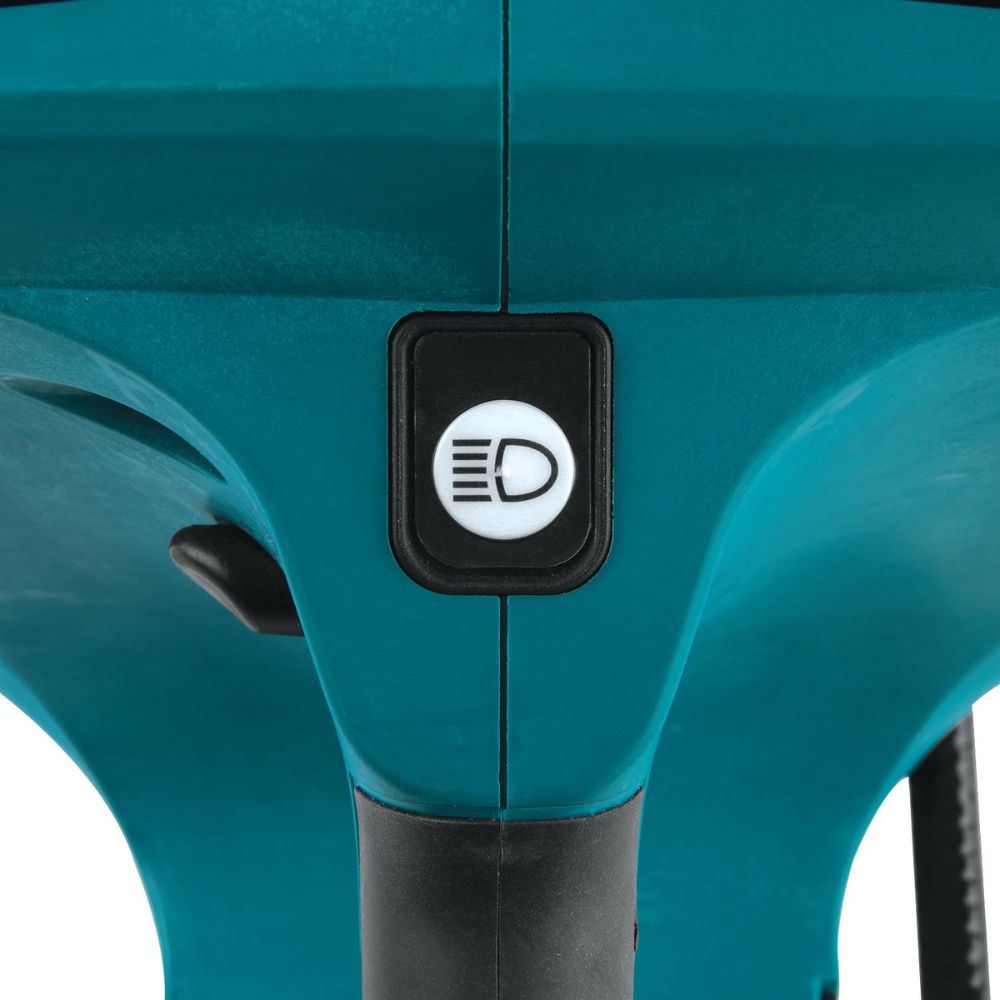

- Built-in L.E.D. light with an independent on/off switch illuminates the cutting area for increased visibility

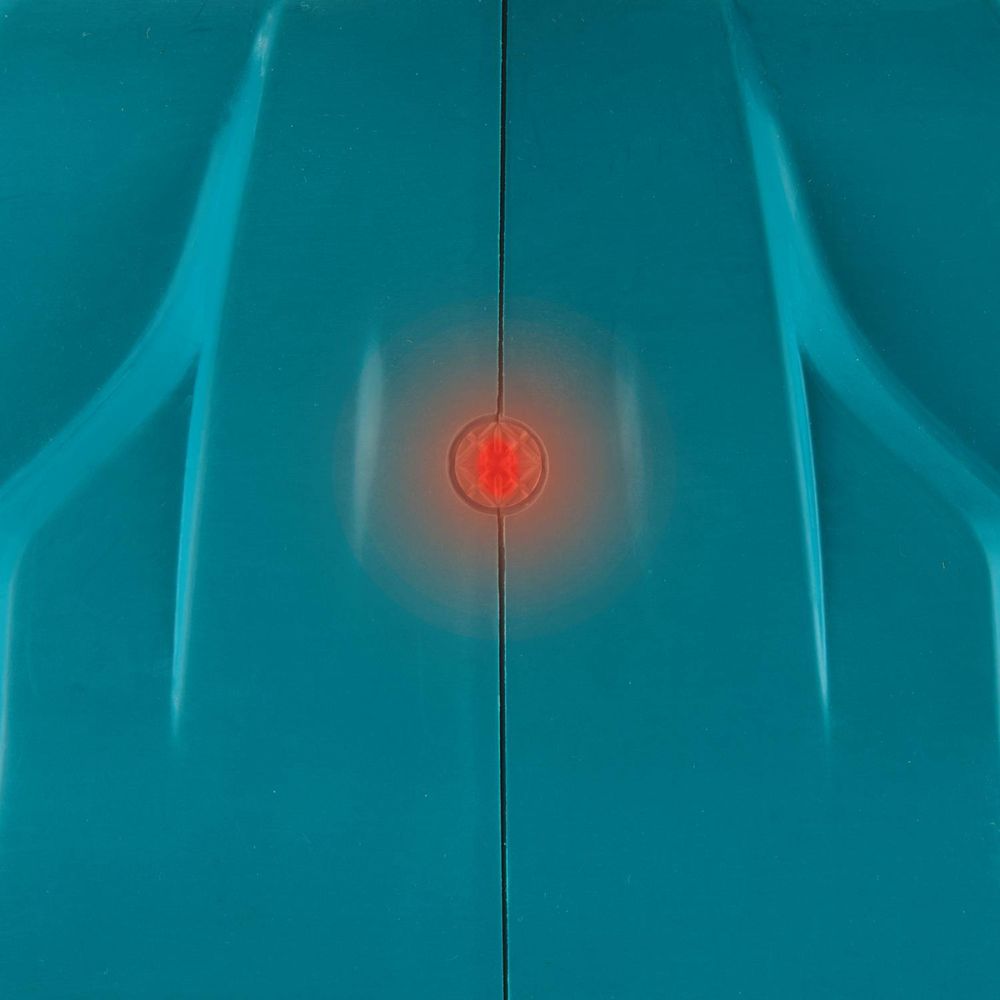

- Integrated overload indicator alerts of excessive battery power draw during heavy loads
- Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- Adjustable blade guard facilitates cutting in low or upper wall zones
- Rubberized front handle can be held in multiple positions for increased comfort at various cutting orientations
- Belt-drive design provides smoother operation with lower vibration

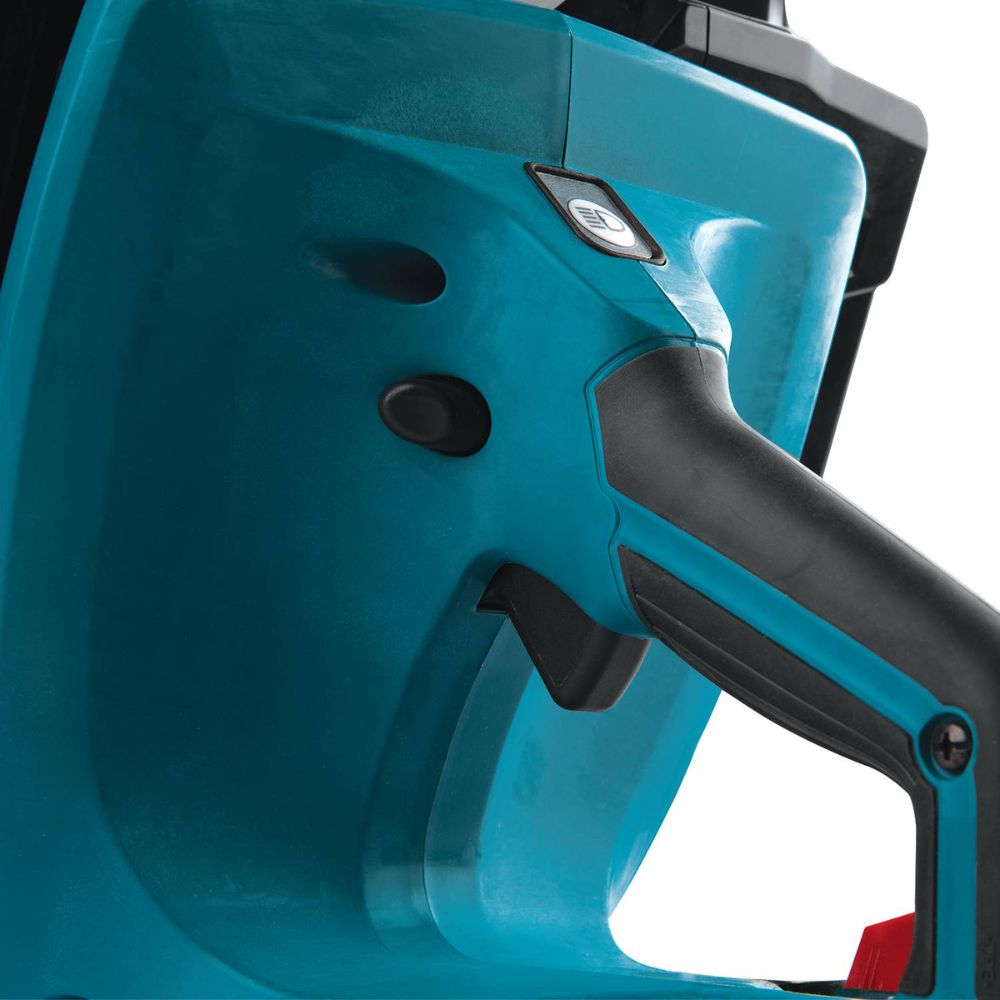

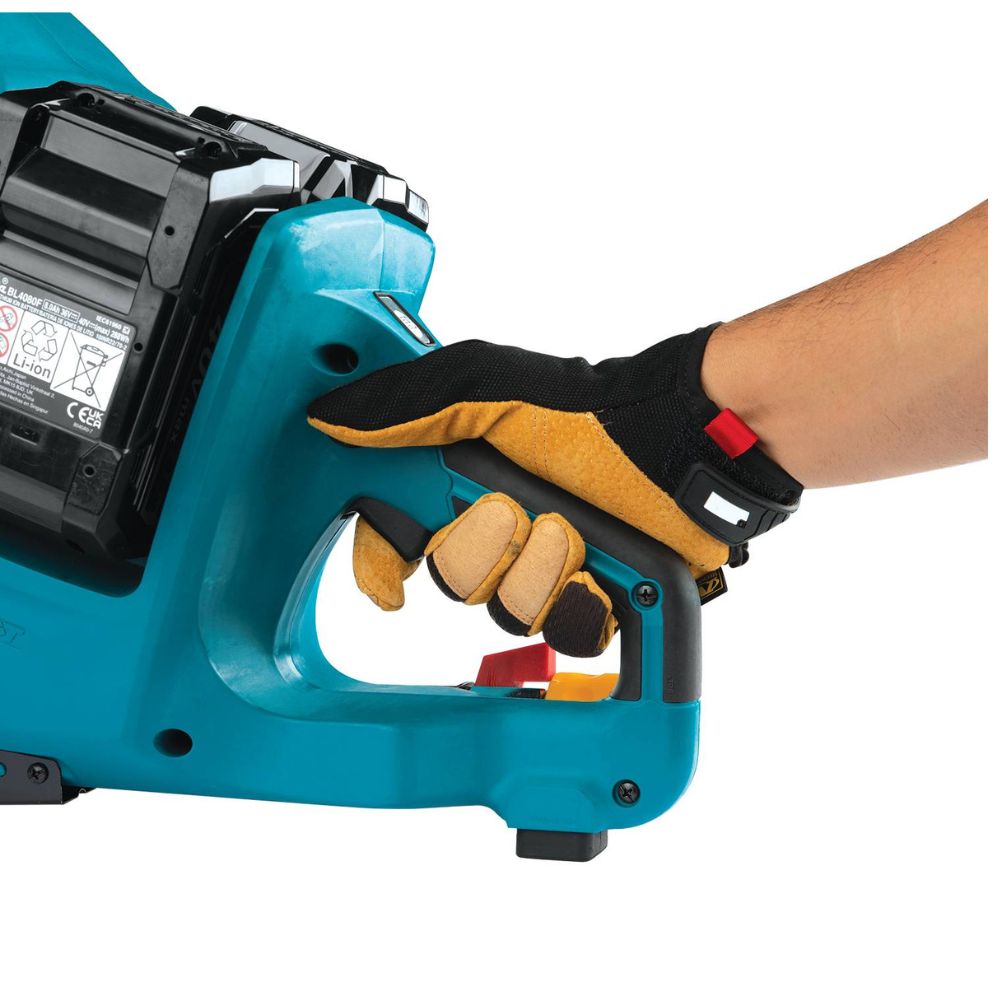

- Lock-off power switch requires two actions to start power

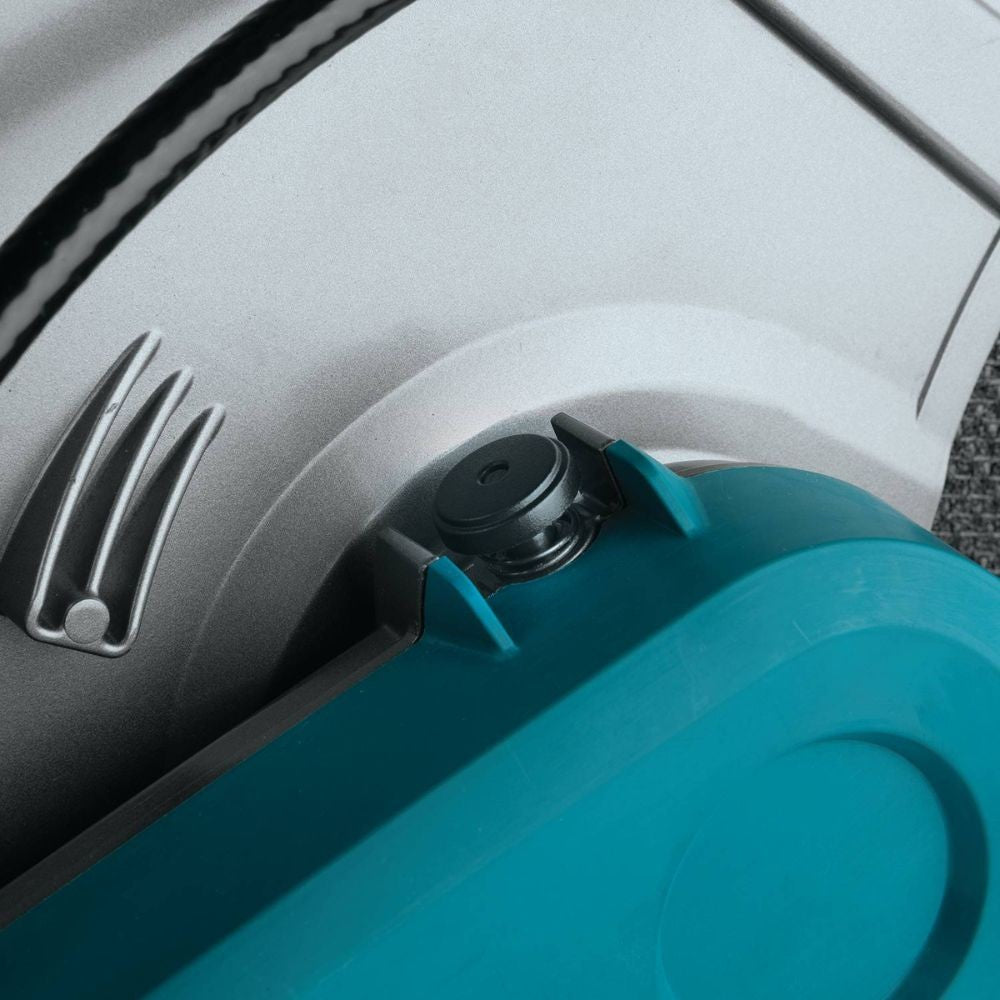

- Large spindle lock button for easier wheel changes while wearing gloves
Makita GEC01PL Specifications
Battery | 40V max XGT Lithium-Ion |
No Load Speed | 5,300 RPM |
Wheel Diameter | 14" |
Max. Cutting Depth | 5" |
Arbor w/ Adaptor | 20mm/1" adaptor |
Lock-Off Switch | Yes |
Electric Brake | Yes |
Bind-Up Control | Yes |
Vibration (m/s²) | 2.5 |
Sound Pressure | 109 dB(A) |
Overall Length | 31" |
Net Weight (with battery) | 31.1 lbs. |
Power Type | Cordless |
Shipping Weight | 49.47 lbs. |
Motor Type | Brushless |
UPC Code | 088381-760959 |
