Makita GPK01M1 Description
The 40V XGT® Brushless 3-1/4” Planer is AWS® Capable and engineered for door and window installers, finish carpenters, deck installers, remodelers, and general contractors seeking a brushless cordless planer. The Planer delivers 15,000 RPM for fast stock removal. It will plane up to 311 feet at 1/16” depth on a single charge of a 40V XGT 4.0Ah battery. It is capable of planning 3-1/4” wide and 5/32” deep in a single pass. The Makita-built brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. The two-blade cutter head and double-edge carbide blades increase performance and contribute to a smooth finish. Other features include a spring-loaded stand to elevate the base and protect the blades and workpiece, while the click-depth adjustment knob has an easy-to-read scale with settings from 0” to 5/32” for precise depth adjustment. In addition, the precision-machined aluminum base is engineered for increased planning accuracy and offers three chamfering groove options. Chip ejection can be directed to either side of the tool for convenience. The blade setting system is engineered for fast blade installation, with an electric brake for maximum productivity. Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. AWS is activated with an AWS Wireless Transmitter (198901-5, sold separately). XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT® is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Makita GPK01M1 Includes

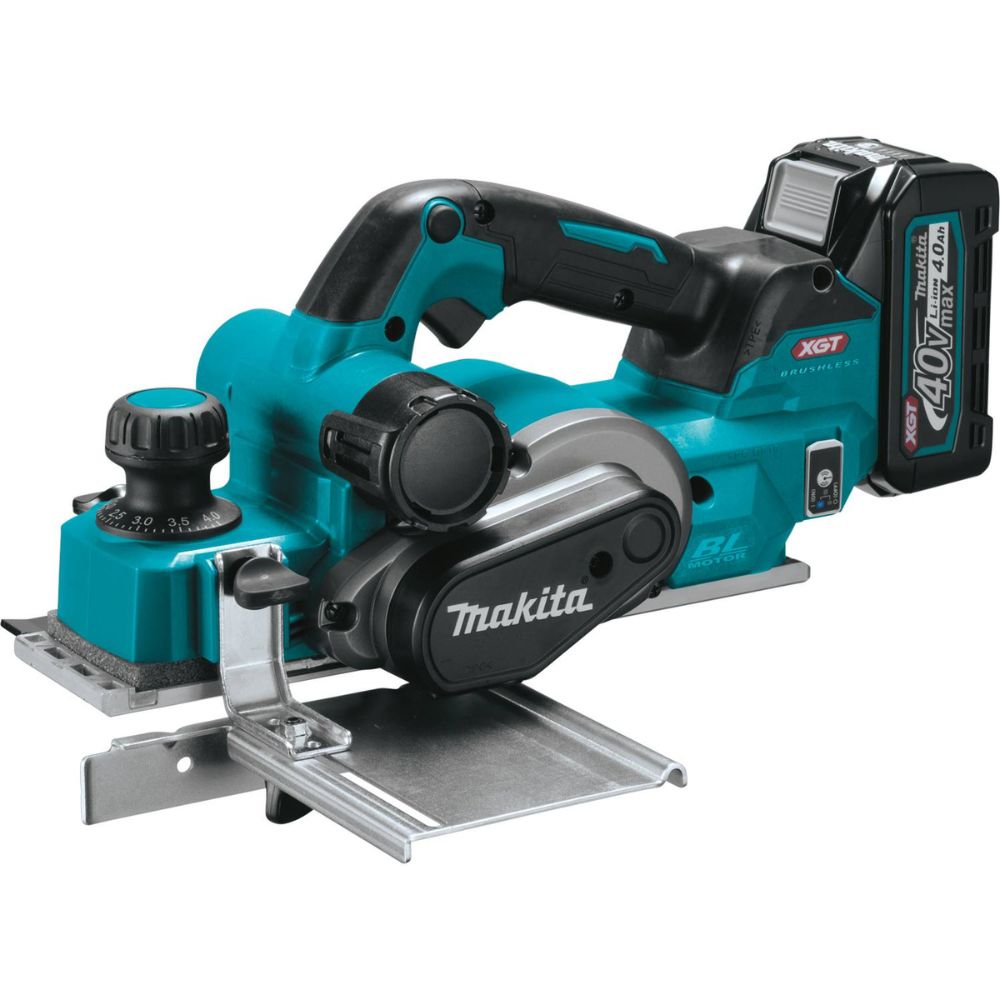

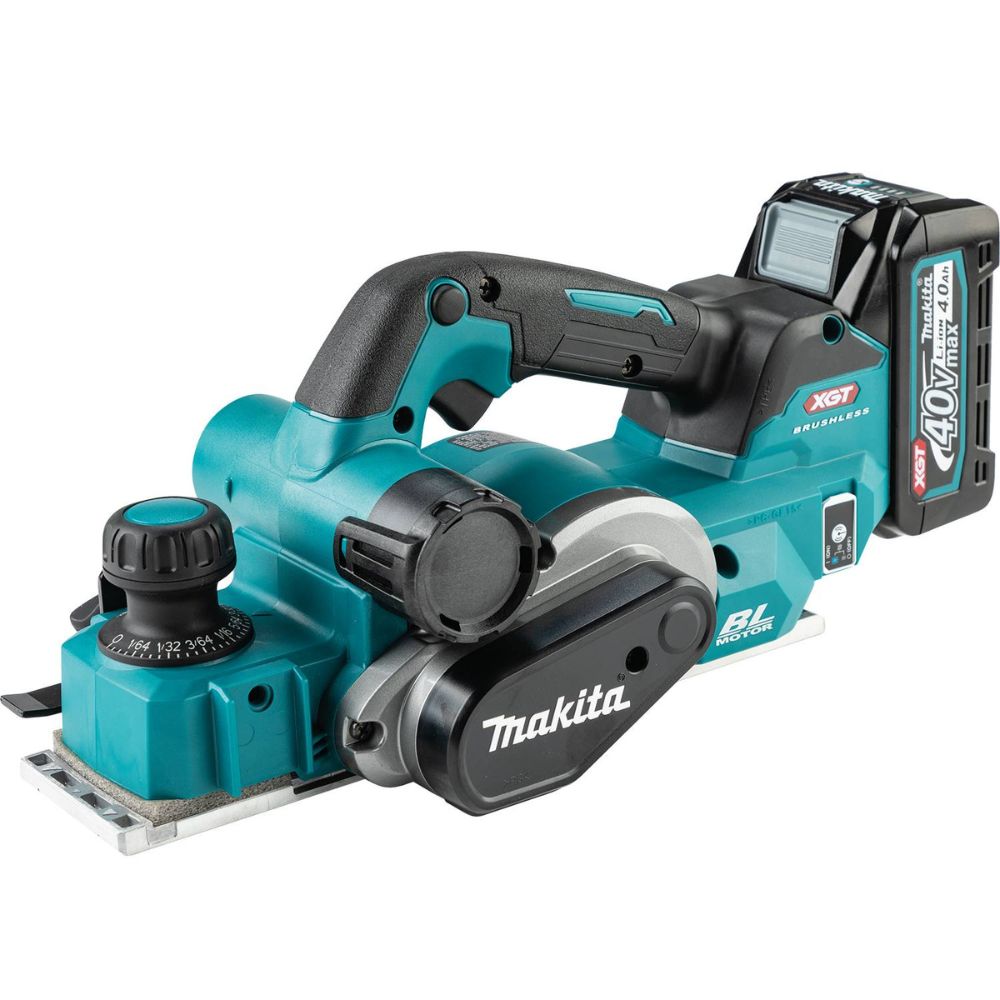

- (1) 40V max XGT® Brushless 3-1/4" Planer, AWS® Capable (GPK01Z)
- (1) 40V max XGT® 4.0Ah Battery (BL4040)
- (1) 40V max XGT® Rapid Optimum Charger (DC40RA)

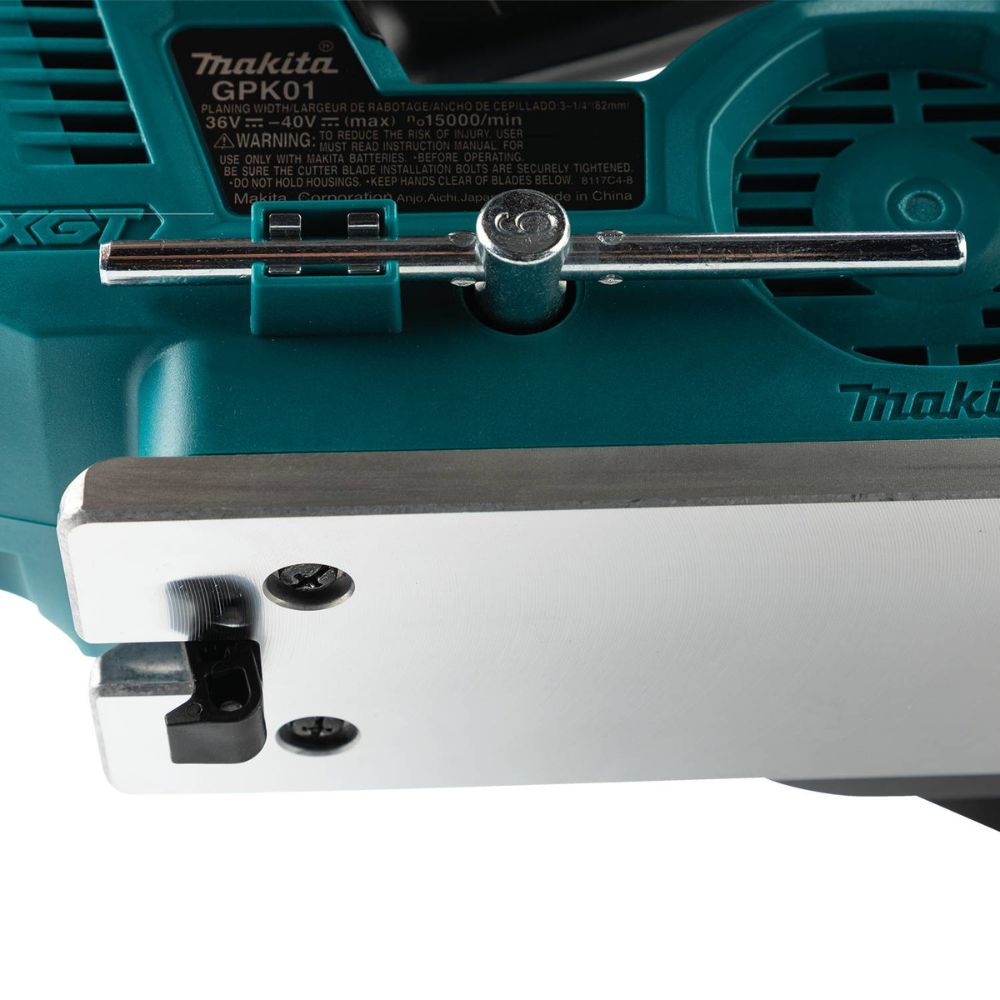

- (1) Socket Wrench (782209-3)
- (1) Guide Rule (122785-9)
- (1) Depth Guide (342390-8)
- (1) 3-1/4" Planer Blade, 2/pk (D-46246)

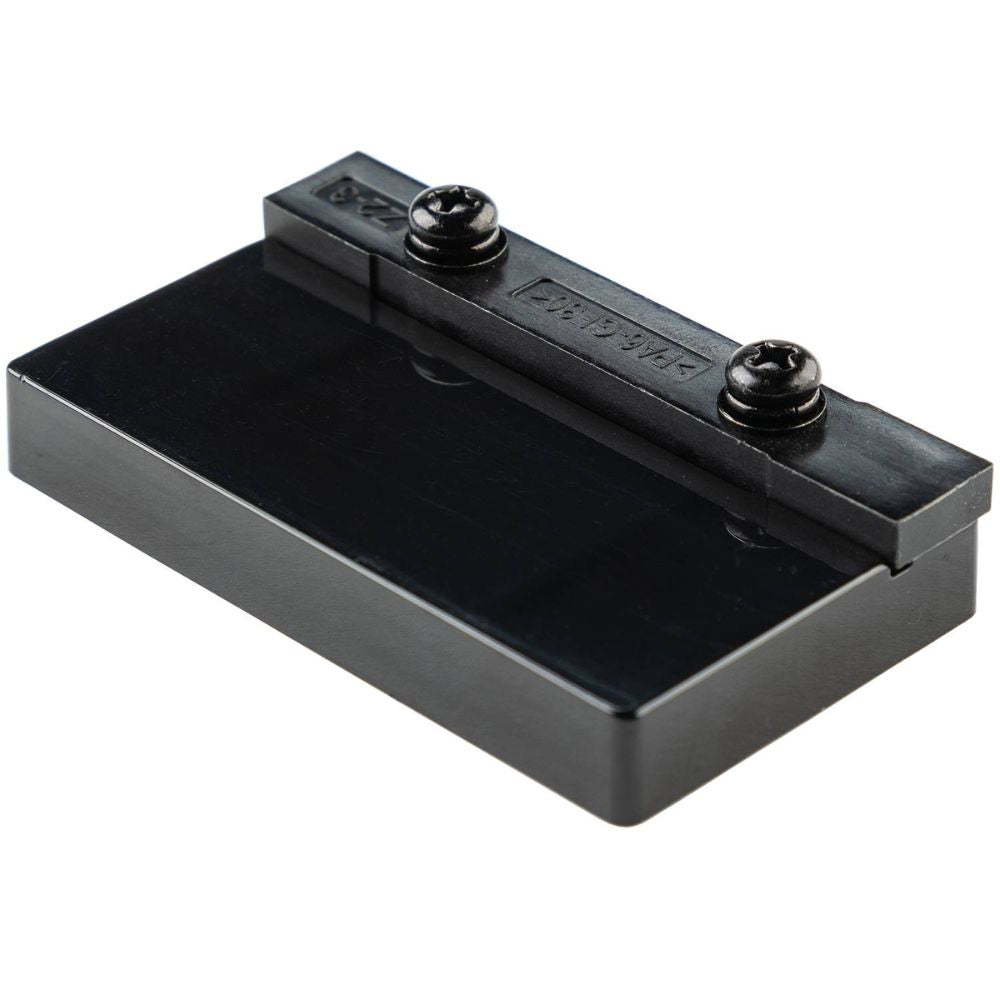

- (1) Blade Gauge (191C19-9)
Makita GPK01M1 Features

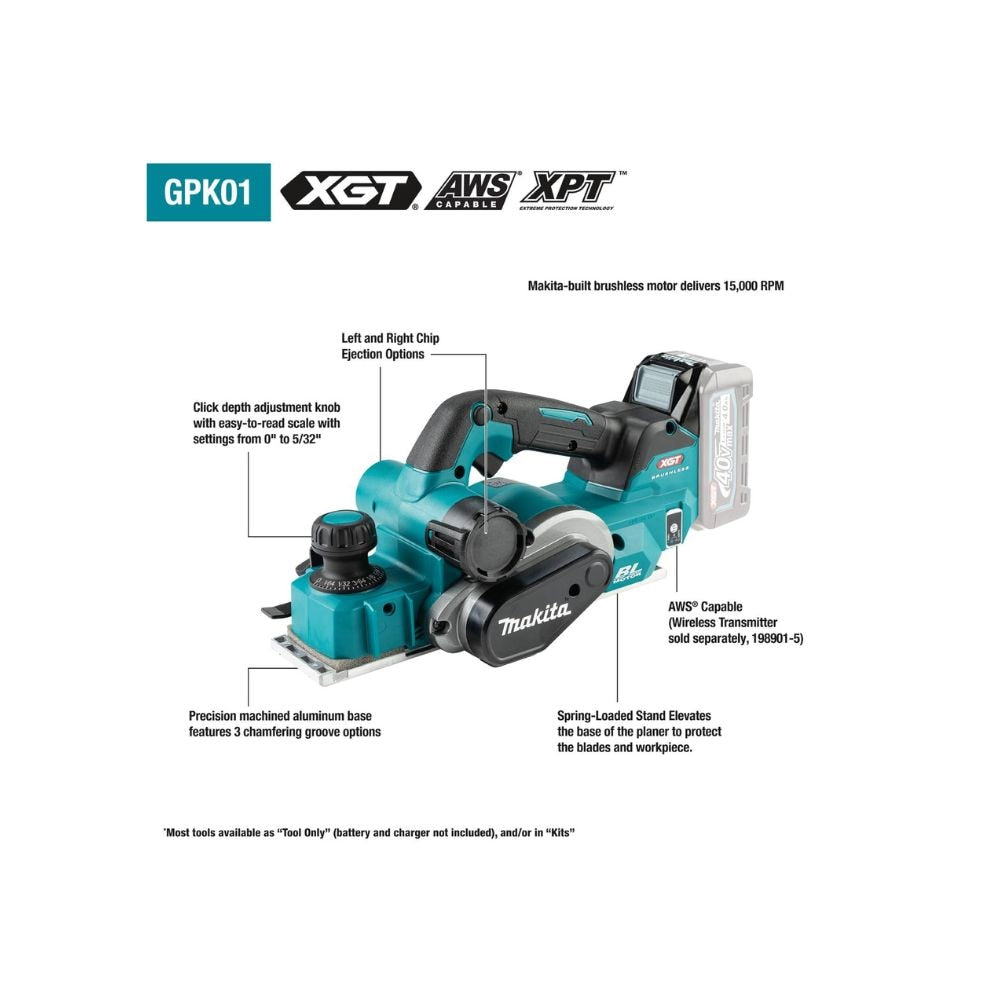

- OUTPOWER: Makita-built brushless motor delivers 15,000 RPM for faster stock removal
- OUTSMART: Delivers up to 38% faster planing speed
- OUTLAST: Extreme Protection Technology XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
- Capable of planing up to 311 ft. at 1/16" depth using a fully charged 40V XGT® 4.0Ah battery
- Planes up to 3-1/4" wide and 5/32" deep in a single pass with the ability rabbet up to 1" deep

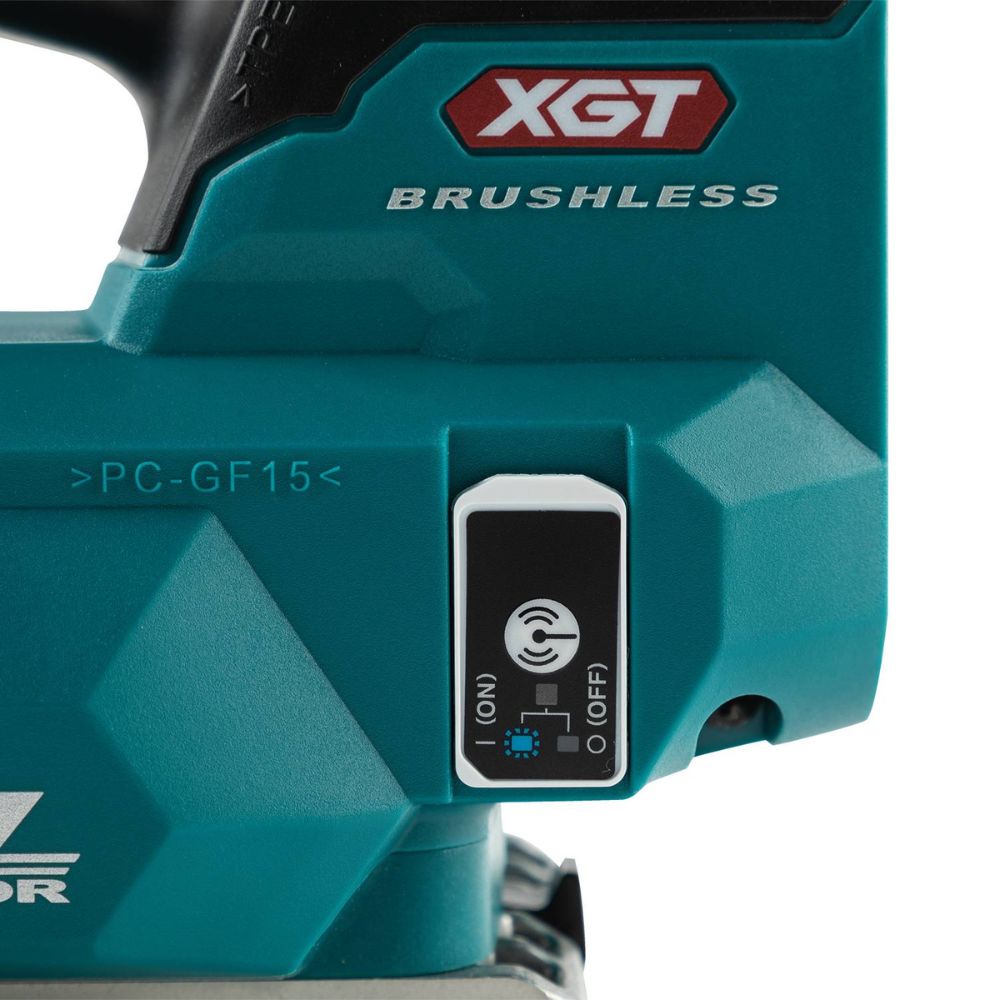

- Auto-start wireless System (AWS®) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor
- AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
- 2-blade cutter head with double edge carbide blades for added performance and smooth finish

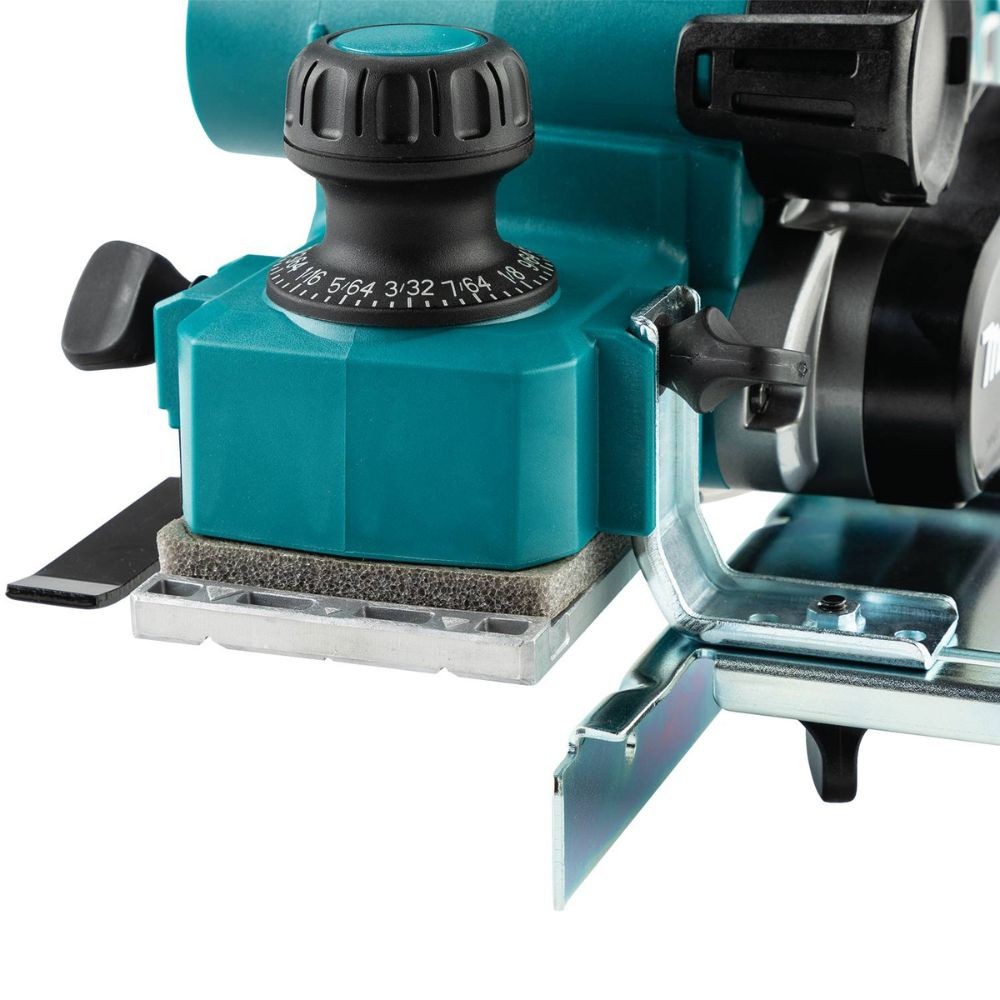

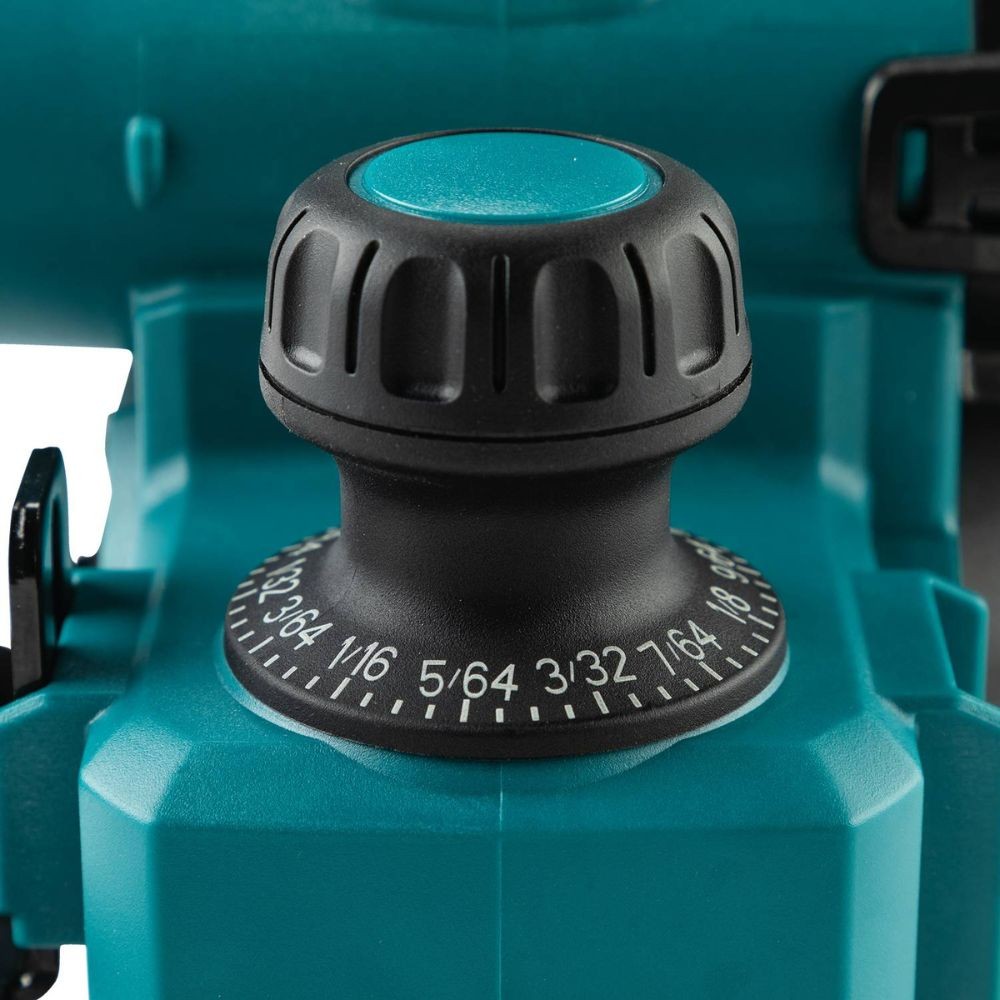

- Click depth adjustment knob with easy-to-read scale with settings from 0" to 5/32" for precise depth adjustment
- Chip ejection can be directed to either side of the tool for convenience

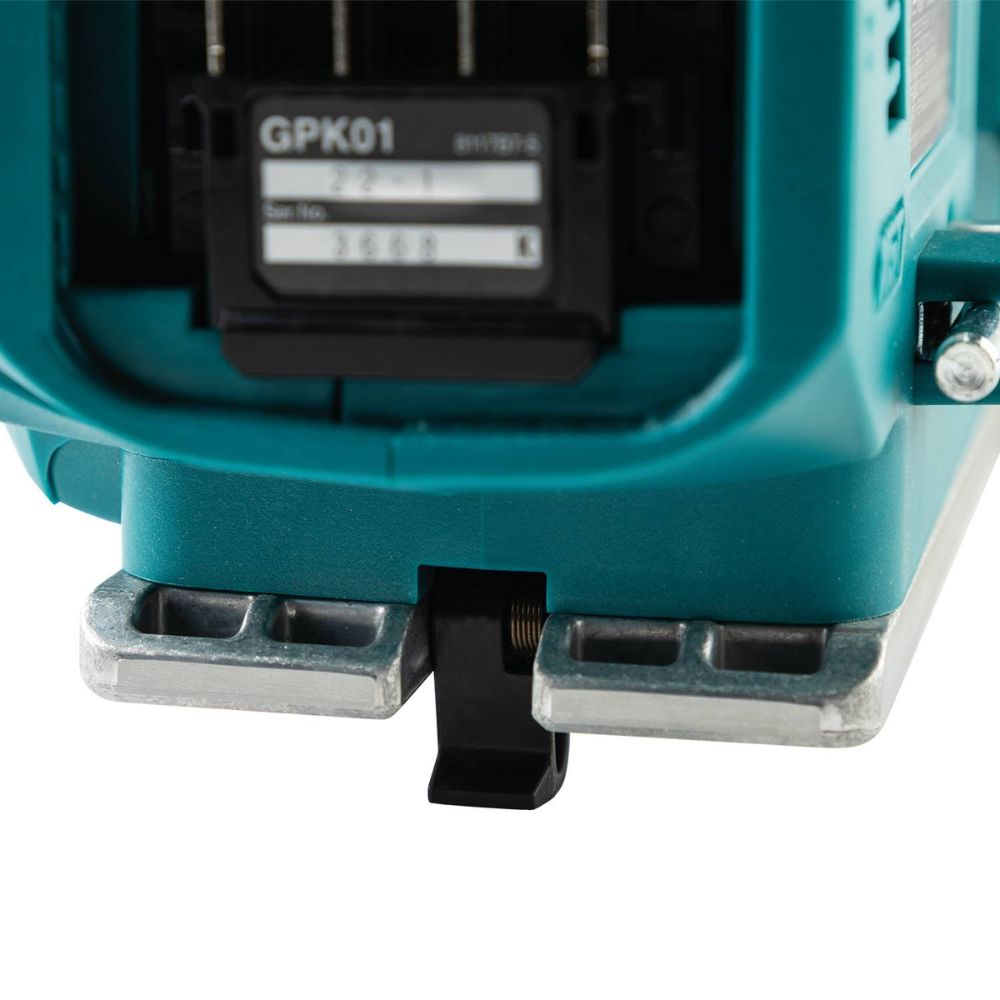

- Spring-loaded stand elevates the base to protect the blades and workpiece

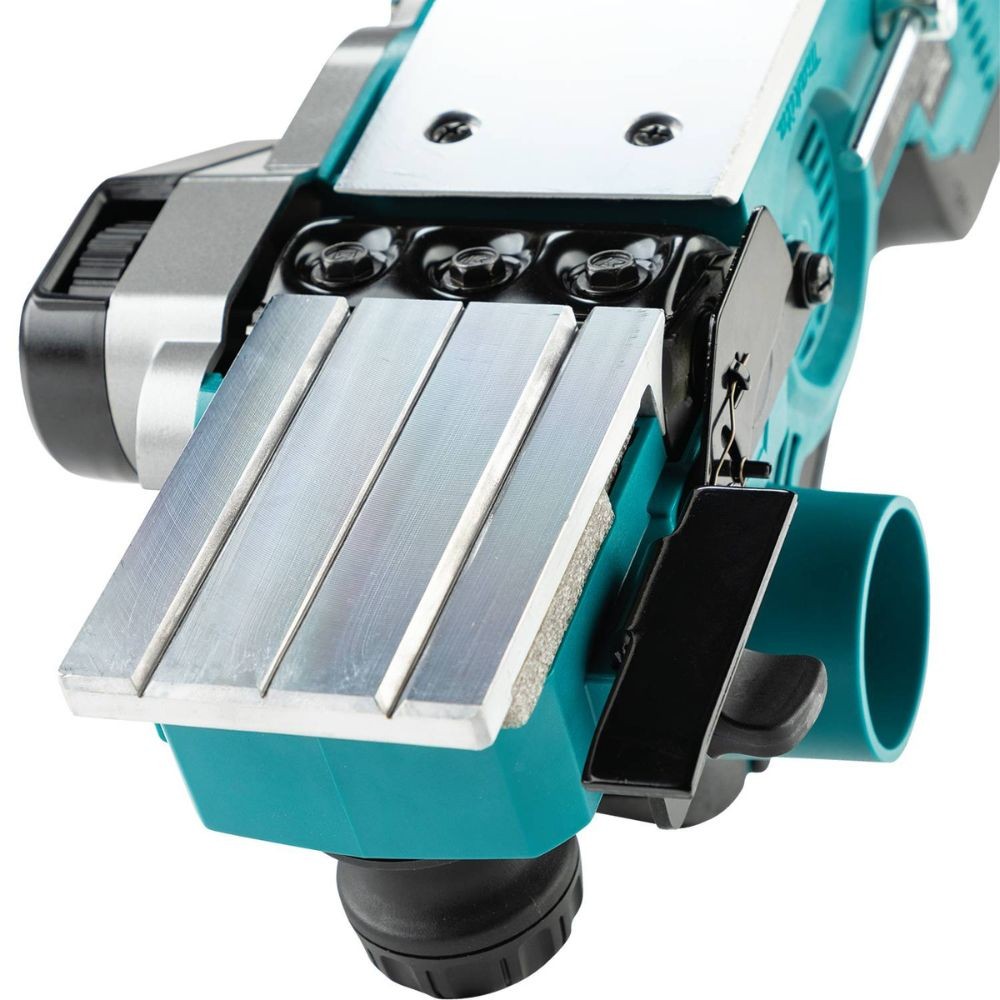

- Precision machined aluminum base for planing accuracy; features 3 chamfering groove options for convenience
- Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job

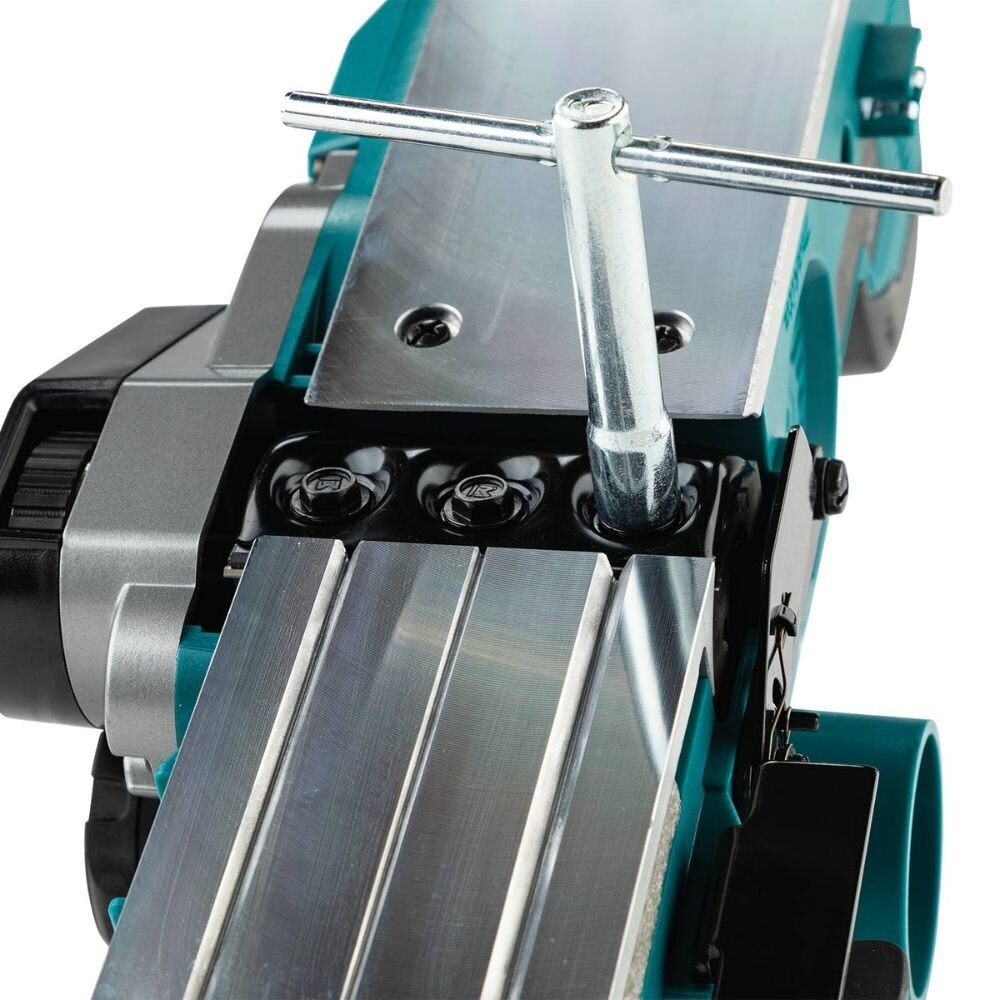

- Easy blade setting system for fast blade installation
- Electric brake for maximum productivity
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
Makita GPK01M1 Specifications
Planing Width | 3-1/4" |
Planing Depth | 5/32" |
No Load Speed | 15,000 RPM |
Overall Length | 13-1/8" |
Net Weight | 6.5 lbs. |
Battery | 40V max XGT® Lithium-Ion |
Max. no load speed | 15,000 RPM |
Power Type | Cordless |
Motor Type | Brushless |
Automatic-start Wireless System (AWS™) | Capable (transmitter sold separately) |
Shipping Weight | 18.57 lbs. |
UPC Code | 088381-762281 |
