Description
Makita GSH04Z Description

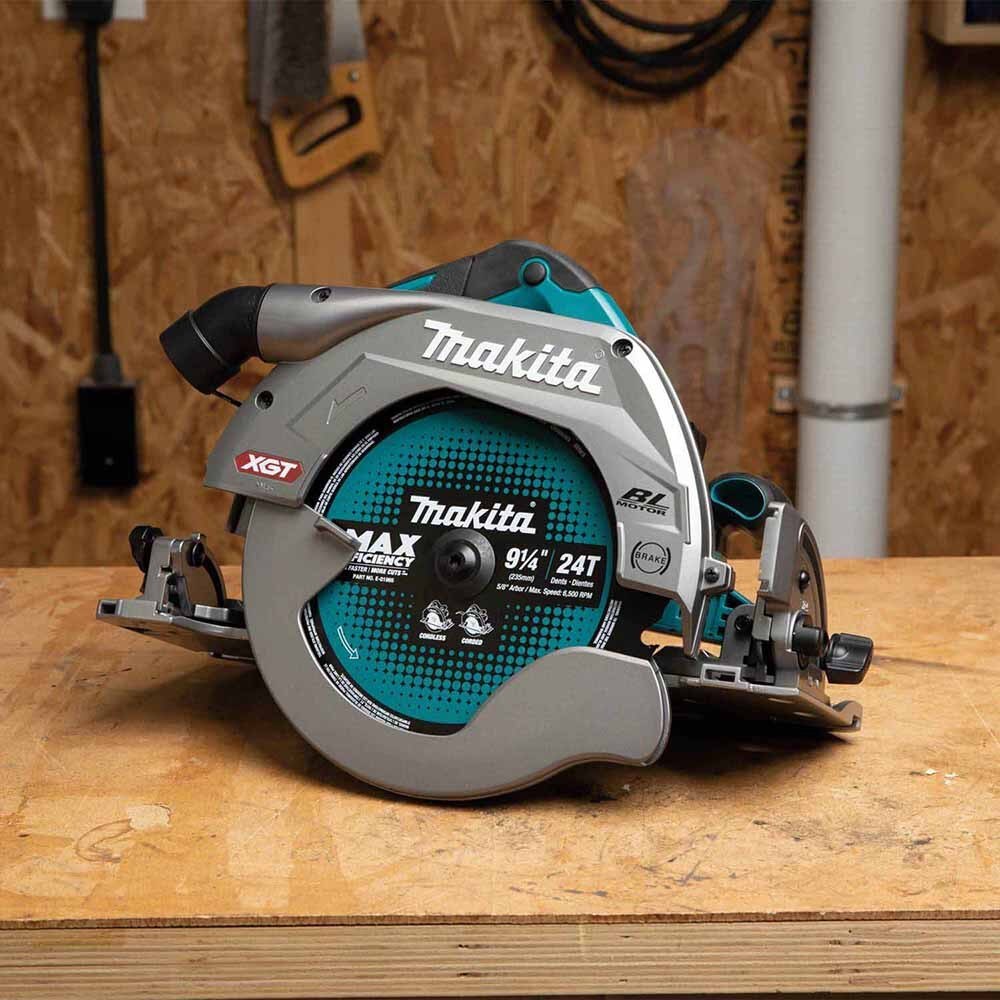

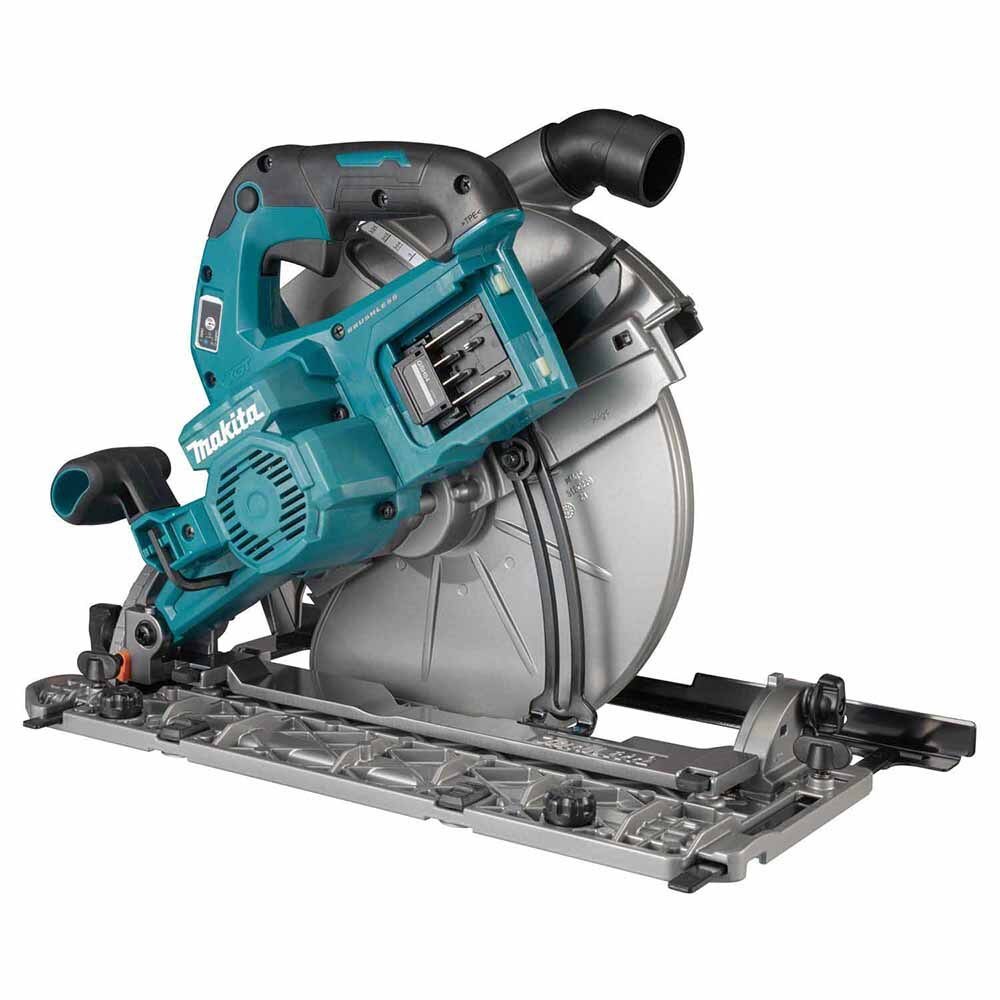

The 40V max XGT® Brushless 10-1/4" Circular Saw with Guide Rail Compatible Base combines efficient cutting with the convenience of guide rail compatibility. The Makita-built brushless motor delivers 3,500 RPM for fast cutting performance, with constant speed control that automatically applies additional power under load for optimum performance. It offers 3-13/16” of cutting capacity at 90° with bevel cut capacity up to 1° left and 60° right with positive stops at 22.5° and 45°. It features a die-cast magnesium base, blade guard, and blade cover for lower weight at only 13.4 lbs. with battery (battery sold separately). The convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter. Combined with a guide rail (sold separately), the GSH04 is a more portable option over a table saw for a range of cutting applications. The saw also features Auto-Start Wireless System (AWS®). AWS® uses Bluetooth® technology for wireless power-on/power-off communication between the tool and an AWS® equipped dust extractor. The saw has an electronic brake for maximum productivity and soft start to suppress start-up reaction for smoother start-ups and longer gear life. Convenience features include an L.E.D. light with pre-glow and afterglow to illuminate the work area, an onboard hex wrench for blade changes, and a secondary handle for two-handed operation. XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Makita GSH04Z Includes
- 10-1/4" 24T C.T. Circular Saw Blade (E-07272)
- Hex Wrench
- Rip Fence
Makita GSH04Z Features
- OUTPOWER: Makita-built brushless motor delivers 3,500 RPM for faster cutting performance
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
- OUTLAST: XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions

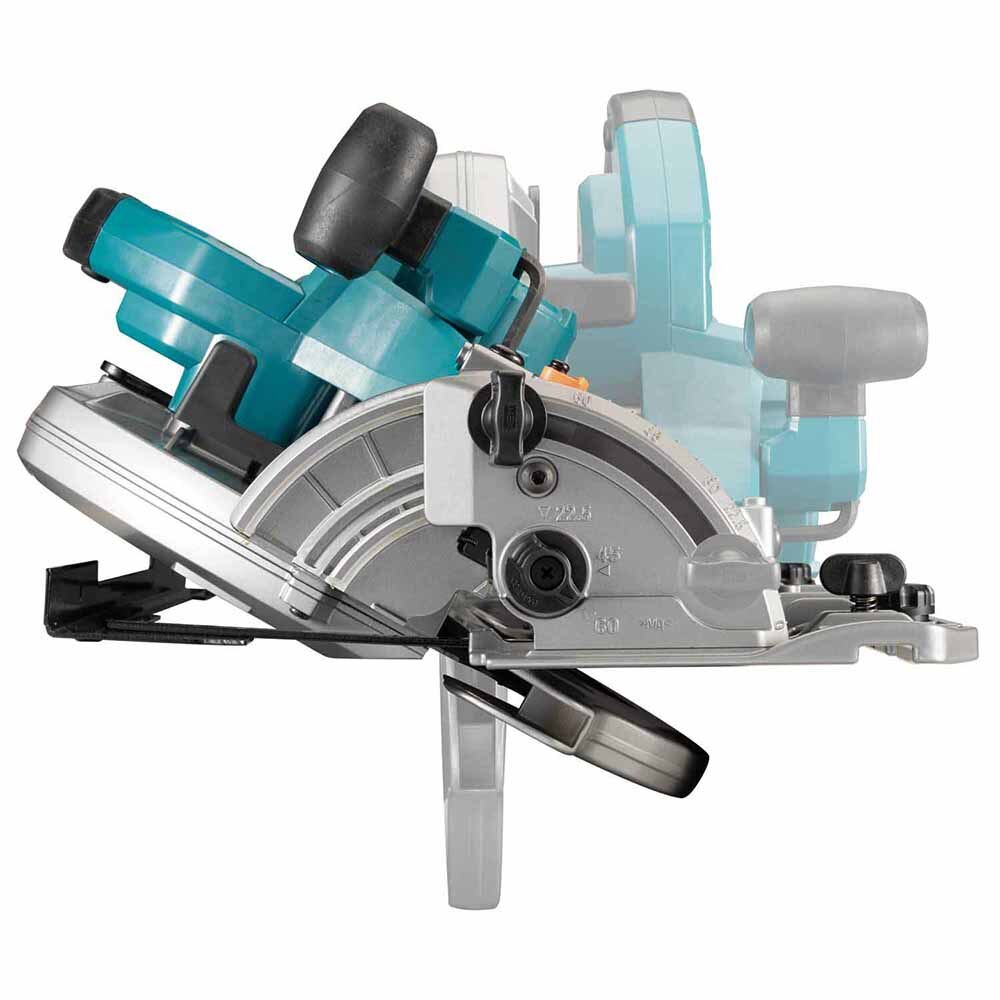

- Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°
- Large 3-13/16" cutting capacity at 90°
- Electric brake for maximum productivity
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life

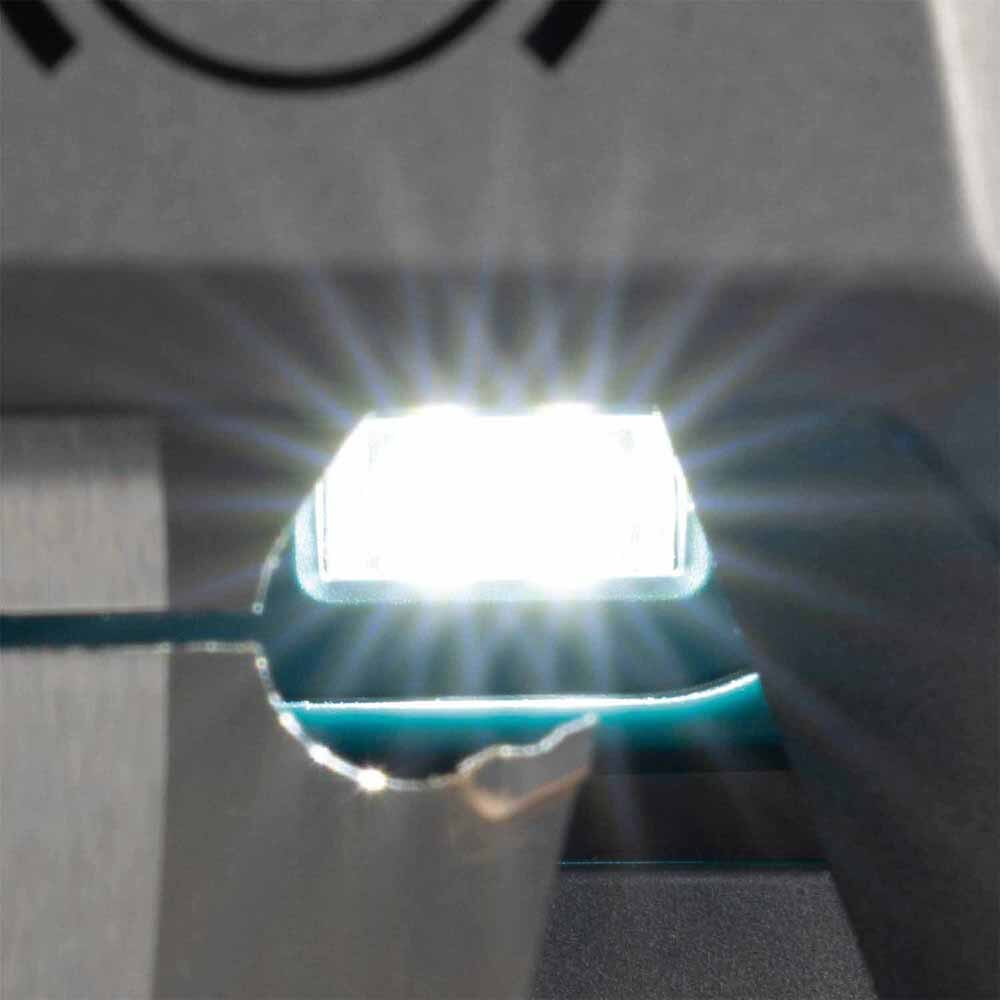

- L.E.D. light with preglow and afterglow illuminates the work area
- Compact and ergonomic design at only 17-7/8" long

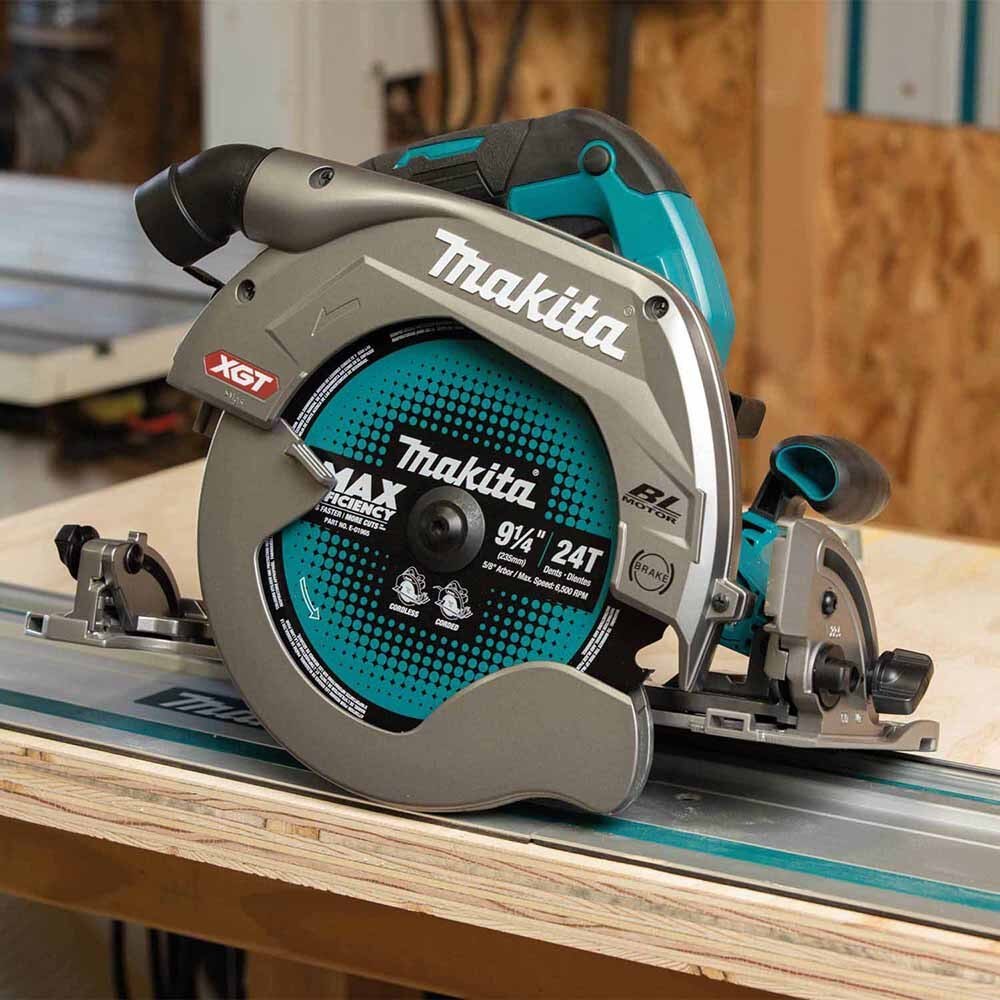

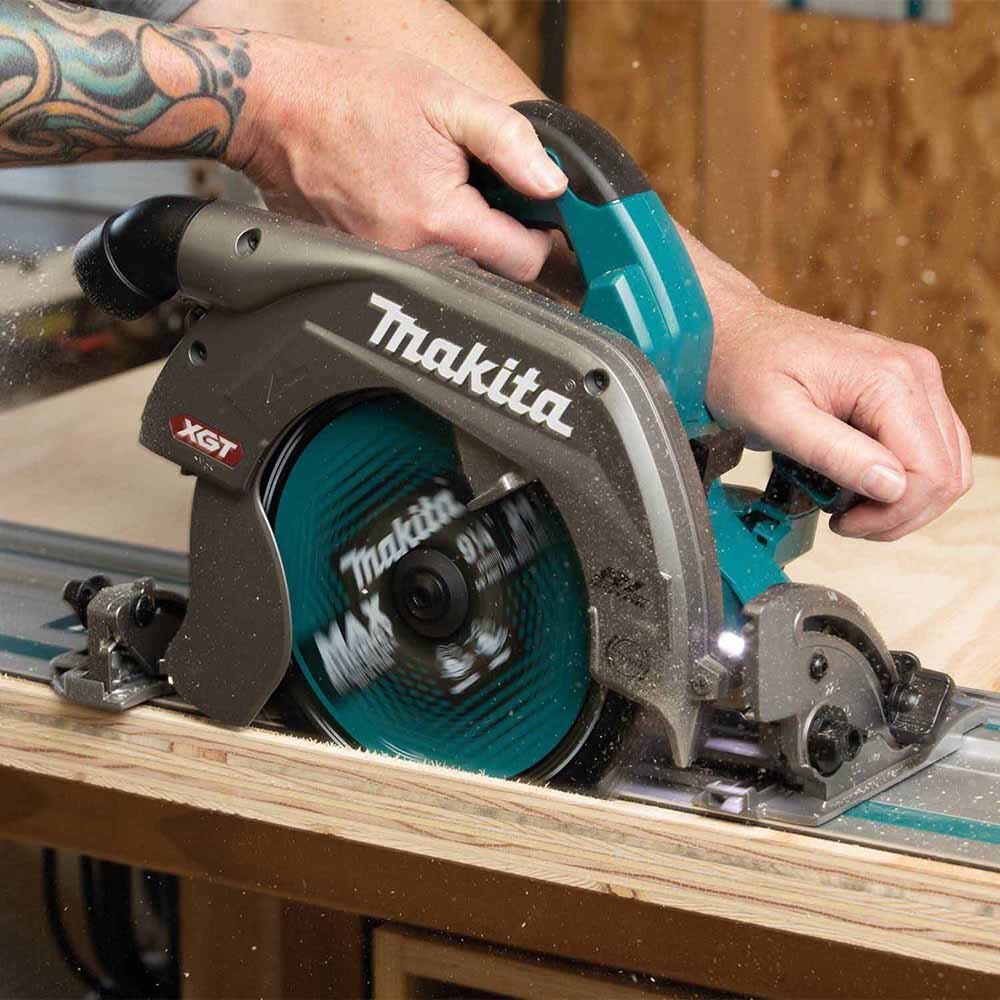

- Convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter
- Die-cast magnesium base, blade guard, and blade cover provide a lightweight design; weighs only 13.5 lbs. with battery (battery not included)

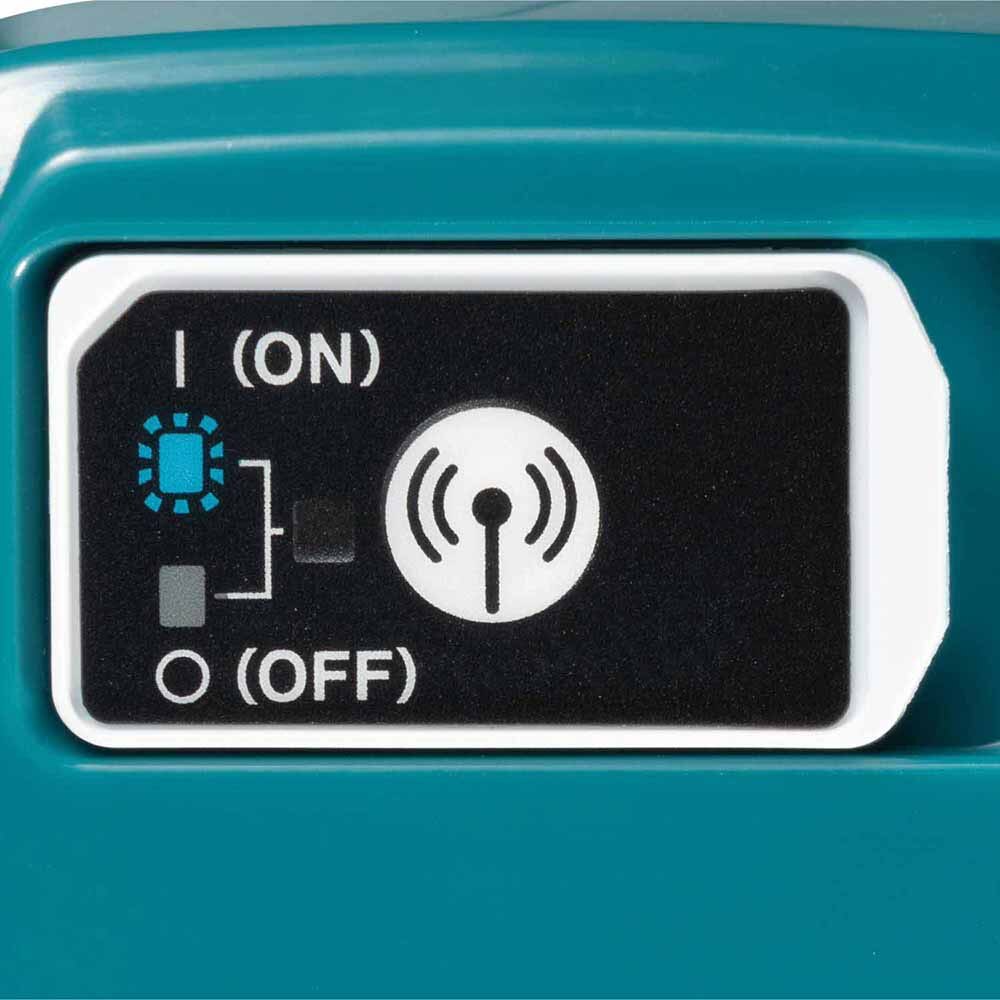

- Auto-start Wireless System (AWS®) uses Bluetooth technology to power wireless on-off communication between the tool and dust extractor
- AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately

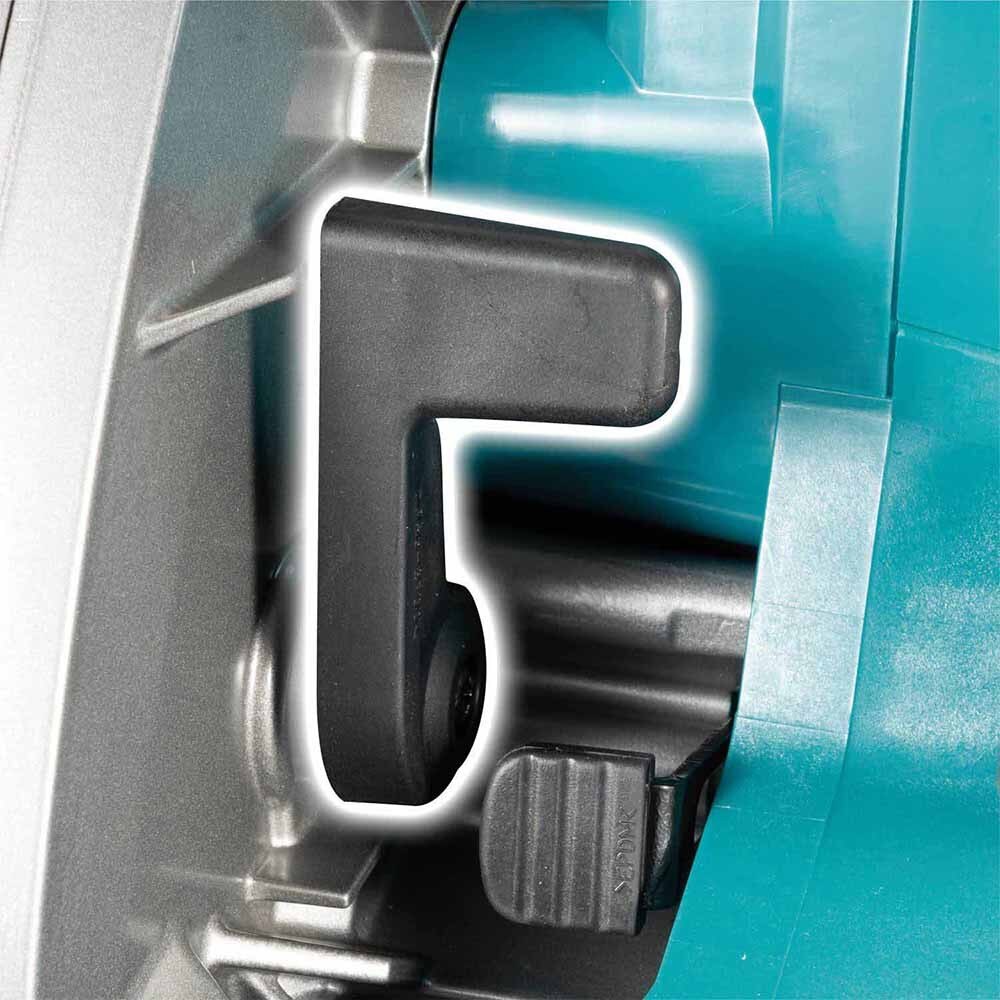

- Onboard hex wrench for convenience
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (battery not included)
Makita GSH04Z Specifications
| System | 40V max XGT® |
| Power Type | Cordless |
| Blade Diameter | 10-1/4" |
| Automatic-start Wireless System (AWS™) | Capable (transmitter sold separately) |
| No Load Speed | 3,500 RPM |
| Max. Cutting Capacity (at 90°) | 3-13/16" |
| Max. Cutting Capacity (at 45°) | 2-11/16" |
| Max. Cutting Capacity (at 60°) | 1-7/8" |
| Arbor | 5/8" |
| Overall Length | 17-7/8" |
| Net Weight (with battery, sold separately) | 12.73 lbs. |
| Shipping Weight | 17.35 lbs. |
| UPC Code | 088381-760591 |
