Description
Makita GSR01M1 Description

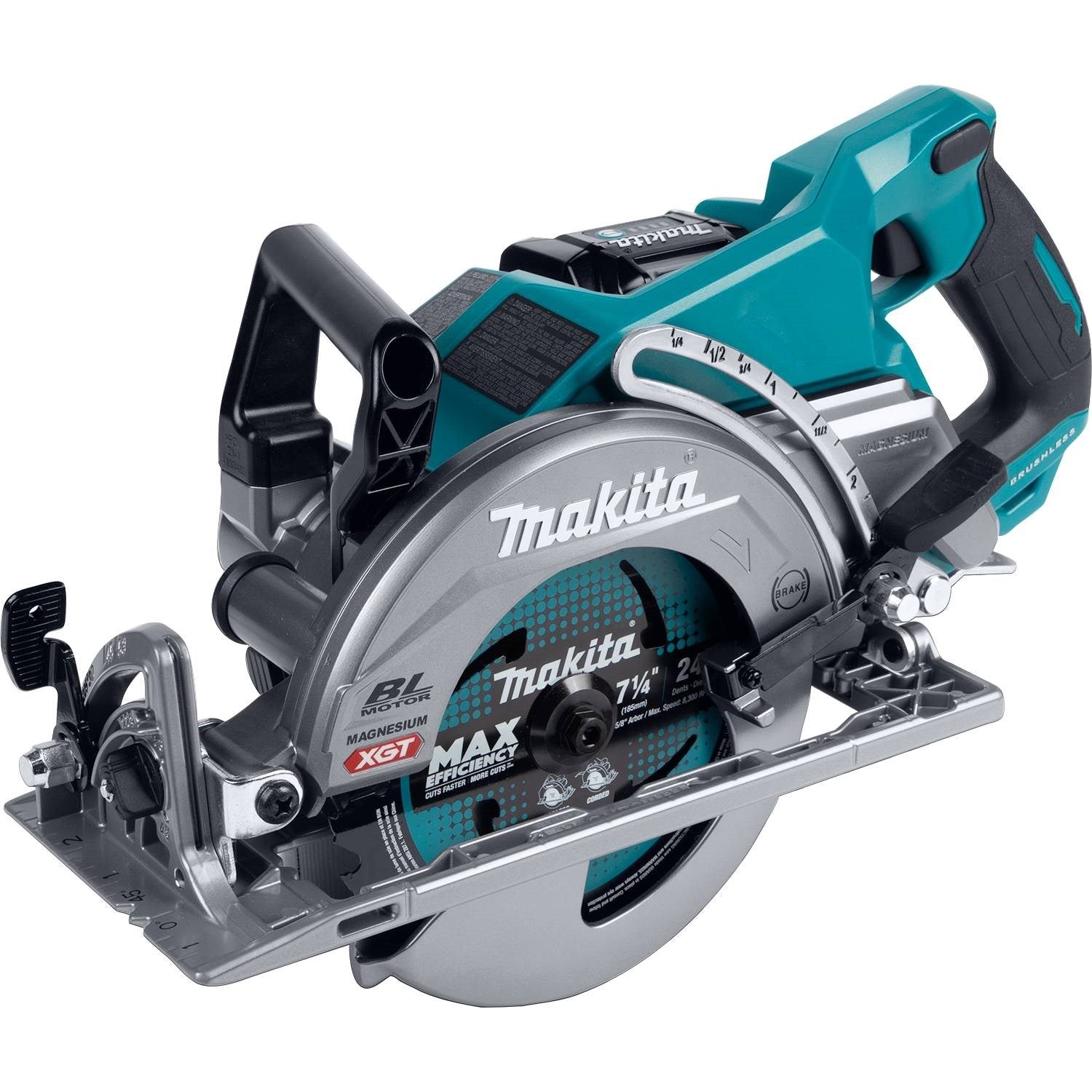

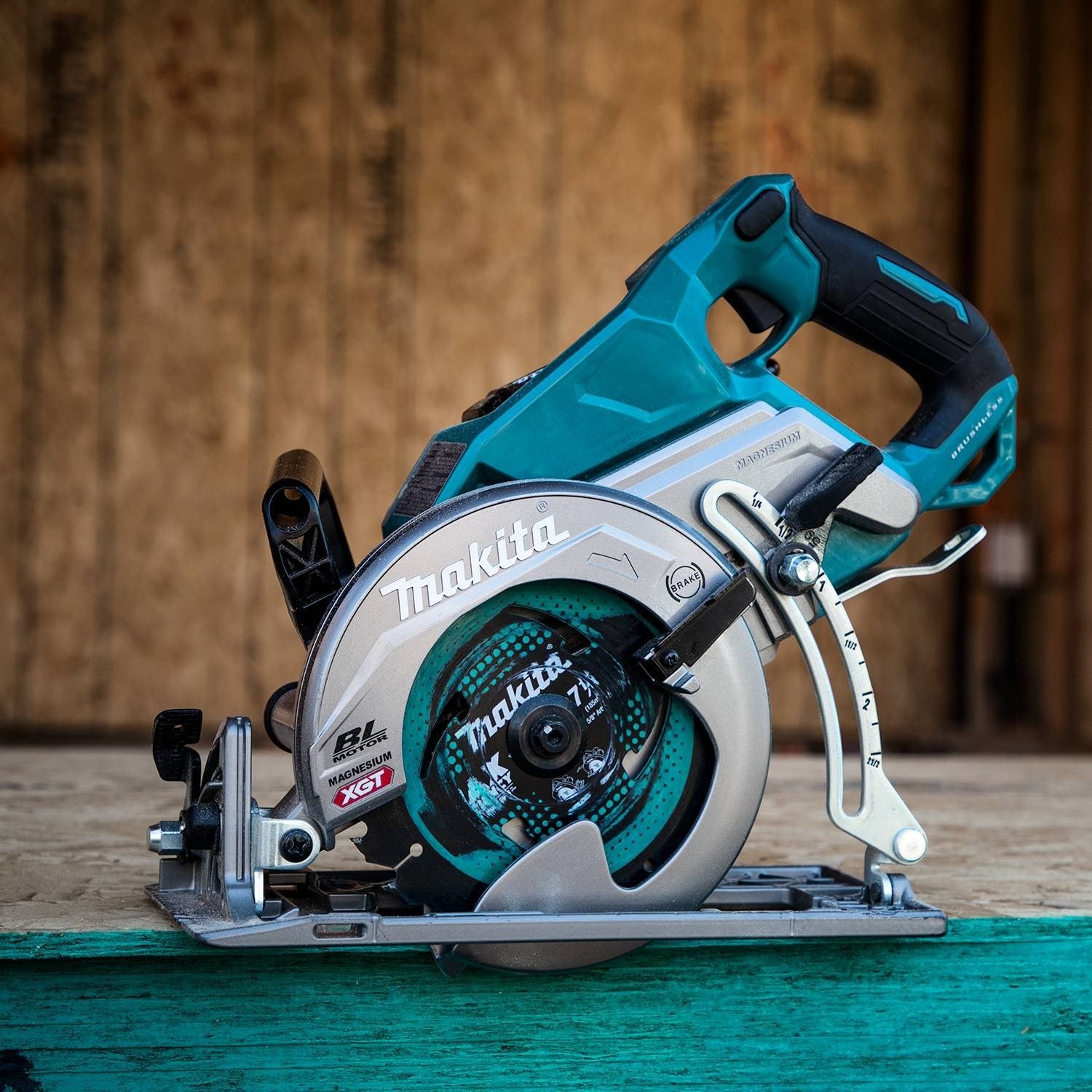

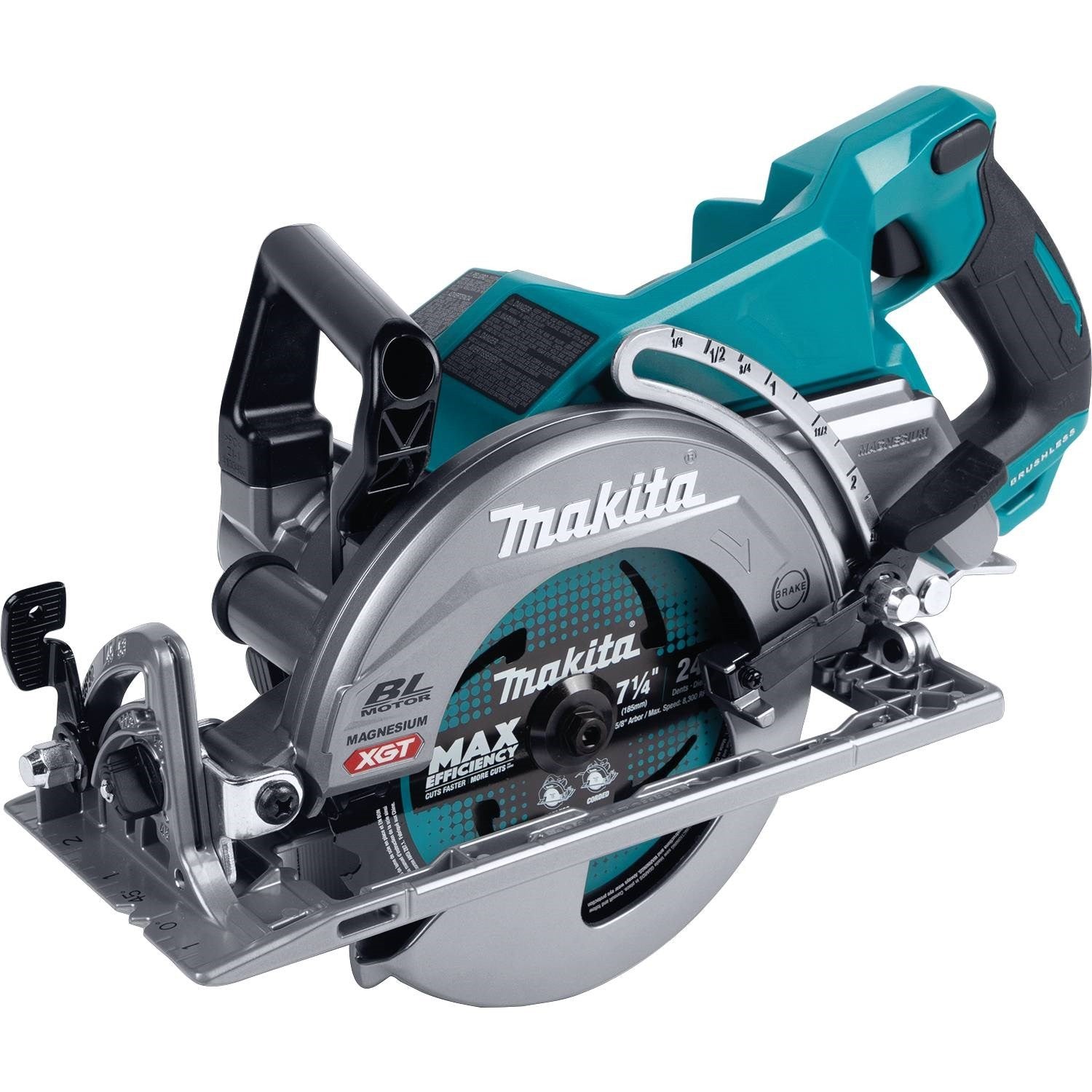

The 40V max XGT® Brushless Rear Handle 7-1/4” Circular Saw Kit (GSR01M1) provides cordless convenience, while taking on high-demand applications. The Makita-built brushless motor delivers 6,400 RPM for high-speed cutting performance. It cuts 3X the material in a single pass with a large cutting capacity of 2-9/16”. This saw is ideal for framers, builders, roofers, forming, and more. The GSR01M1 offers 56-degrees bevel capacity with positive stops at 22.5-degrees and 45-degrees and a bevel up to 56-degrees. The saw features an electric brake for maximum productivity and a die-cast magnesium base. Automatic Torque Drive Technology adjusts cutting speed under load for optimum cutting performance. The saw is also equipped with Makita's Extreme Protection Technology (XPT™), is a series of integrated seals designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. XGT is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition.

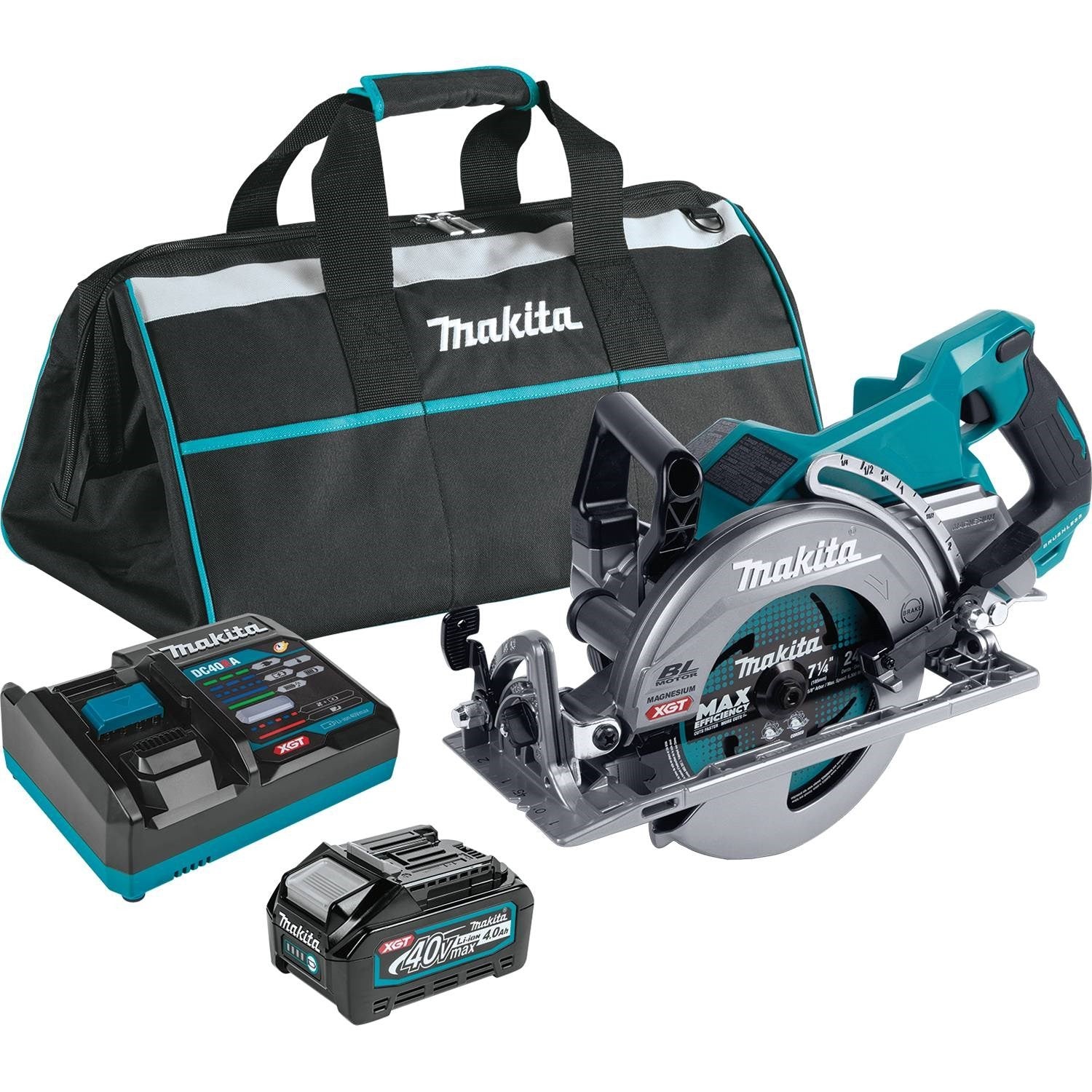

Makita GSR01M1 Includes

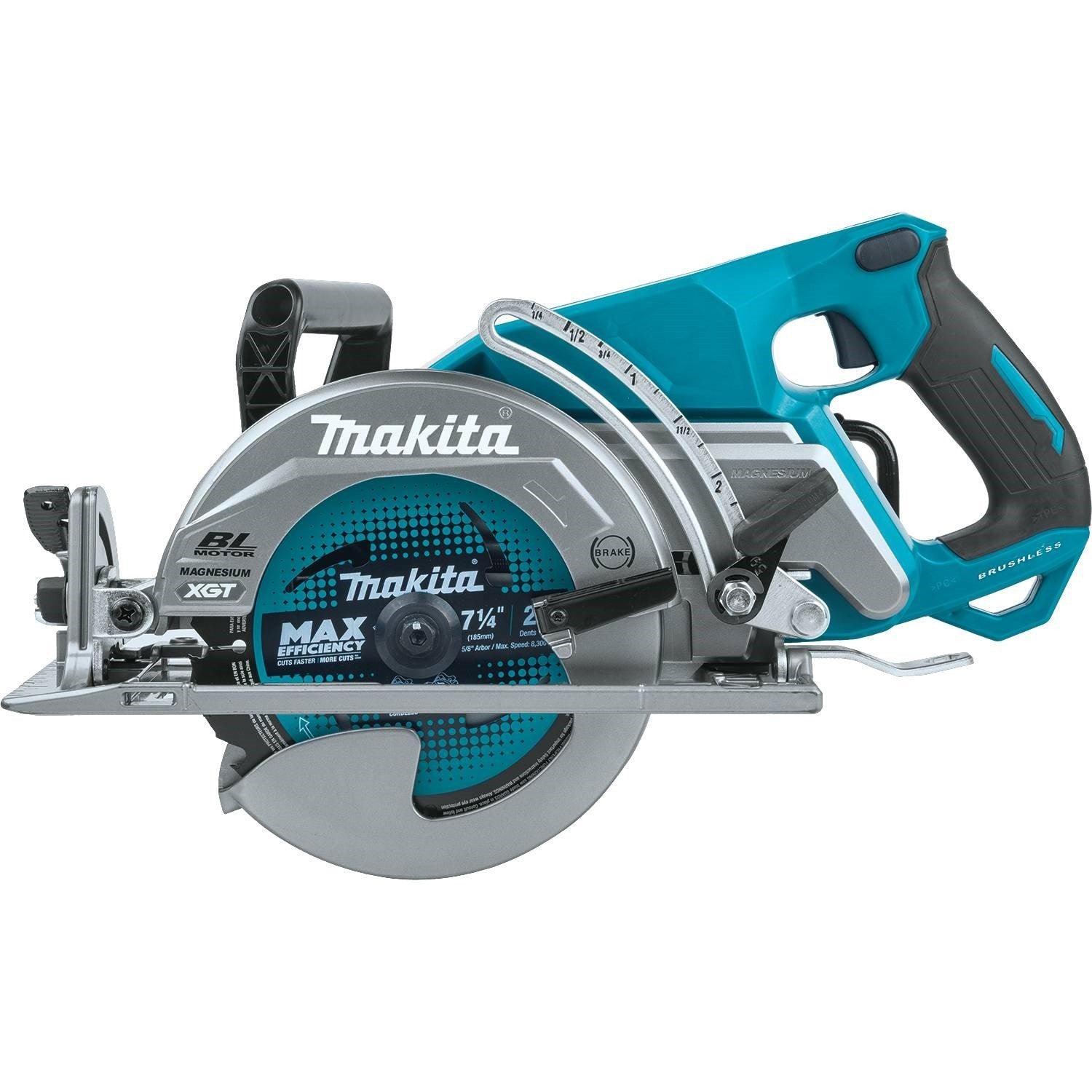

- 40V max XGT® Brushless Rear Handle 7-1/4” Circular Saw (GSR01Z)

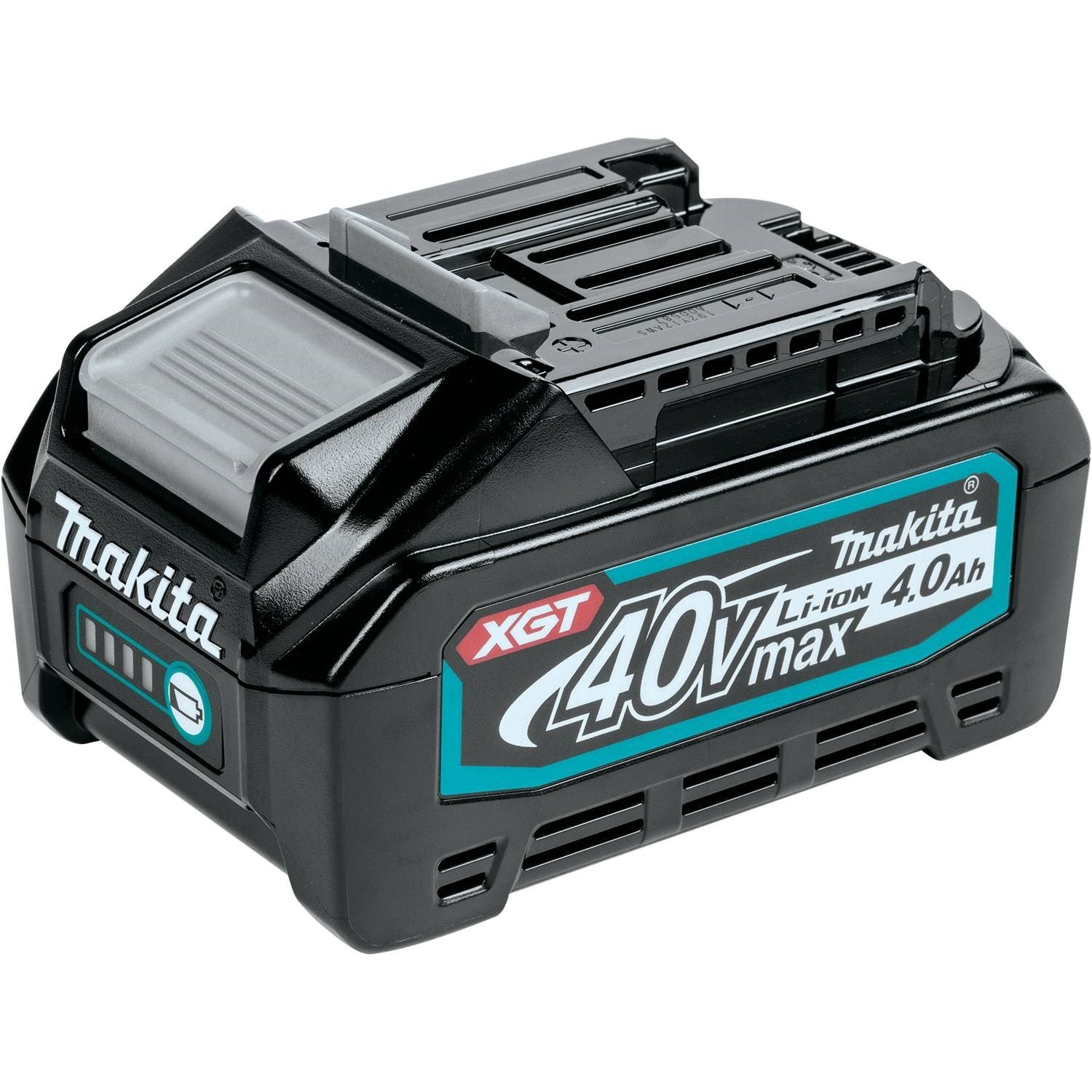

- 40V max XGT® 4.0Ah Battery (BL4040)

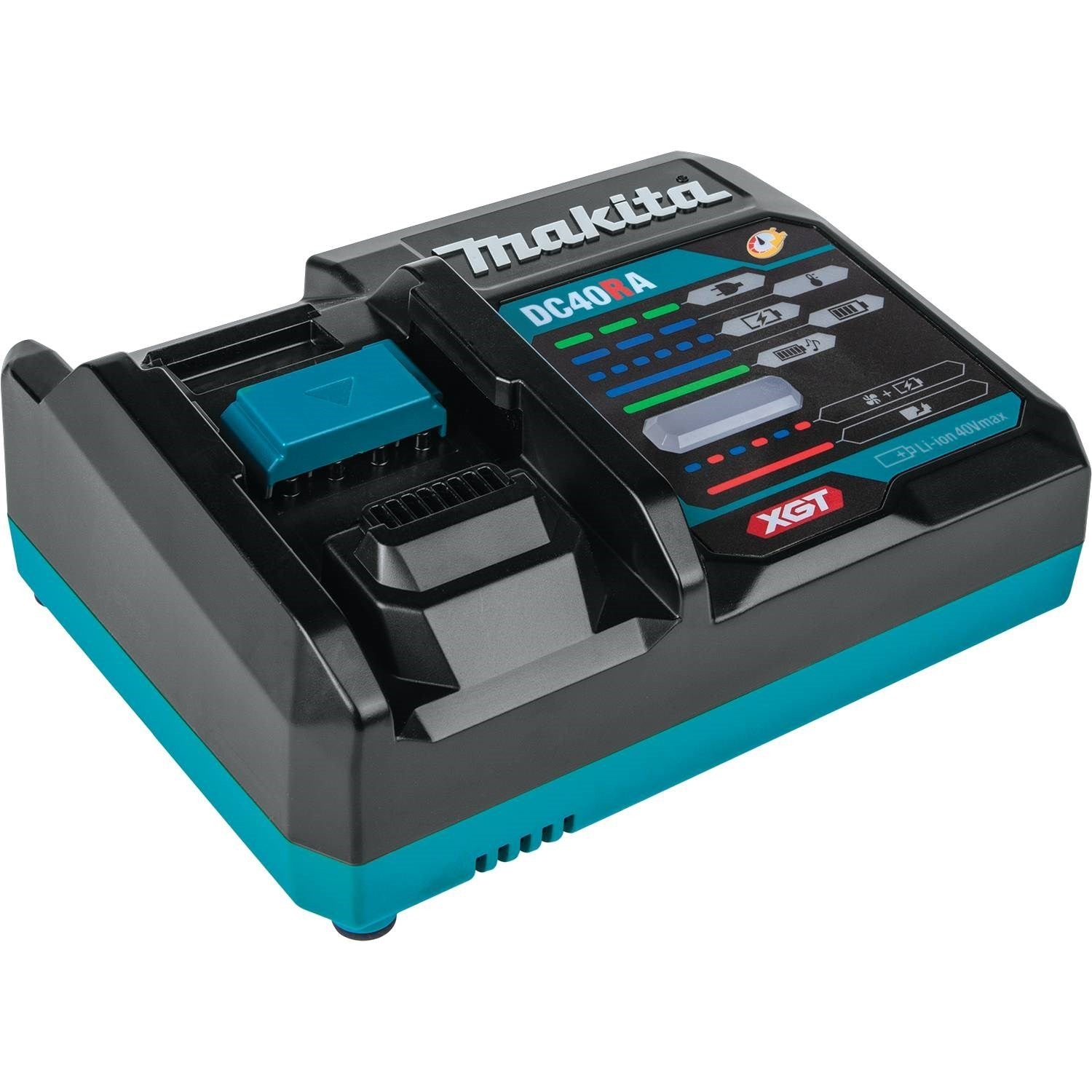

- 40V max XGT® Rapid Optimum Charger (DC40RA)
- 7-1/4" 24T C.T. Circular Saw Blade (B-61656)
- Offset Wrench (782016-4)
- Tool Bag
Makita GSR01M1 Features
- OUTPOWER: Makita-built brushless motor delivers up to 6,400 RPM for faster cutting performance
- OUTSMART: Automatic Torque drive adjusts cutting speed under load for optimum cutting performance
- OUTLAST: XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions
- 2-9/16" cutting depth allows cutting of 3X lumber in a single pass

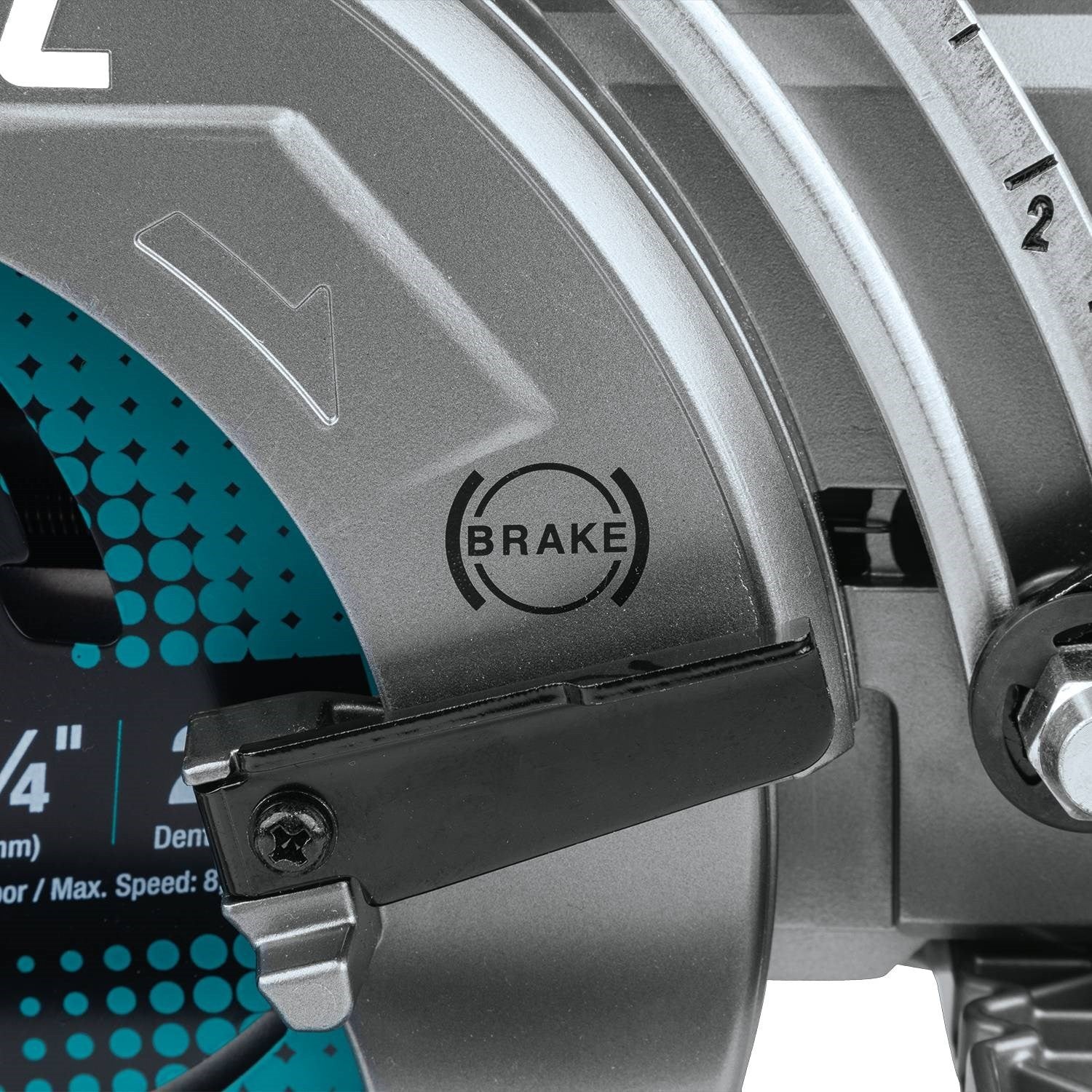

- Electric brake for maximum productivity

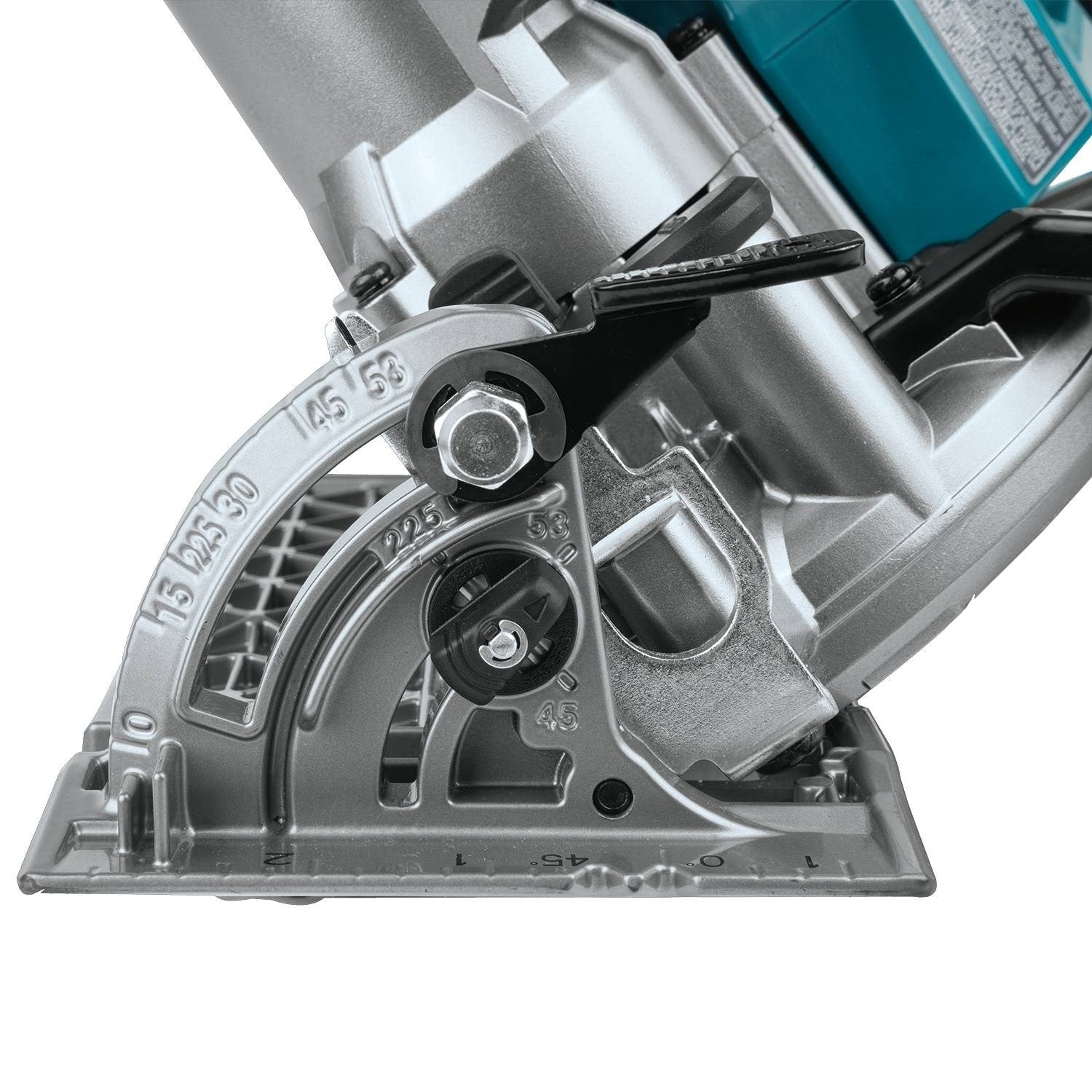

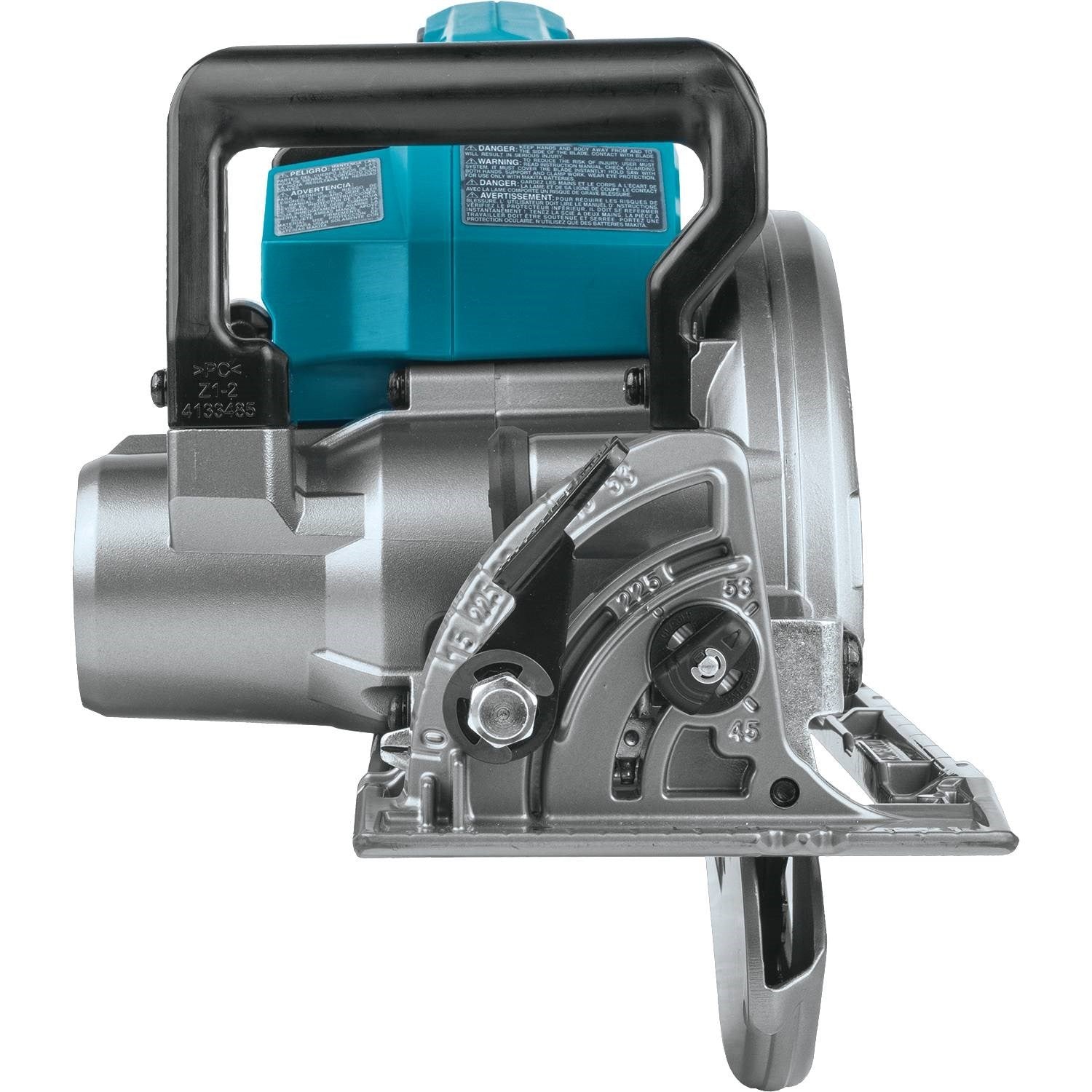

- Bevel angle up to 53º, with positive stops at 22.5º and 45º
- Ergonomic design at only 11.7 lbs.; up to 1.5 lbs. lighter than corded models

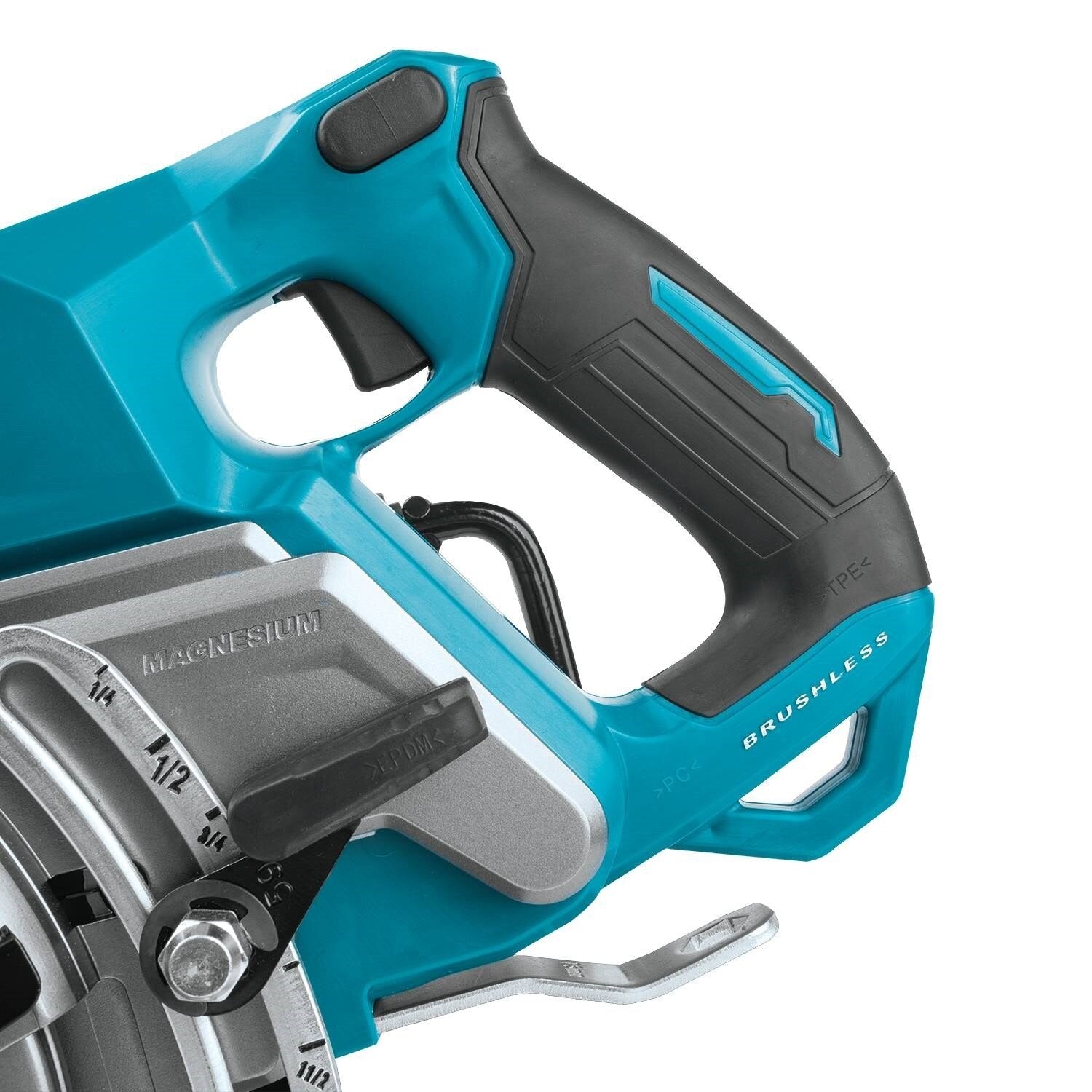

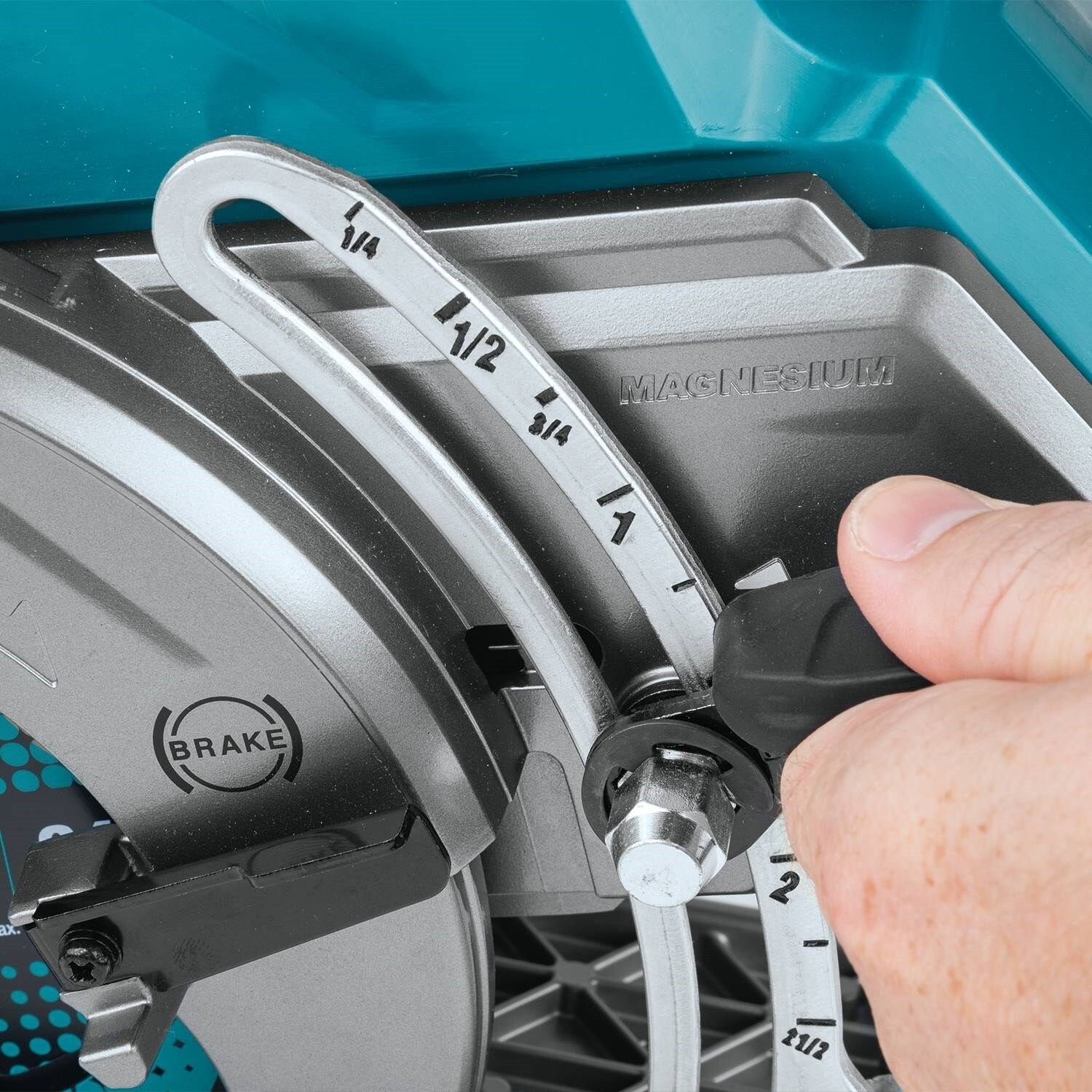

- Increased maneuverability due to lightweight design and Magnesium diecast base

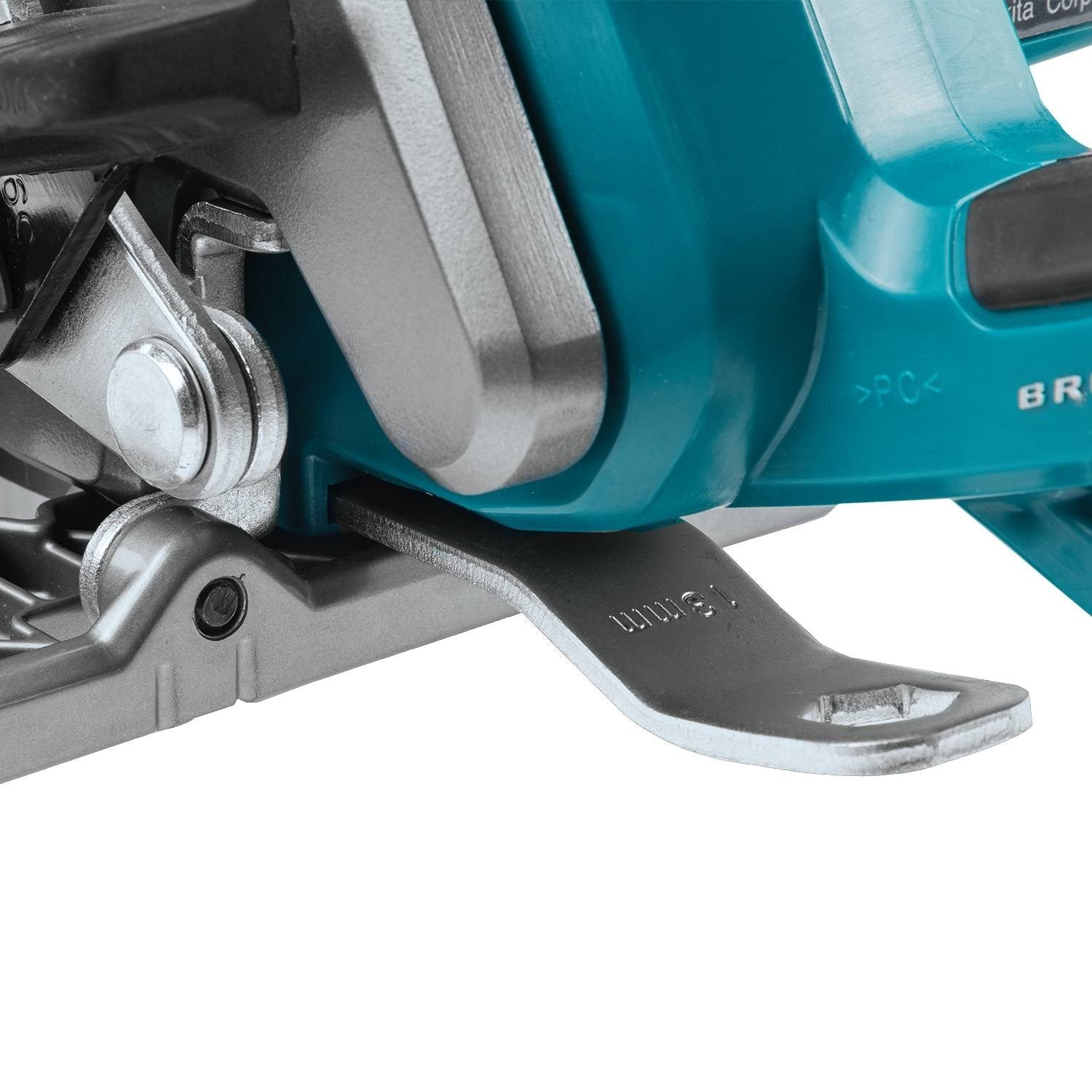

- Onboard offset wrench for fast and easy blade changes
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- 3-year limited warranty on tool, battery and charger
Makita GSR01M1 Specifications
| System | XGT |
| Blade Diameter | 7-1/4" |
| Arbor | 5/8" |
| Max. Cutting Capacity (at 90°) | 2-9/16" |
| Max. Cutting Capacity (at 45°) | 1-3/4" |
| Max. Cutting Capacity (at 53°) | 1-1/2" |
| No Load Speed | 6,400 RPM |
| Overall Length | 17-1/2" |
| Net Weight (with battery) | 11.7 lbs. |
| Shipping Weight | 23.1 lbs. |
| Power Type | Cordless |
| UPC Code | 088381-740234 |
