Description
Makita HS7610 Description

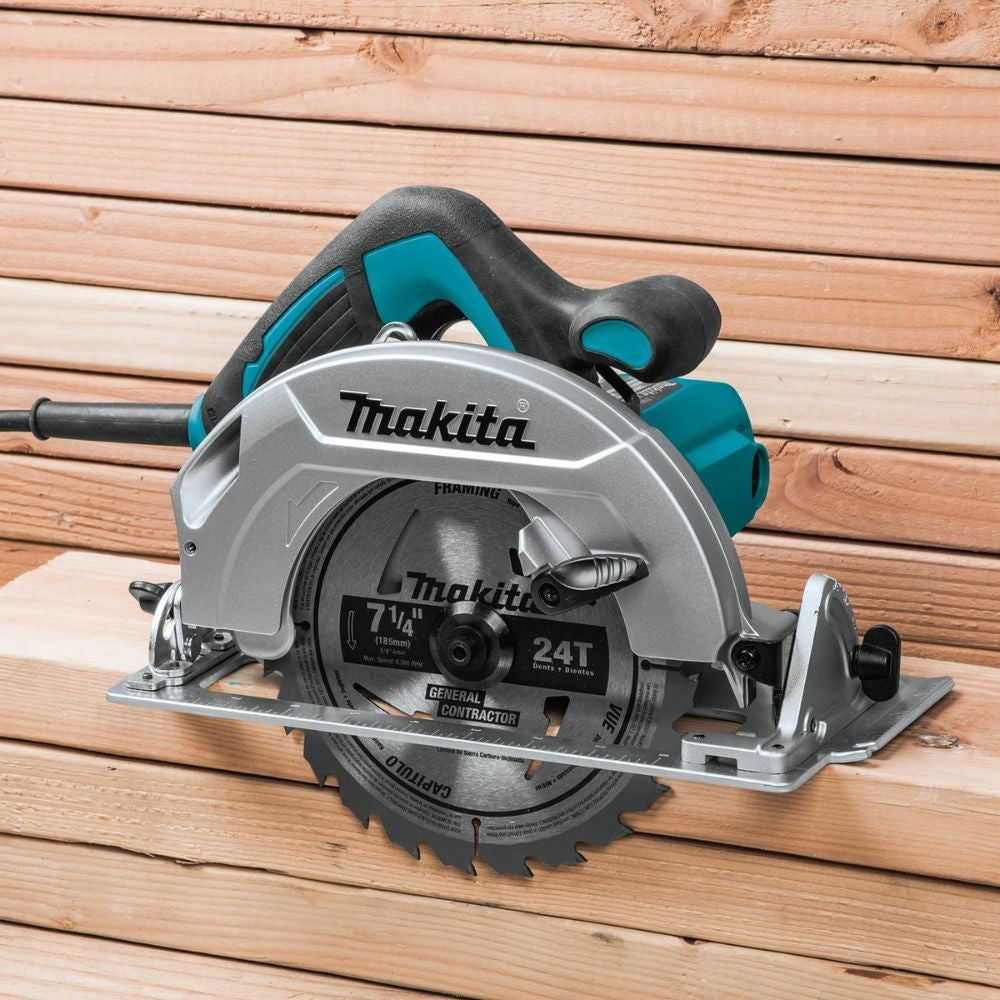

Makita engineered the 7-1/4” Circular Saw (model HS7610) with pro framers in mind, combining power and performance with ease-of-use features, superior balance, less weight, and job site durability. It also includes a dust nozzle accessory that directs material away from the operator and easily connects to a vacuum for improved dust extraction. It is ideal for a range of framing and cutting applications. The HS7610 has a powerful 14 AMP motor and weighs only 8.7 lbs. for a high power-to-weight ratio. It has a heavy gauge aluminum wraparound base engineered for improved durability and straighter cuts. The large cutting capacity (2-1/2” at 90°, 1-3/4” at 45°) with a maximum bevel capacity of 0°-45° is ideal for most common angles. Ease-of-use features include easy-to-read markings on the depth and bevel scales, on-board blade wrench, and a flat motor housing design for improved stability when changing the blade. The lower guard design improves performance when making bevel and narrow cuts. The HR7610 includes a Makita 7-1/4" 24T Framing Blade engineered to deliver faster, cleaner cuts. The carbide tips are specifically set to withstand the harshest conditions such as plowing through nail-embedded wood. The HR7610 is ideal for framing walls, siding, roofs and floors using a range of dimensional and engineered lumber including OSB, LVL, PSL, plywood, and more. It is ideal for framers, builders, masons, carpenters, and general contractors.

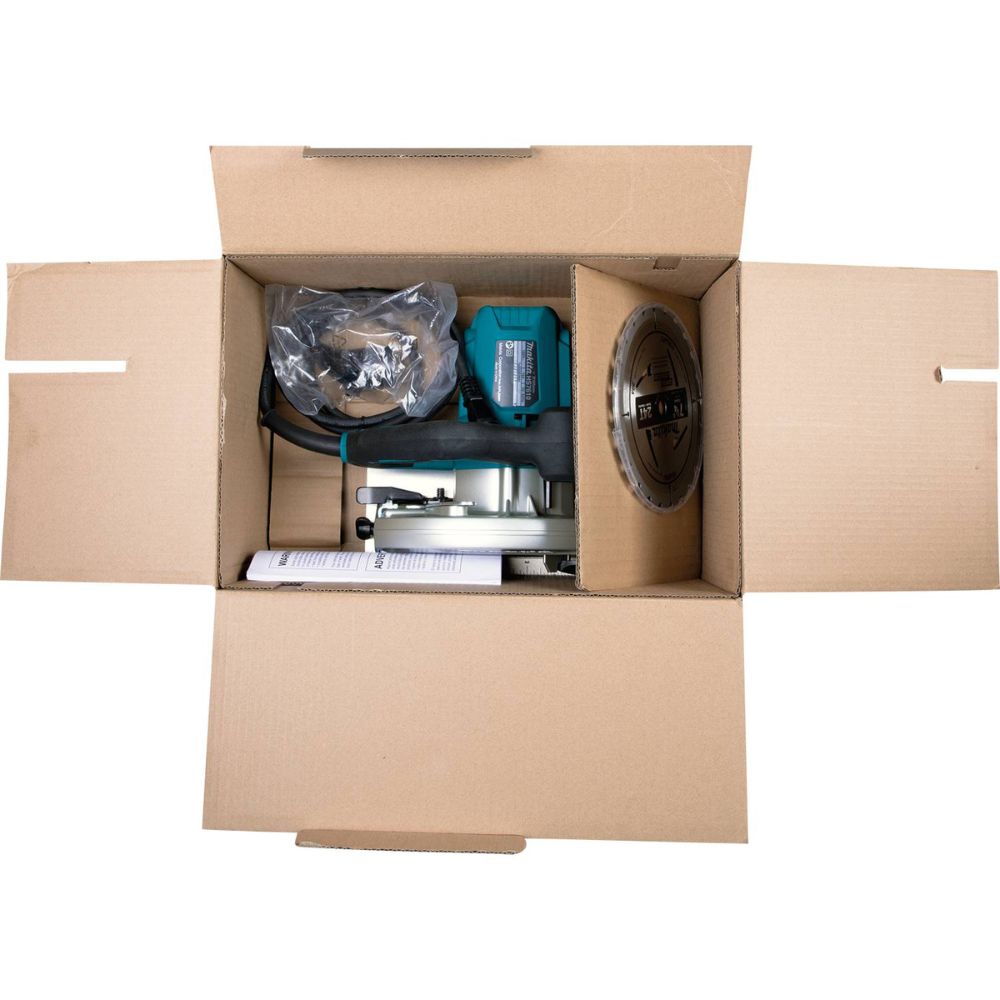

Makita HS7610 Includes
- (1) Circular Saw
- (1) Framing Blade
- (1) Hex Wrench
- (1) Dust Extracting Attachment
Makita HS7610 Features
- Well-balanced and lightweight (8.7 lbs.) for superior handling and performance
- Powerful 14 AMP motor deliver 5,500 RPM for performance and job site durability

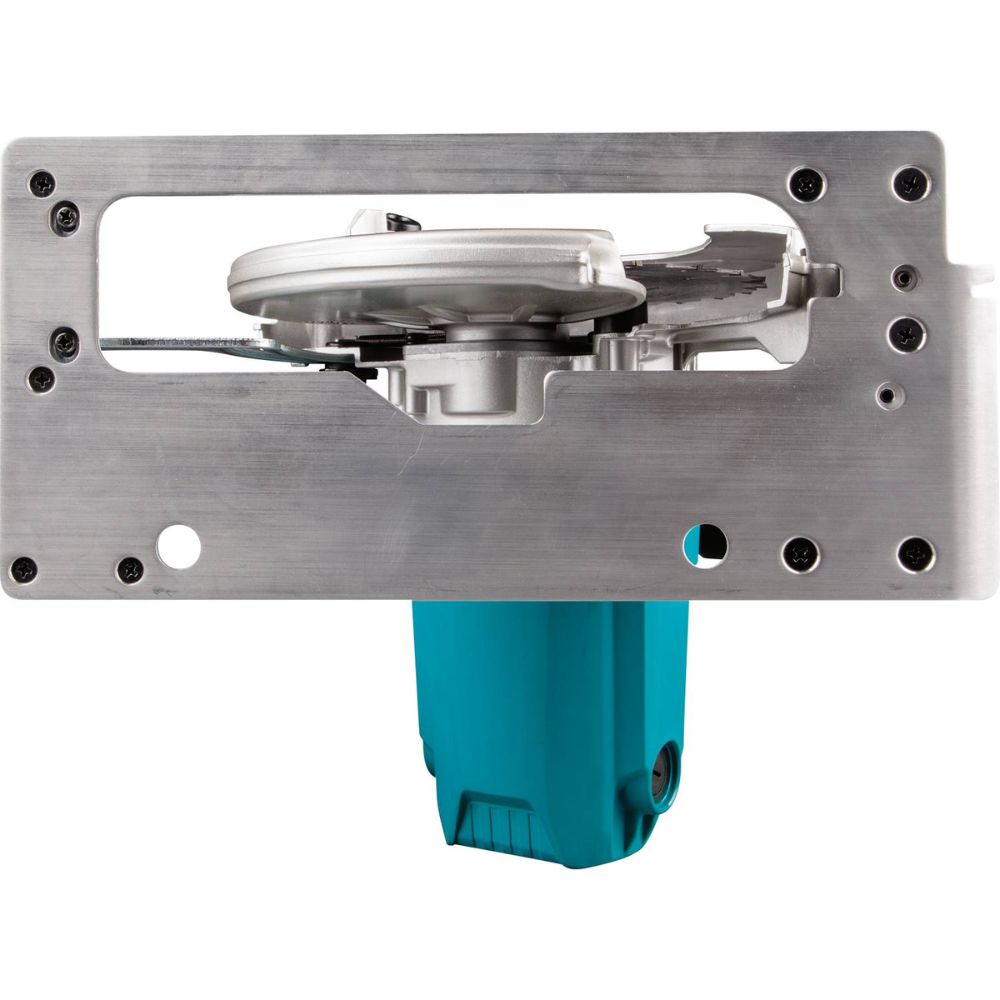

- Heavy gauge aluminum wraparound base engineered for improved durability and straighter cuts

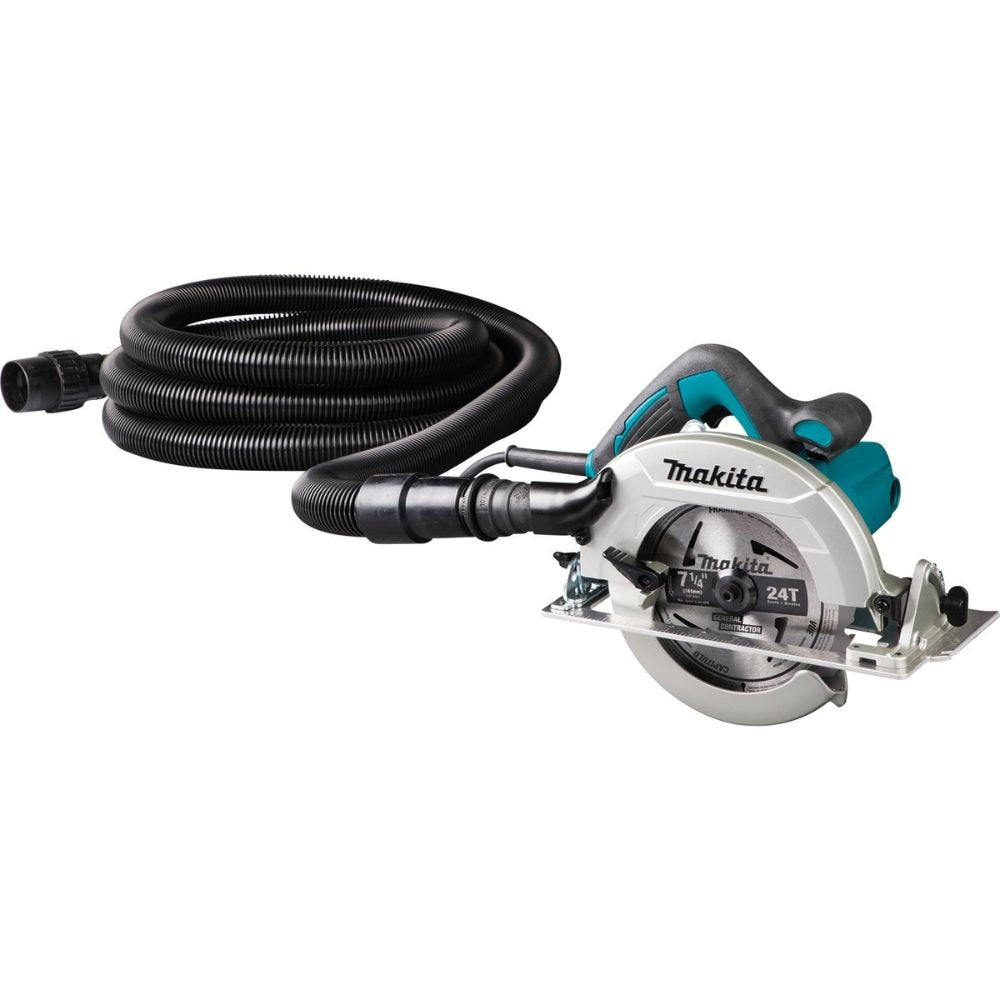

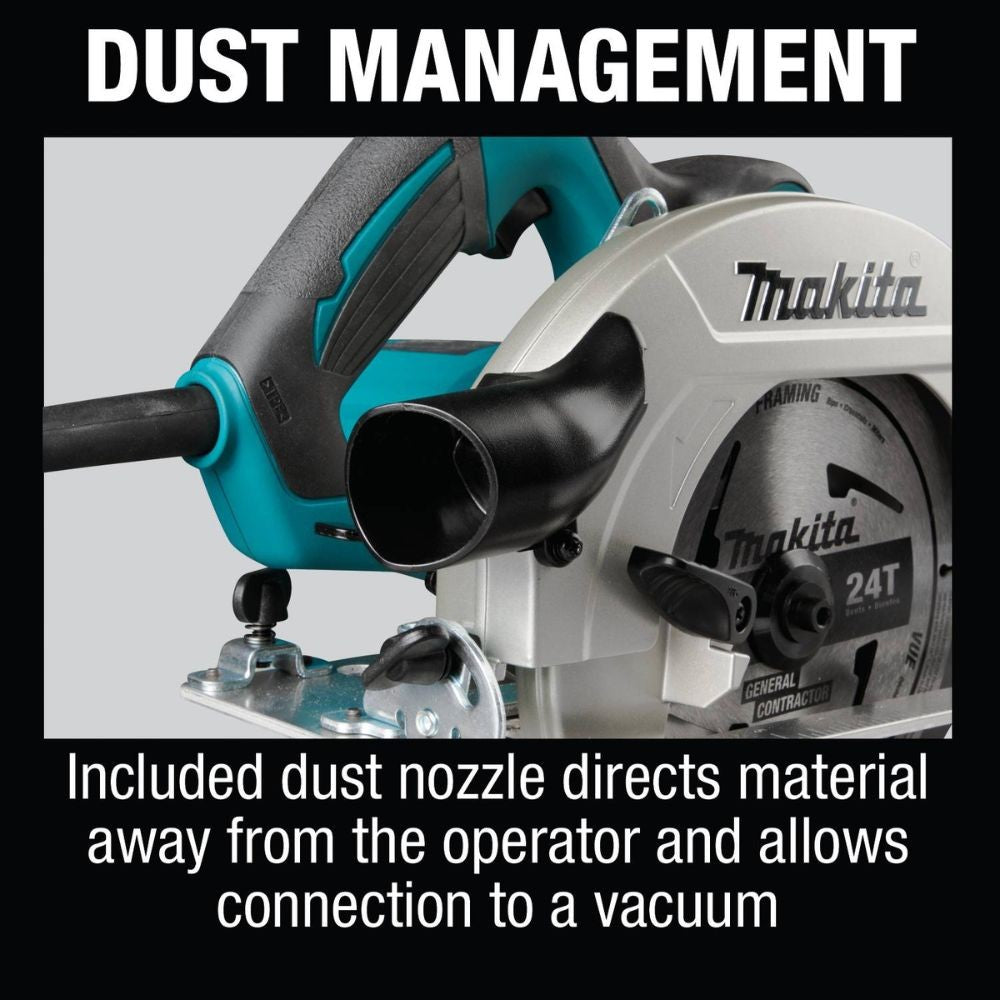

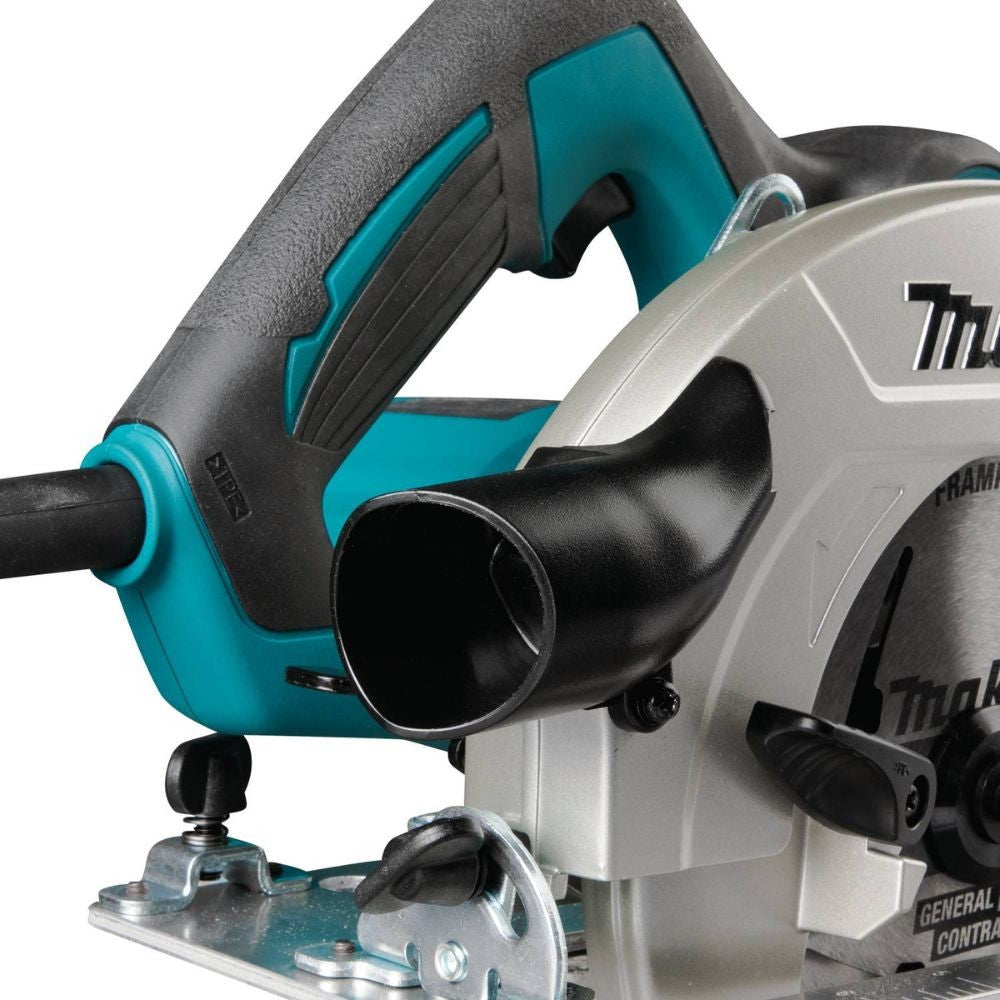

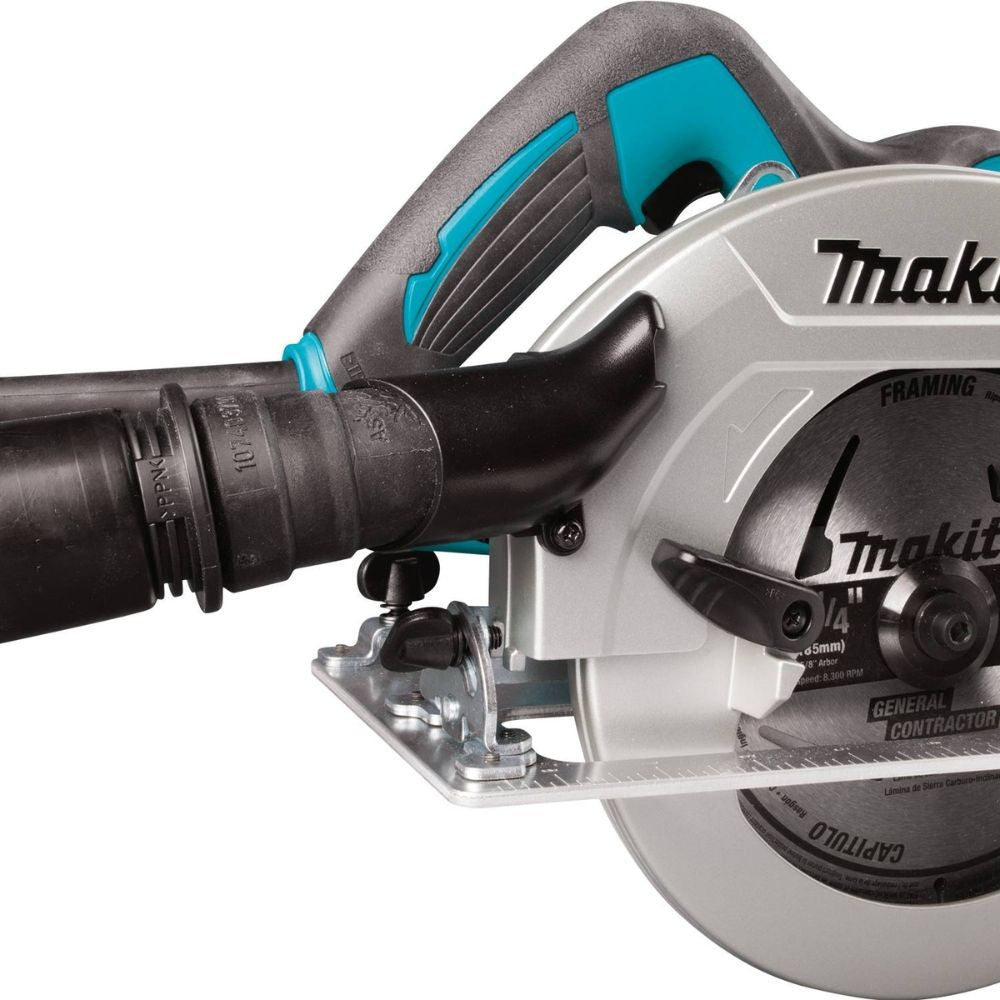

- Included dust nozzle accessory directs material away from the operator; allows connection to a vacuum for improved dust collection

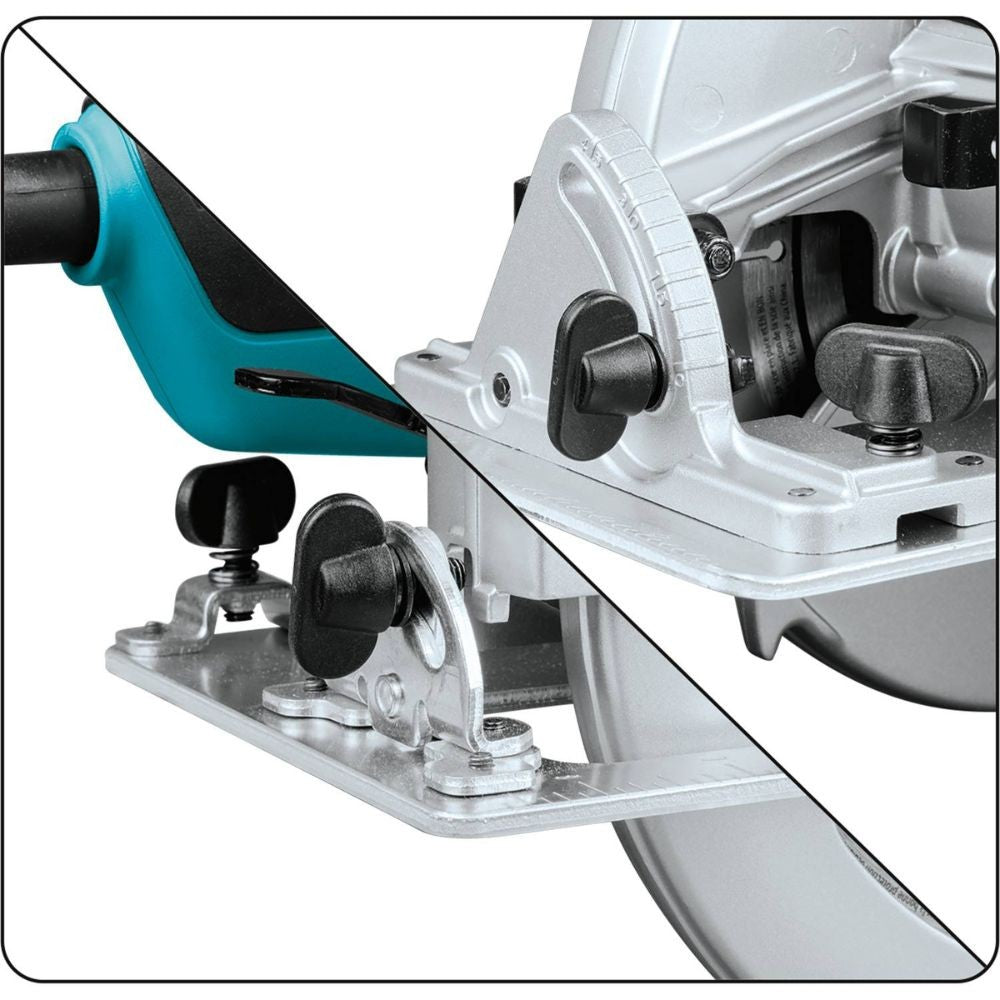

- Bevel cuts 0°- 45° for the most common cutting applications
- Large cutting capacity (2-1/2” at 90°, 1-3/4” at 45°)
- Lower guard design improves performance when making bevel and narrow cuts
- Large and easy-to-read markings on base for more precise cutting

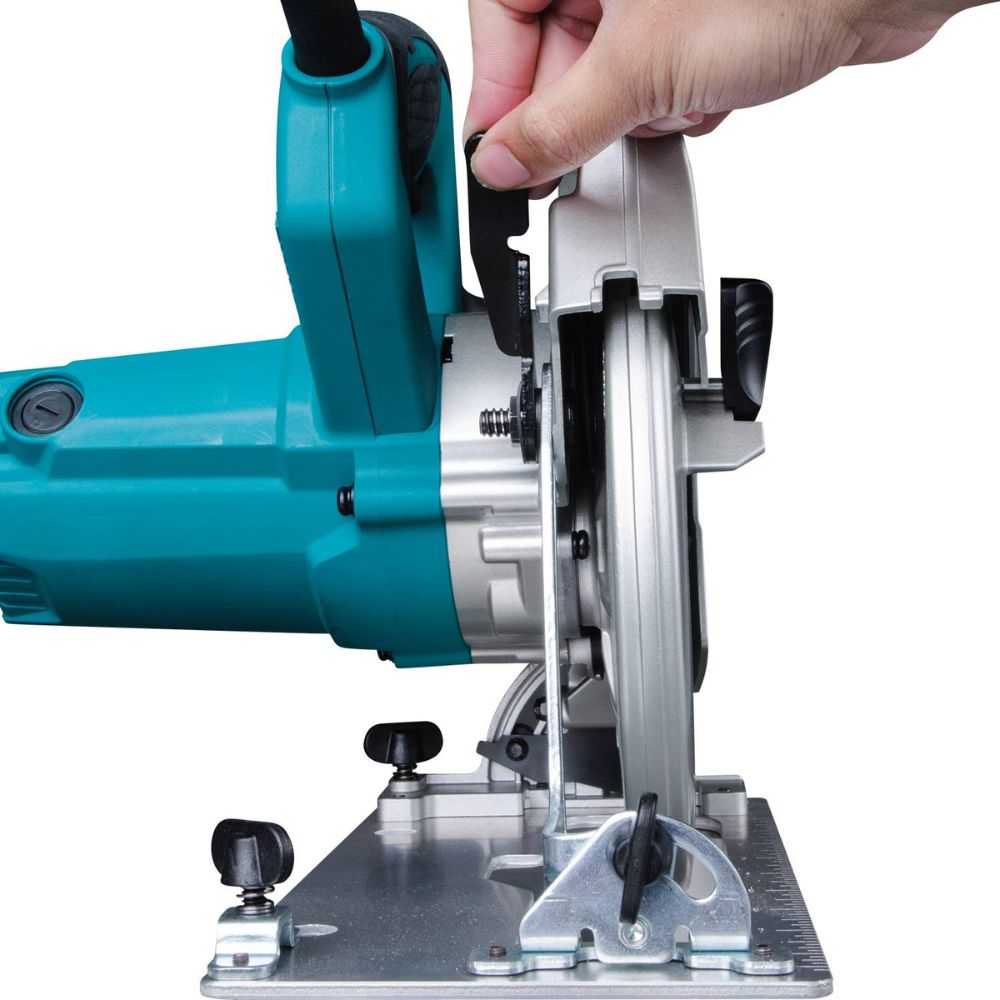

- Flat motor housing design for stability when changing the blade

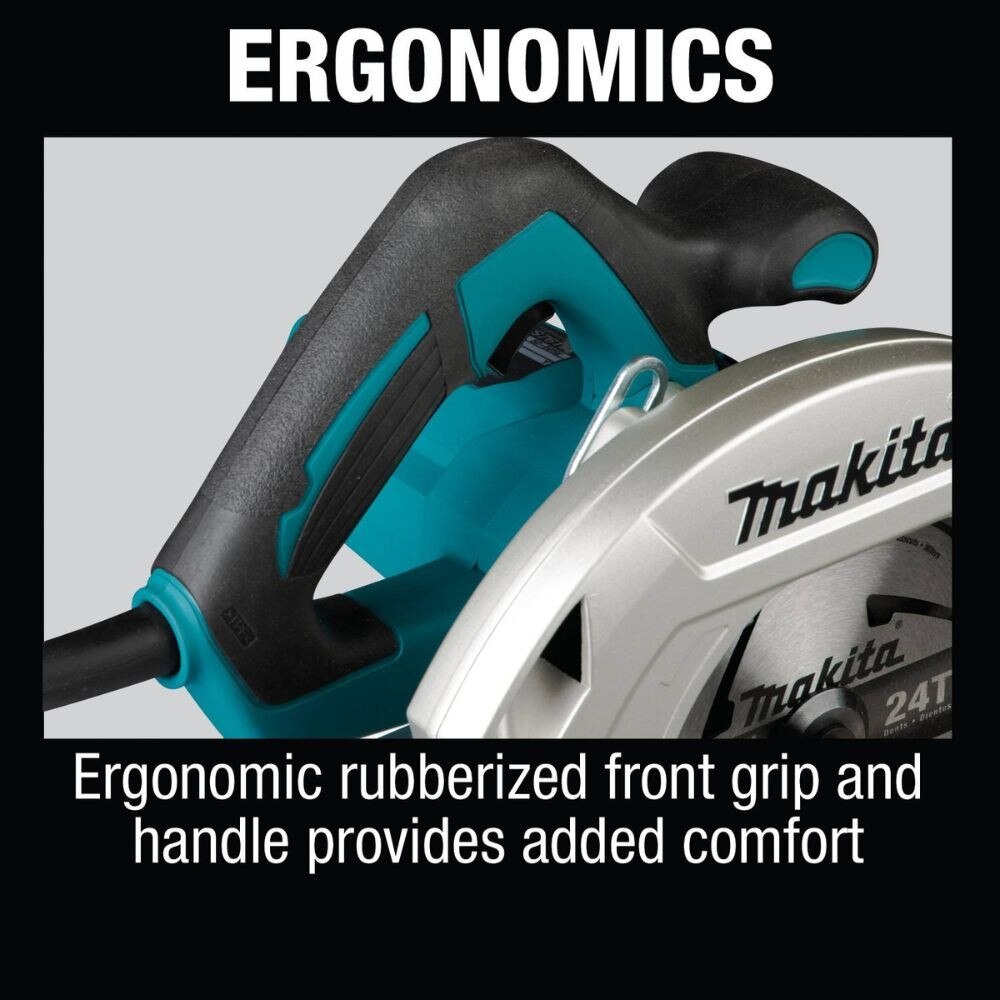

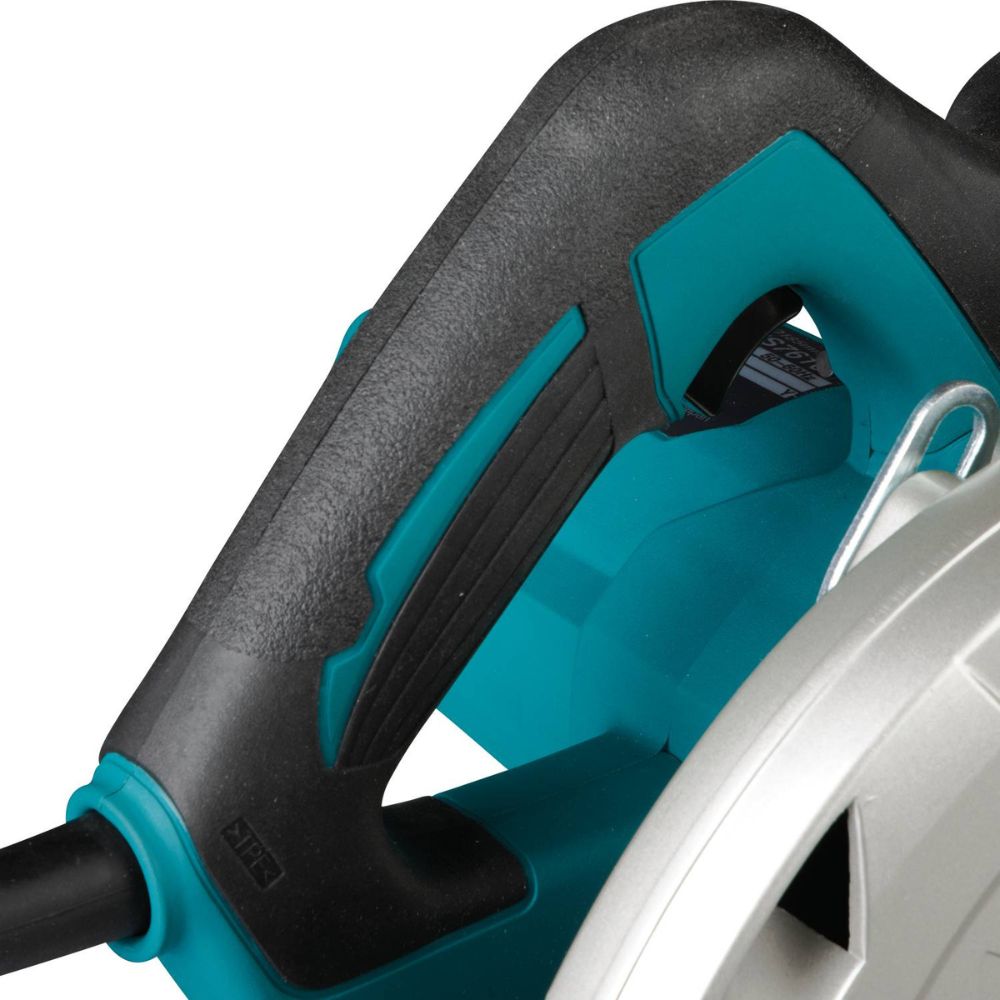

- Ergonomic rubberized front grip and handle provides added comfort
- Conveniently located shaft and lock for easy blade replacement

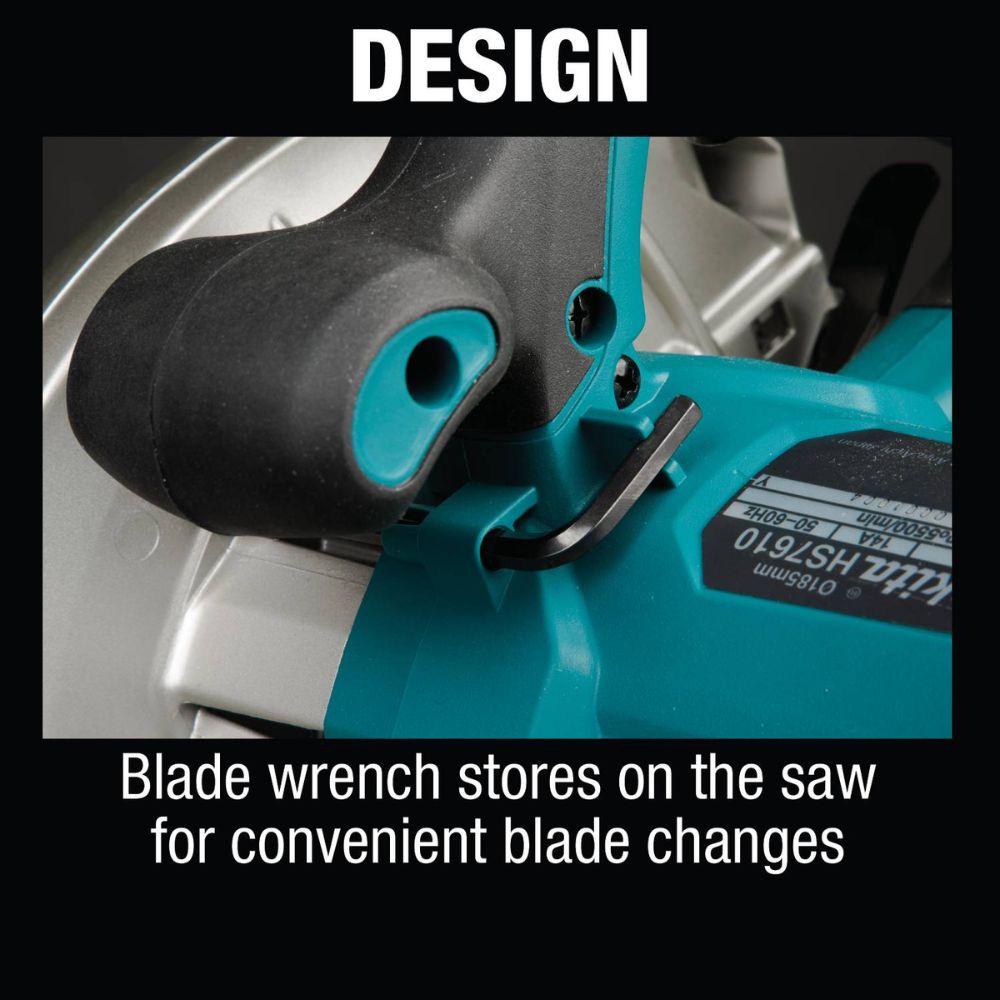

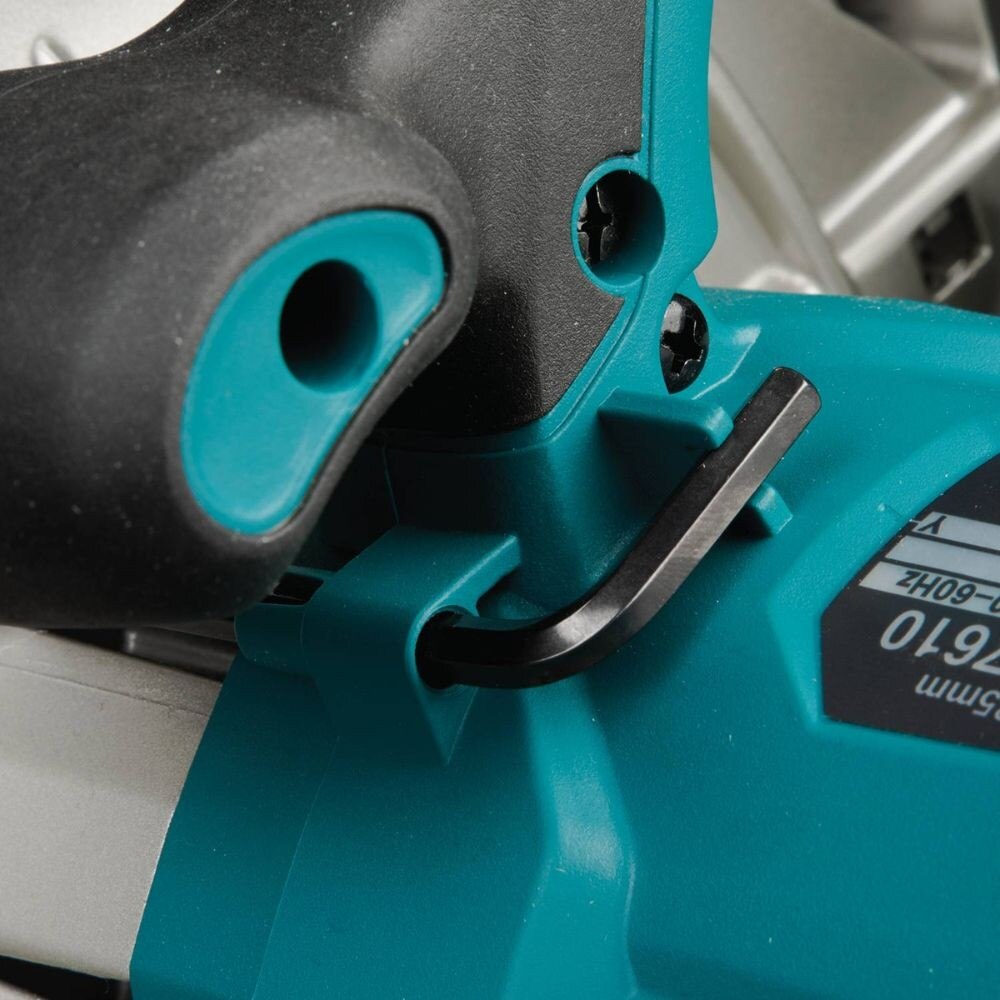

- Blade wrench stores on the saw for convenient blade changes

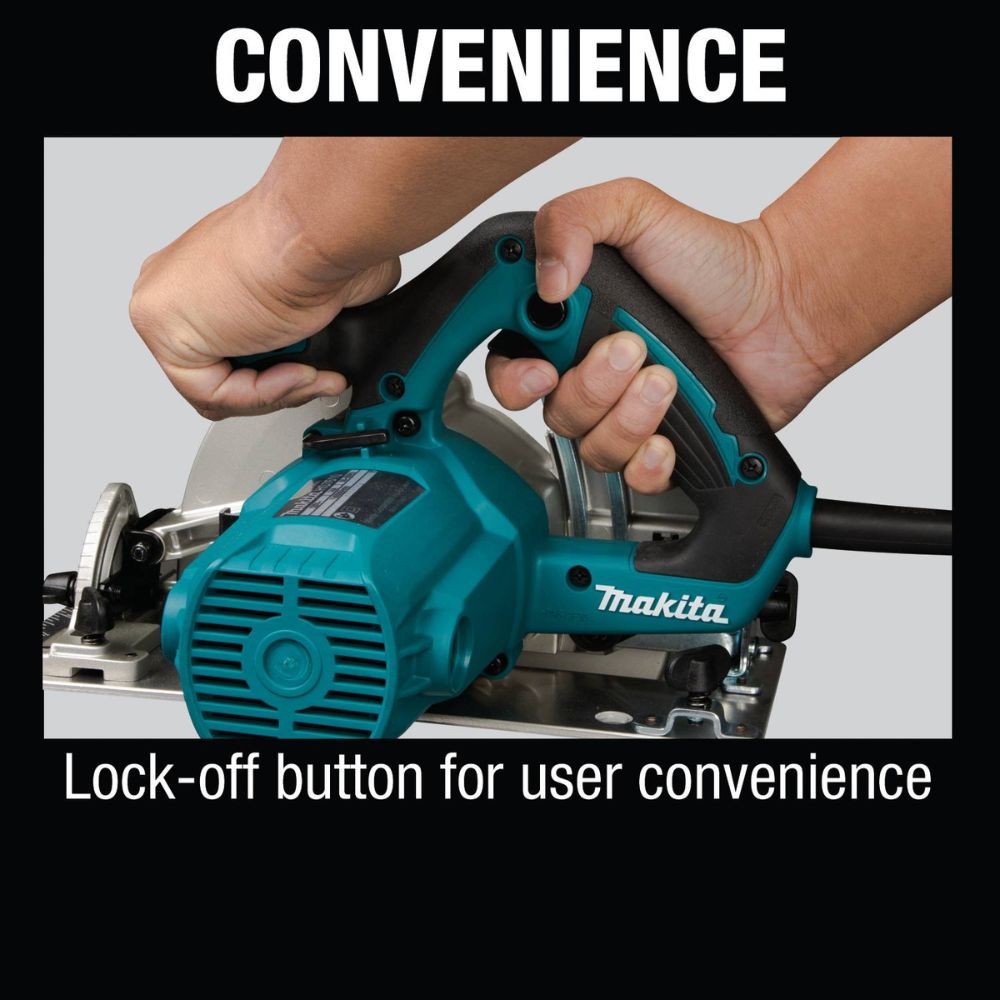

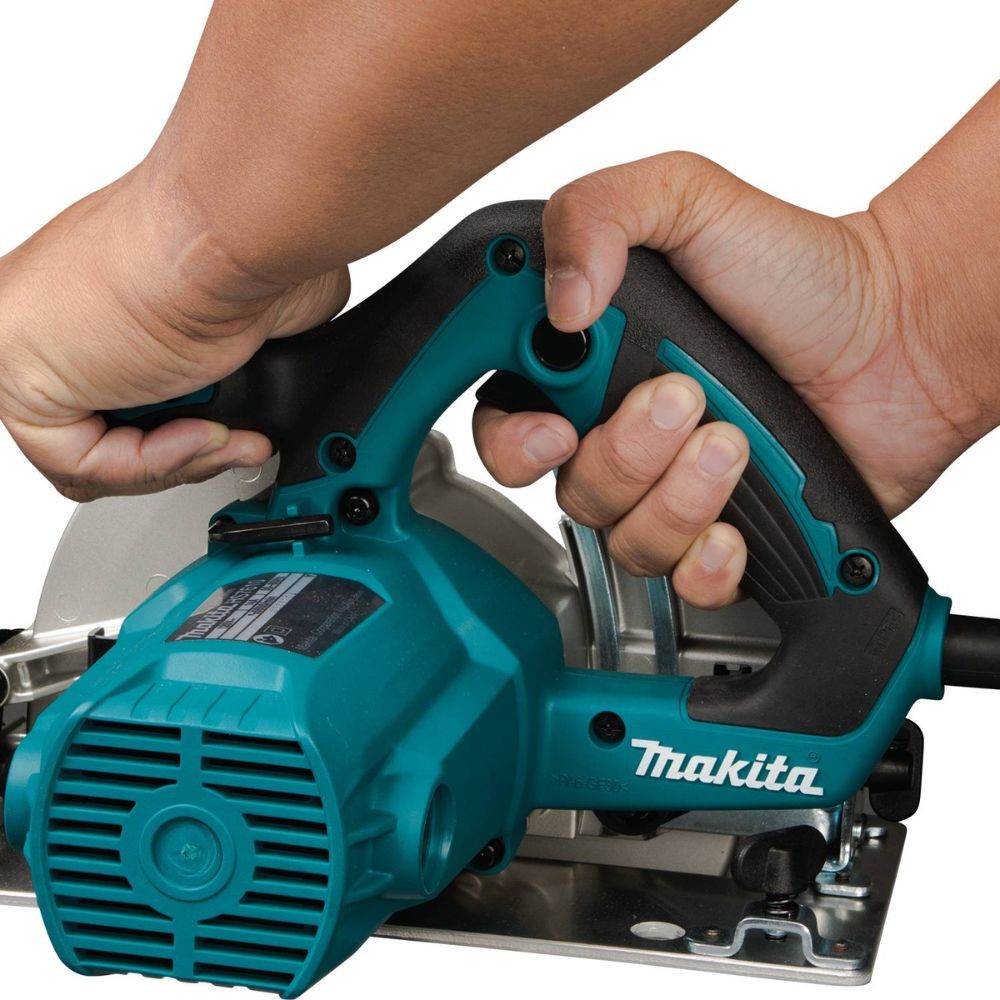

- Lock-off button for user convenience
- Ideal for framers, roofers, carpenters and general contractors
Makita HS7610 Specifications
| Blade Diameter | 7-1/4" |
| Arbor | 5/8" |
| Max. Cutting Capacity (at 90°) | 2-1/2" |
| Max. Cutting Capacity (at 45°) | 1-3/4" |
| No Load Speed | 5500 RPM |
| Watts Out | 1600 |
| Amperage | 14A |
| Power Type | Corded |
| Overall Length | 12-1/4" |
| Net Weight | 8.7 lbs |
