Makita SK106DNAX 12V Max CXT Self-Leveling Cross-Line/4-Point Red Beam Laser


Price:
Sale price$489.00 Regular price$884.00
Stock:
In stock, ready to ship

Description

Makita SK106DNAX Description

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion self-leveling cross-line/4-point red beam laser (SK106DNAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106DNAX has a line visibility range up to 82 Ft. and is detectable up to 262 Ft. with a Makita laser detector (sold separately). The SK106DNAX has a bright 635 nm class II red laser with +/- 1/8 In. at 33 Ft. for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0 Ah battery (BL1041B). 12V max CXT® Lithium-Ion batteries are engineered with a battery protection circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.

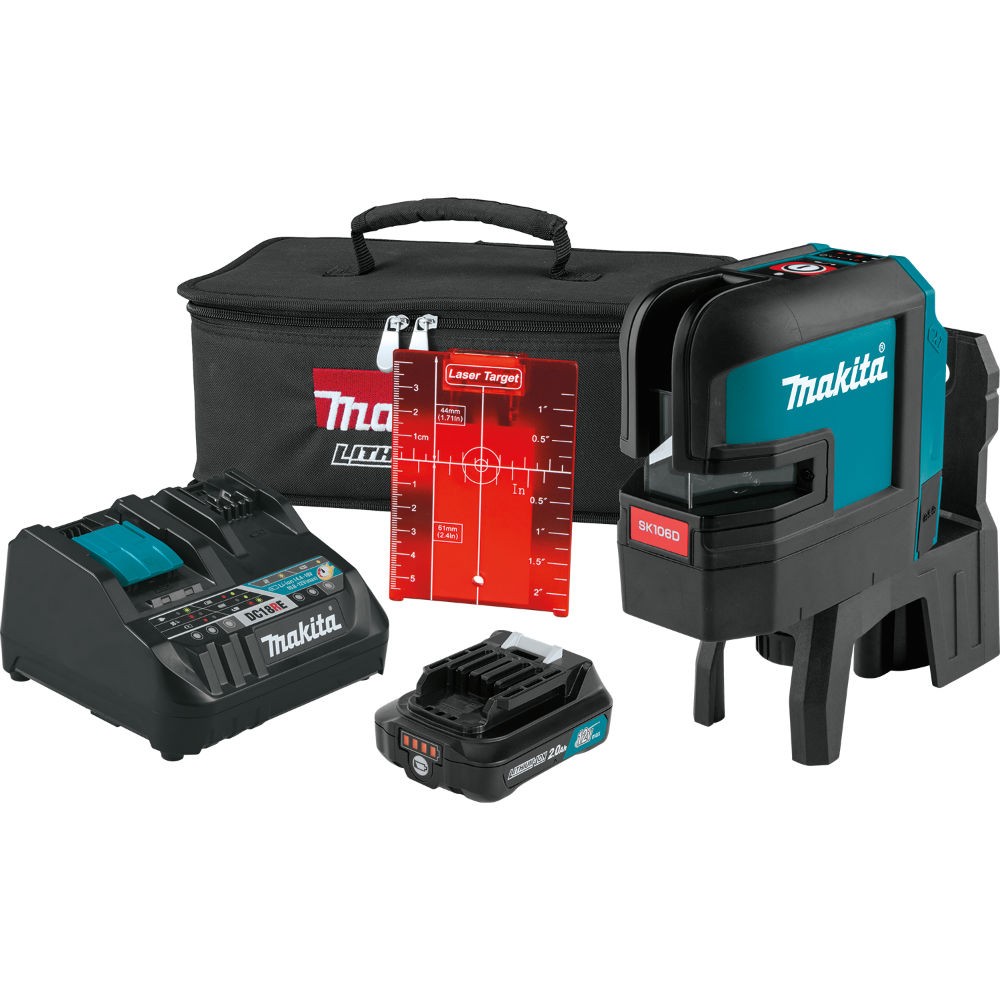

Makita SK106DNAX Includes

  • (1) 12V max CXT® Self-Leveling Cross-Line/4-Point Red Beam Laser (SK106DZ)
  • (1) 12V max CXT® Lithium-Ion 2.0Ah Battery (BL1021B)
  • (1) 18V LXT® / 12V max CXT® Lithium-Ion Rapid Optimum Charger (DC18RE)
  • (1) Magnetic PRO L-Adapter (LE00870134)
  • (1) Magnetic Red Target Plate (LE00785638)
  • (1) Laser Kit Bag (832173-9)

Makita SK106DNAX Features

  • Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
  • 12V max CXT™ battery delivers the convenience of a rechargeable tool battery and up to 40 hours of continuous run time
  • Red line visibility range up to 82 Ft. depending on ambient light and detectable up to 262 Ft. with Makita laser detector
  • Bright 635 nm class II red laser with +/-1/8” at 33’ for best-in-class accuracy
  • Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
  • Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
  • Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
  • Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
  • Dust and water resistance with IP 54 rating for increased durability
  • Highly protected laser windows are recessed into the housing for increased durability
  • Rubberized housing over-mold for increased protection

Makita SK106DNAX Specifications

Battery 12V max CXT® Lithium-Ion
Line accuracy (at 33') +/- 1/8"
Point beam direction 4 point (up, down, left, right)
Line beam direction 2 line (horizontal, vertical)
Working range (line) 82'
Working Range with Detector 262'
Operating time (hours) 20
Laser diode Class II, 635 nm
Levelling range
Debris resistance IP54 rating (dust & water resistance)
Auto shut off No
Net Weight 1.9 lbs.
Shipping Weight 6.9 lbs.
UPC Code 088381-878197
