Description

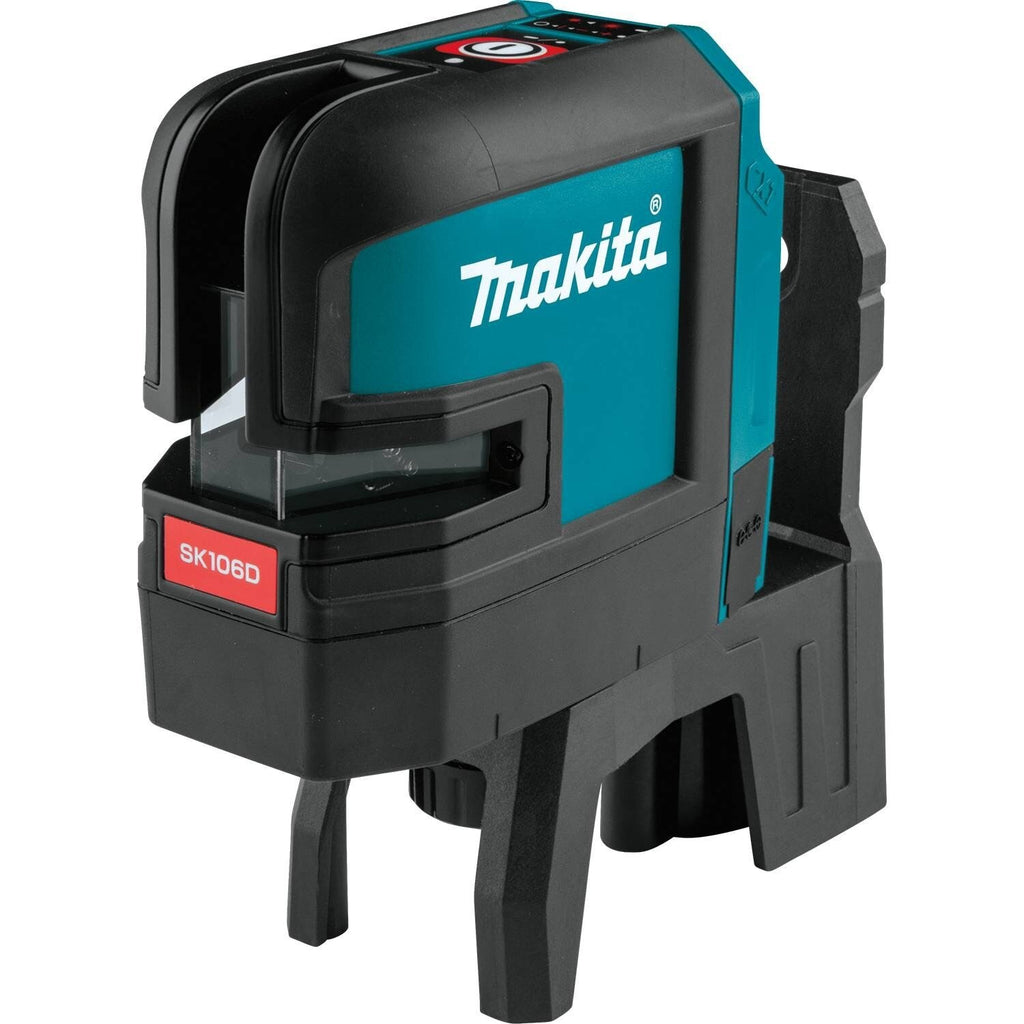

Makita SK106DZ Description
Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT™ Lithium-Ion self-leveling cross-line/4-point red beam laser (SK106DZ) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106DZ has a line visibility range up to 82 Ft. and is detectable up to 262 Ft. with a Makita laser detector (sold separately). The SK106DZ has a bright 635 nm class II red laser with +/- 1/8 In. at 33 Ft. for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12V max CXT™ cordless tools are also compatible with the 12V max CXT™ Lithium-Ion 4.0 Ah battery (BL1041B). 12V max CXT™ Lithium-Ion batteries are engineered with a battery protection circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size.
Makita SK106DZ Includes

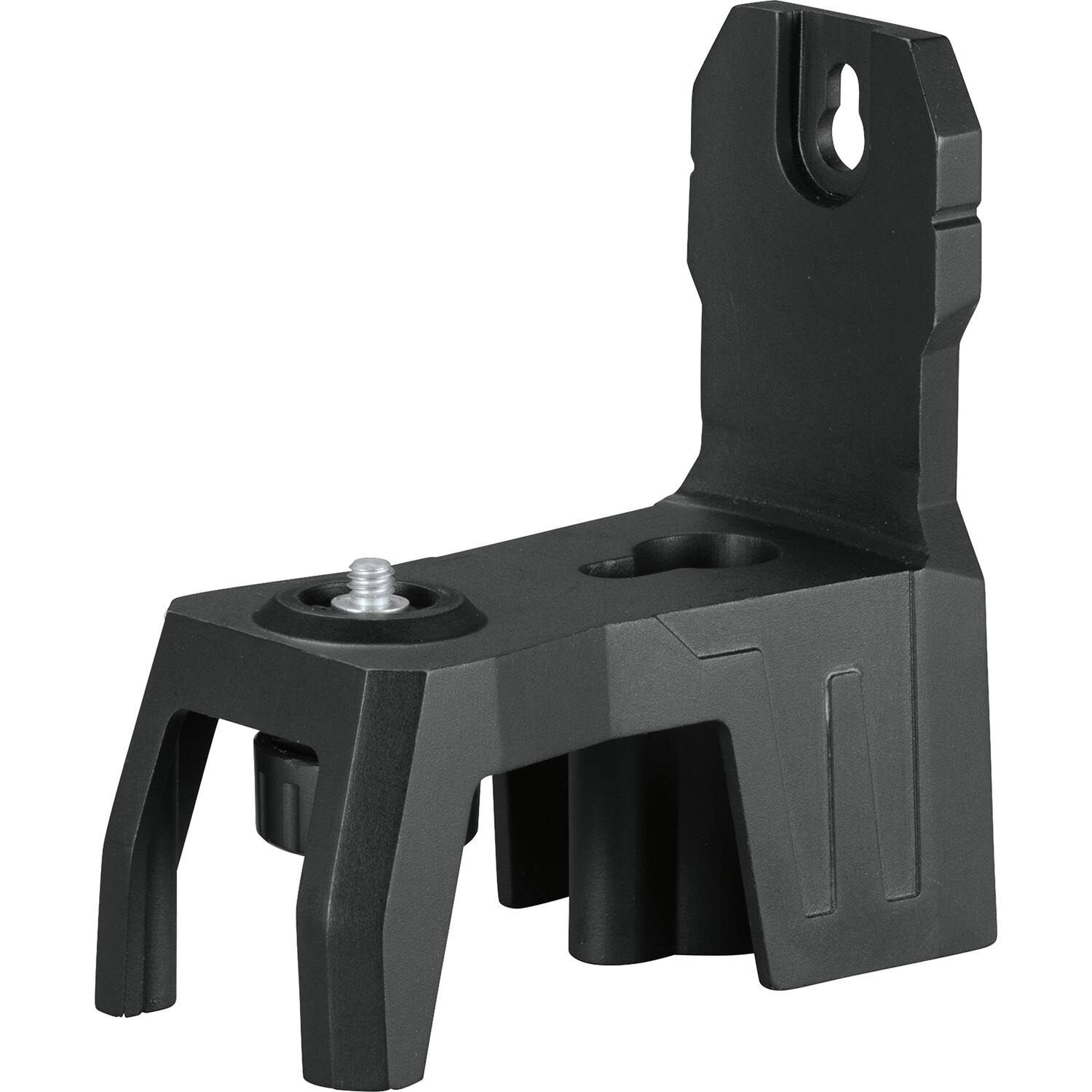

- (1) Magnetic PRO L-Adapter (LE00870134)
- (1) Magnetic Red Target Plate (LE00785638)

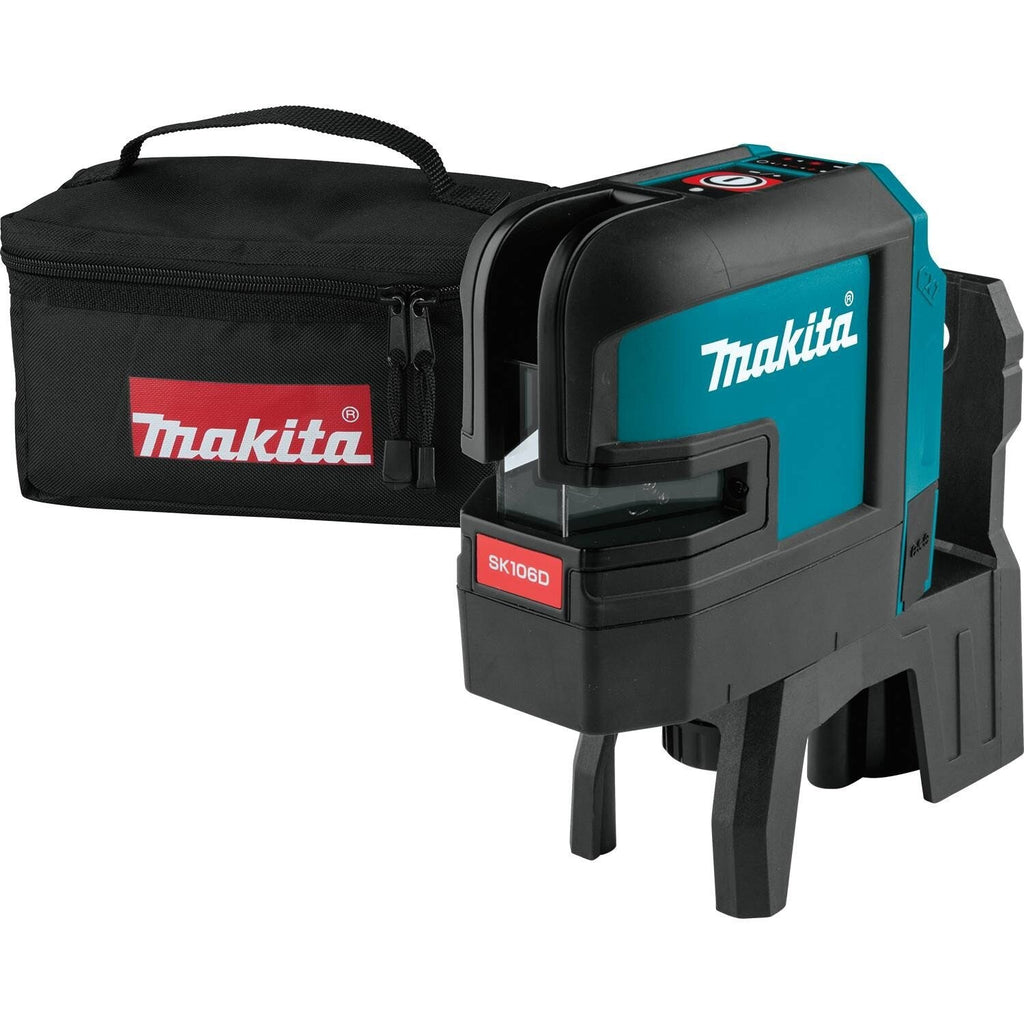

- (1) Storage Pouch
Makita SK106DZ Features
- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
- 12V max CXT™ battery delivers the convenience of a rechargeable tool battery and up to 40 hours of continuous run-time (battery not included)
- Line visibility range up to 82 Ft. depending on ambient light and detectable up to 262 Ft. with Makita laser detector
- Bright 635 nm class II red laser with +/-1/8” at 33’ for best-in-class accuracy

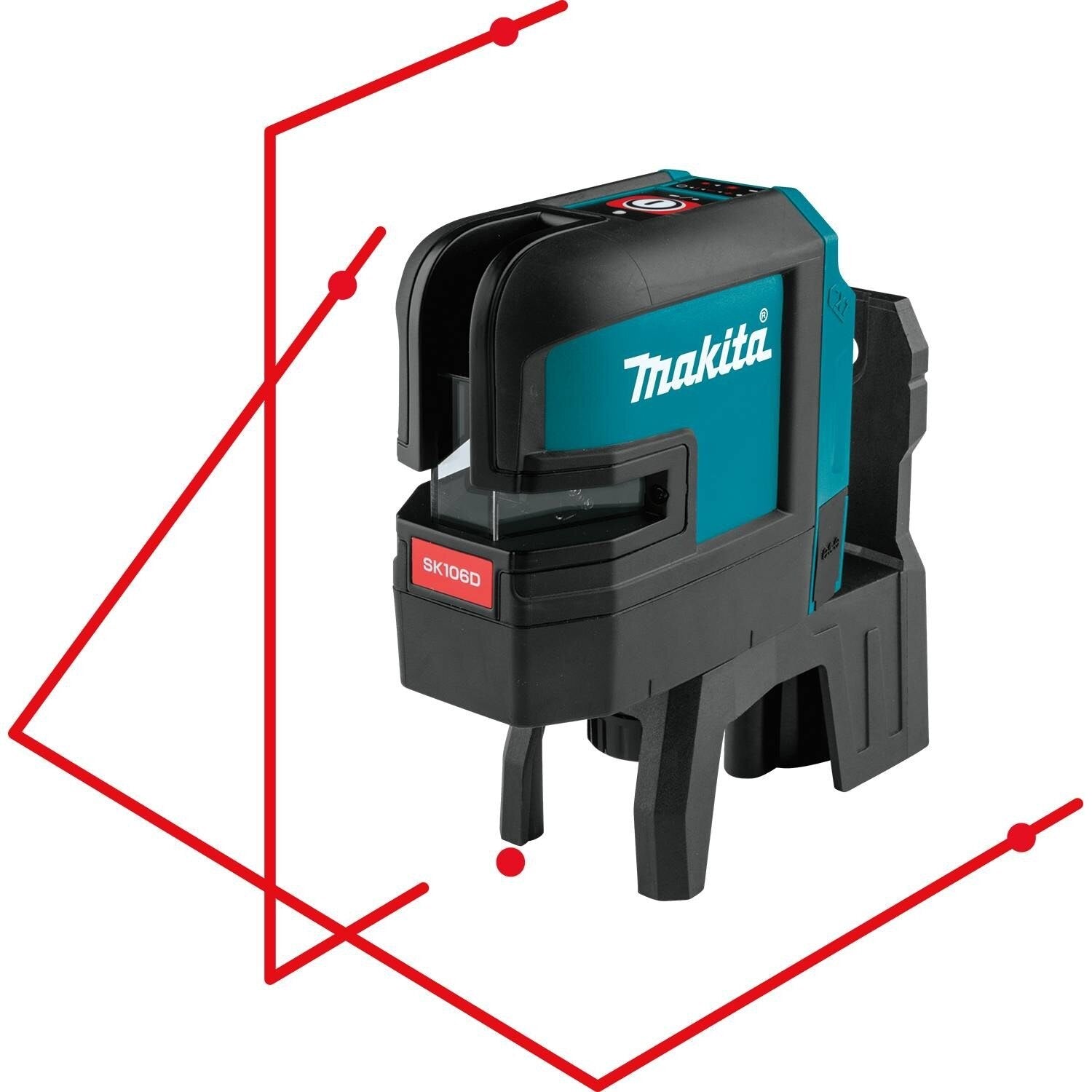

- Laser line fan length spans past the 90° position to provide 180° horizontal and 160° vertical lines for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Dust and water resistance with IP 54 rating for increased durability
- Highly protected laser windows are recessed into the housing for increased durability
- Rubberized housing over-mold for increased protection
- Simplified one button user interface for ease of operation
- Low laser brightness mode conserve battery power for extended run-time performance
- Power connector port allows 18V LXT® Lithium-Ion battery to be used as alternate power source with power source adapter (ADP05) and adapter cord (adapter and cord sold separately)

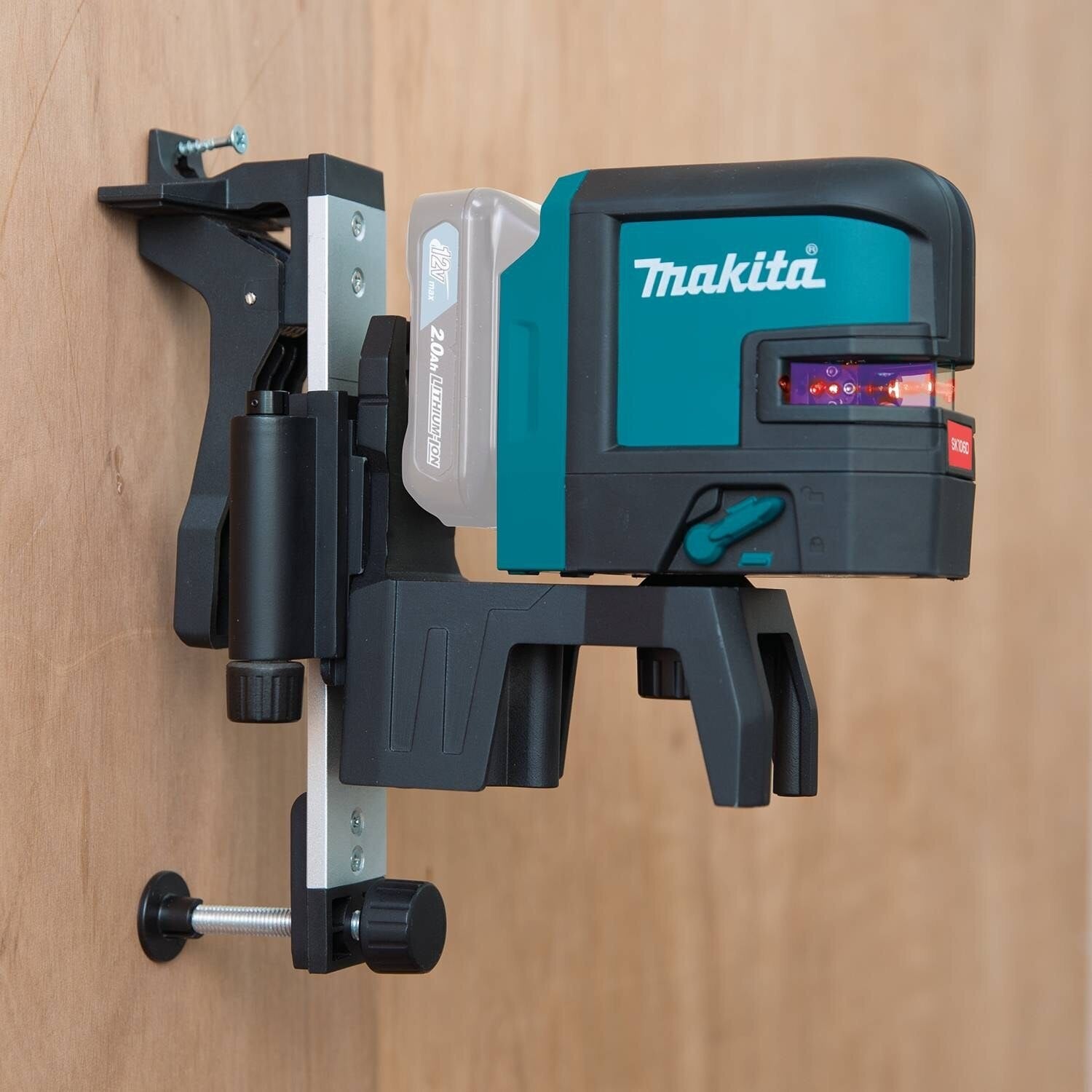

- Multi-purpose magnetic bracket with integrated 1/4 In. & 5/8 In. threads allow laser attachment to metal surfaces, wood surfaces or Makita tripods (TK0LM1001F and TK0LM5030F)
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Part of the expanding 12V max CXT™ series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style tools, batteries and chargers
Makita SK106DZ Specifications
| Battery | 12V max CXT™ Lithium-Ion |
| Line accuracy (at 33') | +/- 1/8" |
| Point beam direction | 4 point (up, down, left, right) |
| Line beam direction | 2 line (horizontal, vertical) |
| Working range (line) | 82' |
| Working Range with Detector | 262' |
| Operating time (hours) | 40 |
| Laser diode | Class II, 635 nm |
| Levelling range | 4° |
| Debris resistance | IP54 rating (dust & water resistance) |
| Auto shut off | No |
| Net Weight (with battery, sold separately) | 1.9 lbs. |
| Shipping Weight | 2.22 lbs. |
| UPC Code | 088381-851916 |
| UPC Code | 088381-851916 |
