Description
Makita VJ05Z Description

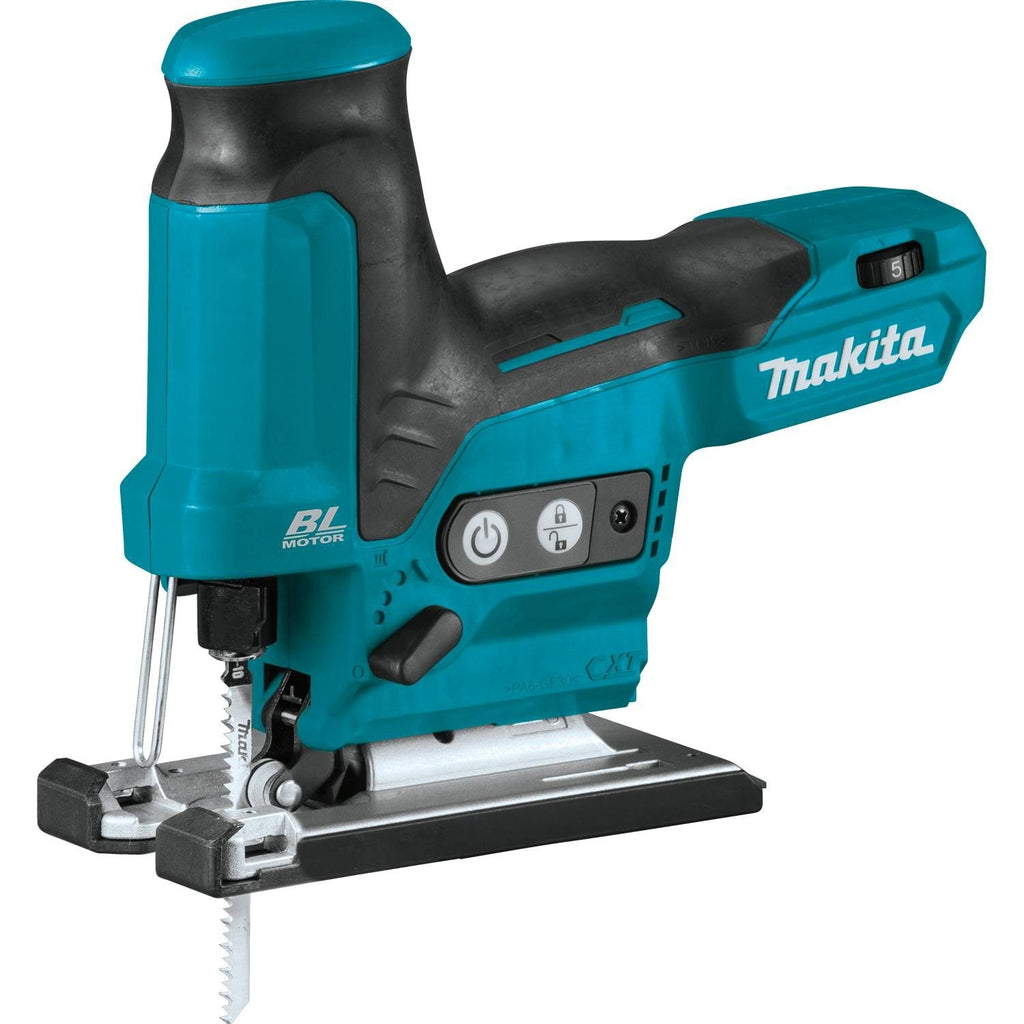

The Makita 12V max CXT Lithium-Ion Brushless barrel grip jig saw (VJ05Z, tool only, batteries and charger sold separately) delivers fast and efficient cutting, with a compact design that’s engineered for ease-of-use and maneuverability. The VJ05Z features a barrel grip design for closer-to-work cutting, and is ideal for woodworkers, cabinet makers, remodelers, and general contractors. Makita 12V max CXT Lithium-Ion slide-style batteries provide improved balance and ergonomics over pod-style batteries, and for convenience the batteries include an on-board L.E.D. charge level indicator (batteries sold separately). The VJ05Z has a compact and ergonomic design with less weight (only 3.9 lbs. with 12V max CXT 2.0 Ah battery, sold separately). The efficient Makita-built Brushless Motor is engineered for longer run time, increased power and speed, and longer tool life. The variable 5-speed control dial (800-3, 000 RPM) enables the user to match the speed to the application, and the 3 orbital settings plus straight cutting provide added versatility. The soft start suppresses start-up reaction for better accuracy, and the no-load speed reduction feature automatically reduces SPM for more accurate cutting starts. Convenience features include tool-less blade changes, large 2-finger variable speed trigger with lock-on button, dual L.E.D. lights, and a built-in dust blower to clear the line of cut.
Makita VJ05Z Includes
- Jigsaw Blade
Makita VJ05Z Features
- Makita-built Brushless Motor and 3 orbital settings plus straight cutting deliver faster and more accurate cuts in a variety of materials
- Variable 5-speed control dial (800-3,000 SPM) enables user to match the speed to the application
- Soft start suppresses start-up reaction for better accuracy
- No-load speed reduction feature automatically reduces SPM for more accurate cutting starts
- Efficient BL Brushless Motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- The BL Brushless Motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- The electronically-controlled BL Brushless Motor efficiently uses energy to match torque and SPM to the changing demands of the application
- Tool-less blade change system allows for faster blade installation and removal for increased productivity
- Tilting base for bevel cuts from 0° - 45°
- Heavy gauge aluminum base for smooth, accurate cutting and added durability
- Dual L.E.D. lights illuminate the work area
- Rubberized soft grip handle provides increased comfort on the job
- Built-in dust blower clears the line of cut for increased accuracy
- Weighs only 3.9 lbs. with battery (battery not included) for reduced operator fatigue
- Compact and ergonomic design at only 9-3/8 In. long
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style tools, batteries and chargers
Makita VJ05Z Specifications
| Length of Stroke | 7/8" |
| Max. Cutting Capacity at 90° (aluminum) | 13/16" |
| Max. Cutting Capacity at 90° (mild steel) | 3/8" |
| Max. Cutting Capacity at 90° (wood) | 3-1/2" |
| Strokes Per Minute (variable speed) | 800 - 3,000 SPM |
| Blade Shank | "T" Tang |
| Battery | 12V max CXT™ Lithium-Ion |
