Makita XAG20Z Description

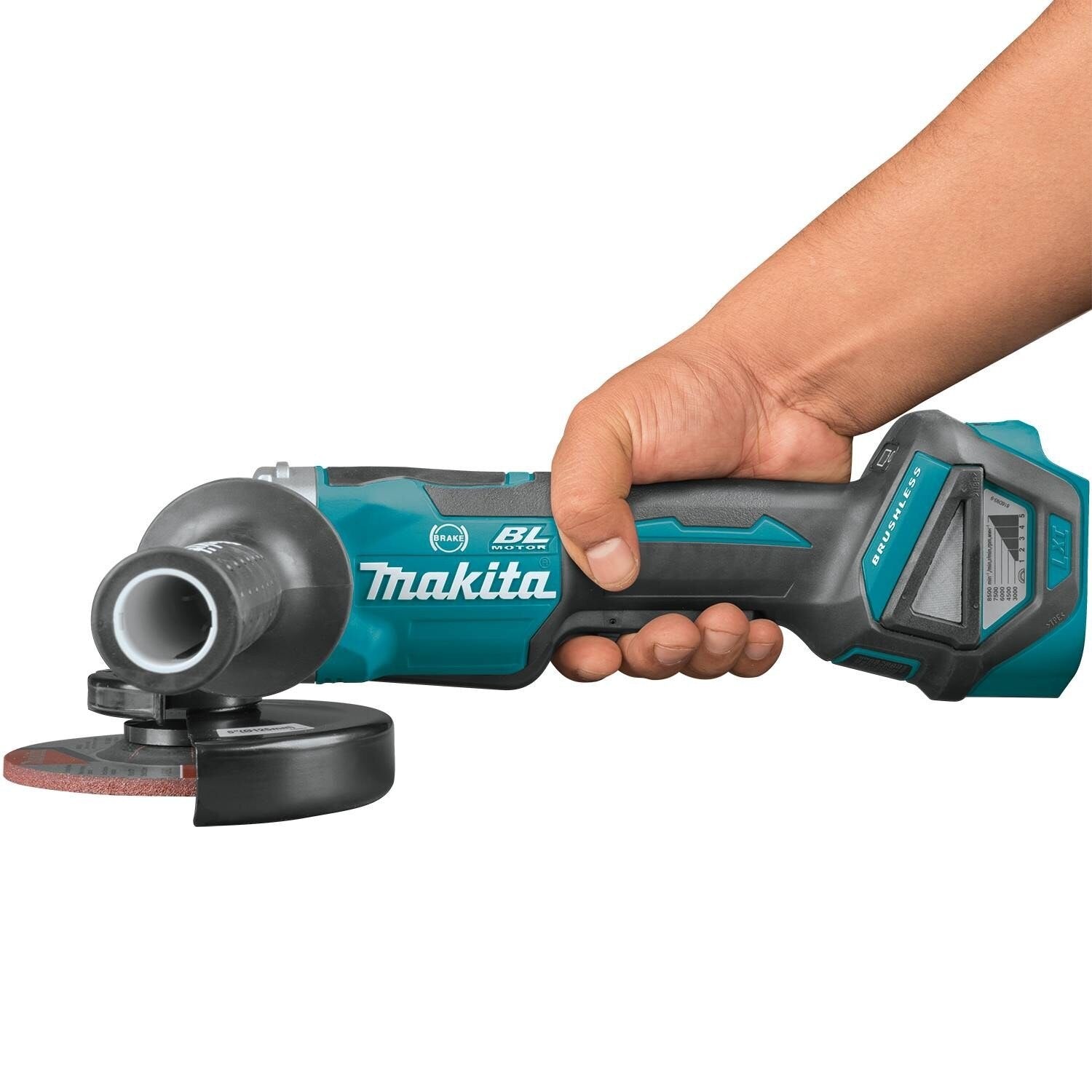

Makita delivers corded grinding performance without the cord with the 18V LXT® Lithium-Ion Brushless 4-1/2 In. / 5 In. paddle switch Cut-Off/Angle Grinder with electric brake (tool only, battery and charger sold separately). It's powered by a Makita Brushless Motor for longer run time, increased power and speed, and longer tool life. For the most demanding applications, Makita's exclusive Automatic Speed Change™ technology automatically adjusts speed and torque during operation for optimal performance. The XAG20Z is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less, and electronic torque control that turns the motor off if rotation speed suddenly slows or the wheel is forced to a stop. The variable speed control dial allows manual RPM adjustment (3,000 – 8,500), allowing the user to match the speed to the application.
Makita XAG20Z Includes
- (1) 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- (1) 5" Cut-Off Wheel Guard (126686-3)
- (1) 5" Tool-less Wheel Guard (126687-1)
- (1) Lock Nut Wrench (782424-9)
- (1) Side Handle (158237-4)
Makita XAG20Z Features
- Electric Brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity

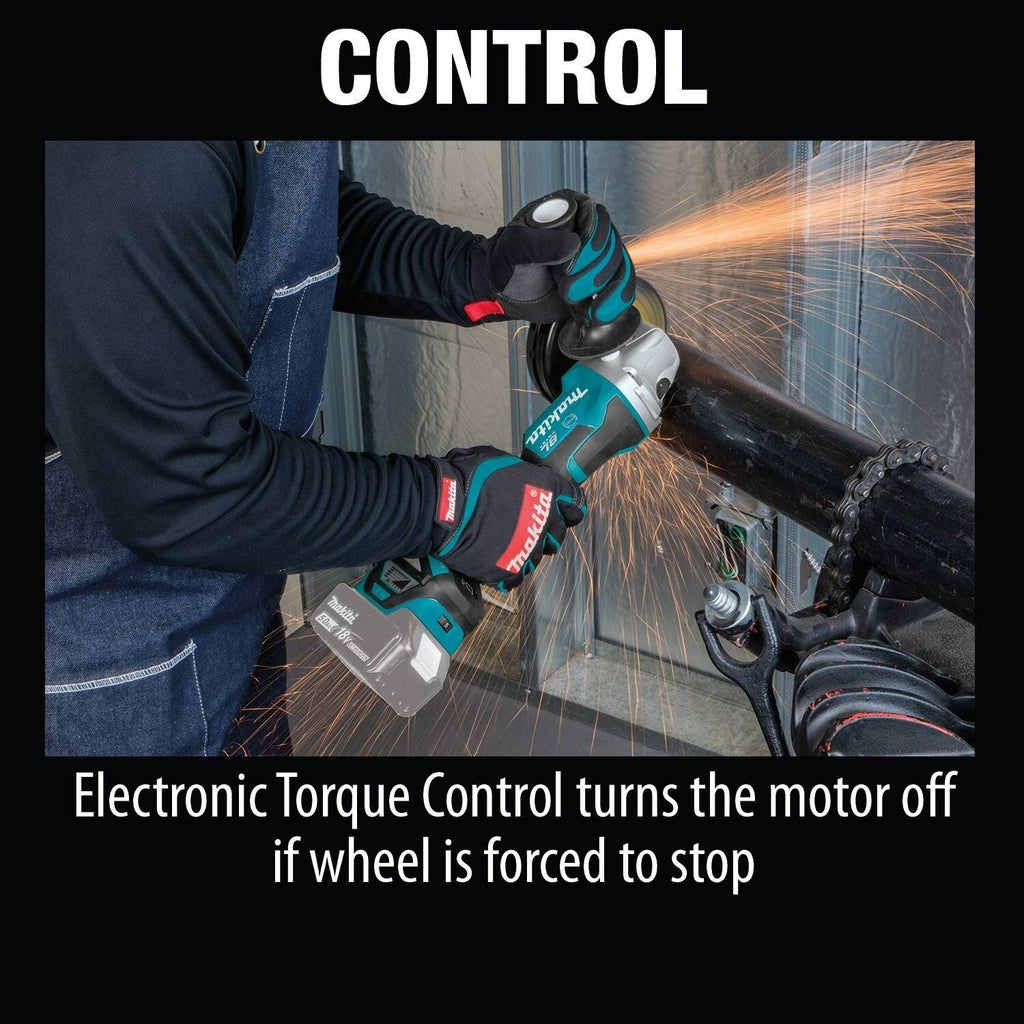

- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Automatic Speed Change™ technology adjusts speed and torque during operation for optimum performance

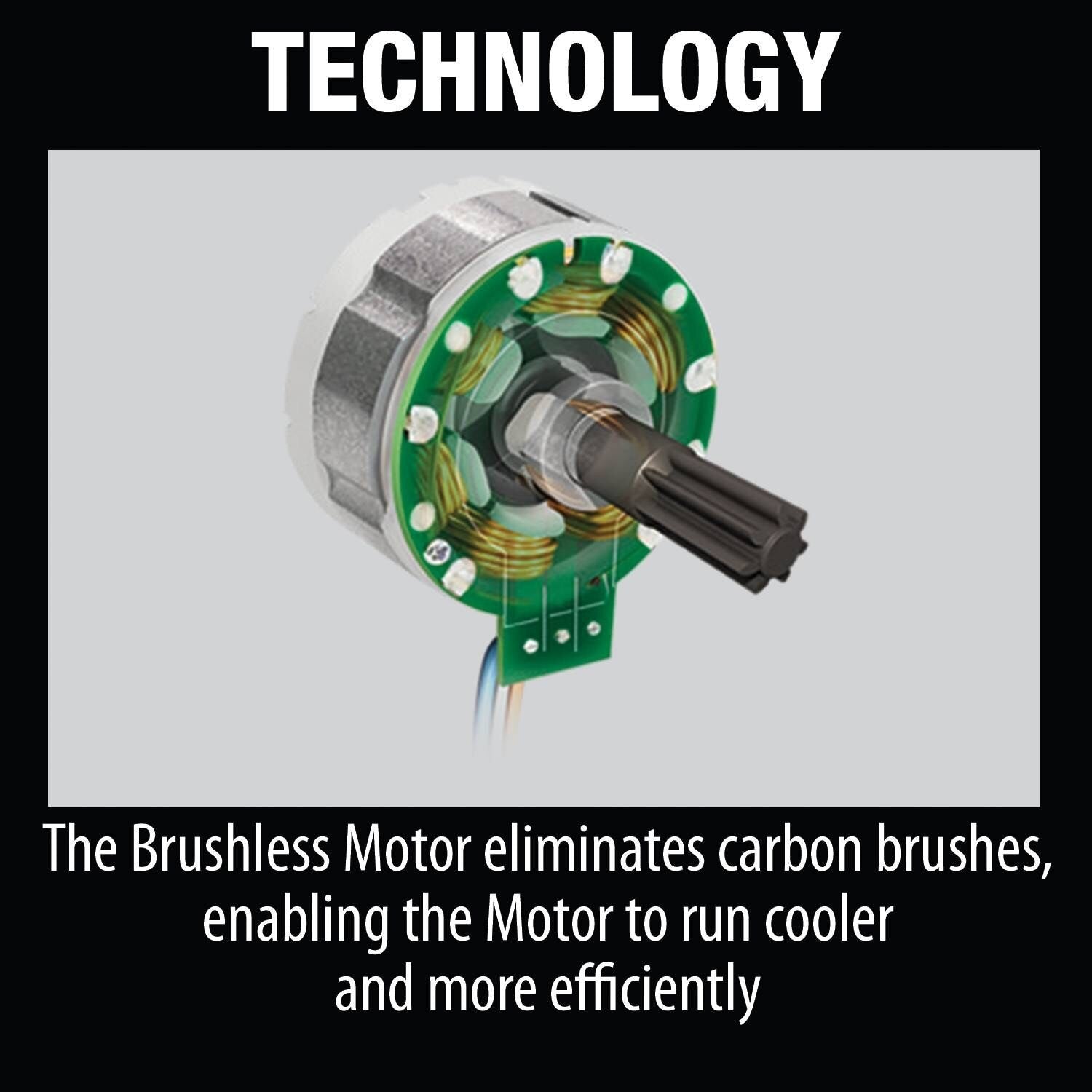

- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life

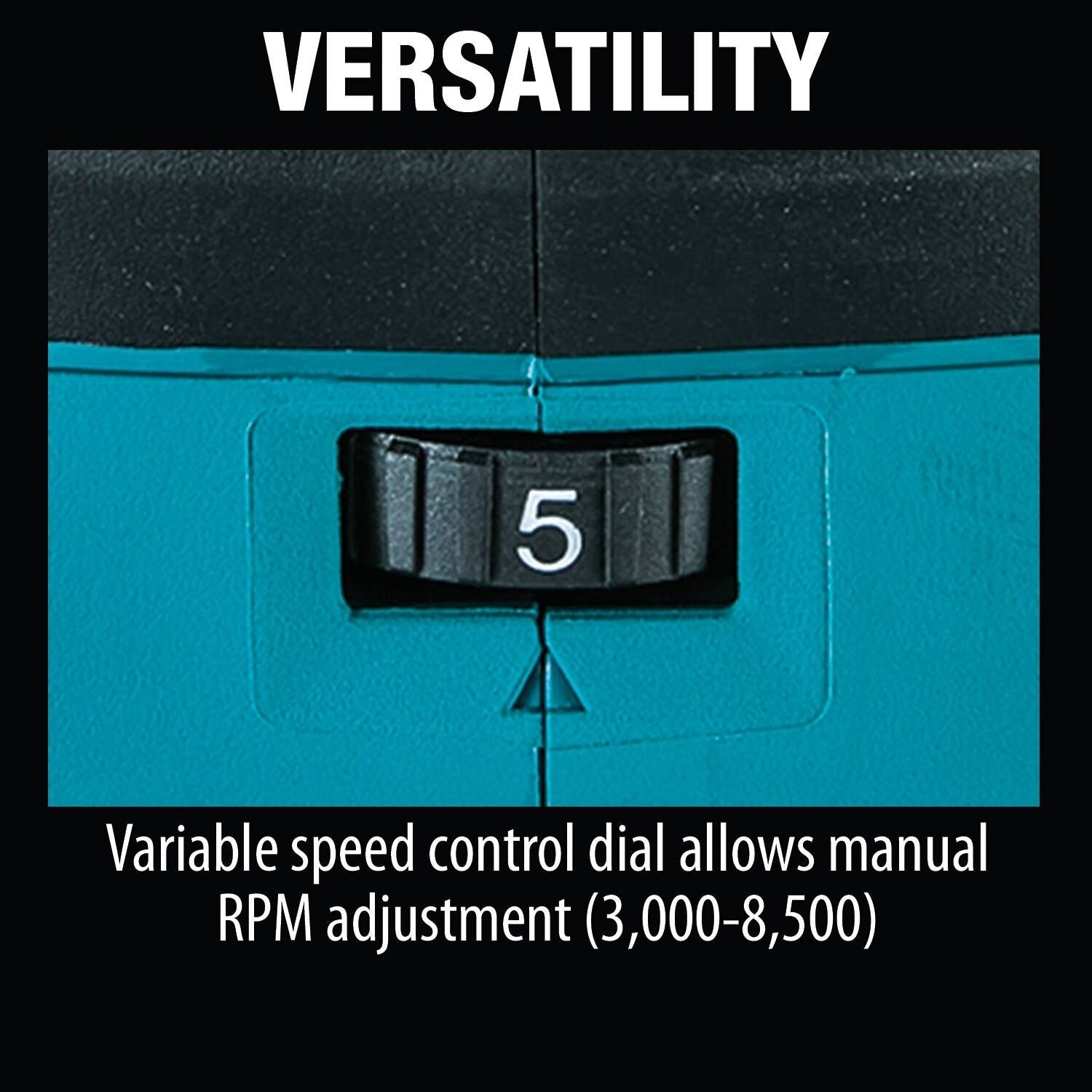

- Variable speed control dial allows manual RPM adjustment (3,000-8,500) to match the speed to the application

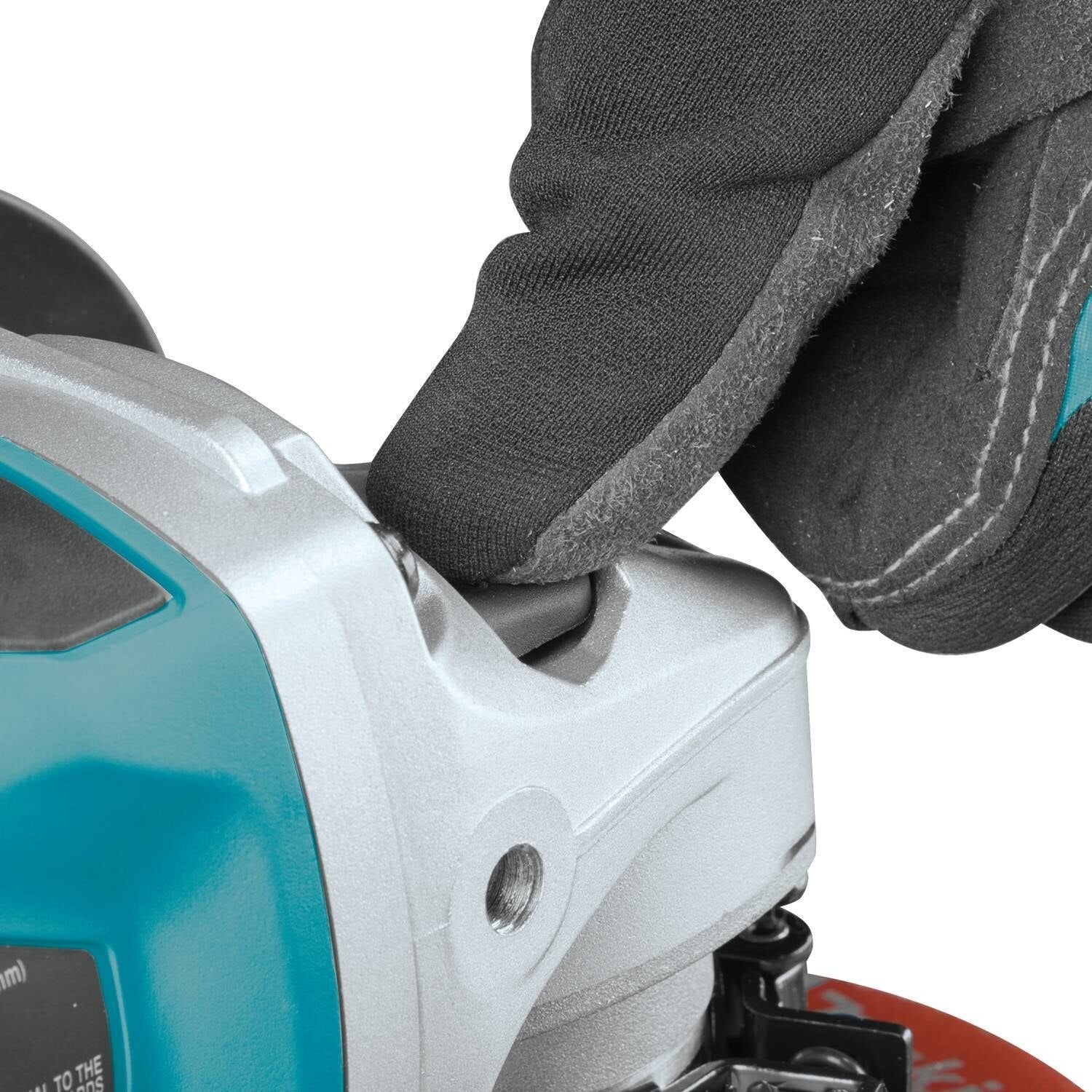

- Paddle switch with no lock-on for operator convenience
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Anti-restart protection engineered to prevent motor start up when battery is inserted with the paddle switch in the on position
- Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Makita XAG20Z Specifications
| Wheel Diameter | 5" |
| Battery | 18V LXT® Lithium-Ion |
| No Load Speed (variable speed) | 3,000 - 8,500 RPM |
| Spindle Thread | 5/8" - 11 UNC |
| Lock-On | No |
| Lock-Off | Yes |
| Switch Type | Body grip/paddle |
| Electric Brake | Yes |
| Variable speed control dial | Yes |
| Overall Length | 15" |
| Net Weight (with battery) | 5.7 lbs. |
| Power Type | Cordless |
| Shipping Weight | 7.6 lbs. |
