Description
Makita XPP01ZK Includes
- (1) Round Punch, 15/32" (12 mm), XPP01 (SC05340100)
- (1) Round Die, 15/32" (12 mm) - SB, XPP01 (SC00000215)
- (1) Oil, 35 ml (SC00000106)
- (1) Hex Wrench, 3mm (SC00000103)
- (1) Hex Wrench, 4mm (SC00000104)
- (1) Hex Wrench 8mm
- (1) Spanner Wrench 8mm/10mm
- (1) Nut Bar

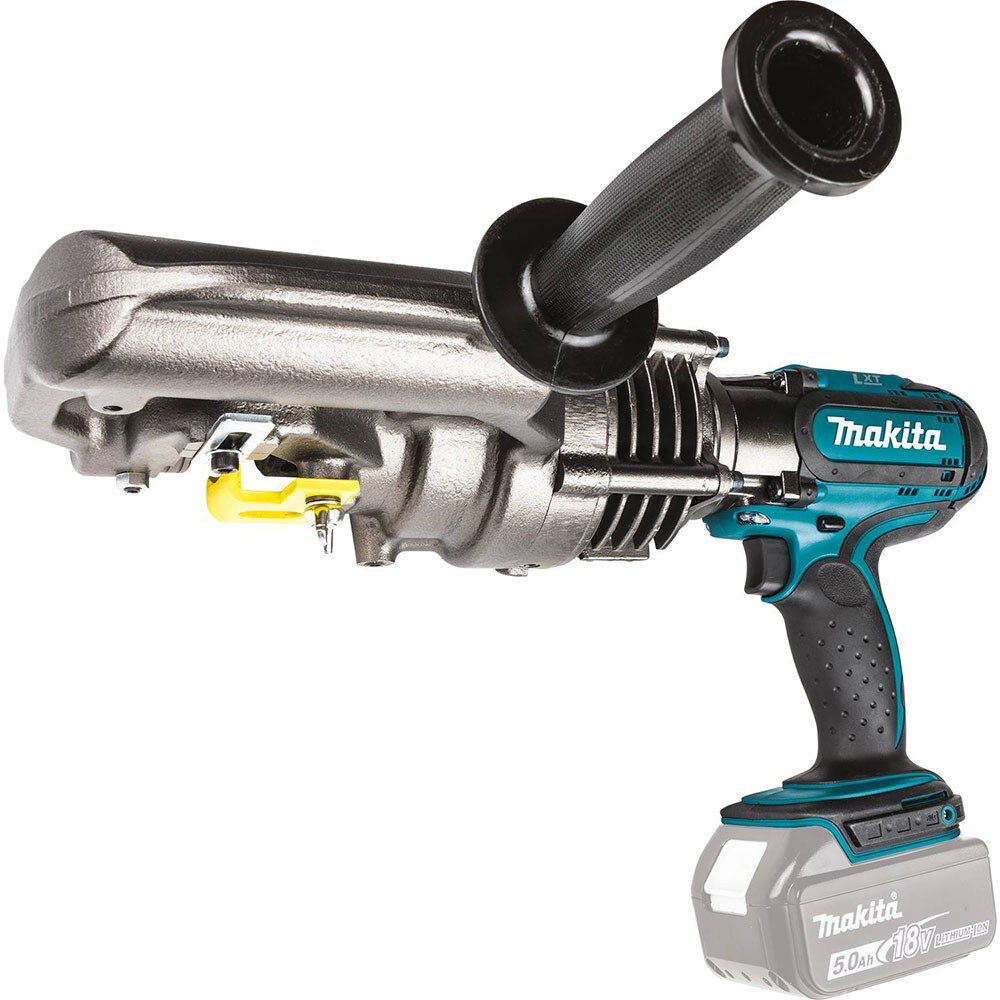

- (1) Side Handle
- (1) Tool CaseFEATURES:
- Makita 18V LXT® Lithium-Ion battery allows for complete cordless hole punching mobility without the hassles of a cord
- Punches up to (180) 25/32" diameter holes in 1/4" thick steel with a 5.0Ah 18V LXT® Battery (battery not included)*
- Punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation

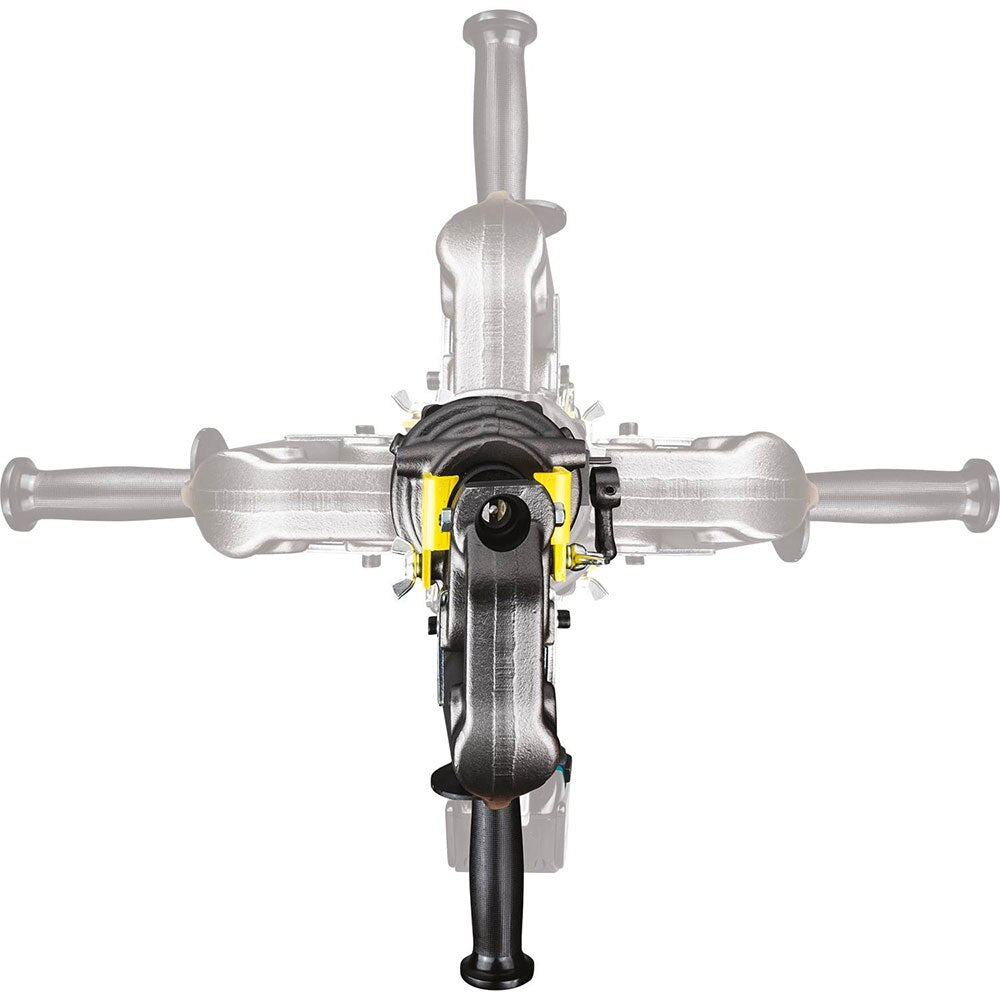

- Grip handle rotates 360° allowing for optimal positioning in a variety of spaces

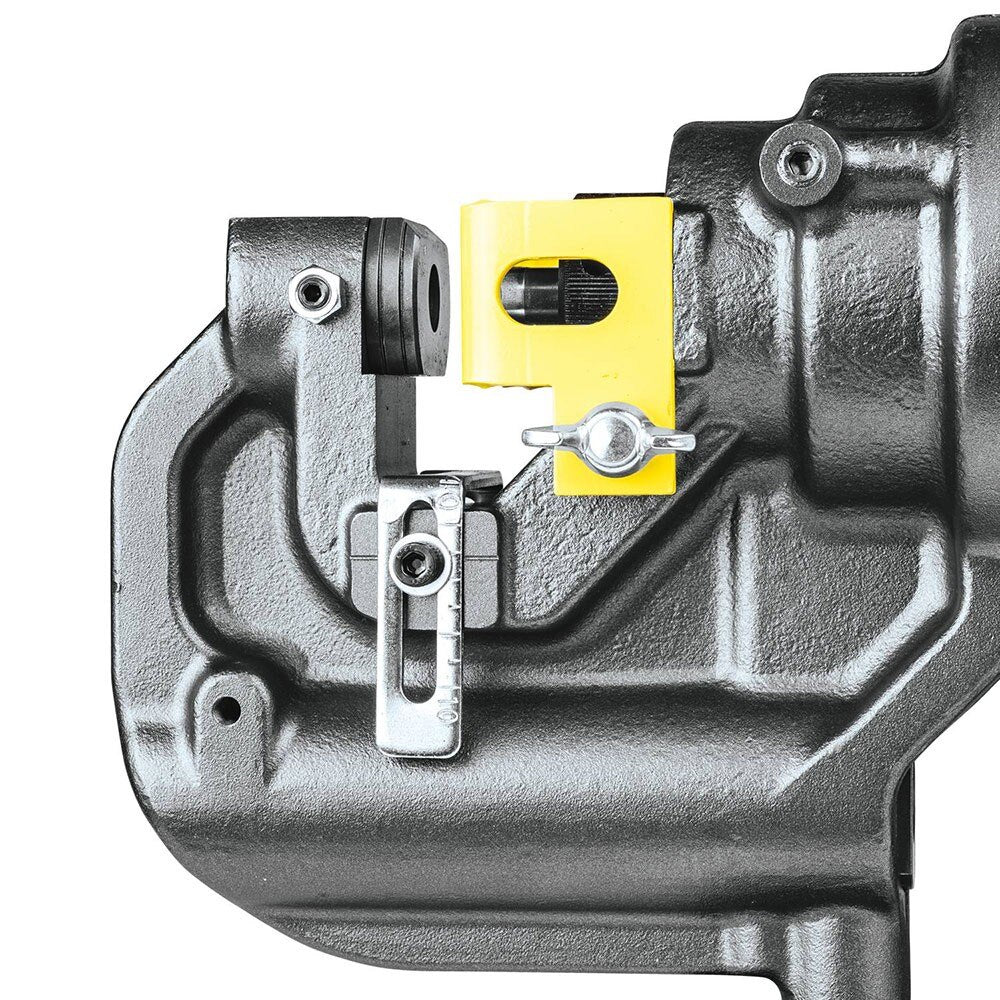

- Adjustable depth guide allows for punch location adjustment up to 1-37/64" (40 mm) from the edge of the workpiece
- Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel

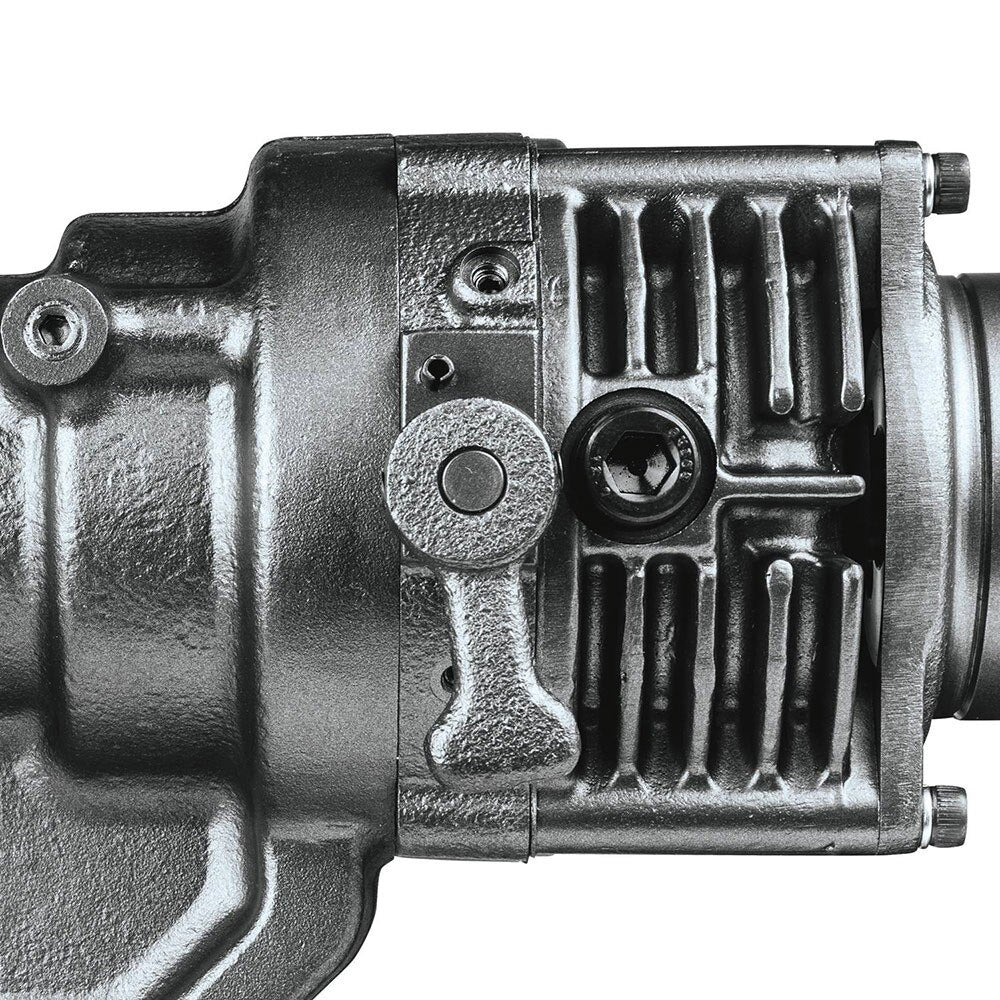

- Return lever allows for the punch to be retracted during mid operation
- Fast and effortless hole punching speed in under 5 seconds

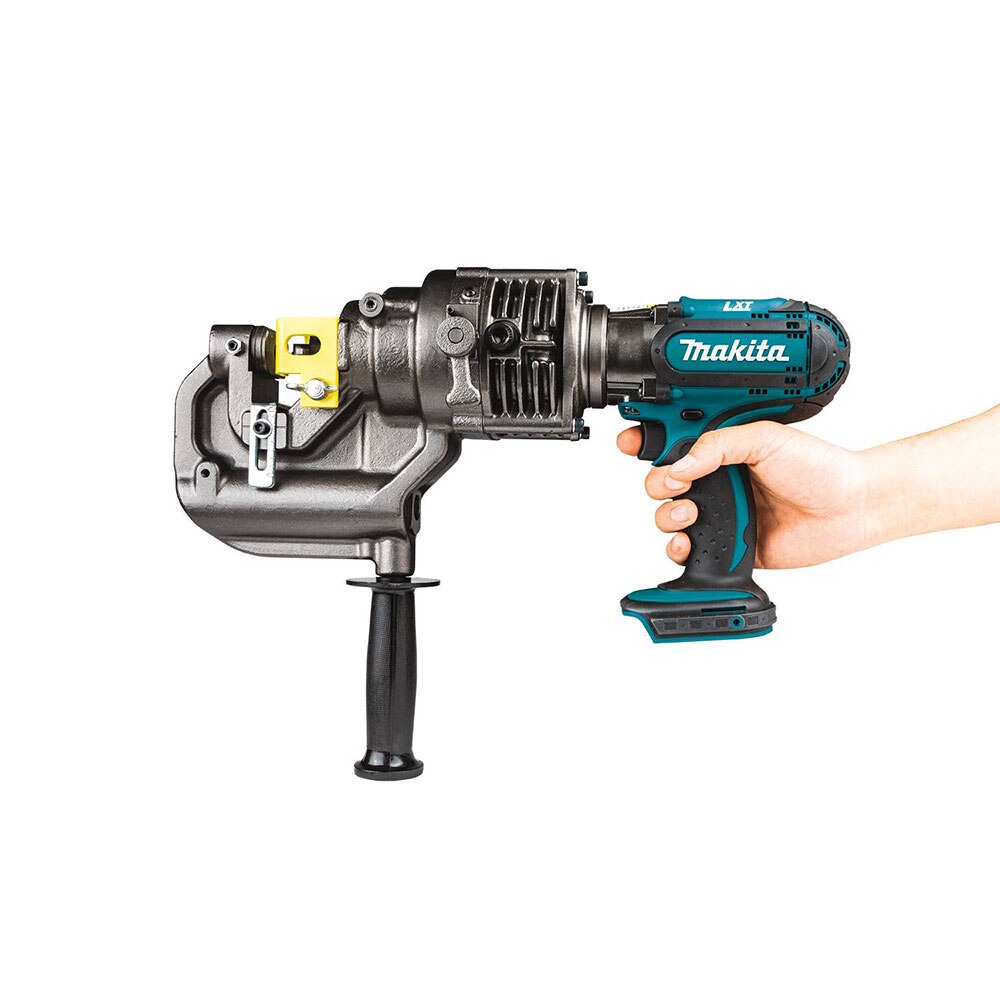

- Ergonomic pistol grip handle with rubberized soft grip provides increased comfort on the job
- Built-in L.E.D. light illuminates the work area
- All metal gears and gear housing for maximum job site durability
- Convenient side handle for additional support
- Weighs only 23.8 lbs. with battery for reduced operator fatigue (battery not included)
- 3-year limited warranty
- Only use genuine Makita batteries and chargers

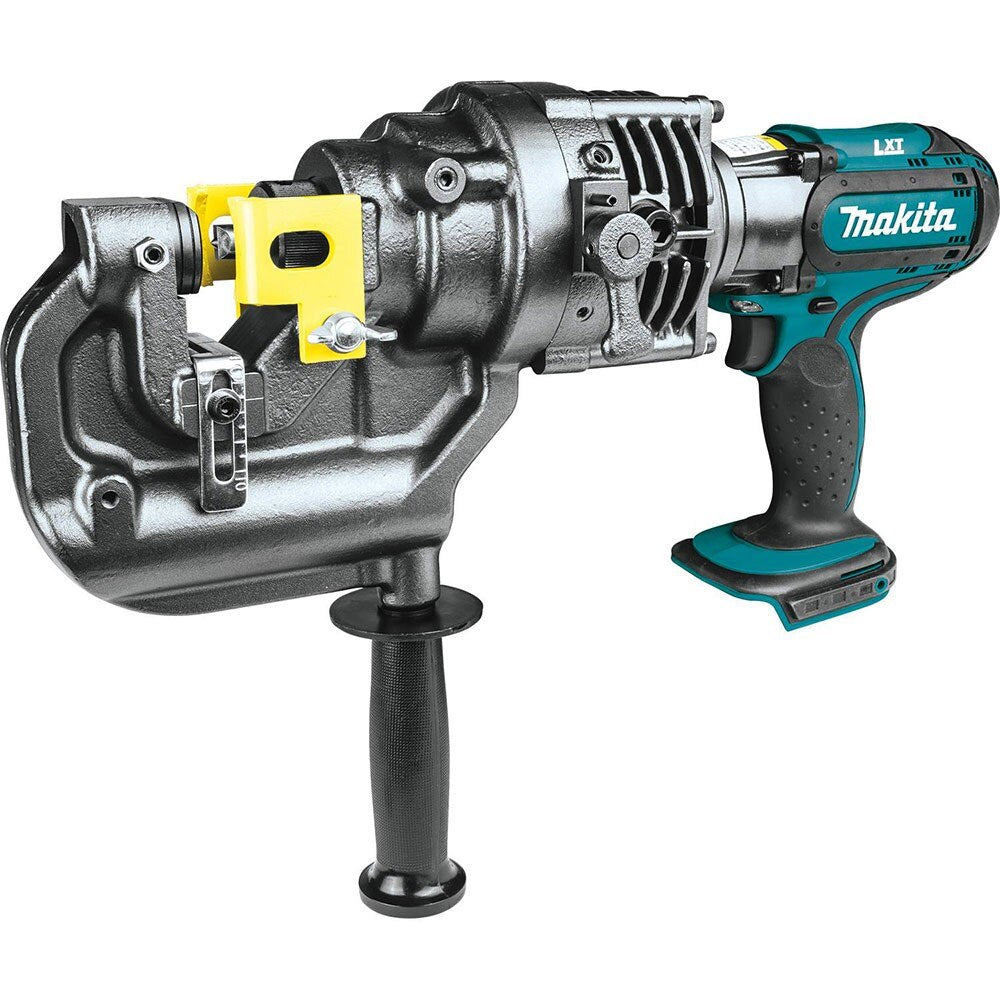

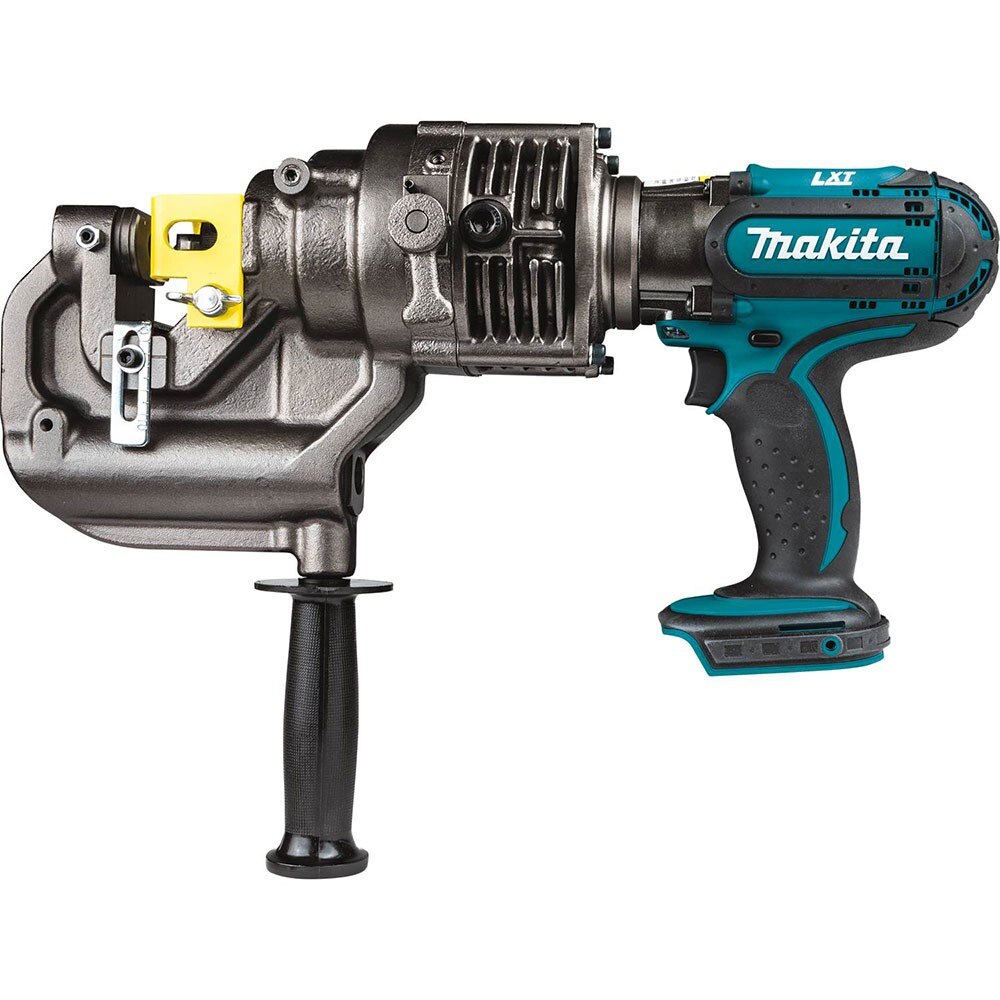

- *Tested in mild steel of 65,000 PSI tensile strength with BL1830B 18V LXT® Lithium-Ion 3.0Ah batteryPunch holes in ¼” metal in under 5 seconds with the 18V LXT® Lithium-Ion Cordless 5/16" Hole Puncher, Tool Only (XPP01ZK). The XPP01ZK allows hole punching with complete cordless mobility. It can punch up to 180 20MM (25/32”) diameter holes in 15/64” thick steel with a 5.0Ah 18V LXT Battery (sold separately). The punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation. For select applications, hole punching just became fast and effortless! The ergonomic grip handle rotates 360°, allowing for optimal positioning in a variety of spaces. It features a rubberized soft grip for increased comfort on the job and a convenient side handle for additional support. The XPP01ZK is ideal for fabrication, HVAC, plumbing, electrical, mechanical and many more applications. It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
Makita XPP01ZK Specifications
| Battery | 18V LXT® Lithium-Ion |
| Maximum Hole Diameter (Round) | 25/32" |
| Maximum Hole Diameter (Oblong) | 9/16" x 53/64" |
| Max. Hole Depth | 5/16" |
| Maximum Throat Depth (in.) | 1-37/64" |
| Overall Length | 12-27/64" |
| Net Weight (with battery) | 23.8 lbs. |
| Shipping Weight | 35.28 lbs. |
| Power Type | Cordless |
| UPC Code | 088381-896269 |
