Description
Makita XRH10PTW Description
The Makita 18V X2 LXT® (36V) Brushless 1-1/8 In. AVT® rotary hammer (accepts SDS-Plus bits) is a cordless concrete solution that’s loaded with advanced engineering for maximum efficiency and convenient dust extraction. It’s powered by two 18V LXT® batteries and an efficient Brushless Motor for maximum power, speed and run-time for corded demands, without the cord. With X2 LXT technology, the rotary hammer delivers up to 140-1/2 In. x 2-3/8 In. holes per charge when using two 18V LXT 5.0 Ah batteries. The rotary hammer includes an OSHA table 1 compliant on-board dust extractor attachment with filter-cleaning mechanism designed to maintain optimum suction efficiency. The trigger-activated dust extractor is powered by a separate motor which increases suction efficiency without sacrificing the performance of the rotary hammer. The rubber suction gasket is engineered to provide consistent contact with the work surface, where the dust is channeled to the clear dust container with HEPA filter which captures 99.97% of dust particles (size .3 microns). An added feature is a 3-second delay on the vacuum motor: after the trigger is released, the 3-second extended suction collects remnant dust and particles as the bit is being pulled out of the work surface, making it ideal for overhead drilling. The dust extractor attachment is removable and the rotary hammer can be used with a separate attachment and dust extractor (sold separately). The rotary hammer is AWS™ capable with auto-start wireless system, which utilizes Bluetooth® technology for wireless power-on/off communication between tool and equipped dust extractor. To activate AWS, simply install the auto-start wireless transmitter (198901-5, sold separately) and synchronize with an AWS-equipped dust extractor (XCV08, sold separately). For reduced vibration, it’s equipped with anti-vibration technology (AVT®).

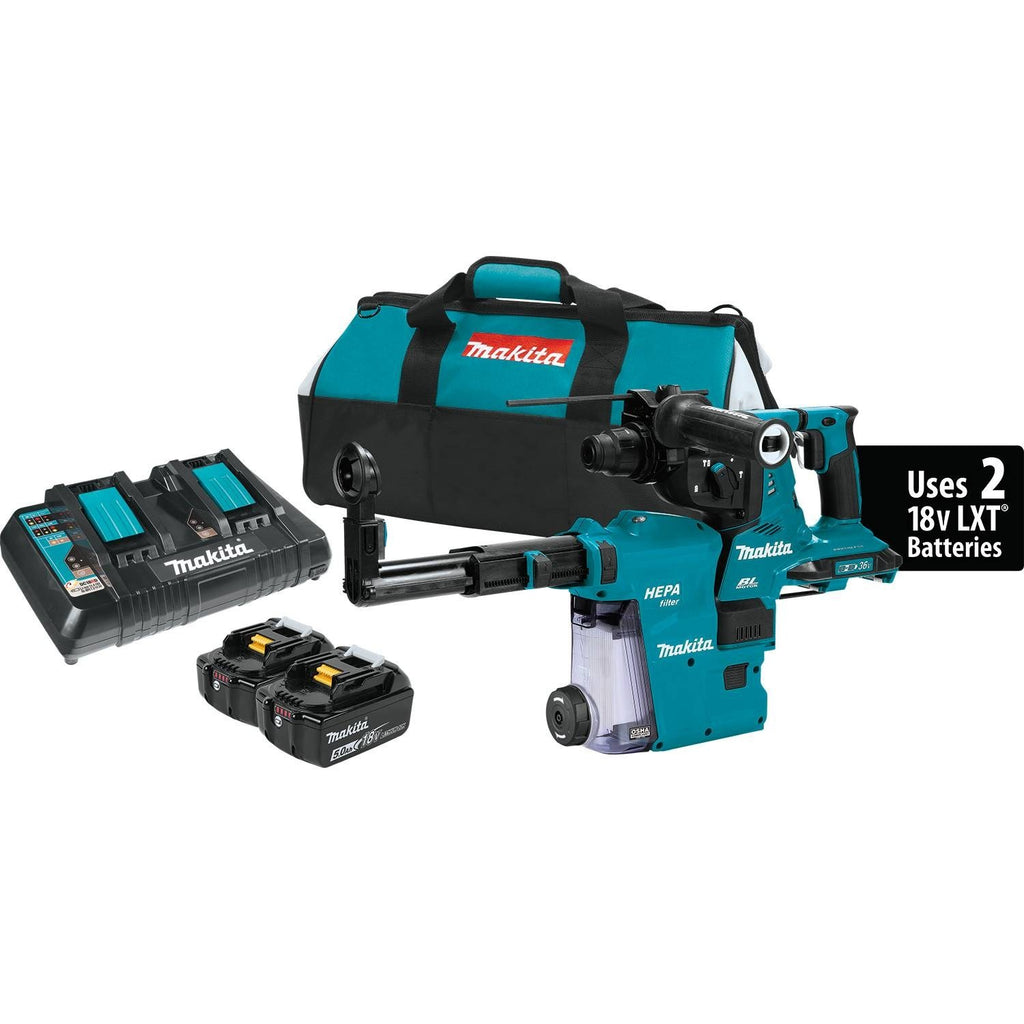

Makita XRH10PTW Includes
- (1) 18V X2 LXT® (36V) Brushless 1-1/8" AVT® Rotary Hammer, AFT®, AWS™ Capable (XRH10ZW)
- (2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
- (1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
- (1) Side Handle
- (1) Depth Gauge
- (1) Tool Bag
Makita XRH10PTW Features
- X2 LXT® technology delivers up to 140 1/2" x 2-3/8" holes per charge using two 18V LXT® 5.0Ah batteries
- Powerful BL™ Brushless Motor delivers 0 to 980 RPM, 0-5,000 BPM and 2.3 ft. lbs. of impact energy to handle the most demanding applications

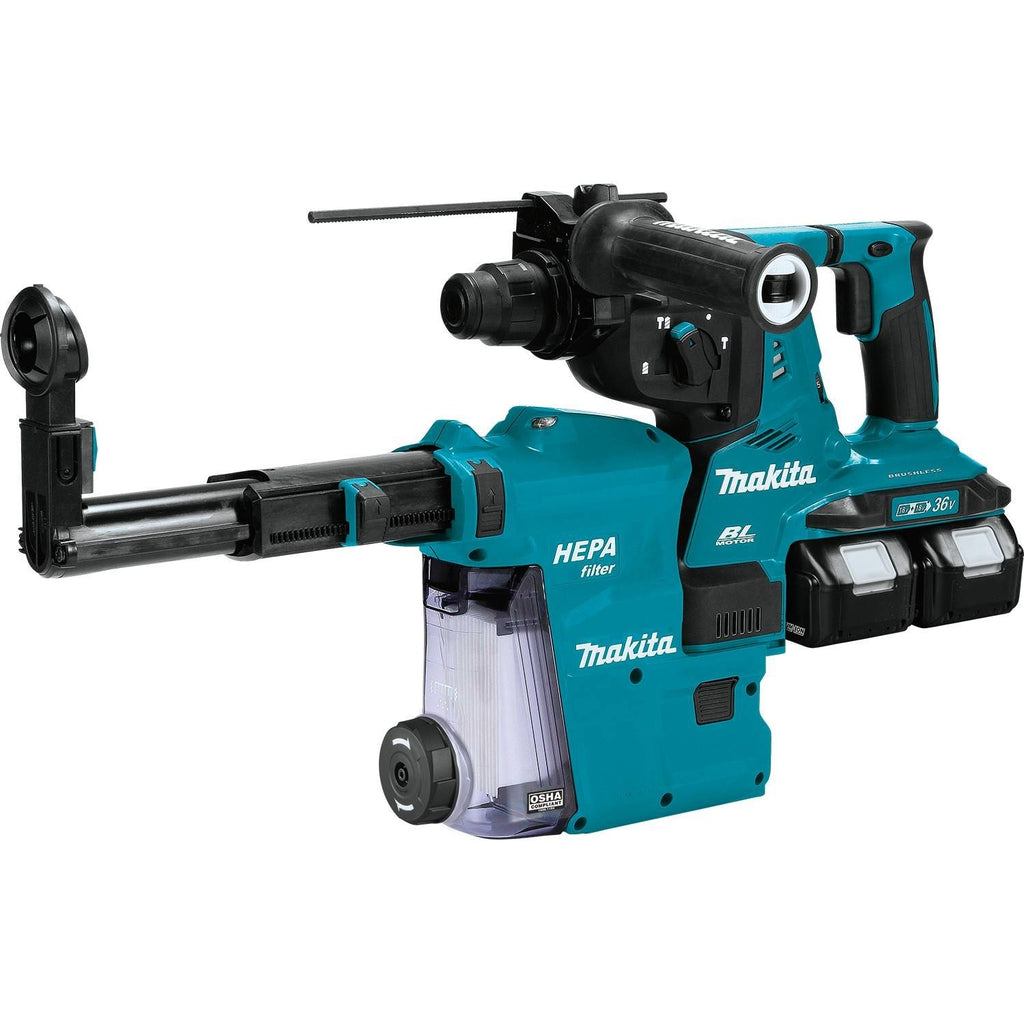

- OSHA table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
- Auto-start wireless system (AWS™) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor
- AWS™ capable with auto-start wireless transmitter (transmitter sold separately)
- Active Feedback-sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
- Anti-vibration technology (AVT®) is an active internal counterbalance system which is engineered to reduce vibration for increased comfort
- Vibration-absorbing back handle and side handle further reduce vibration and increase comfort on the job
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Electric brake reduces rotation slow down time for maximum productivity

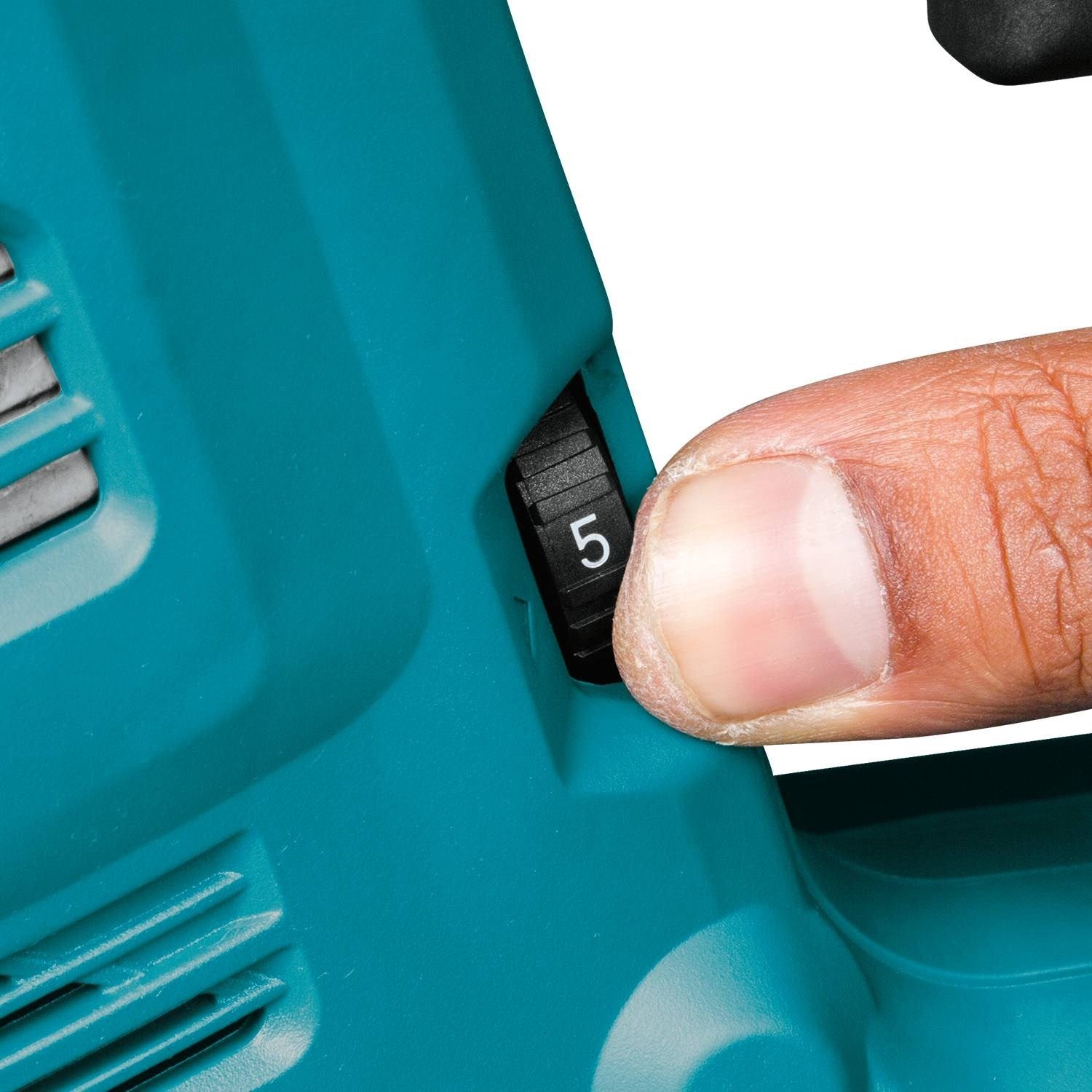

- Variable speed dial and trigger enables user to match the speed to the application

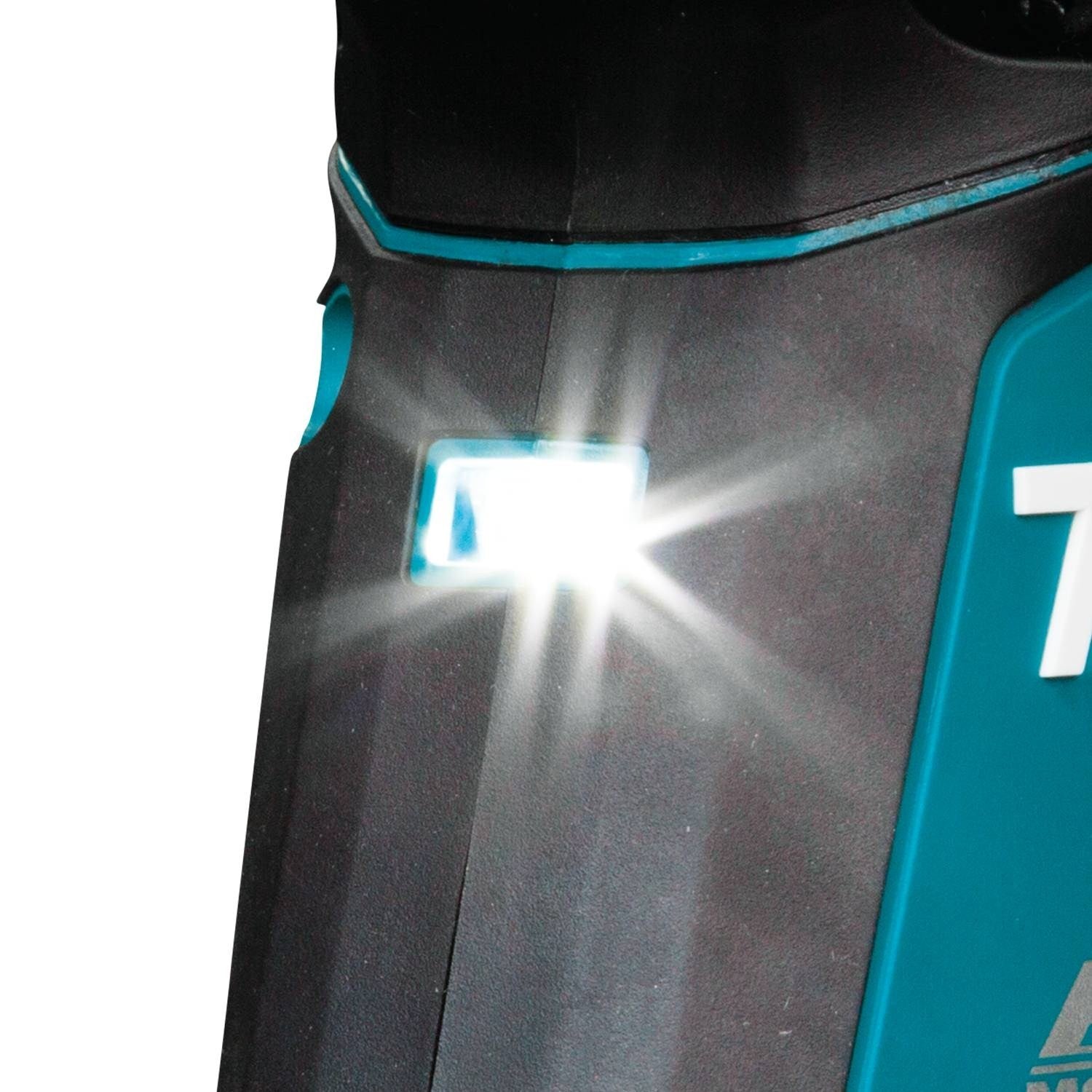

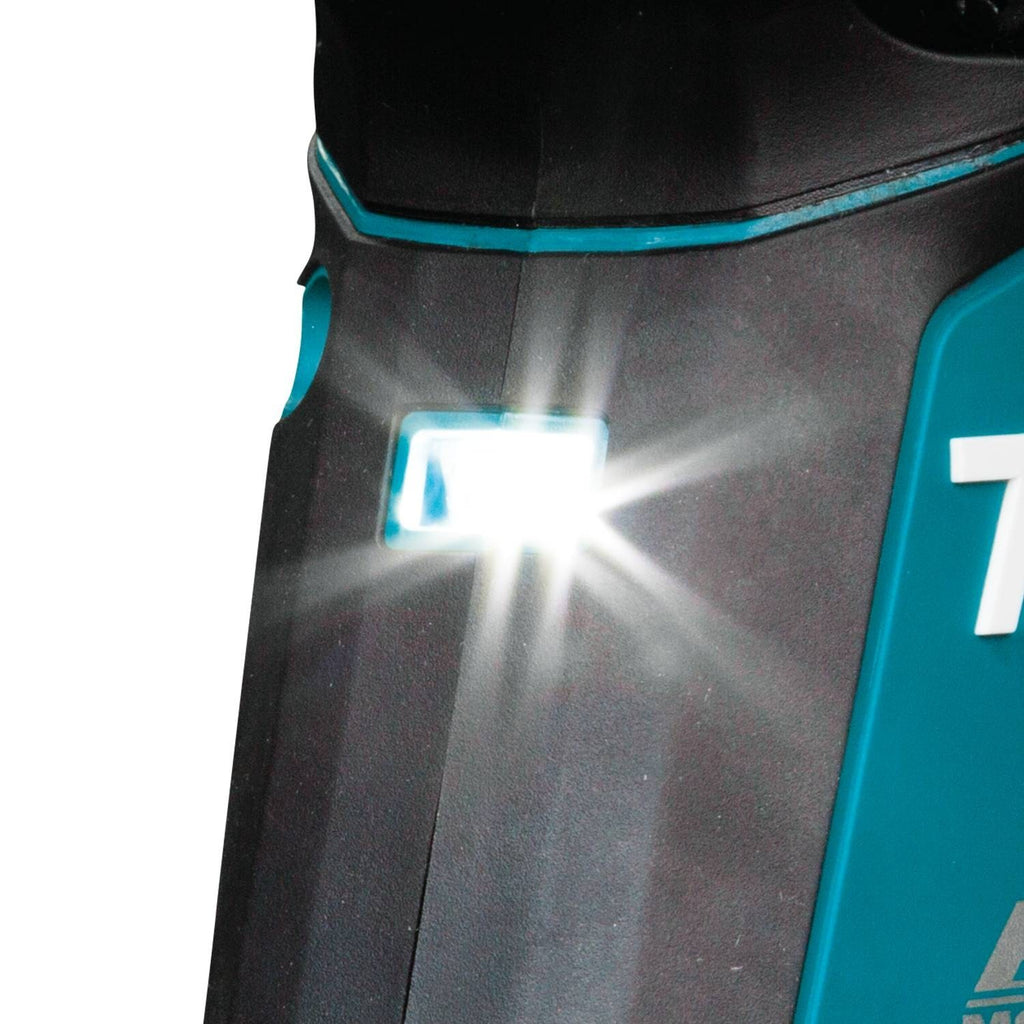

- Built-in L.E.D. light with an independent on/off illuminates the work area

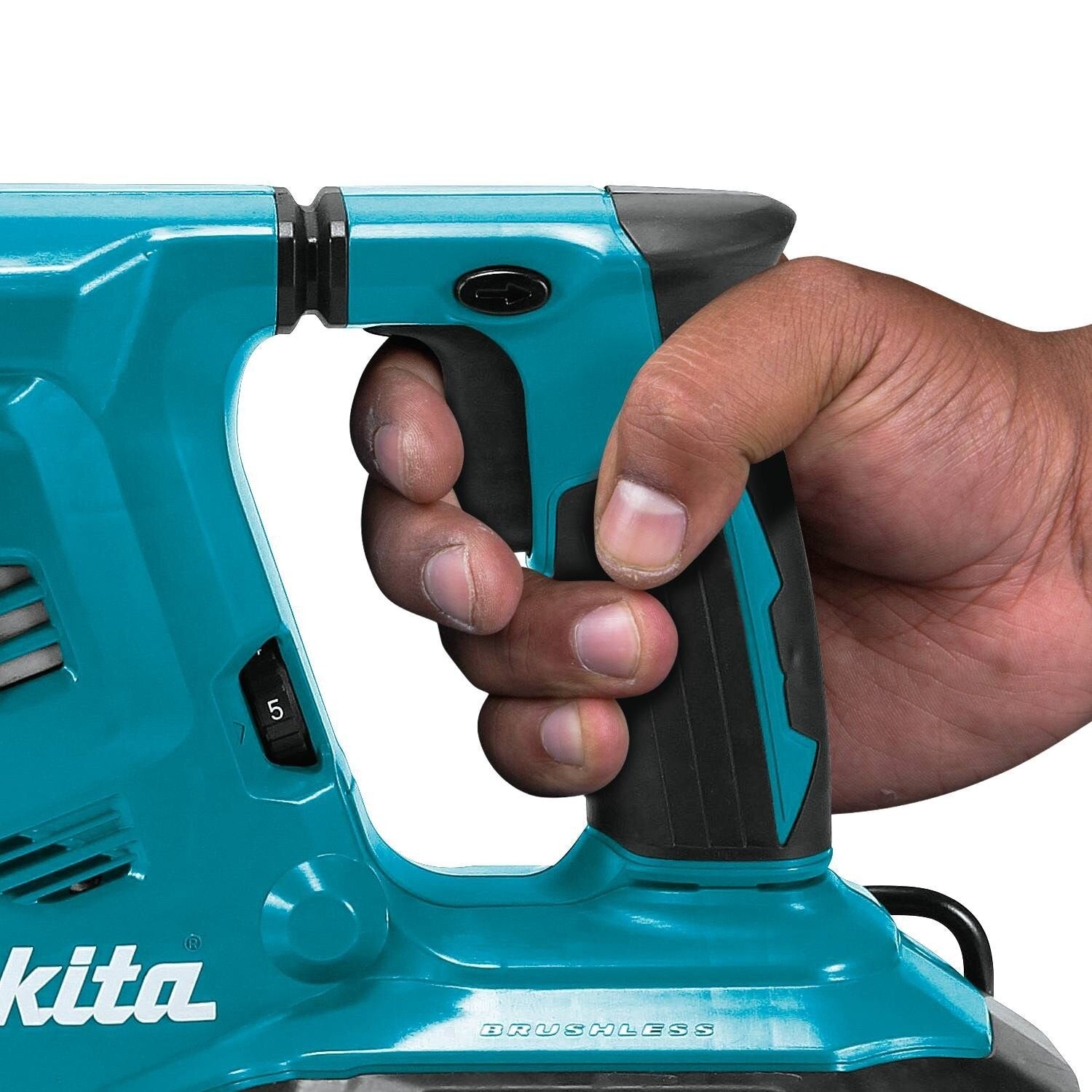

- Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job

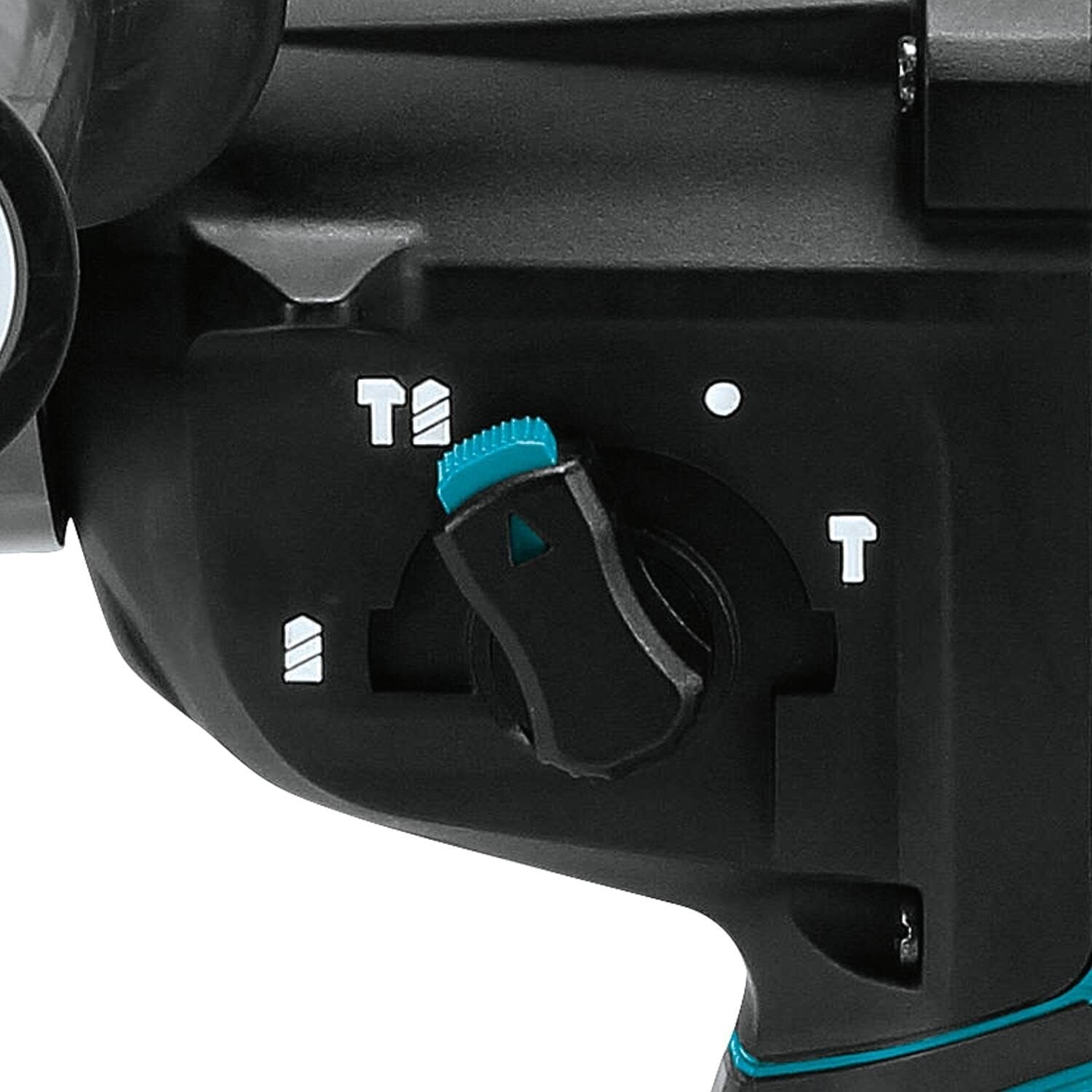

- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications

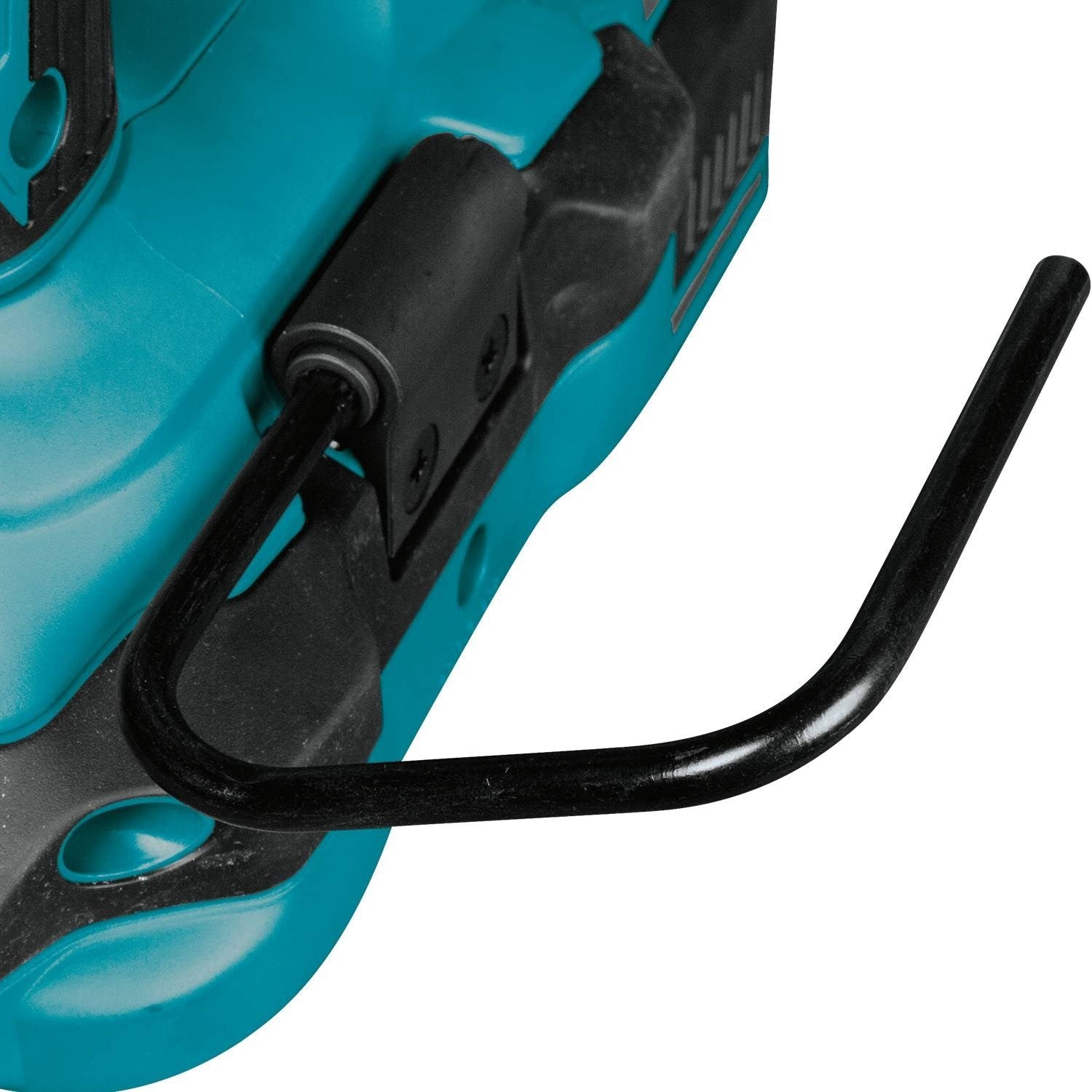

- Retractable tool hook secures the tool when not in use
- Extreme protection technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
Makita XRH10PTW Specifications
| Max. Capacity (concrete drilling) | 1-1/8" |
| Optimum Range (concrete drilling) | 3/16" - 5/8" |
| Max. Capacity (concrete drilling w/ core bit) | 2-1/8" |
| Impact Energy (ft.lbs.) | 2.3 |
| Impact Energy (Joules) | 3.2 J |
| Blows Per Minute (variable speed) | 0 - 5,000 BPM |
| No Load Speed (variable speed) | 0 - 980 RPM |
| Vibration Control | Yes |
| Vibration (m/s²) | 9 |
| Battery | 2X 18V LXT® Lithium-Ion |
| Overall Length | 14-3/4" |
| Net Weight (with battery) | 11 lbs. |
| Bit Type | Accepts SDS-PLUS |
| Power Type | Cordless |
| Power Type | Cordless |
| Shipping Weight | 23.02 lbs. |
| Automatic-start Wireless System (AWS™) | Capable (transmitter sold separately) |
| Active Feedback-sensing Technology (AFT®) | Yes |
| UPC Code | 088381-865159 |
